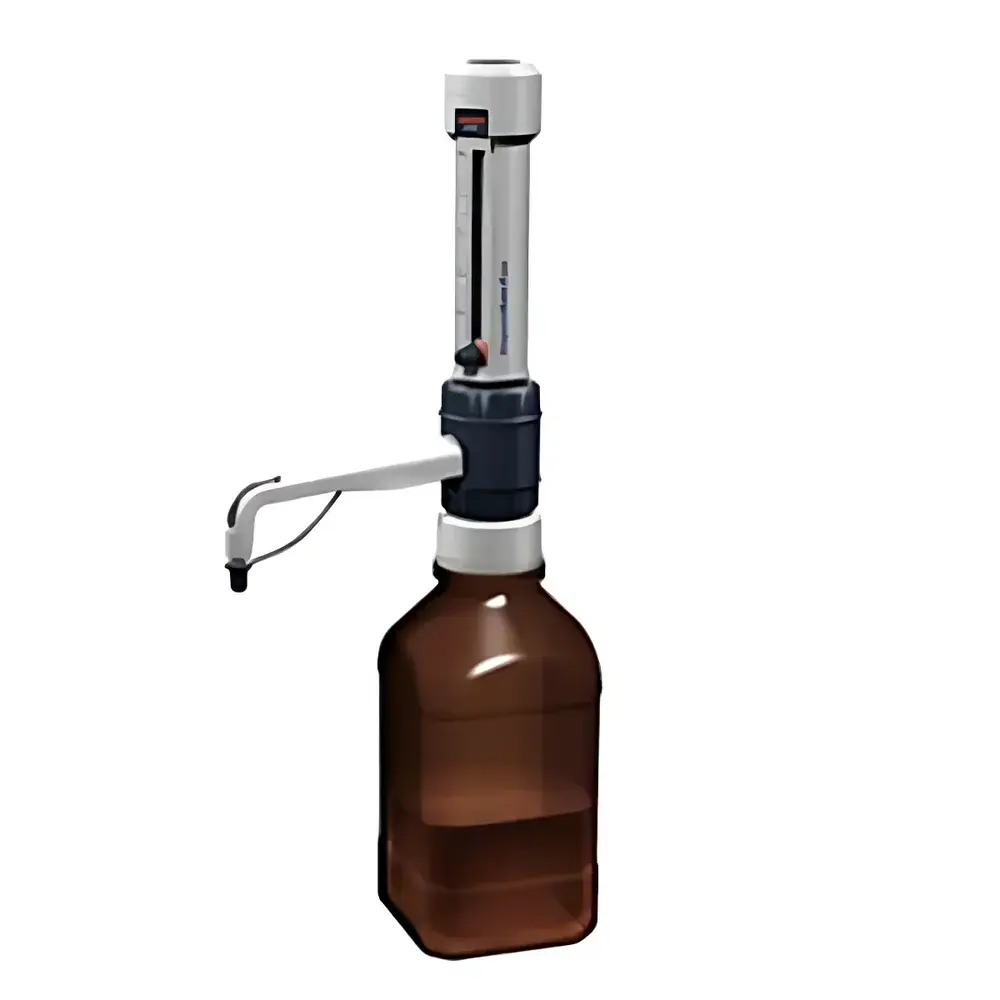

Analysis HDJS10 Manual Precision Dispensing System

Overview

The Analysis HDJS10 Manual Precision Dispensing System is a laboratory-grade, bottle-top dispenser-based quantitative liquid handling instrument engineered for repeatable, operator-controlled deposition of viscous and low-volatility fluids—particularly photoresists, spin-coating solvents, developer solutions, and functional polymer dispersions—used in semiconductor lithography, MEMS fabrication, and thin-film R&D. Unlike motorized or pneumatic dispensing platforms, the HDJS10 relies on calibrated mechanical displacement via manual piston actuation, eliminating dependency on compressed air, electrical power, or complex control interfaces. Its operation follows the positive-displacement principle: volume is defined by precise linear travel of a chemically inert piston within a sealed cylinder; each downward stroke delivers a pre-set, invariant volume independent of fluid viscosity (within specified limits), ensuring high volumetric reproducibility (CV < 1.2% per ISO 8655-3). Designed specifically for cleanroom-adjacent lab environments, it bridges the gap between pipette-level precision and process-scale repeatability—making it ideal for small-batch resist coating optimization, mask aligner substrate priming, and QC sampling prior to full spin-coater runs.

Key Features

• Four interchangeable dispenser modules covering 0.5–50 mL range, each with engraved, tamper-resistant volume scales and factory-calibrated piston geometry per ISO 8655-2
• Full-body construction from high-purity PTFE, FEP, borosilicate glass (BSG), and polypropylene—validated for compatibility with common semiconductor process chemicals including AZ® series resists, PGMEA, TMAH developers, HF-based etchants (dilute), and SU-8 formulations
• Autoclavable design rated for 121 °C / 20 min steam sterilization—enabling reuse in GLP-compliant photomask cleaning workflows and biological hybrid device fabrication
• Integrated pressure relief valve and dual-seal piston assembly ensure safe operation up to 500 mbar backpressure, preventing accidental over-pressurization during high-viscosity dispensing
• Five universal bottle adapters included—compatible with standard GL45, GL32, and DIN 11927 threaded reagent bottles, minimizing cross-contamination risk through dedicated bottle-dedicated dispensers
• Ergonomic lever mechanism optimized for single-hand operation with tactile feedback, reducing operator fatigue during extended dispensing sessions

Sample Compatibility & Compliance

The HDJS10 accommodates liquids with kinematic viscosity up to 500 mm²/s (e.g., undiluted novolac resists, epoxy-based underfills) and densities up to 2.2 g/cm³ (e.g., heavy-metal-containing lift-off resists). It is routinely deployed in Class 100–1000 cleanrooms for pre-spin resist metering, where particulate generation is minimized via non-aerosolizing piston displacement. The system complies with ISO 8655 (volumetric accuracy standards for piston-operated dispensers), meets material biocompatibility requirements per USP and , and supports audit-ready documentation for ISO 9001 and IATF 16949 quality systems. While not FDA 21 CFR Part 11–certified (as it lacks electronic logging), its mechanical traceability—via engraved serial numbers, calibration certificates, and adapter-specific usage logs—supports GMP-aligned recordkeeping when integrated into controlled lab procedures.

Software & Data Management

The HDJS10 is a fully manual, analog instrument with no embedded electronics, firmware, or connectivity. Volume setting and actuation are purely mechanical—ensuring zero electromagnetic interference in sensitive metrology labs and eliminating cybersecurity or software validation overhead. Calibration data (including gravimetric verification reports per ISO 8655-6) are provided as PDF documents with each unit and can be archived alongside batch records. Users maintain traceability through physical logbooks noting dispenser ID, bottle lot number, dispense volume, date, and operator initials—fully compatible with paper-based or hybrid electronic lab notebook (ELN) workflows adhering to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Precise metering of photoresist volumes onto silicon, glass, or compound semiconductor wafers prior to spin coating—reducing puddle variability and edge bead defects
• Controlled dispensing of developer solutions in wet bench development stations for contact/proximity aligner processes
• Quantitative transfer of conductive inks and dielectric pastes in printed electronics R&D
• Reproducible loading of etch inhibitors and adhesion promoters in surface preparation protocols
• Calibration reference dispensing for validating automated liquid handlers in semiconductor QA labs

FAQ

Is the HDJS10 suitable for use with highly aggressive photoresist strippers such as sulfuric acid/peroxide mixtures?
Yes—when equipped with FEP/PTFE-wetted components, it demonstrates verified resistance to concentrated H₂SO₄/H₂O₂ (Piranha) at room temperature for ≤5 min exposure; prolonged contact requires post-use rinsing with DI water and acetone.
Can multiple operators share one HDJS10 unit across different chemical processes?
Not recommended without full component replacement; cross-contamination risk necessitates dedicated dispensers per chemical family (e.g., separate units for resists, developers, and strippers), consistent with SEMI S2 safety guidelines.
Does the system include NIST-traceable calibration documentation?
Each unit ships with a manufacturer’s certificate of conformance and gravimetric calibration report per ISO 8655-6, traceable to national standards via accredited third-party metrology labs.
What maintenance intervals are recommended for long-term accuracy?
Piston seals should be inspected quarterly; full disassembly, ultrasonic cleaning in IPA, and re-lubrication with fluorinated grease are advised every 6 months or after 5000 actuations—whichever occurs first.
