Overview

The Analysis Tech STD Event Detectors Accessories are a suite of precision-engineered hardware modules and interconnect solutions designed exclusively for integration with the STD Series Electrical Interruption Test Systems. These accessories extend the functional scope of the base STD platform—originally developed for high-reliability detection of transient open-circuit events in electrical interconnects—by enabling multi-threshold discrimination, synchronized thermal and mechanical cycle logging, scalable channel expansion, and application-specific cabling architectures. The system operates on the principle of continuous real-time resistance monitoring across up to 1024 discrete channels, detecting interruptions exceeding user-defined V_ref thresholds with sub-millisecond resolution. Unlike generic continuity testers, the STD architecture supports time-stamped event capture correlated with environmental stimuli (e.g., temperature excursions or mechanical actuation), making it integral to accelerated life testing, HALT/HASS validation, and failure mode analysis in aerospace, automotive electronics, and medical device interconnect qualification.

Key Features

• STD Multi-Vref Adjustment Module: Enables independent threshold resistance calibration per group of 64 channels—overcoming the limitation of single-V_ref global adjustment. Supports fine-grained sensitivity tuning for heterogeneous DUT populations (e.g., mixed-contact resistances in multi-pin connectors).
• STD Temperature Module: Integrated T-type thermocouple interface (−200 °C to +400 °C range) with ±1.5 °C accuracy and burnout protection (up to 250 VAC). Outputs temperature-synchronized timestamps to WinDatalog, enabling statistical correlation between thermal cycling profiles and interruption onset.
• Mechanical Cycle Counting Mode: Accepts TTL-compatible digital inputs (0–30 VDC) with ≥20 ms minimum pulse width to log mechanical actuations—such as connector mating cycles, PCB flexure events, or drop-test impacts—directly into the same dataset as electrical interruptions.

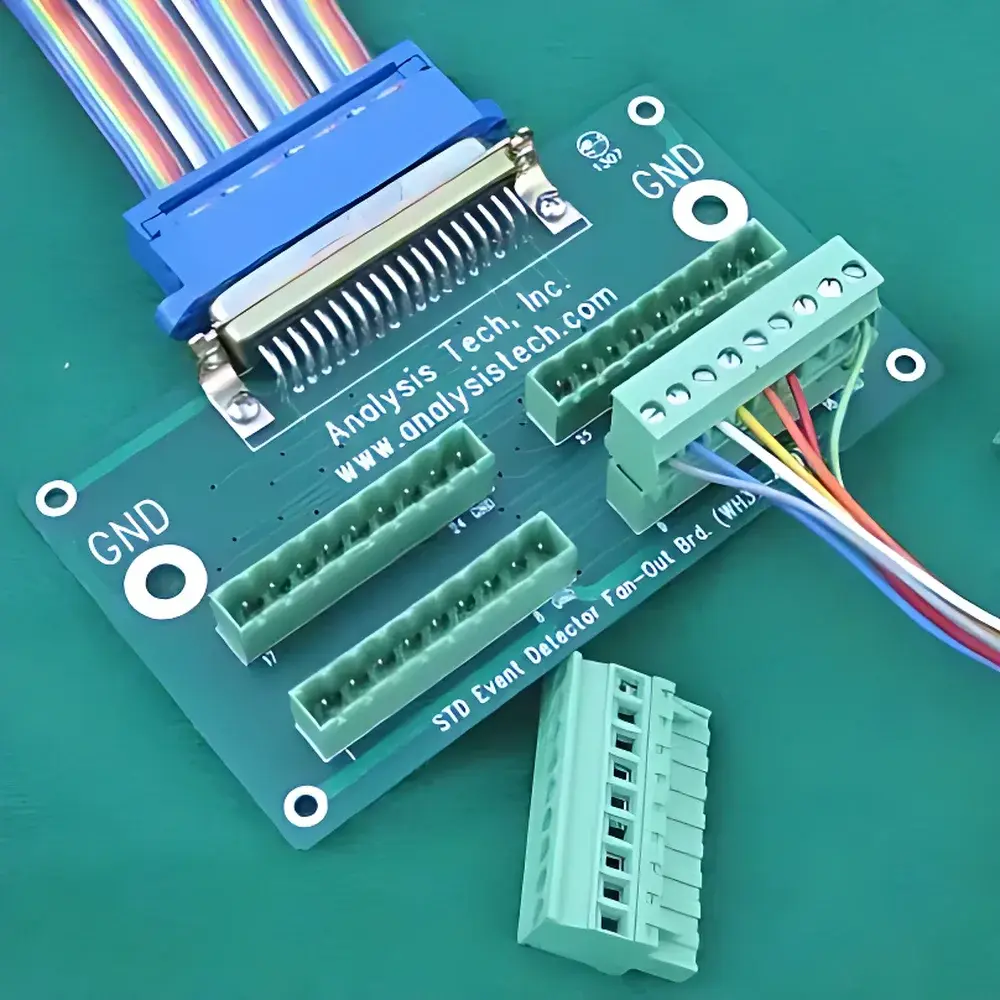

• STD Harness Adapters (WH-37-4×9): Modular 32-channel interface split into four 8-channel detachable connectors featuring screw-terminal termination, engraved channel numbering, and dedicated ground leads per connector group. Compatible with standard 37D micro-miniature front-panel receptacles on all STD units.
• Linking Cables: RS-232C or USB-based daisy-chain cabling supporting up to four STD units (max. 1024 channels) under unified WinDatalog control. Ensures synchronized acquisition, shared trigger logic, and consolidated data export without channel aliasing.
• High-Temperature Test Cables: PTFE-insulated variants rated to 200 °C (vs. standard 105 °C PVC), available in shielded/unshielded configurations and custom lengths—including dual-ended assemblies upon request.

Sample Compatibility & Compliance

These accessories are validated for use with STD Series Event Detectors only and are not interoperable with non-STD platforms (e.g., 105 or 106 Series). They support test configurations compliant with IPC-TM-650 2.6.23 (intermittent connectivity), ASTM F1978 (abrasion-induced discontinuity), and MIL-STD-883H Method 2014 (thermal shock-induced opens). The Temperature Module’s data output structure satisfies GLP/GMP audit-trail requirements when used with WinDatalog v5.2+, including immutable timestamping, operator ID tagging, and change history logging per ICH E6(R3) and FDA 21 CFR Part 11 Annex 11 guidelines. Mechanical cycle inputs are calibrated against NIST-traceable pulse generators during factory verification.

Software & Data Management

All accessories interface natively with WinDatalog v5.2+—Analysis Tech’s proprietary Windows-based acquisition and analysis suite. Temperature and mechanical cycle data appear as synchronized metadata columns alongside channel-level interruption logs. Users may apply post-acquisition filters (e.g., “events occurring only above 125 °C” or “within 5 cycles of mechanical actuation”) and export time-aligned CSV/Excel reports for Weibull or Arrhenius modeling. Raw binary files retain full fidelity for forensic replay, including millisecond-accurate edge detection waveforms. Audit trails record module installation dates, firmware revisions, and calibration status—critical for ISO/IEC 17025 accredited labs.

Applications

• Correlation of thermal cycling stress with intermittent failure in automotive harness assemblies
• Quantification of contact degradation in high-vibration avionics backplanes
• Validation of solder joint reliability under combined thermal-mechanical load (e.g., reflow + board flex)
• Accelerated life testing of separable connectors subjected to repeated mating cycles
• Root-cause analysis of field returns involving latent intermittents traceable to specific environmental windows
• Qualification of flexible printed circuits (FPCs) under bending fatigue protocols

FAQ

Can the Multi-Vref module be retrofitted to legacy STD units?
Yes—field upgrades are supported via factory service order or authorized distributor installation. Firmware v4.8+ is required.
Is the Temperature Module compatible with third-party DAQ software?
No—it requires WinDatalog v5.2+ for protocol decoding, timestamp alignment, and metadata embedding.
What is the maximum cable length for linking multiple STD units via RS-232C?
Up to 15 meters per segment using shielded twisted-pair cable; USB linking is limited to 5 meters without active repeaters.
Are WH-37-4×9 adapters rated for use inside thermal chambers?
No—they must remain external to environmental chambers; only high-temp PTFE cables and thermocouples are chamber-rated.
Does Analysis Tech provide calibration certificates for the Temperature Module?
Yes—NIST-traceable calibration reports (including uncertainty budgets per ISO/IEC 17025) are available upon request at time of purchase.
