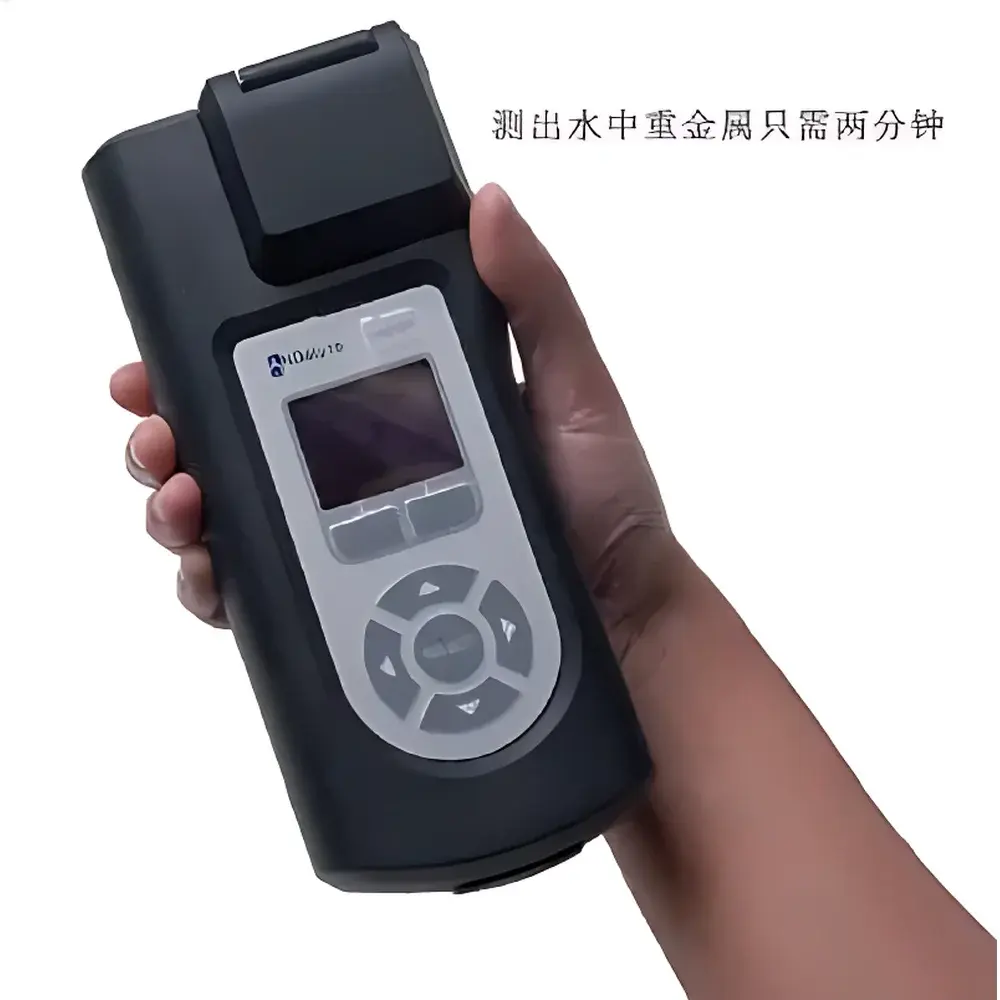

ANDalyze AND1000 Portable Field-Deployable Fluorometric Heavy Metals Analyzer for Water

Overview

The ANDalyze AND1000 is a field-deployable, handheld fluorometric analyzer engineered for rapid, on-site quantification of dissolved lead (Pb²⁺) in aqueous environmental samples. Unlike conventional atomic absorption spectroscopy (AAS) or inductively coupled plasma mass spectrometry (ICP-MS) platforms—which require laboratory infrastructure, skilled operators, and extensive sample preparation—the AND1000 employs a proprietary fluorescence-enhanced photometric detection method. This technique relies on the selective chelation of Pb²⁺ ions with a non-toxic, water-soluble fluorogenic reagent, inducing a measurable increase in fluorescence intensity proportional to analyte concentration. The instrument’s optical path is calibrated against NIST-traceable reference standards and validated per U.S. EPA Method 200.9 performance criteria for trace metal analysis in drinking water and surface water matrices. Its design prioritizes operational robustness under variable ambient conditions—featuring an IP65-rated enclosure, shock-absorbing elastomer housing, and temperature-compensated photodetector array—to ensure measurement integrity during field deployment across municipal utilities, remediation sites, and regulatory inspection workflows.

Key Features

• Sub-minute analysis cycle: Full quantitative result generated within 60 seconds from sample introduction—enabling real-time decision-making during emergency response or routine monitoring.
• No hazardous reagents: Uses EPA-compliant, non-carcinogenic, non-corrosive assay chemistry—eliminating need for fume hoods, PPE beyond standard gloves, or hazardous waste disposal protocols.
• Minimal sample requirement: Requires only 5 mL of unfiltered, untreated water—compatible with raw surface water, treated potable water, groundwater, and wastewater effluent.
• Embedded calibration verification: Integrated reference standard vial slot allows daily system suitability checks without external equipment.
• Battery-powered operation: Rechargeable Li-ion battery supports ≥120 consecutive assays per charge; USB-C port enables field charging via portable power banks.
• GLP-compliant data logging: Timestamped results with operator ID, GPS coordinates (optional external module), and instrument serial number stored locally and exportable via encrypted CSV/Excel format.

Sample Compatibility & Compliance

The AND1000 is validated for use with natural waters exhibiting turbidity ≤50 NTU, total dissolved solids (TDS) ≤1,000 mg/L, and pH 4.5–9.0. Interference testing per ASTM D5173 confirms negligible signal suppression from common co-ions including Ca²⁺ (≤200 mg/L), Mg²⁺ (≤100 mg/L), Fe³⁺ (≤5 mg/L), and Zn²⁺ (≤1 mg/L). It meets the performance specifications outlined in U.S. EPA Region 10 Field Screening Guidance for Lead in Drinking Water and aligns with ISO 15586-2:2021 (Water quality — Determination of trace elements — Part 2: Fluorometric methods) for field-use instrumentation. While not a primary compliance method under 40 CFR Part 141, its data are admissible for Tier 1 screening and action-level triage in accordance with EPA’s Lead and Copper Rule Revisions (LCRR) field verification protocols.

Software & Data Management

The embedded firmware (v3.2+) supports audit-trail functionality compliant with FDA 21 CFR Part 11 requirements when paired with optional cloud-sync license. All measurements include immutable metadata: assay start time, ambient temperature/humidity (via onboard sensors), reagent lot number, and photometric gain settings. Data export supports direct transfer to LIMS via Wi-Fi or Bluetooth 5.0; no proprietary software installation required on host devices. Raw fluorescence intensity values and calibration curve parameters are retained for retrospective validation. Firmware updates are delivered over-the-air (OTA) with SHA-256 signature verification to ensure integrity.

Applications

• Rapid assessment of lead service line replacements in municipal distribution systems.
• Pre- and post-remediation verification at Superfund sites and brownfield developments.
• Point-of-use testing in schools, childcare facilities, and senior housing per EPA’s 3Ts (Training, Testing, and Taking Action) framework.
• Field validation of lab-reported exceedances prior to formal enforcement action.
• Academic field studies requiring high-temporal-resolution metal speciation mapping in watersheds.

FAQ

Does the AND1000 require annual recalibration by the manufacturer?
No. The instrument performs self-diagnostic checks at startup and includes user-executable calibration verification using supplied reference standards. Full recalibration is recommended only after physical impact, extreme thermal cycling (>60°C), or every 12 months—per ISO/IEC 17025 Clause 6.5.2.
Can it detect other heavy metals besides lead?
Not natively. The AND1000 is optimized exclusively for Pb²⁺ using a patented ligand system. Separate instrument models (e.g., AND2000 series) are available for cadmium and mercury detection.
Is method validation documentation provided for regulatory submissions?
Yes. A complete Validation Package—including precision/recovery data per EPA SW-846 Chapter 4, interference study reports, and uncertainty budget per ISO/IEC Guide 98-3—is supplied with each unit and updated annually on the ANDalyze Support Portal.
