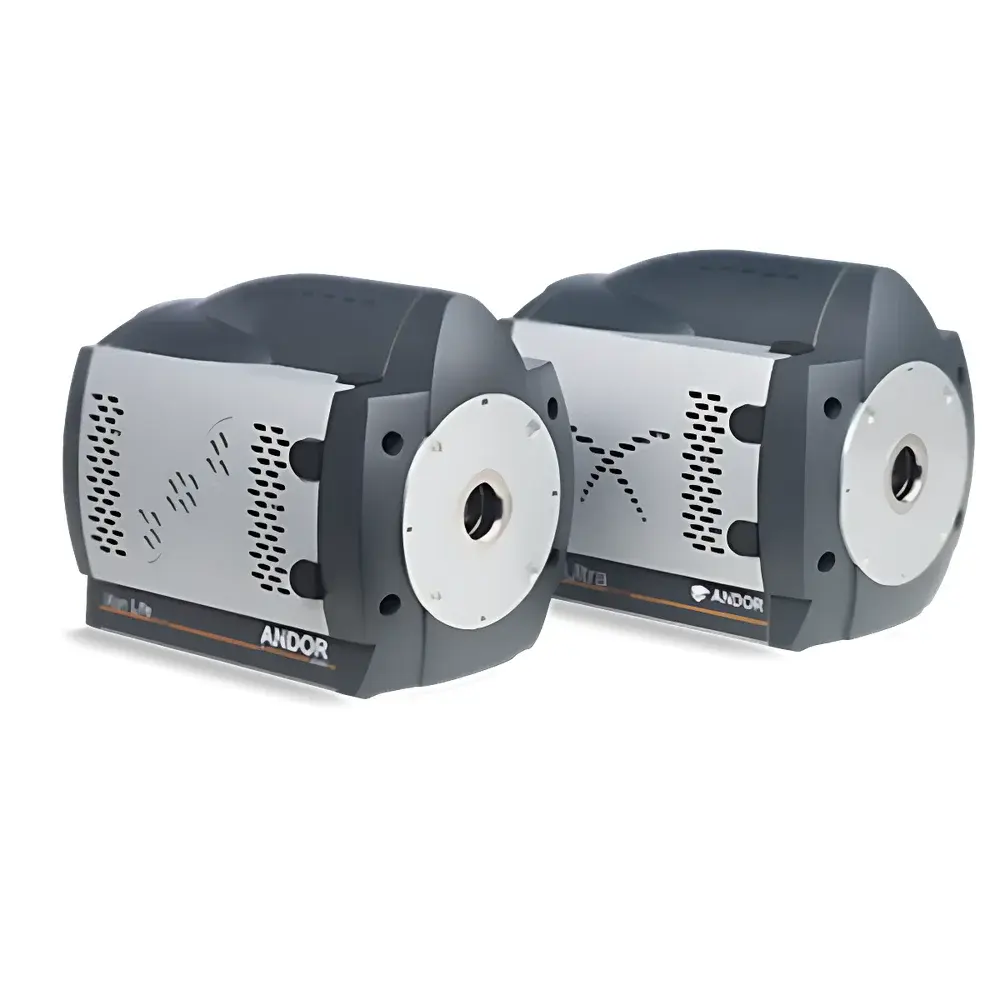

Andor iXon Series Ultra-Sensitive EMCCD Cameras for Single-Photon Imaging

Overview

The Andor iXon series represents a benchmark in scientific-grade electron-multiplying charge-coupled device (EMCCD) technology, engineered specifically for quantitative single-photon detection under ultra-low-light conditions. Unlike conventional CCDs or even modern back-illuminated sCMOS sensors—whose read noise and dynamic range limitations constrain performance at sub-photon signal levels—the iXon leverages on-chip electron multiplication gain to amplify weak photoelectron signals above the system’s effective read noise floor, preserving photon-counting fidelity across all operational frame rates. This principle enables true photon-limited imaging in applications where signal flux is inherently sparse, such as single-molecule fluorescence tracking, live-cell calcium dynamics, or quantum-optical correlation measurements. The platform integrates Andor’s proprietary UltraVac™ deep-vacuum cooling architecture, maintaining sensor temperatures down to −100 °C (iXon Ultra) or −80 °C (iXon Life) without cryogenics, thereby suppressing dark current to sub-0.001 e⁻/pix/sec levels and ensuring long-exposure stability required for rigorous quantitative microscopy and physics experiments.

Key Features

• Single-photon sensitivity with <1 e⁻ effective read noise (with EM gain enabled), enabling photon-counting mode operation
• Back-illuminated sensor architecture delivering >95% peak quantum efficiency (QE) across visible to near-UV wavelengths (BV, EX2, UVB options)
• UltraVac™ vacuum-sealed sensor housing with industry-leading 7-year warranty—ensuring consistent thermal stability and contamination-free operation
• Dual-mode functionality: seamless switching between EMCCD (high-gain, low-light) and conventional CCD (low-noise, high-dynamic-range) readout architectures
• OptAcquire™ intelligent acquisition software for automated optimization of EM gain, exposure, and cropping parameters per experimental condition
• Real-time and post-acquisition photon/electron calibration support, traceable to NIST-traceable light sources for absolute quantification
• Native compatibility with super-resolution modalities including SRRF-Stream+, STORM, PALM, and HILO illumination schemes

Sample Compatibility & Compliance

The iXon series is designed for integration into regulated and research-intensive optical systems—including confocal, TIRF, light-sheet, and adaptive optics platforms—where reproducibility, linearity, and temporal fidelity are non-negotiable. Its hardware-level timestamping, deterministic triggering, and hardware-based ROI cropping meet GLP/GMP-aligned data integrity requirements for preclinical imaging and biophotonics validation studies. While not FDA-cleared as a medical device, the iXon complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its firmware supports audit-trail logging compatible with 21 CFR Part 11–aligned laboratory information management systems (LIMS). Sensor packaging adheres to ISO 10110 optical surface specifications, and vacuum integrity testing follows ASTM E595 outgassing protocols for space-qualified instrumentation environments.

Software & Data Management

iXon cameras ship with Solis®—Andor’s modular, cross-platform acquisition and analysis suite—and support third-party integration via native SDKs for MATLAB, Python (PyAndor), LabVIEW, and Micro-Manager. All image metadata—including EM gain setting, temperature, exposure time, pixel clock rate, and sensor binning—is embedded in TIFF/ND2 headers using OME-XML schema for FAIR (Findable, Accessible, Interoperable, Reusable) data compliance. Time-stamped frame sequences can be exported with sub-microsecond precision using hardware-synchronized triggers; optional CameraLink interface (iXon Ultra only) enables deterministic real-time streaming to FPGA-based processing pipelines. Raw electron-counted data may be exported in HDF5 format with calibrated gain maps for downstream statistical modeling (e.g., FCS, PCH, or intensity fluctuation analysis).

Applications

• Super-resolution microscopy: STORM/PALM localization with <20 nm precision, enabled by high QE and single-photon discrimination
• Live-cell biophysics: Real-time Ca²⁺ spark detection, mitochondrial membrane potential mapping, and single-vesicle trafficking under minimal phototoxicity (iXon Life optimized)
• Quantum optics: Hanbury Brown–Twiss interferometry, Bell-state tomography, and entangled photon pair correlation measurements
• Astronomical instrumentation: Speckle interferometry, wavefront sensing for adaptive optics, and high-speed occultation photometry
• Spectroscopic imaging: Time-resolved Raman, fluorescence lifetime imaging (FLIM), and hyperspectral snapshot acquisition at kHz frame rates
• Neuroscience: In vivo two-photon calcium imaging with cellular resolution in awake, behaving models

FAQ

What distinguishes iXon Ultra from iXon Life?
The iXon Ultra prioritizes ultimate sensitivity and flexibility—supporting full-frame EMCCD readout at up to 30 MHz, deeper cooling (−100 °C), and CameraLink interface for demanding physics applications. The iXon Life optimizes for biological workflows: lower cost, USB 2.0 simplicity, −80 °C cooling sufficient for most fluorescence assays, and firmware-tuned for rapid setup in core microscopy facilities.

Can iXon cameras operate in true photon-counting mode?
Yes—when operated with sufficient EM gain (>50×) and appropriate thresholding, iXon supports event-driven photon counting with Poisson-distributed statistics validated per ISO 15739:2013 for digital camera noise characterization.

Is UltraVac™ maintenance-free over the 7-year warranty period?
Yes—Andor’s UltraVac™ is a permanently sealed, getter-pumped vacuum enclosure with no consumables or service intervals; performance degradation is excluded under warranty if operated within specified ambient temperature and humidity ranges.

How does iXon handle EM gain calibration drift?
Each iXon includes factory-measured EM gain vs. voltage curves stored in onboard memory; Solis software applies real-time correction using pixel-level gain maps, ensuring quantitative consistency across sessions and instruments.

Are there restrictions on using iXon with pulsed lasers or gated acquisitions?
No—iXon supports external TTL-triggered exposure control with <100 ns jitter, global shutter operation, and programmable delay/width settings, making it suitable for time-gated fluorescence, pump-probe, and LIBS applications.
