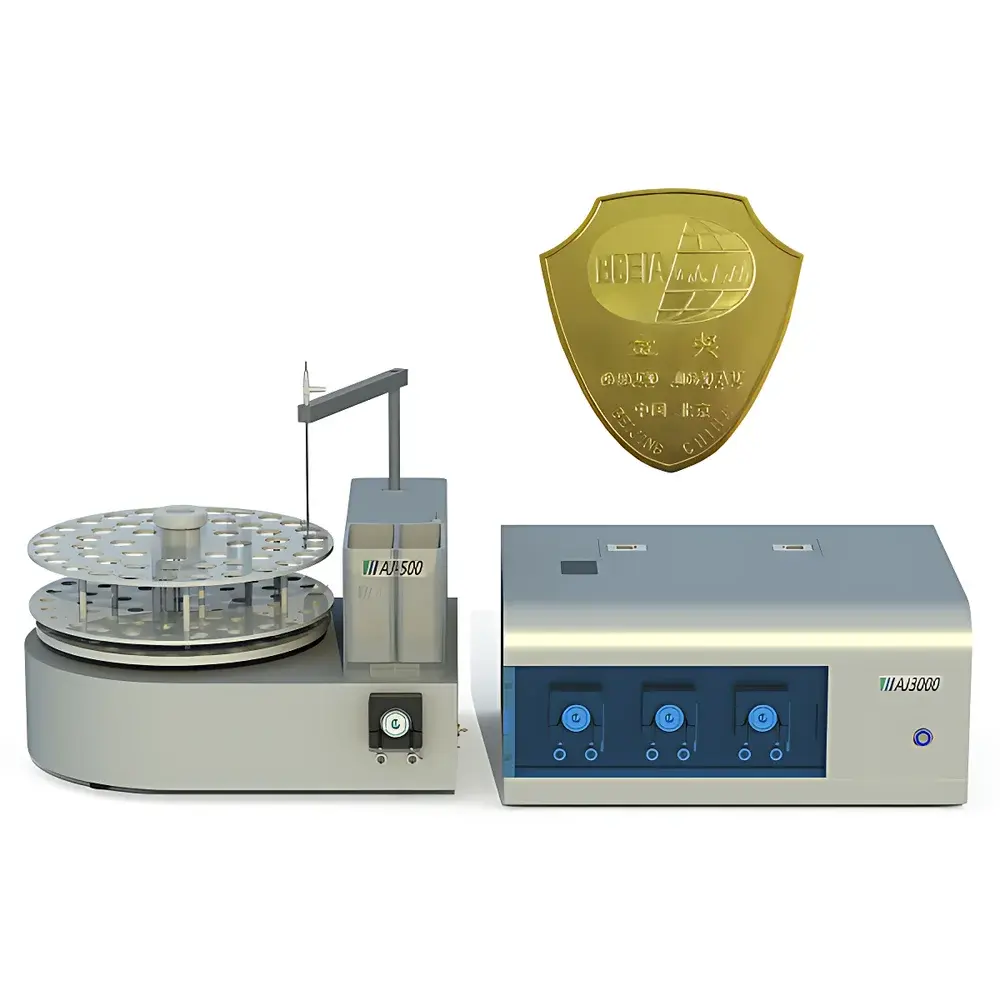

Anjie AJ-3000 Plus Gas Phase Molecular Absorption Spectrometer
| Brand | Anjie |
|---|---|
| Origin | Shanghai, China |
| Model | AJ-3000 Plus |
| Detector Type | Photomultiplier Tube (PMT) |
| Wavelength Range | 190–900 nm |
| Spectral Bandwidth | 0.1 nm, 0.2 nm, 0.4 nm, and 1.0 nm (selectable) |
| Wavelength Accuracy | ±0.2 nm |
| Wavelength Repeatability | 0.1 nm |
Overview
The Anjie AJ-3000 Plus Gas Phase Molecular Absorption Spectrometer is an advanced analytical instrument engineered for the quantitative determination of nitrogen- and sulfur-containing species—including ammonia nitrogen (NH₃-N), nitrite nitrogen (NO₂⁻-N), nitrate nitrogen (NO₃⁻-N), total nitrogen (TN), sulfide (S²⁻), and Kjeldahl nitrogen—in aqueous environmental matrices. It operates on the principle of gas-phase molecular absorption spectroscopy (GPMAS): analytes are chemically converted into volatile, light-absorbing gaseous molecules (e.g., NO, NO₂, SO₂, NH₃) under controlled reaction conditions; these gases are then swept into an optical cell where absorbance is measured at characteristic wavelengths using a high-stability monochromator and photomultiplier tube detector. Unlike conventional liquid-phase UV-Vis spectrophotometry, GPMAS eliminates matrix interferences from turbidity, color, and suspended solids—enabling direct analysis of raw or minimally pretreated water samples with high specificity and low detection limits.
Key Features
- Integrated thermally stabilized reaction and gas transfer system with Precision Temperature Control System (TCS), maintaining thermal uniformity within ±0.5 °C across all reaction zones to ensure stoichiometric conversion reproducibility.
- Closed-loop semiconductor dehumidification module actively removes water vapor from the carrier gas stream, preventing condensation and frost formation in the optical path—critical for long-term signal stability during high-humidity sample analysis.
- Onboard automatic dilution capability with up to 40× programmable dilution factor; supports both fixed-ratio and intelligent auto-dilution based on preliminary absorbance screening to optimize dynamic range without manual intervention.
- Real-time baseline monitoring and dynamic background correction algorithm continuously track and compensate for lamp drift and optical noise, improving measurement robustness over extended run times.
- Unified sampling–purging–homogenization unit ensures representative intake of heterogeneous samples (e.g., sediment-laden wastewater or sulfide suspensions); mechanical agitation occurs synchronously with aspiration to prevent phase segregation.
- Proprietary continuous-extraction sintered-glass frit gas–liquid separator enhances volatilization efficiency and analyte transfer yield—demonstrated to increase effective sensitivity by approximately 300% relative to conventional batch separators.
Sample Compatibility & Compliance
The AJ-3000 Plus is validated for use with surface water, groundwater, seawater, drinking water, domestic wastewater, and industrial effluents per standard Chinese environmental monitoring protocols (e.g., HJ 195–2019, HJ 196–2021, HJ 197–2021). Its interference-resistant design aligns with international methodological principles underlying EPA Method 353.2 (nitrate/nitrite), ISO 11732:2005 (ammonia), and ISO 10872:2012 (sulfide). The instrument’s optical architecture and calibration traceability support compliance with ISO/IEC 17025 quality requirements for testing laboratories. All critical operational parameters—including wavelength calibration, temperature logs, and dilution records—are timestamped and stored with audit-trail integrity, facilitating GLP/GMP-aligned data governance.
Software & Data Management
The embedded Windows-based control software provides full method development, sequence scheduling, real-time spectral visualization, and automated QC reporting. It supports user-defined calibration curve selection (including single-standard auto-generation), automatic curve quality assessment (R² ≥ 0.999 required), and outlier flagging based on residual distribution analysis. Raw absorbance data, method metadata, and instrument status logs are exported in CSV and XML formats compatible with LIMS integration. Software validation documentation—including IQ/OQ protocols and 21 CFR Part 11-compliant electronic signature modules—is available upon request for regulated laboratory environments.
Applications
- Regulatory environmental monitoring programs requiring precise, high-throughput quantification of nitrogen species in municipal and industrial discharge permits.
- Drinking water treatment plant process control, especially for real-time ammonia and nitrite tracking during breakpoint chlorination.
- Marine and estuarine research studies assessing nutrient cycling dynamics under variable salinity and organic load conditions.
- Wastewater treatment optimization, including denitrification efficiency evaluation and sulfide emission forecasting in anaerobic digesters.
- Method validation and cross-platform comparison studies against reference techniques such as ion chromatography (IC) and chemiluminescence detection (CLD).
FAQ
What nitrogen and sulfur species can the AJ-3000 Plus quantify?
It measures ammonia nitrogen, nitrite nitrogen, nitrate nitrogen, total nitrogen, sulfide, and Kjeldahl nitrogen—each via dedicated, chemically selective gas-phase conversion pathways.
Is the instrument suitable for saline or turbid samples?
Yes. The integrated homogenization system and gas-phase detection principle eliminate interference from suspended solids, color, and high ionic strength—making it ideal for seawater, sludge supernatants, and untreated wastewater.
How is wavelength accuracy maintained over time?
The monochromator employs a dual-point holmium oxide and didymium glass reference calibration routine, traceable to NIST standards, with optional automated recalibration triggered by scheduled maintenance or drift thresholds.
Can the system interface with laboratory information management systems (LIMS)?
Yes. Native CSV/XML export and configurable ODBC connectivity enable seamless integration with major LIMS platforms for automated result ingestion and audit trail synchronization.
What service and support options are available internationally?
Anjie offers factory-certified remote diagnostics, on-site application training, and annual performance verification services through authorized regional partners—documentation provided in English with multilingual technical manuals.
