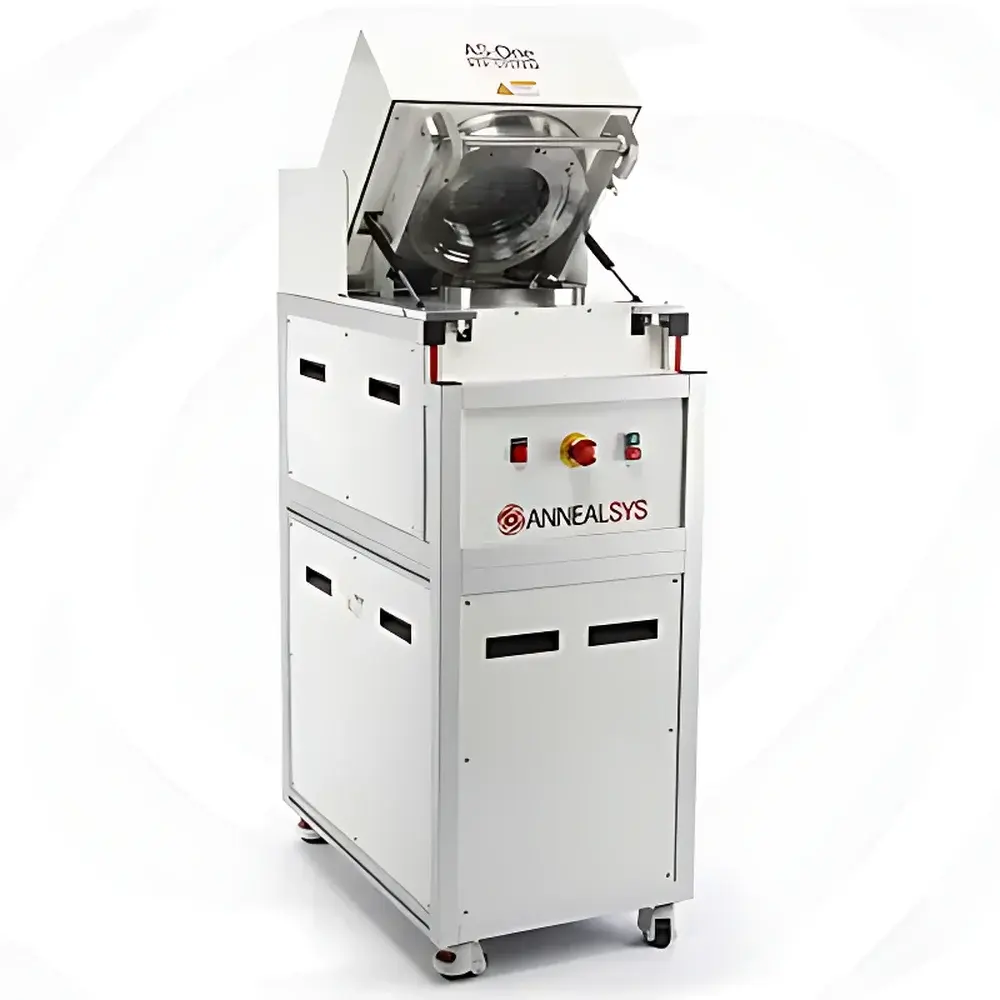

Annealsys AS-One Systems Rapid Thermal Annealing Furnace

Overview

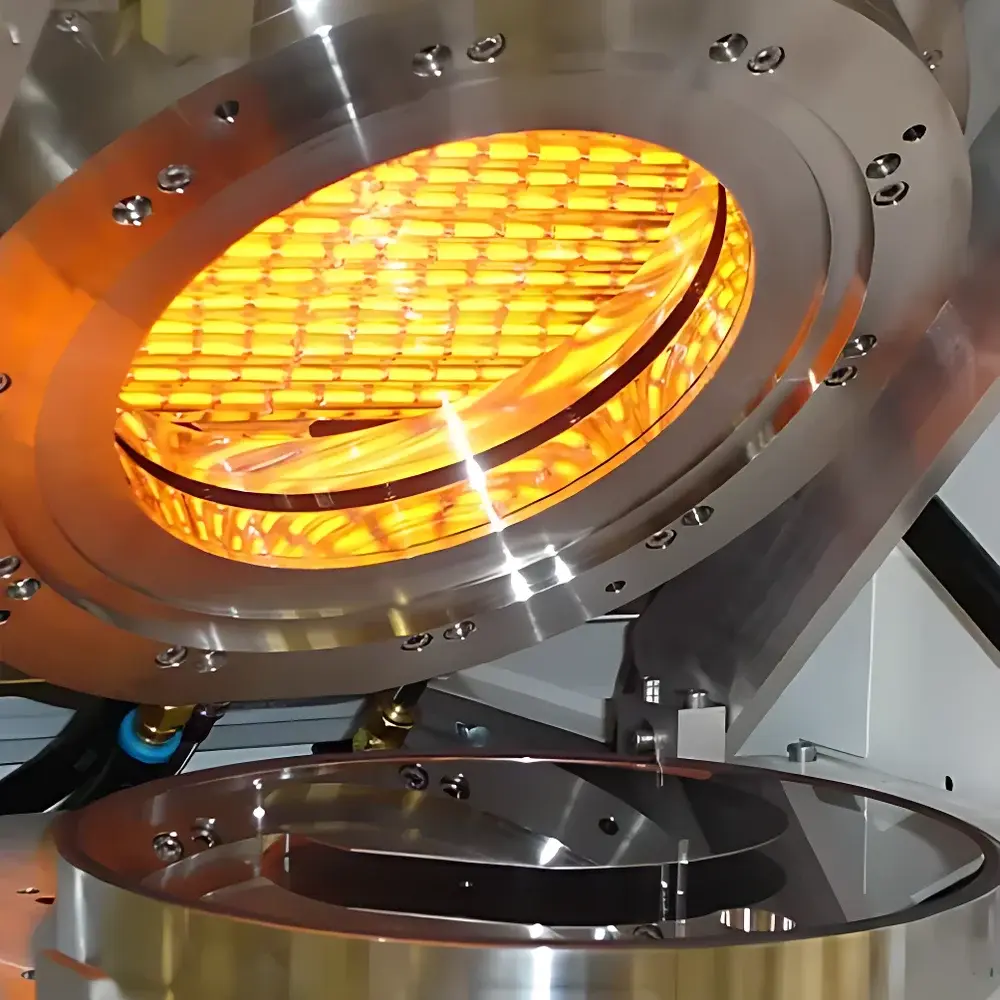

The Annealsys AS-One Systems Rapid Thermal Annealing (RTA) Furnace is a high-performance, benchtop-compatible thermal processing platform engineered for precision rapid thermal processing in academic research laboratories, R&D facilities, and pilot-scale semiconductor or advanced materials manufacturing. Unlike conventional muffle furnaces or box-type annealing systems, the AS-One employs a cold-wall, infrared (IR) radiant heating architecture—featuring high-intensity quartz halogen lamps—to deliver ultra-fast, spatially uniform thermal transients. Its core operational principle relies on direct radiative energy transfer to substrates mounted on thermally optimized susceptors, enabling precise control over transient thermal profiles (ramp, soak, cool) without significant thermal mass lag. This design supports critical processes requiring millisecond-to-second thermal time constants, such as dopant activation, silicide formation, oxide growth, and crystallization of amorphous thin films—where thermal budget minimization is essential to preserve interface integrity and prevent interdiffusion.

Key Features

• Cold-wall stainless-steel process chamber with low internal volume (<1.5 L), enabling rapid pump-down (<60 s to 10⁻⁵ Torr) and efficient gas purging—reducing process gas consumption by up to 40% compared to conventional hot-wall designs.

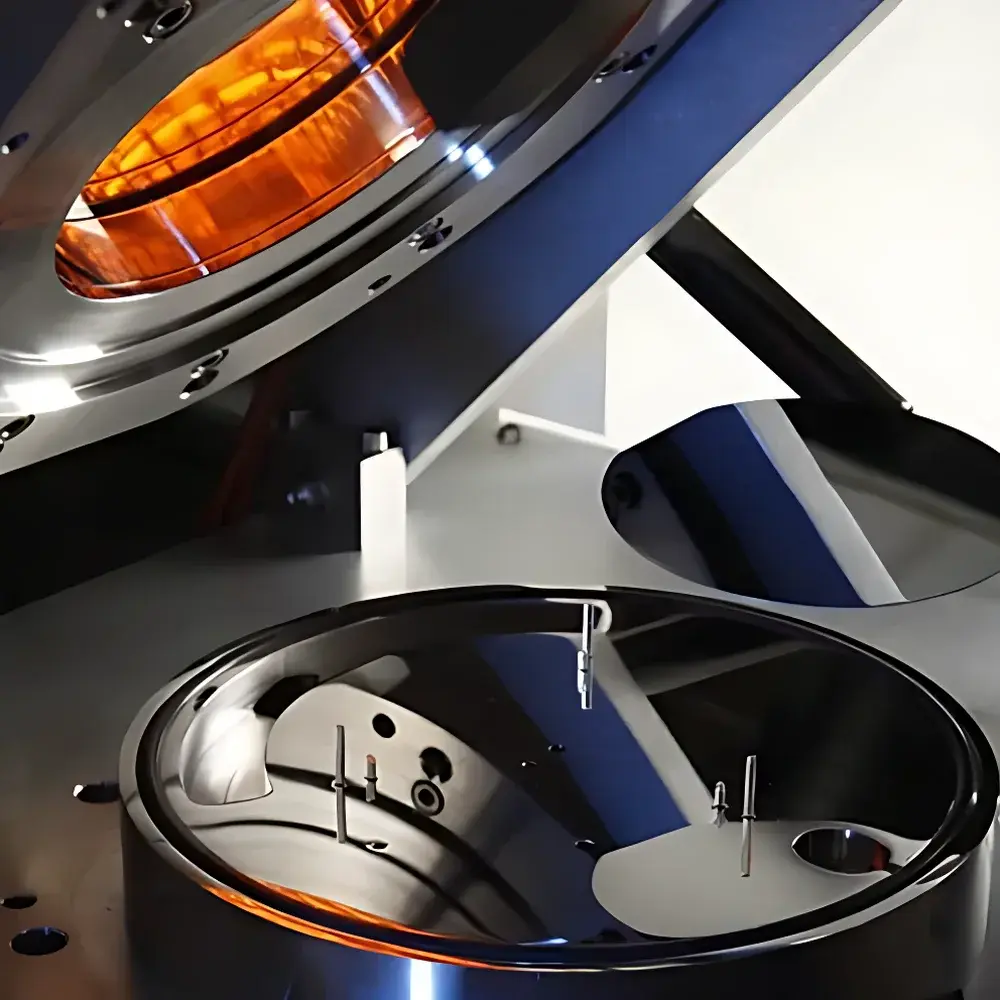

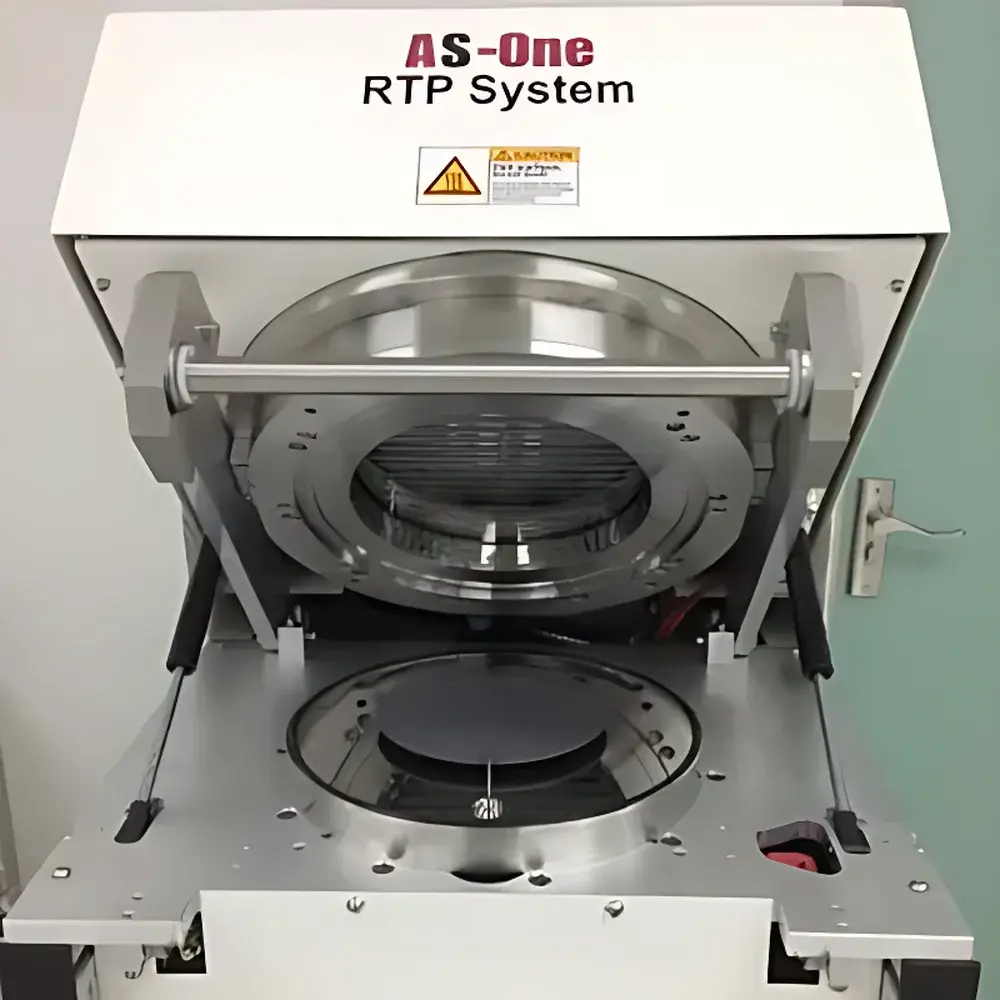

• Modular clamshell (hinged-lid) chamber access provides full top-down substrate loading/unloading and unobstructed cavity cleaning—critical for maintaining particulate-free processing in cleanroom-adjacent environments.
• Dual temperature measurement standard: Type S thermocouple (for closed-loop PID control below 1200°C) and calibrated two-color pyrometer (for non-contact measurement up to 1450°C), ensuring traceable accuracy across the full operating range.
• High-fidelity digital PID controller with adaptive tuning algorithms delivers ±1% temperature stability during dynamic ramping and soaking, validated per ASTM E220 and ISO/IEC 17025 calibration protocols.
• Integrated rapid cooling system utilizing forced inert gas convection (N₂ or Ar) achieves controlled quench rates up to 100°C/s—enabling metastable phase retention and stress engineering in functional oxides and chalcogenides.
• Full PC-based control via Windows-native software with GLP-compliant audit trail, electronic signature support (21 CFR Part 11 ready), and exportable CSV/Excel data logs—including time-stamped temperature, pressure, gas flow, and lamp power traces.

Sample Compatibility & Compliance

The AS-One accommodates wafers and planar substrates up to 100 mm (AS-One 100) or 150 mm (AS-One 150) in diameter, including Si, SiC, GaN, sapphire, fused silica, and flexible metal foils—when used with compatible susceptors (graphite, SiC-coated graphite, or Mo). Substrate handling is optimized for manual or semi-automated integration via front-loading configuration. The system complies with IEC 61000-6-3 (EMC), IEC 61000-6-4 (industrial emission), and UL 61010-1 safety standards. Vacuum integrity meets ISO 2859-1 sampling plans for leak-rate verification (<5×10⁻⁸ mbar·L/s He), and gas delivery subsystems conform to SEMI F57 purity specifications for MFC-controlled lines.

Software & Data Management

The AS-One is operated through Annealsys’ proprietary RTAControl™ software—a deterministic, multi-threaded Windows application supporting up to 100-step recipes with conditional branching (e.g., “hold until pyrometer confirms T ≥ 1350°C”). All process parameters—including lamp power %, chamber pressure, individual MFC setpoints, and dual-sensor temperature readings—are logged at user-defined intervals (10 ms to 10 s resolution). Data files include embedded metadata (operator ID, timestamp, recipe version, instrument serial number) and are structured for direct import into MATLAB, Python (pandas), or JMP for statistical process control (SPC) analysis. Optional FDA 21 CFR Part 11 compliance package includes role-based access control, electronic signatures, and immutable audit logs.

Applications

• Rapid Thermal Annealing (RTA) for dopant activation in Si, Ge, and III–V devices.
• Rapid Thermal Oxidation (RTO) and nitridation of silicon surfaces with sub-nanometer thickness control.
• Diffusion barrier annealing (e.g., TiN, TaN) and contact metallization (Al, Cu, Co) optimization.
• Crystallization of amorphous IGZO, a-Si, or phase-change materials (Ge₂Sb₂Te₅).
• Densification and stress relief of ALD/CVD-deposited dielectrics (SiO₂, HfO₂, Al₂O₃).
• Compound semiconductor annealing (e.g., InP, GaAs) under controlled As/Ga overpressure.

FAQ

What vacuum level can the AS-One achieve, and what pumping configuration is required?
The base vacuum specification is ≤1×10⁻⁶ Torr, attainable using the optional turbomolecular pump package (with backing by a dry scroll pump). A roughing-only configuration achieves ~10⁻² Torr.
Is the system compatible with reactive gases such as O₂, NH₃, or forming gas?
Yes—up to five independently controlled gas lines (via Brooks or MKS MFCs) support oxidizing, reducing, and inert atmospheres. Stainless-steel wetted parts and VCR fittings ensure compatibility with aggressive chemistries when properly configured.
Can the AS-One be integrated into a Class 100 cleanroom environment?

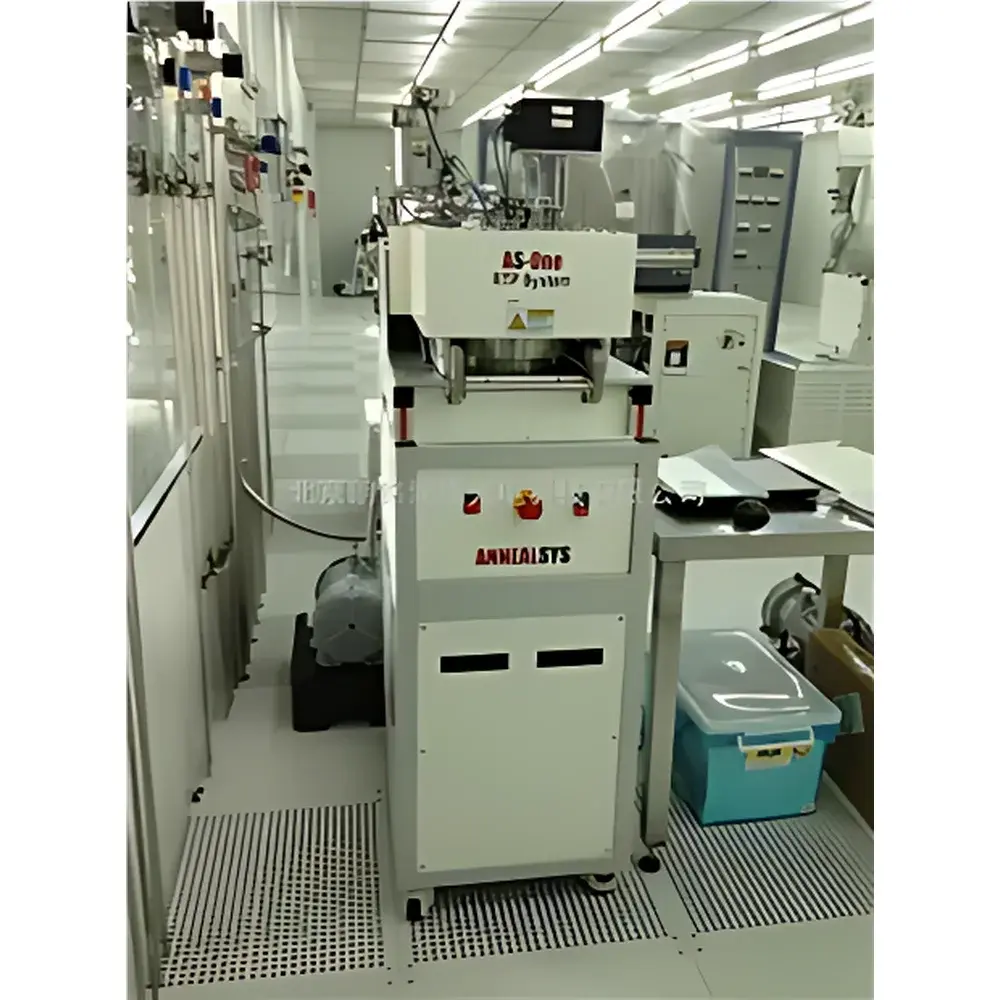

The system meets ISO Class 5 particle emission limits when operated with filtered N₂ purge and installed with vibration-isolation mounts; full cleanroom qualification requires on-site particle counting per ISO 14644-1.
Does the software support automated recipe validation and calibration reporting?
Yes—RTAControl™ includes built-in calibration workflow templates aligned with ISO/IEC 17025 requirements, generating PDF reports with uncertainty budgets for temperature, pressure, and flow sensors.
What maintenance intervals are recommended for lamp arrays and MFCs?
IR lamp lifetime is rated at ≥2000 hours under nominal 1200°C operation; annual MFC recalibration is recommended, with full chamber gasket replacement advised every 18 months under continuous use.
