Annuo AS-3016C Multifunctional Autosampler for Gas Chromatography

Overview

The Annuo AS-3016C is a high-precision, multifunctional autosampler engineered for seamless integration with gas chromatography (GC) systems. It implements a vertical tower motion architecture with closed-loop encoder feedback to ensure repeatable syringe positioning and consistent needle insertion depth—critical parameters for minimizing carryover and maximizing injection reproducibility in regulated analytical workflows. Designed for unattended operation over extended cycles, the AS-3016C supports full method-driven automation including variable dwell times, viscosity delay compensation, multi-solvent wash protocols, and programmable aspiration/dispense kinetics. Its modular CAN bus–based internal communication architecture enables scalable expansion of sample capacity, solvent management, and peripheral I/O without hardware redesign. The system complies with fundamental requirements for GLP-compliant laboratories, supporting audit-ready operation through deterministic timing control, error-checked parameter validation, and traceable method execution logs.

Key Features

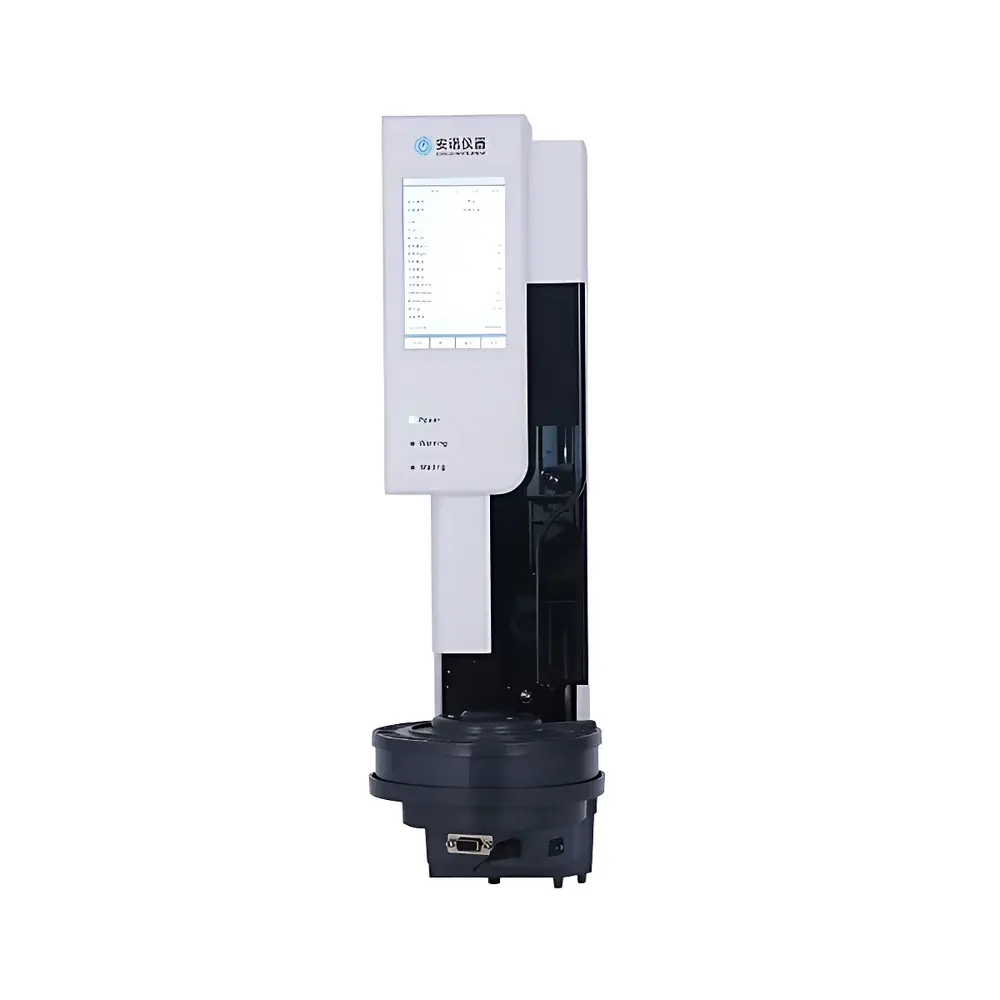

• Vertical tower kinematic design with ±0.1 mm positional accuracy and real-time encoder-based error correction to eliminate cumulative mechanical drift.

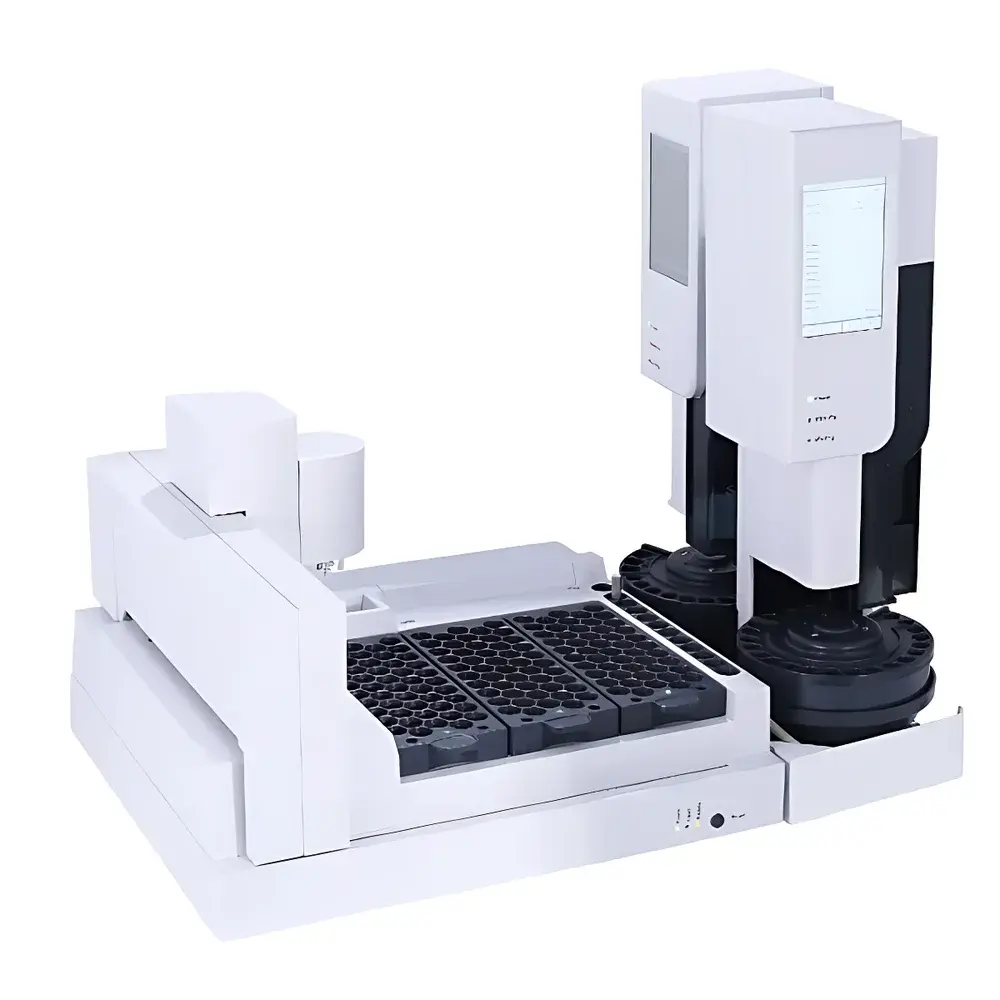

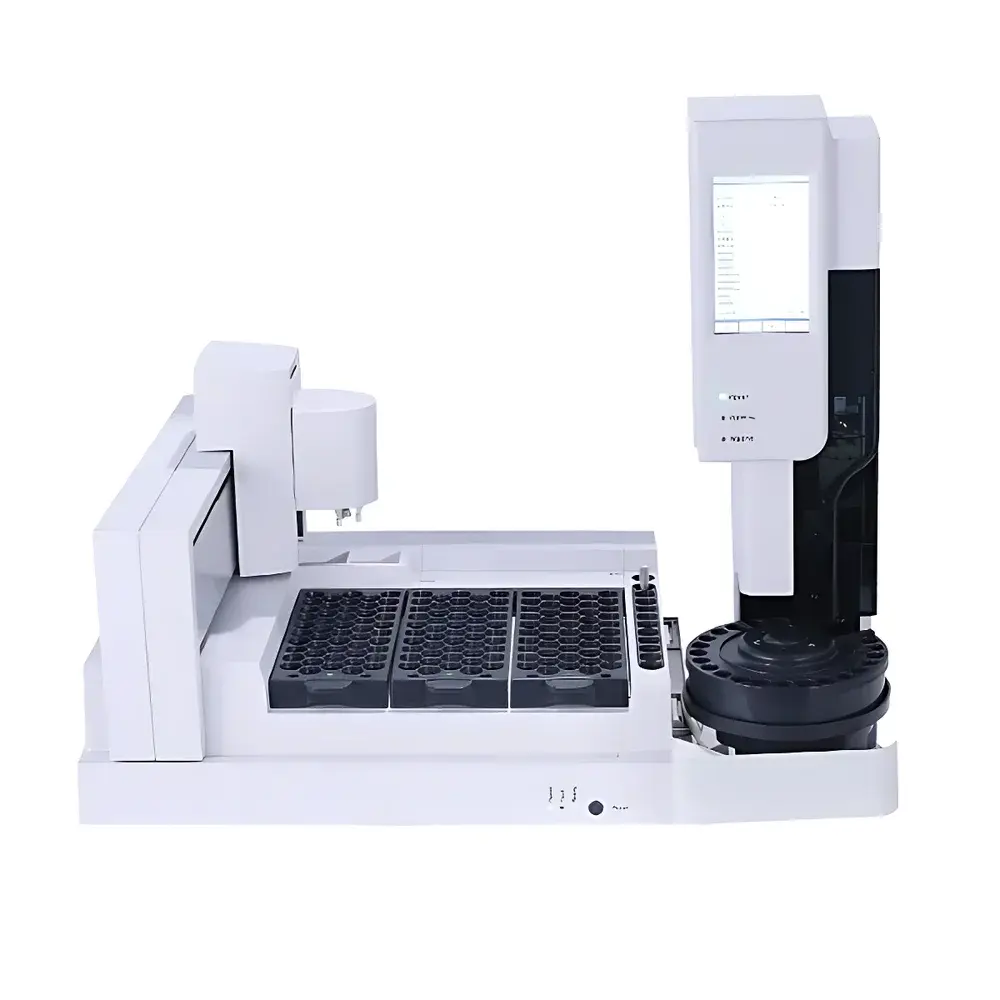

• Modular sample carousel accommodating 24 standard vials (expandable to 160 positions), with optional dual-tower configuration enabling sub-millisecond injection time reproducibility (<1 ms).
• Programmable syringe drive system with eight interchangeable syringe sizes (1–500 µL), offering user-defined aspiration/dispense speeds and acceleration profiles for viscous or volatile matrices.
• Comprehensive needle maintenance: simultaneous internal and external wall rinse using up to three solvents, with configurable wash cycles (1–99 per injection) and unlimited total wash count.
• Dual-control interface architecture: hardware-level TTL/relay triggering synchronized with GC start signals, plus software-level USB 2.0 and Modbus RTU (RS-485) for host PC integration and custom SCADA deployment.
• Integrated safety logic: automatic input validation, out-of-range parameter blocking, and hardware interlocks preventing invalid syringe motion or overpressure events.
• 5-inch capacitive touchscreen HMI with guided workflow navigation, multilingual UI support, and local method storage—enabling standalone operation without external PC dependency.
• Optional barcode scanning module for sample identity verification and LIMS linkage; optional Peltier-based sample tray temperature control (±0.5 °C stability) for thermally labile analytes.

Sample Compatibility & Compliance

The AS-3016C accommodates standard 11–12 mm OD glass or polypropylene vials (including crimp-top and screw-cap formats) and supports 2–11 solvent reservoirs for gradient wash sequences. Its fluidic path is chemically inert (PEEK, fused silica, and stainless-steel components) and compatible with common GC solvents including hexane, dichloromethane, methanol, acetonitrile, and ethyl acetate. While not certified to ISO/IEC 17025 or FDA 21 CFR Part 11 out-of-the-box, the system provides foundational capabilities required for compliance: deterministic timing control, non-volatile method storage, electronic signature-ready log export (CSV/TSV), and hardware-enforced parameter validation. When deployed with validated third-party LIMS or chromatography data systems (CDS), it meets core instrumentation requirements for ISO 17025-accredited testing labs and pharmaceutical QC environments operating under ICH Q2(R2) and USP guidelines.

Software & Data Management

The AS-3016C ships with a Windows-native control application supporting full remote configuration, real-time status monitoring, and method import/export via XML schema. All method parameters—including injection sequence, dwell times, wash routines, and trigger logic—are stored in encrypted binary format on internal flash memory, ensuring persistence across power cycles. The software generates timestamped execution logs containing syringe position, volume dispensed, wash cycle count, and error codes—exportable as UTF-8–encoded CSV for audit trail reconstruction. For enterprise integration, the Modbus RTU protocol exposes all critical registers (e.g., current position, status flags, error codes) to PLCs or MES platforms. USB HID emulation mode allows direct keyboard-equivalent command injection from custom Python, LabVIEW, or MATLAB scripts—facilitating automated method development and validation workflows.

Applications

The AS-3016C serves as a primary sample introduction platform for routine and research-grade GC analysis across environmental, petrochemical, food safety, and clinical toxicology laboratories. Its high-capacity expandability supports batch processing of EPA Method 8260/8270 samples, ASTM D3606 hydrocarbon profiling, residual solvent testing per ICH Q3C, and pesticide residue screening per AOAC 2007.01. The dual-tower configuration and <1 ms injection repeatability make it suitable for high-throughput method development requiring precise retention time alignment across hundreds of injections. Optional temperature-controlled sample handling extends applicability to volatiles analysis (e.g., blood alcohol GC-FID) and headspace applications where thermal equilibration consistency is paramount.

FAQ

What GC systems is the AS-3016C compatible with?
It interfaces natively with all major GC manufacturers (Agilent, Thermo Fisher, Shimadzu, PerkinElmer) via TTL-level start/stop triggers and analog voltage synchronization signals. Modbus RTU support enables deeper integration with legacy or proprietary GC controllers.
Can the AS-3016C perform split/splitless injections automatically?
Yes—when configured with a compatible GC inlet (e.g., Agilent 7890/8890, Thermo ISQ), the autosampler synchronizes injection timing with inlet pressure ramping and valve switching sequences via reverse-triggering or PC-coordinated event scheduling.
Is firmware update capability available?
Firmware updates are delivered via USB stick and installed through the touchscreen interface. Version history, checksum verification, and rollback functionality are embedded in the bootloader.
Does the system support 2D barcode reading for sample tracking?
The optional scanner module reads both 1D (Code 128, EAN-13) and 2D (DataMatrix, QR Code) symbologies, mapping scanned IDs directly to method parameters and exporting them in log files.
What maintenance intervals are recommended?
Syringe calibration verification every 500 injections; needle seal replacement every 10,000 cycles; encoder recalibration annually or after mechanical shock events. Preventive maintenance kits include OEM-certified PEEK tubing, ferrules, and syringe seals.
