ANSYS Lumerical Photonics Simulation Suite

Overview

ANSYS Lumerical is a comprehensive, industry-standard photonics simulation platform engineered for rigorous electromagnetic, optoelectronic, and multiphysics modeling of nanoscale and integrated photonic devices. Built upon first-principles Maxwell’s equation solvers—including finite-difference time-domain (FDTD), discontinuous Galerkin time-domain (DGTD), finite-element eigenmode (FEEM), and rigorous coupled-wave analysis (RCWA)—the suite enables predictive, high-fidelity simulation across optical, electrical, thermal, and quantum mechanical domains. Unlike generic numerical tools, Lumerical integrates domain-specific solvers with native scripting (via Python and Lumerical Script), compact model generation, and bidirectional interoperability with electronic design automation (EDA) environments. It serves as the computational backbone for photonic integrated circuit (PIC) development, supporting full-stack design—from material-level bandstructure characterization (MQW) and carrier transport (CHARGE) to system-level transient response (INTERCONNECT) and thermal management (HEAT).

Key Features

• Multi-solver architecture: Unified platform hosting FDTD (nanoscale scattering, plasmonics, metasurfaces), MODE (waveguide mode solving, dispersion analysis), STACK (thin-film interference, AR coating design), RCWA (grating diffraction, periodic photonic crystals), DGTD (large-scale dispersive or anisotropic structures), and FEEM (arbitrary cross-section waveguide eigenmode analysis).
• Multiphysics coupling: Native co-simulation workflows between CHARGE (drift-diffusion/Poisson solver for semiconductor carriers), HEAT (steady-state/transient thermal conduction), and electromagnetic solvers—enabling self-consistent electro-optic, thermo-optic, and carrier-induced index change modeling.
• PIC design & verification: INTERCONNECT provides hierarchical, scalable circuit-level simulation with built-in libraries for directional couplers, ring resonators, modulators, and detectors; supports S-parameter import/export, time-domain eye diagrams, BER analysis, and frequency-domain transfer functions.
• Compact model generation: CML Compiler automates extraction of behavioral models from device-level simulations—generating Verilog-A, SPICE-compatible, or INTERCONNECT-native compact models compliant with PDK-based foundry flows.
• EDA interoperability: Direct integration with Cadence Virtuoso, Synopsys Custom Compiler, and Siemens Tanner EDA via standardized APIs; supports OASIS/GDSII import/export and layout-aware simulation setup.
• High-performance computing support: MPI-parallelized solvers, GPU-accelerated FDTD (NVIDIA CUDA), and cloud-ready licensing enable scalable execution on HPC clusters and AWS/Azure instances.

Sample Compatibility & Compliance

Lumerical supports simulation of diverse photonic materials and geometries—including silicon, silicon nitride, InP, GaAs, LiNbO₃, 2D materials (graphene, TMDCs), plasmonic metals (Au, Ag), and metamaterial unit cells. All solvers adhere to IEEE Std 1597.1–2008 (recommended practice for computational electromagnetics verification) and are routinely validated against analytical benchmarks (e.g., Mie theory, waveguide cutoff conditions) and experimental data from peer-reviewed literature. For regulated industries, the platform supports GLP/GMP-aligned workflows: user authentication, role-based access control, electronic signatures, and immutable audit logs (via ANSYS Enterprise Platform integration). Exported results comply with ISO/IEC 17025 documentation requirements for calibration and validation reporting.

Software & Data Management

Lumerical operates within the ANSYS unified licensing and update infrastructure, delivering version-controlled solver binaries, documented API references (Python SDK), and automated regression testing suites. Simulation data is stored in HDF5 format—ensuring binary portability, metadata embedding (mesh settings, material definitions, convergence metrics), and compatibility with third-party post-processing tools (MATLAB, Python NumPy/SciPy, ParaView). Project files include full provenance tracking: parameter sweep histories, optimization iterations, and script execution logs. The ANSYS Cloud Portal enables secure job submission, resource monitoring, and result retrieval without local HPC administration overhead.

Applications

• CMOS image sensor pixel design (microlens arrays, color filter stacks, backside illumination crosstalk)
• Diffractive optical elements (DOEs) and metalenses for AR/VR near-eye displays
• Silicon photonics transceivers (modulators, Ge-on-Si photodetectors, grating couplers)
• LED/OLED light extraction structures and microcavity resonance tuning
• Plasmonic biosensors and hyperbolic metamaterial absorbers
• Photovoltaic anti-reflection coatings and light-trapping textures

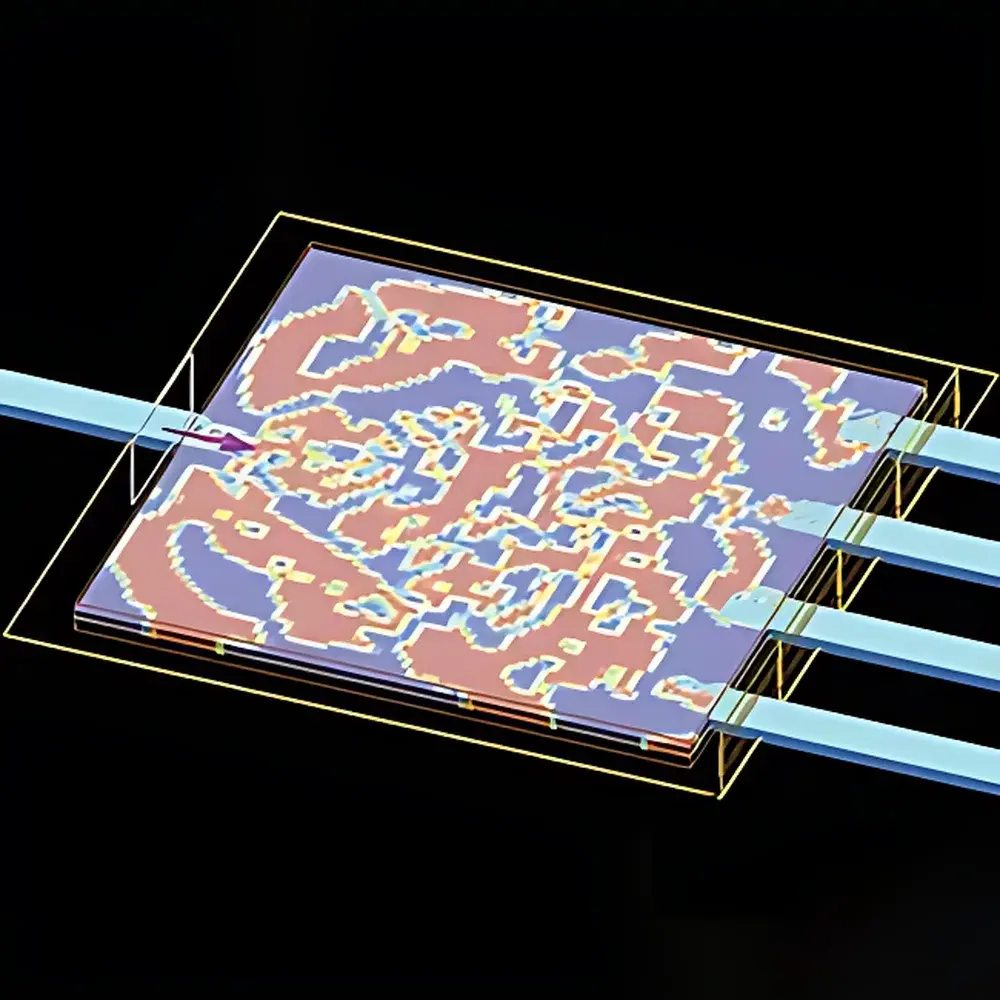

• Inverse-designed photonic topologies (topology optimization, adjoint methods)
• Ultrafast laser cavity modeling (nonlinear pulse propagation, mode-locking dynamics)

FAQ

Is Lumerical compatible with process design kits (PDKs) from major silicon photonics foundries?
Yes—Lumerical integrates with PDKs from AIM Photonics, IMEC, Leti, and GlobalFoundries via standardized component libraries, parameterized cell definitions, and INTERCONNECT schematic symbol mapping.
Can simulation results be exported for regulatory submissions (e.g., FDA, CE marking)?
Yes—when deployed with ANSYS Enterprise Platform, Lumerical generates auditable reports containing solver configuration, mesh statistics, convergence history, and uncertainty estimates—meeting documentation requirements for ISO 13485 and IEC 62304 in medical photonics applications.
Does Lumerical support scripting for parametric sweeps and optimization?
Yes—native Python API and Lumerical Script enable fully automated design-of-experiments (DOE), gradient-based optimization (e.g., adjoint method), and machine learning–driven inverse design pipelines.
What hardware acceleration options are available?
FDTD and MODE solvers support NVIDIA GPU acceleration (CUDA 11.2+); all solvers scale linearly across multi-node CPU clusters using MPI 3.1+.
How is software validation performed for scientific use?
ANSYS publishes annual solver verification reports aligned with IEEE 1597.1, including benchmark comparisons against analytical solutions, inter-solver consistency checks, and third-party code verification studies published in Optics Express and IEEE Journal of Selected Topics in Quantum Electronics.
