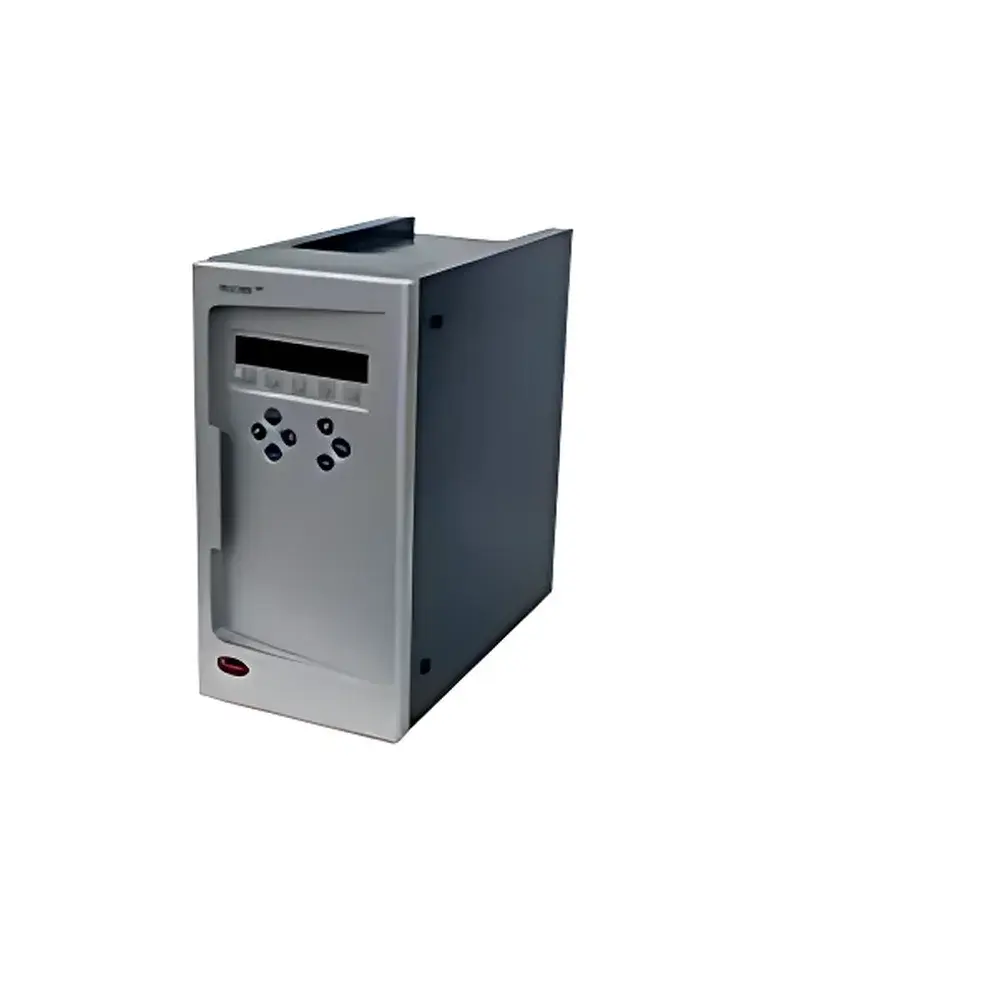

Antec DECADE Elite Electrochemical Detector

Overview

The Antec DECADE Elite Electrochemical Detector is a high-performance, research-grade electrochemical detection system engineered for integration with high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) platforms. It operates on the principle of amperometric, coulometric, and pulsed electrochemical detection—measuring current generated by redox reactions at a working electrode surface in response to analyte elution. Unlike optical detectors, ECD provides exceptional selectivity for electroactive compounds—including catecholamines, nitroaromatics, phenols, thiols, and metal complexes—without requiring chromophores or derivatization. The DECADE Elite builds upon Antec’s 25+ years of leadership in HPLC-ECD, incorporating refined electronics architecture, thermally stabilized fluidics, and digital signal processing specifically optimized for low-abundance target quantification in complex matrices.

Key Features

• Three operational modes—DC (direct current), pulsed amperometric detection (PAD), and scanning waveform—enabling method flexibility across diverse redox-active analytes.
• Advanced Digital Filter (ADF): A proprietary real-time signal processing algorithm that selectively attenuates high-frequency noise while preserving low-frequency analytical peaks—achieving superior signal-to-noise ratios without peak broadening or amplitude loss typical of analog time-constant filtering.
• Adjustable micro-volume flow cell: Central jet-wall electrode geometry with continuously tunable active volume from 0 to 300 nL, allowing optimization of sensitivity and temporal resolution without hardware swaps.
• Fully integrated thermostatic chamber with Faraday shielding: Maintains precise ±0.1 °C temperature control and eliminates electromagnetic interference (EMI) and electrostatic artifacts—critical for long-duration runs and reproducible baseline stability.
• Modular design compatible with standard 1/16″ stainless steel or PEEK tubing interfaces, supporting seamless integration into existing HPLC/UHPLC systems and EC-MS hyphenated setups.

Sample Compatibility & Compliance

The DECADE Elite is validated for use with aqueous and mixed organic-aqueous mobile phases common in reversed-phase, ion-pair, and hydrophilic interaction liquid chromatography (HILIC). It supports both single- and multi-electrode configurations for differential pulse or dual-potential detection strategies. From a regulatory standpoint, the detector’s firmware and associated software are architected to support audit-trail-enabled operation compliant with Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) requirements. Data acquisition logs—including method parameters, calibration events, user actions, and timestamped raw signals—are structured to meet FDA 21 CFR Part 11 criteria when deployed with validated third-party chromatography data systems (CDS). While not certified to ISO/IEC 17025 itself, the instrument’s performance characteristics align with ASTM D7214 (Standard Test Method for Determination of Catecholamines in Biological Fluids by HPLC-ECD) and USP chromatographic system suitability guidelines.

Software & Data Management

The DECADE Elite communicates via USB 2.0 or Ethernet to Antec’s proprietary ChronoStudio™ software suite (v5.x or later), which provides full control over potential programming, waveform generation, filter settings, and real-time data visualization. Raw current-time chromatograms are stored in vendor-neutral .CDF (NetCDF-based) format, enabling interoperability with MATLAB, Python (via netCDF4 libraries), and third-party CDS platforms including Chromeleon™ and Empower™ via optional drivers. All acquisition sessions generate immutable metadata headers containing instrument ID, firmware revision, cell serial number, and environmental sensor readings (temperature, humidity)—facilitating traceability and retrospective method revalidation.

Applications

• Neurotransmitter profiling in cerebrospinal fluid and plasma (e.g., dopamine, serotonin, norepinephrine).
• Environmental monitoring of redox-active pollutants: nitrobenzene derivatives, chlorophenols, and polycyclic aromatic hydrocarbon metabolites.
• Pharmaceutical quality control of oxidation-prone APIs—such as epinephrine, levodopa, and ascorbic acid formulations.
• Electrochemical characterization of catalytic intermediates in flow-based synthetic reactors.
• Online coupling with mass spectrometry (EC-MS) to correlate redox state changes with molecular identity—enabled by ROXY-series-compatible auxiliary modules.

FAQ

Is the DECADE Elite compatible with UHPLC systems operating above 1000 bar?
Yes—the flow cell and internal fluidic path are rated for continuous operation up to 1200 bar, with minimal extra-column band broadening due to its sub-100 nL dead volume design.
Can the same flow cell be used for both DC and pulsed detection modes?
Yes—no hardware modification is required; mode switching is fully software-controlled and automatically adjusts voltage sequencing, timing, and filtering parameters.
Does Antec provide application-specific method development support?
Yes—Antec maintains an Applications Lab in Zoeterwoude, Netherlands, offering remote method optimization, on-site installation qualification (IQ/OQ), and customized training for QC laboratories and academic core facilities.
What maintenance intervals are recommended for the working electrode?
Polishing frequency depends on sample matrix; for clean biological extracts, polishing every 200 injections is typical. Antec supplies standardized alumina slurries and electrode refurbishment services under extended service contracts.
Is firmware update capability available remotely?
Yes—ChronoStudio includes secure over-the-air (OTA) firmware update functionality with version rollback and checksum verification to ensure system integrity during upgrades.
