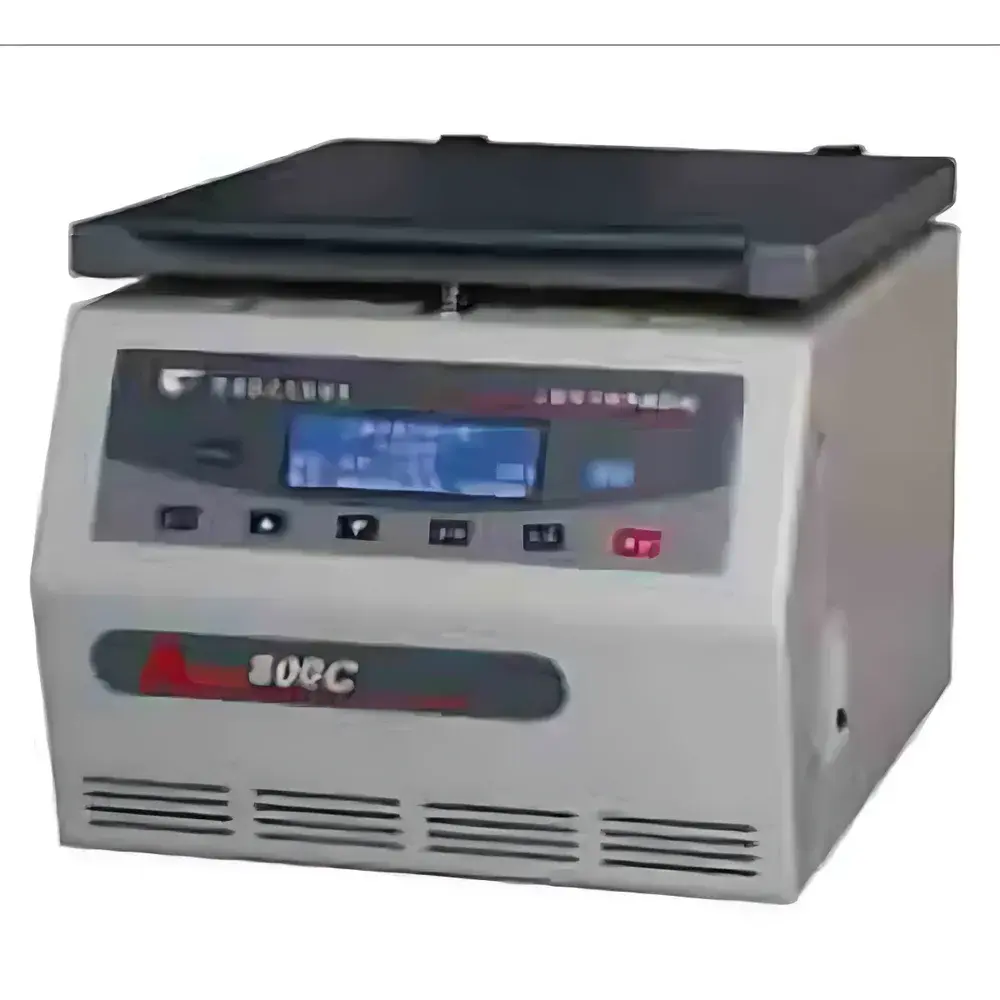

AnTing 800C Benchtop Low-Speed Centrifuge
| Brand | AnTing |
|---|---|
| Origin | Shanghai, China |
| Model | 800C |
| Type | Benchtop Centrifuge |
| Speed Range | Up to 4000 rpm |
| Max RCF | 1430 × g |
| Rotor Capacity | 6 × 15 mL (angle rotor) |
| Timer Range | 0–99 min |
| Power Supply | 220 V, 50 Hz, 180 W |
| Dimensions (L×W×H) | 520 × 375 × 335 mm |
| Weight | 45 kg |
| Construction | Reinforced polymer housing |
| Safety | Electronic door interlock |
Overview
The AnTing 800C Benchtop Low-Speed Centrifuge is a robust, entry-level centrifugation platform engineered for routine separation tasks in academic laboratories, quality control environments, and small-scale production facilities. Operating on the principle of sedimentation under controlled centrifugal force, the 800C generates up to 1430 × g at its maximum rotational speed of 4000 rpm—sufficient for pelleting cells, precipitating macromolecules, clarifying suspensions, and separating phase-separated immiscible liquids. Its fixed-angle rotor configuration supports six 15 mL conical tubes simultaneously, delivering consistent, reproducible results without requiring rotor balancing beyond standard tube mass symmetry. Designed for operational simplicity and long-term reliability, the unit features a compact footprint (520 × 375 × 335 mm), lightweight reinforced polymer chassis, and low-noise brushless motor architecture optimized for continuous operation at moderate g-forces.
Key Features
- Fixed-angle rotor with six-position capacity for standard 15 mL centrifuge tubes—compatible with common polypropylene and polycarbonate tube formats.
- Digitally adjustable timer (0–99 minutes) with automatic rotor deceleration and audible end-of-run signal.
- Electronic door interlock system prevents operation unless the lid is fully closed and latched—compliant with IEC 61010-1 safety requirements for laboratory equipment.
- Brushless DC motor ensures stable speed regulation, minimal heat generation, and extended service life without carbon brush maintenance.
- Integrated vibration-damping base and precision-machined rotor hub minimize operational noise (<65 dB(A)) and mechanical resonance during spin cycles.
- Front-panel LED display provides real-time feedback of set speed, elapsed time, and active status; no external software or PC interface required for basic operation.
Sample Compatibility & Compliance
The 800C accommodates standard 15 mL conical-bottom centrifuge tubes (e.g., Falcon® 352097 or equivalent), including those certified for low-speed applications (RCF ≤ 1500 × g). It is not intended for use with sealed ultracentrifuge tubes, blood collection vacutainers under vacuum, or samples requiring biocontainment (BSL-2+). The device conforms to electromagnetic compatibility (EMC) standards per EN 61326-1 and electrical safety requirements per EN 61010-1. While not certified for GMP or GLP-regulated workflows out-of-the-box, its electronic log-free operation and absence of audit-trail functionality align with general-purpose laboratory use as defined in ISO/IEC 17025:2017 Clause 6.4.1 for equipment suitability assessment.
Software & Data Management
The AnTing 800C operates as a standalone instrument with no embedded firmware-based data logging, USB connectivity, or network interface. All operational parameters—including speed, time, and run history—are manually recorded by the user. For laboratories implementing electronic lab notebooks (ELNs) or LIMS integration, external documentation protocols must be followed. No proprietary software drivers, firmware updates, or cloud synchronization capabilities are provided. This design prioritizes mechanical simplicity, regulatory transparency, and ease of validation in non-audited or teaching-laboratory contexts.
Applications
- Routine cell harvesting from bacterial, yeast, or mammalian suspension cultures prior to lysis or cryopreservation.
- Sedimentation of particulates in environmental water samples, soil extracts, or food homogenates.
- Clarification of crude enzyme preparations, antibody-containing supernatants, or plant tissue lysates.
- Phase separation in solvent extraction workflows (e.g., phenol-chloroform RNA isolation pre-centrifugation steps).
- Preparative isolation of erythrocytes or platelet-rich plasma (PRP) in clinical research settings where high-speed or refrigerated operation is not required.
- Teaching laboratory demonstrations of sedimentation kinetics, density gradient principles, and rotor dynamics fundamentals.
FAQ
Is the 800C suitable for blood sample processing?
Yes—provided samples are processed at speeds ≤4000 rpm and within standard 15 mL tube volume limits. It is commonly used for whole-blood fractionation into serum or plasma when combined with appropriate clotting or anticoagulant protocols.
Does the unit include a refrigeration system?
No. The 800C is a non-refrigerated benchtop centrifuge. Ambient temperature operation is recommended; prolonged runs may elevate internal chamber temperature slightly due to motor heat dissipation.
Can I use other rotor types with this model?
No. The 800C is configured exclusively with a fixed-angle 6-place rotor designed for 15 mL tubes. Swappable or adapter-based rotor systems are not supported.
What maintenance is required?
Routine cleaning of the rotor chamber and lid seal with 70% ethanol; annual visual inspection of rotor integrity and motor mounting bolts. No lubrication or calibration is required under normal usage conditions.
Is the electronic door lock compliant with laboratory safety standards?
Yes—the interlock meets IEC 61010-1 clause 7.3.3 for access protection during operation and prevents inadvertent lid opening while the rotor is in motion.
