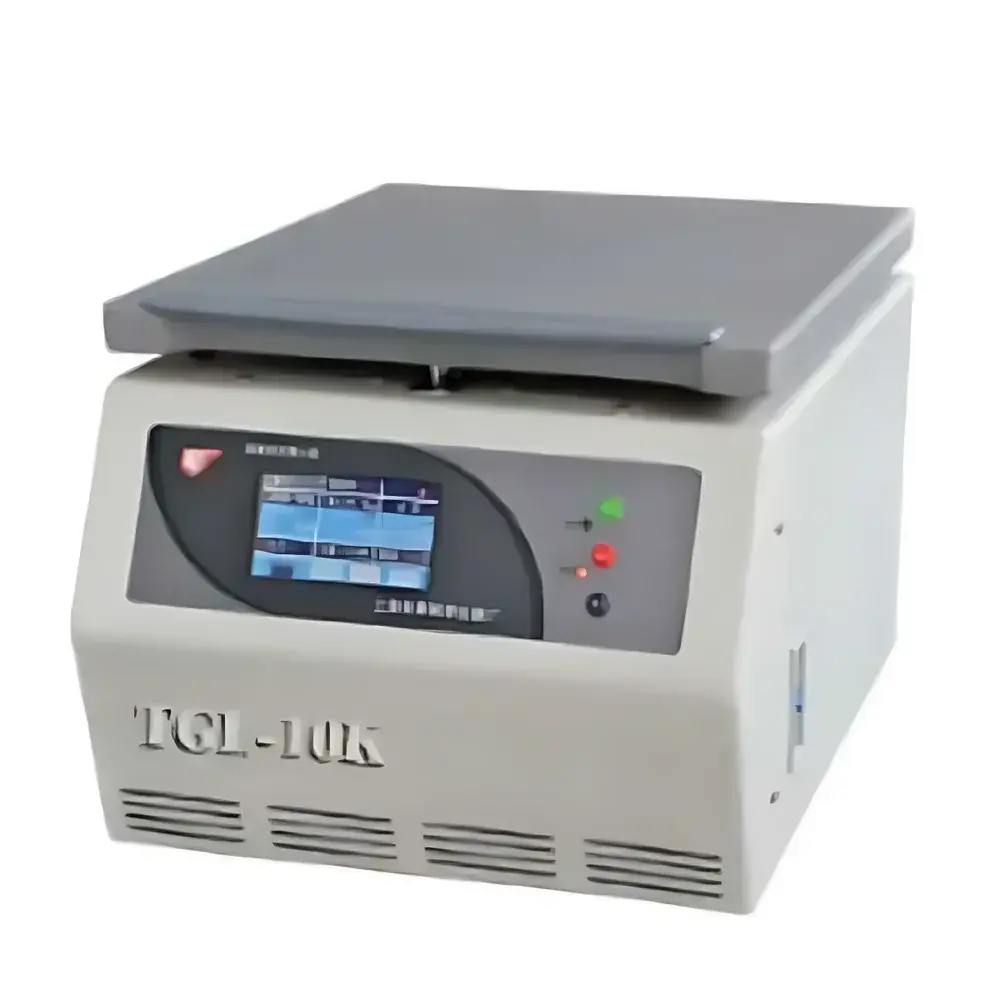

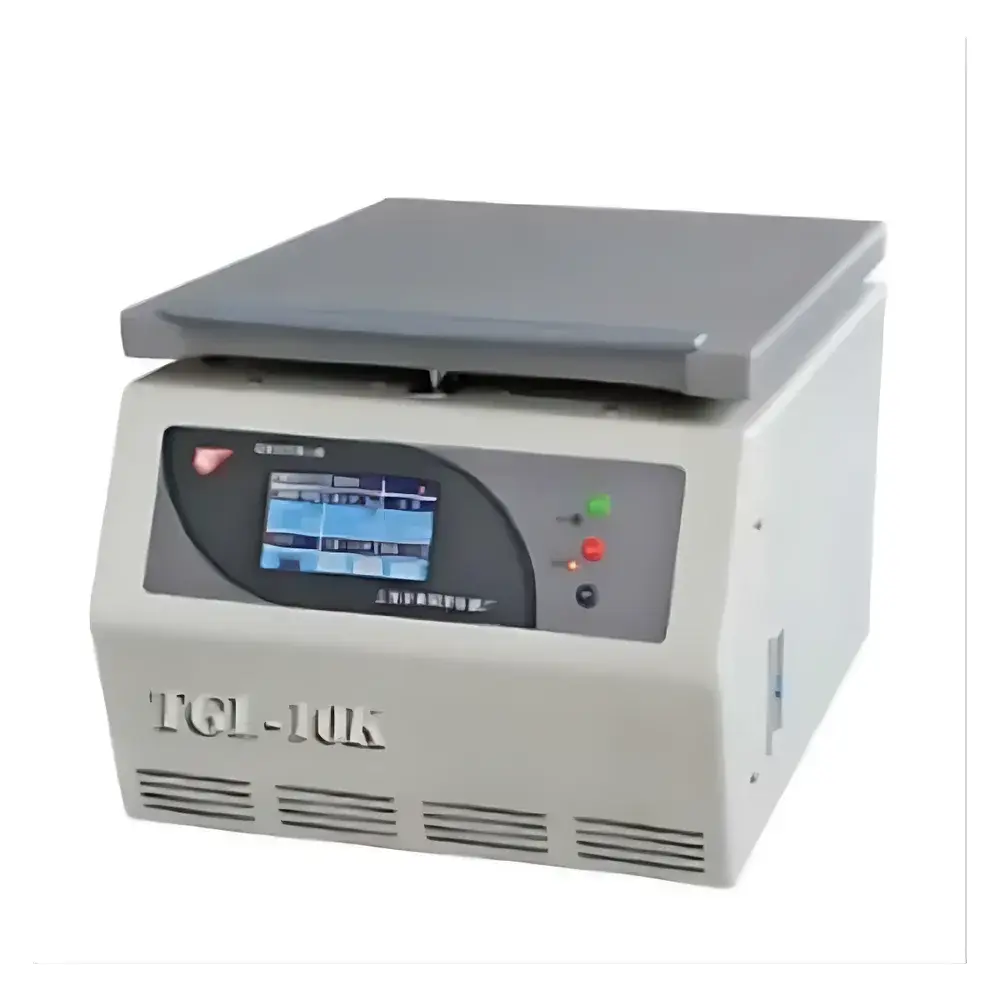

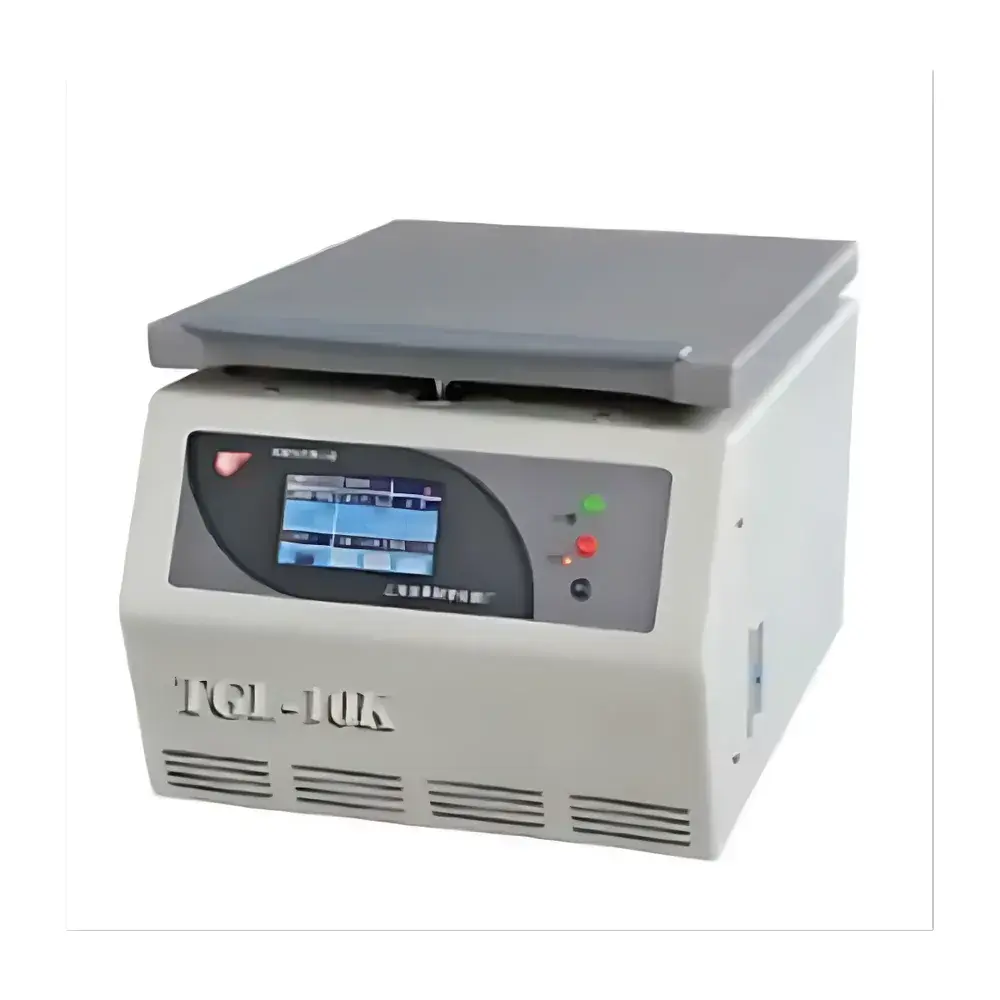

AnTing TGL-10K High-Speed Benchtop Centrifuge
| Brand | AnTing |
|---|---|
| Origin | Shanghai, China |
| Model | TGL-10K |
| Type | Benchtop Centrifuge |
| Cooling | Refrigerated |
| Drive System | Variable-Frequency Motor |
| Control Interface | Touchscreen LCD |
| Max Speed | 10,000 rpm |
| Max RCF | 8,950 ×g |
| Max Capacity | 50 mL × 4 (angle rotor) |
| Timer Range | 0–99 min |
| Power Supply | 220 V, 50 Hz, 400 W |
| Dimensions (L×W×H) | 620 × 420 × 385 mm |
| Weight | 57 kg |
| Rotor Types | Fixed-angle rotors (1.5/2/5/10/50 mL configurations) |
| Safety | Electronic door lock, imbalance detection, auto lid lock |
Overview
The AnTing TGL-10K High-Speed Benchtop Centrifuge is an engineered solution for routine and demanding separation tasks in academic laboratories, quality control environments, and small-scale bioprocessing workflows. Designed around a brushless variable-frequency motor and precision-machined aluminum alloy rotor chamber, the TGL-10K delivers stable rotational dynamics at speeds up to 10,000 rpm with maximum relative centrifugal force (RCF) of 8,950 ×g—sufficient for pelleting mammalian cells, precipitating nucleic acids, clarifying bacterial lysates, and separating subcellular organelles. Its refrigerated operation maintains sample integrity during extended runs, with thermoelectric cooling ensuring temperature stability between 4 °C and room temperature (±2 °C accuracy). The unit complies with IEC 61010-1 safety standards for laboratory electrical equipment and incorporates mechanical and electronic safeguards—including automatic rotor identification (via preset rotor profiles), real-time imbalance sensing, and fail-safe lid interlock—ensuring consistent performance under GLP-aligned operational protocols.
Key Features
- Brushless variable-frequency motor delivering high torque at low noise (<65 dB(A) at full speed) and extended service life without carbon brush wear
- Intuitive touchscreen interface with programmable protocols: speed, time, temperature, acceleration/deceleration ramps, and auto-brake selection
- Five pre-calibrated fixed-angle rotor options supporting common tube formats (1.5 mL to 50 mL), each with certified RCF values traceable to ISO 21501-4 calibration practices
- Electronic door lock with dual-sensor verification prevents operation unless lid is fully closed and sealed; automatically disengages power upon forced opening
- Thermally insulated stainless-steel chamber and Peltier-based cooling system maintain setpoint stability across ambient conditions (15–30 °C)
- Robust chassis constructed from reinforced polymer composite and die-cast aluminum housing, minimizing vibration transmission and enhancing positional stability on standard lab benches
Sample Compatibility & Compliance
The TGL-10K supports a broad range of biological and chemical samples including whole blood, serum, plasma, cell suspensions, protein solutions, and nanoparticle dispersions. Compatible with polypropylene, polycarbonate, and borosilicate glass centrifuge tubes rated for ≥10,000 rpm operation. All rotor configurations are validated per ISO 15195:2018 for metrological traceability in clinical laboratory settings. The instrument meets CE marking requirements (2014/30/EU EMC Directive and 2014/35/EU LVD Directive), and its control firmware implements audit-ready event logging—including start/stop timestamps, parameter changes, error codes, and door status—supporting compliance with FDA 21 CFR Part 11 when deployed in regulated QC/QA environments.
Software & Data Management
While the TGL-10K operates as a standalone instrument, its embedded controller stores up to 100 user-defined methods with full parameter recall (speed, time, temperature, ramp profiles). Event logs are exportable via USB port in CSV format for integration into LIMS or ELN systems. Optional RS-232 serial interface enables remote monitoring and command triggering from external automation platforms. Firmware updates are performed locally using FAT32-formatted USB drives, with version rollback capability and cryptographic signature validation to ensure integrity.
Applications
- Pre-analytical processing of clinical specimens: serum/plasma separation from whole blood (e.g., ASTM D7279-17 compliant protocols)
- Molecular biology workflows: plasmid DNA purification, RNA precipitation, viral pellet concentration
- Cell culture harvesting: suspension-adapted CHO or HEK293 cells at 1,500–3,000 ×g for 10 min
- Quality assurance in pharmaceutical manufacturing: particulate matter removal from buffer solutions prior to filtration
- Materials science: dispersion stabilization studies of colloidal nanoparticles in aqueous media
- Educational use: demonstration of sedimentation principles, density gradient fundamentals, and centrifugal force calculations
FAQ
Does the TGL-10K support swing-bucket rotors?
No—it is configured exclusively for fixed-angle rotors optimized for high-speed pelleting efficiency.
Is rotor calibration required before first use?
Each rotor is factory-calibrated and supplied with a certificate of conformance; no field recalibration is necessary unless physical damage occurs.
Can the centrifuge be operated without refrigeration?
Yes—the cooling system can be disabled via the touchscreen; the unit functions as a high-speed non-refrigerated benchtop centrifuge.
What safety certifications does the TGL-10K hold?
It conforms to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and carries CE marking under EU directives.
How is rotor imbalance detected and managed?
Vibration sensors monitor axial and radial displacement in real time; if threshold limits are exceeded, the drive decelerates immediately and displays an E03 error code.
