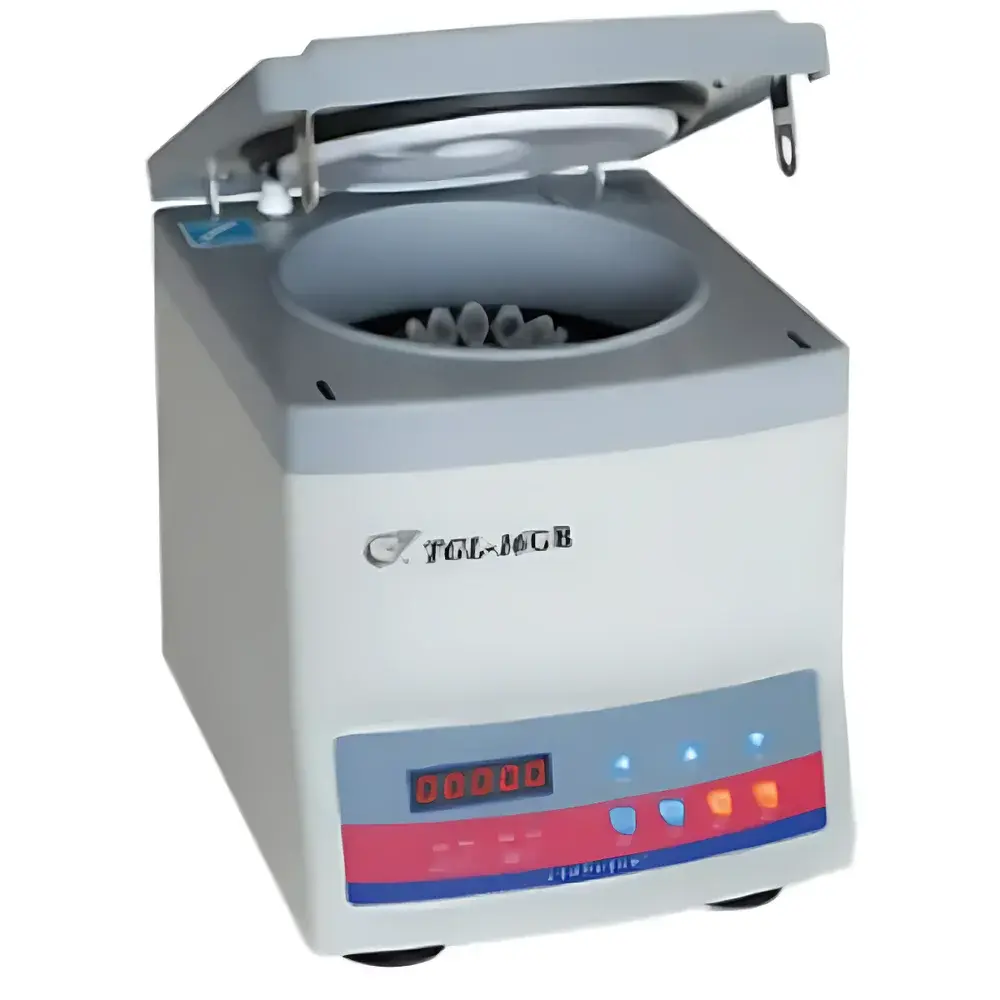

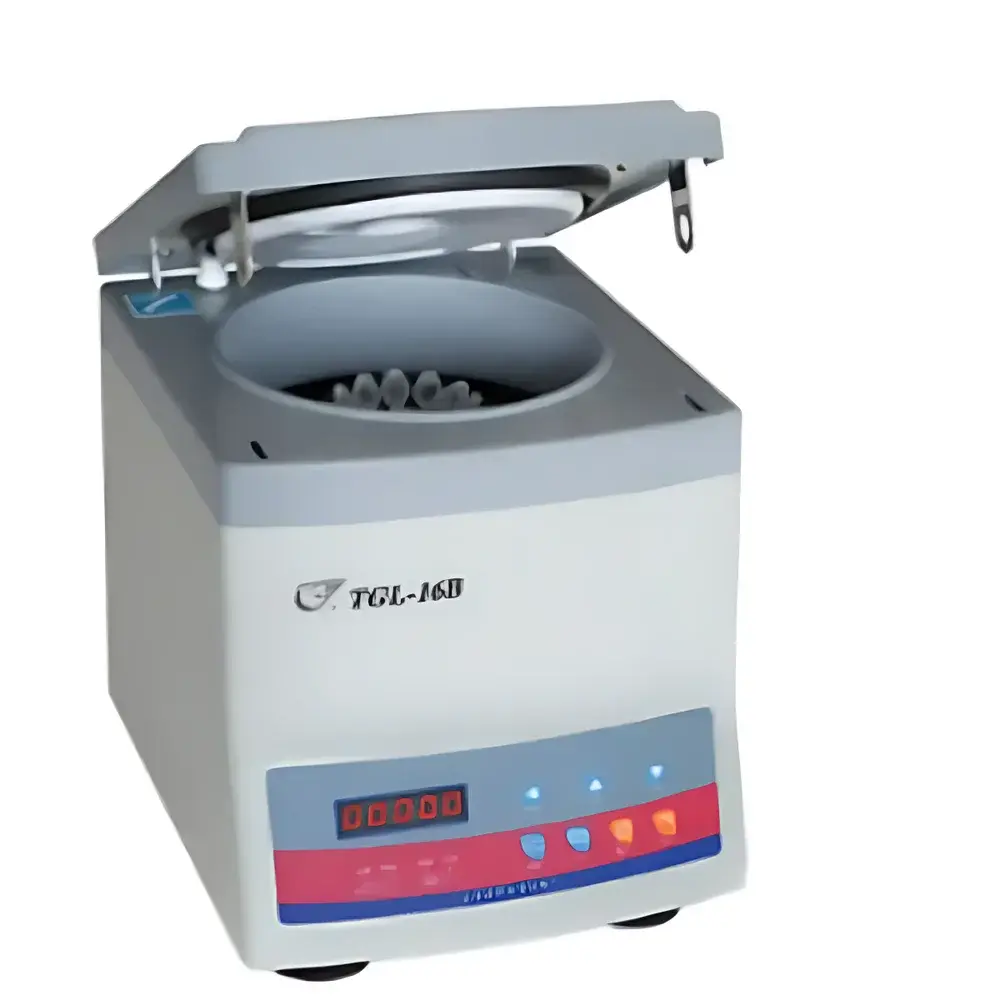

AnTing TGL-16B High-Speed Benchtop Centrifuge

Overview

The AnTing TGL-16B High-Speed Benchtop Centrifuge is an engineered solution for routine and research-grade sample separation in life science, clinical diagnostics, and quality control laboratories. Operating on the principle of sedimentation under controlled rotational acceleration, the TGL-16B generates up to 18,080 × g relative centrifugal force (RCF) at its maximum speed of 16,500 rpm—enabling efficient pelleting of subcellular particles, microorganisms, precipitated proteins, and nucleic acid complexes. Its compact benchtop footprint (350 × 390 × 350 mm) and lightweight reinforced polymer chassis (10 kg total mass) facilitate installation in space-constrained environments—including biosafety cabinets, clean benches, and shared core facilities—without compromising mechanical stability or operational reproducibility. The unit complies with IEC 61010-1 for electrical safety in laboratory equipment and incorporates a fail-safe electronic lid interlock system that halts rotor motion immediately upon lid opening, ensuring operator protection during operation.

Key Features

• High-speed performance with precise speed control: Digital microprocessor regulation maintains ±50 rpm accuracy across the full 300–16,500 rpm range, minimizing run-to-run variability.
• Multi-capacity angular rotor compatibility: Supports standard configurations including 12-position racks for 0.5 mL, 1.5 mL, and 2.0 mL microcentrifuge tubes; 8-position carriers for 7 mL conical tubes; and 10-position holders for 5 mL round-bottom tubes—enabling flexible workflow adaptation without hardware modification.
• Programmable timing interface: Adjustable timer from 0 to 99 minutes in 1-minute increments, with automatic brake and coast-down functionality to preserve pellet integrity for sensitive samples.
• Low-noise, low-vibration operation: Balanced rotor assembly and optimized motor damping reduce acoustic emissions to <65 dB(A) at 1 m distance, supporting quiet laboratory environments.
• Energy-efficient design: 400 W nominal power draw meets Class A energy efficiency benchmarks for laboratory centrifuges, reducing thermal load and long-term operating costs.
• Robust construction: Non-metallic housing resists corrosion from common reagents (e.g., ethanol, acetone, dilute acids/bases), while integrated thermal cut-off prevents overheating during extended runs.

Sample Compatibility & Compliance

The TGL-16B accommodates standard polypropylene and polycarbonate microtubes and conical tubes meeting ISO 7218 and ASTM D4294 specifications. It is validated for use with aqueous buffers, cell lysates, serum/plasma fractions, and organic-aqueous extraction mixtures. While not certified for biosafety level 3 (BSL-3) containment or aerosol-tight operation, the centrifuge satisfies general-purpose separation requirements under GLP-aligned workflows when used with sealed tube formats. Its electronic lid lock conforms to IEC 61010-2-020 Annex BB for centrifuge-specific mechanical safety. Documentation supports audit readiness for internal QA reviews; however, it does not include FDA 21 CFR Part 11-compliant electronic records or audit trail generation.

Software & Data Management

The TGL-16B operates via an embedded digital control panel with LED display—no external software or PC connectivity is required or supported. All parameters (speed, time, acceleration/deceleration profile) are set manually and retained only for the duration of the active run. No data logging, export capability, or remote monitoring is implemented. This architecture prioritizes operational simplicity, regulatory transparency, and minimal validation burden in regulated environments where manual entry and paper-based run logs remain acceptable practice per ISO/IEC 17025 Clause 7.7.

Applications

• Routine pelleting of mammalian cells (e.g., HEK293, CHO) at 1,500–3,000 × g for harvesting prior to lysis.
• Clarification of bacterial cultures (E. coli, Bacillus spp.) and yeast suspensions post-induction.
• Isolation of extracellular vesicles and exosomes using high-speed differential centrifugation protocols (≥10,000 × g).
• Separation of phase-separated organic/aqueous extracts in small-molecule purification workflows.
• Preparative isolation of plasmid DNA, genomic DNA, and RNA from lysates using silica-membrane or phenol-chloroform methods.
• Quality control testing of vaccine formulations, including particle size distribution assessment via post-centrifugation supernatant analysis.

FAQ

What is the maximum relative centrifugal force (RCF) achievable with the TGL-16B?

The TGL-16B delivers a maximum RCF of 18,080 × g at its rated speed of 16,500 rpm with the standard 12-place angular rotor.
Does the centrifuge support refrigerated operation?

No—the TGL-16B is a non-refrigerated model and is intended for ambient-temperature applications only.
Can I use this centrifuge for blood serum separation?

Yes, it is routinely employed for serum/plasma separation from whole blood using 5 mL or 7 mL collection tubes at speeds between 1,500 and 3,000 rpm (≈1,000–2,500 × g).
Is rotor balancing required before each run?

Yes—symmetrical tube loading is mandatory to prevent vibration-induced instability and premature bearing wear. Always balance loads to within ±0.1 g across opposing positions.
What safety certifications does the TGL-16B hold?

It conforms to IEC 61010-1:2010 for laboratory electrical equipment safety and includes mechanical interlocks per IEC 61010-2-020, but carries no CE marking for EU market placement or UL listing for North America.
