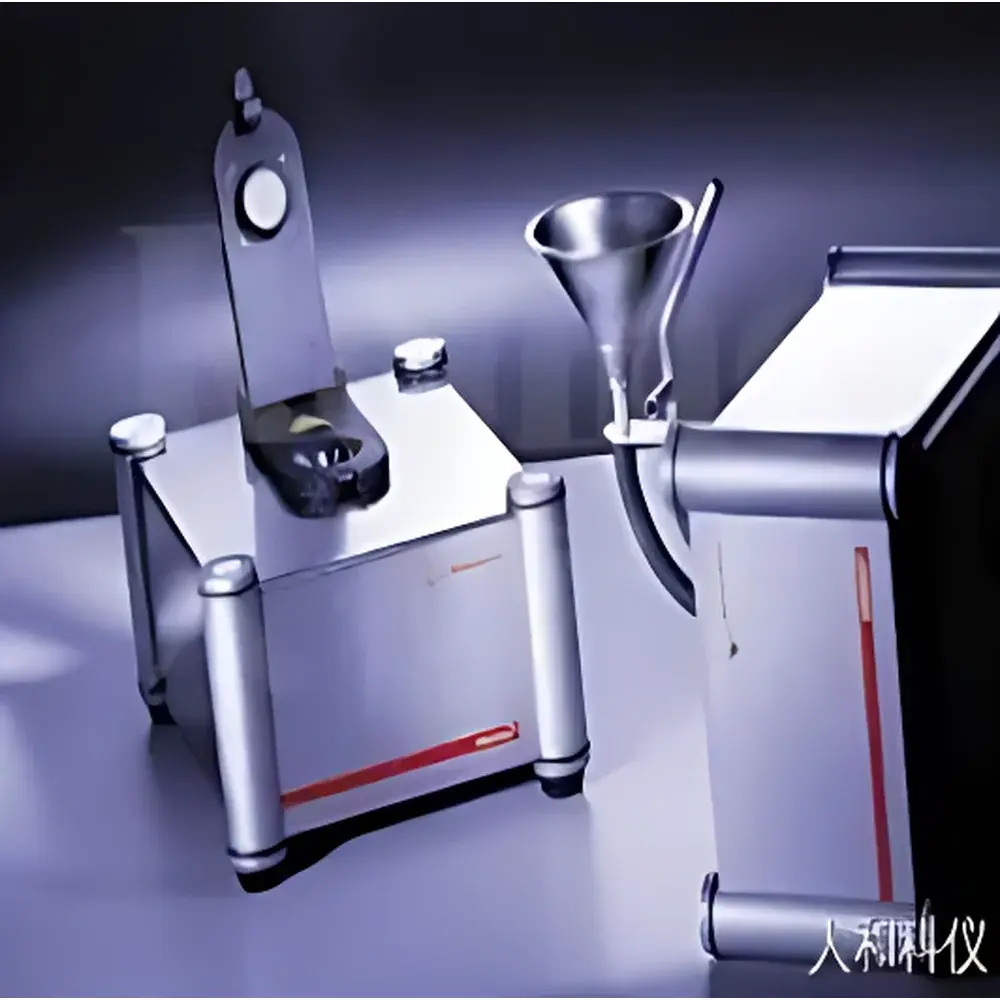

Anton Paar Abbemat MW Multi-Wavelength Refractometer

Overview

The Anton Paar Abbemat MW Multi-Wavelength Refractometer is a high-precision benchtop optical instrument engineered for the automated, temperature-controlled measurement of refractive index (n_D) across eight discrete spectral lines—from 435.8 nm (mercury-g line) to 656.3 nm (hydrogen-F′ line). Unlike conventional single-wavelength refractometers, the Abbemat MW implements white-light LED illumination coupled with precision interference filters to enable full spectral dispersion analysis. It operates on the principle of critical angle measurement at the solid–liquid interface between a high-refractive-index YAG (yttrium aluminum garnet) prism and the sample—ensuring minimal thermal drift and exceptional long-term stability. Designed for laboratories requiring rigorous material characterization in optics, polymer science, and quality assurance, the instrument delivers traceable, ISO/IEC 17025-compatible measurements compliant with ASTM D1218, ISO 17497-1, and USP . Its integrated Peltier temperature control system achieves ±0.002 °C stability over time—critical for evaluating temperature-dependent dispersion behavior in optical resins, lens monomers, and immersion oils.

Key Features

• Multi-wavelength capability: Eight user-selectable wavelengths (435.8, 480.0, 486.1, 488.0, 514.5, 532.0, 546.1, 632.8, 643.8, and 656.3 nm), including sodium-D (589.3 nm) as default reference.
• Ultra-high resolution: Refractive index accuracy of ±0.000001 nD and repeatability better than ±0.0000005 nD under controlled conditions.
• Integrated Peltier temperature control: Rapid thermal stabilization (≤20 s for 0.5 mL water to 20.00 °C); operating range 10–70 °C with ±0.01 °C setpoint resolution and ±0.03 °C absolute accuracy.
• YAG prism architecture: Chemically inert, scratch-resistant yttrium aluminum garnet prism with optimized surface geometry for low-sample-volume operation (~0.2 mL) and rapid cleaning.
• Modular hardware design: Separated optical head and control unit allow flexible installation—ideal for cleanrooms, gloveboxes, or vibration-sensitive environments.
• Formula parser engine: Supports user-defined calculation routines for Abbe number (V_D), partial dispersion ratios (e.g., V_e, V_d), and custom polynomial fits to dispersion curves.

Sample Compatibility & Compliance

The Abbemat MW accommodates a broad spectrum of optically transparent media—including liquid immersion oils (e.g., cedarwood oil, fluorinated hydrocarbons), thermoplastic polymers (PMMA, polycarbonate, cyclic olefin copolymers), glass melts, optical adhesives, and coating formulations. Its YAG prism and fluoropolymer-sealed sample stage ensure compatibility with aggressive solvents and UV-curable monomers. The system meets GLP/GMP documentation requirements via audit-trail-enabled software (compliant with FDA 21 CFR Part 11 when used with appropriate validation protocols). All calibration procedures adhere to ISO 17025 traceability chains through NIST-traceable refractive index standards (e.g., Cargille series).

Software & Data Management

Control and data acquisition are performed via PC-based Anton Paar mPDS software (Windows XP/Vista/7 compatible), offering real-time spectral dispersion plotting, multi-point temperature ramping, and automated report generation in PDF or CSV formats. The software supports method templates with embedded uncertainty budgets, automatic outlier detection, and export to LIMS via RS-232 serial interface. Raw spectral data—including intensity profiles and critical angle fits—is retained for retrospective reprocessing. Audit trails record all user actions, parameter changes, and calibration events with timestamps and operator IDs—enabling full compliance with regulated QA/QC workflows.

Applications

• Optical materials R&D: Determination of Abbe number (V_D), partial dispersion (P_g,F), and Sellmeier coefficient fitting for lens design.
• Quality control of ophthalmic lenses and contact lens materials: Batch-to-batch verification of refractive homogeneity and moisture-induced index shifts.
• Polymer formulation monitoring: Real-time tracking of monomer conversion during UV curing via refractive index change kinetics.
• Pharmaceutical excipient characterization: Refractive index profiling of silicone oils and polyethylene glycols used in injectables and ointments.
• Thin-film and coating development: In-situ measurement of solvent evaporation effects on refractive index gradients in spin-coated layers.

FAQ

What wavelengths are available on the Abbemat MW, and can additional filters be added post-purchase?
The instrument ships with eight factory-installed narrowband filters covering 435.8–656.3 nm. Filter sets are field-replaceable; however, adding new wavelengths requires recalibration and firmware update by an Anton Paar service engineer.
Is the YAG prism susceptible to scratching or chemical degradation?
YAG exhibits Knoop hardness >1300 HK and is resistant to most organic solvents, acids (pH >2), and bases (pH <12). Routine cleaning with lint-free wipes and isopropanol poses no risk to prism integrity.
How does the Abbemat MW handle temperature-dependent dispersion modeling?
It supports simultaneous acquisition at multiple wavelengths across programmable temperature ramps (e.g., 10→70 °C at 1 °C/min), enabling direct calculation of dn/dT and wavelength-specific thermo-optic coefficients.
Can the instrument measure solid samples directly?
Yes—when used with optional solid-sample adapters, the Abbemat MW measures polished glass or polymer slabs via total internal reflection mode, provided the sample’s minimum refractive index exceeds that of the YAG prism (n ≈ 1.83).
What validation documentation is supplied with the system?
Each unit includes a Factory Calibration Certificate traceable to NIST SRM 1484, a Performance Verification Report (PVR), and IQ/OQ documentation templates aligned with GAMP 5 and ISO 13485 requirements.
