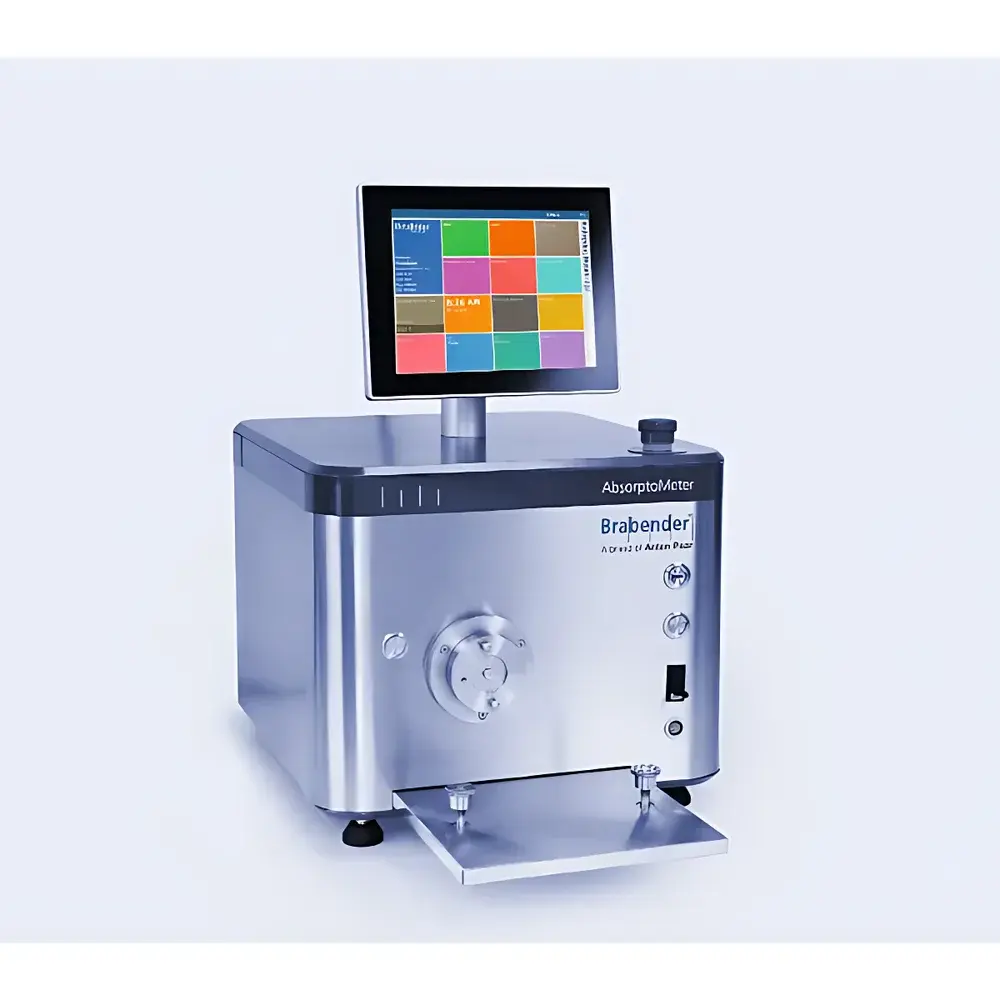

Anton Paar Brabender AbsorptoMeter Carbon Black Oil Absorption Tester

Overview

The Anton Paar Brabender AbsorptoMeter is a precision-engineered instrument designed specifically for the quantitative determination of oil absorption number (OAN) in carbon black, precipitated silica, and other high-surface-area particulate materials. It operates on the principle of controlled volumetric titration—where a standardized non-volatile oil (typically paraffinic or naphthenic oil) is incrementally added to a defined mass of dry powder under constant mechanical mixing until the onset of paste formation is detected via torque rheometry. This endpoint corresponds to the critical saturation point where the powder transitions from a free-flowing state to a cohesive, plastic mass—a physical phenomenon directly correlated with surface area, aggregate structure, and porosity. Unlike manual spatula-based methods, the AbsorptoMeter eliminates operator-dependent variability by automating both oil delivery and endpoint detection, delivering traceable, reproducible results aligned with internationally recognized test protocols.

Key Features

• Fully automated oil titration system with programmable dosing profiles and real-time torque monitoring for unambiguous endpoint identification.
• Stainless steel construction (including mixing bowl, stirrer shaft, and housing) ensuring chemical resistance, long-term dimensional stability, and compliance with laboratory hygiene requirements.
• Dedicated mixing geometry optimized for carbon black and silica—engineered to minimize wall adhesion, ensure homogeneous dispersion, and maintain consistent shear history across samples.
• High-torque drive unit capable of handling viscosity spikes up to 1,000,000 mPa·s during titration, enabling reliable operation with highly structured or agglomerated powders.
• Integrated solvent compatibility for use with polar aprotic solvents such as N-methyl-2-pyrrolidone (NMP), supporting advanced characterization of surface-modified fillers.
• Calibration traceability supported through certified reference oils and documented maintenance logs per ISO/IEC 17025 guidelines.

Sample Compatibility & Compliance

The AbsorptoMeter is validated for routine analysis of industrial-grade carbon blacks (e.g., N110–N990 series), fumed and precipitated silicas, calcium carbonate, and other reinforcing or functional fillers used in rubber compounding, tire manufacturing, and polymer masterbatch formulation. Its measurement protocol satisfies the technical requirements of ASTM D2414 (carbon black), ASTM D3493 (silica), and ASTM D6854 (modified carbon blacks), making it suitable for quality control laboratories operating under ISO 9001, IATF 16949, or GMP-aligned environments. Instrument validation documentation—including IQ/OQ/PQ templates—is available to support regulatory audits and method transfer across global R&D and production sites.

Software & Data Management

The proprietary AbsorptoMeter Control Software provides full method definition, execution logging, and audit-trail-enabled data handling. Each measurement session records timestamped torque curves, oil volume increments, ambient temperature/humidity metadata, and user credentials. The software supports 21 CFR Part 11-compliant electronic signatures, role-based access control, and automatic generation of PDF reports with embedded raw data plots. Historical datasets can be queried by batch ID, material grade, or operator; trend analysis tools facilitate SPC charting for process capability assessment. Export functions include CSV, Excel (.xlsx), and XML formats compatible with LIMS integration and statistical process modeling platforms.

Applications

• Quality assurance of carbon black batches prior to rubber compound mixing—ensuring consistency in reinforcement efficiency and vulcanization kinetics.
• Development of low-rolling-resistance tire treads by correlating OAN with silica dispersion quality and bound rubber formation.
• Formulation optimization of conductive composites where filler surface energy governs percolation thresholds.
• Technical service support for pigment and additive suppliers requiring rapid, standardized characterization of new grades.
• Research into structure–property relationships of nanostructured fillers under varying surface treatments (e.g., silanization, fatty acid coating).

FAQ

What standards does the AbsorptoMeter comply with?
It fully supports ASTM D2414, ASTM D3493, and ASTM D6854, with method parameters pre-configured and validated against interlaboratory study data.
Can the instrument be used for non-carbon-black materials?
Yes—it is routinely applied to precipitated silica, fumed silica, clay, and metal oxides when oil absorption behavior is relevant to processing or performance.
Is calibration verification required between runs?
No daily recalibration is needed; however, periodic verification using certified reference oils (e.g., NIST-traceable paraffin oil) is recommended per ISO/IEC 17025 internal quality procedures.
How is endpoint detection achieved without subjective visual judgment?
Endpoint is determined objectively via real-time torque derivative analysis—the inflection point where dT/dV (torque change per oil volume) reaches its maximum—eliminating observer bias.
Does the system support multi-user environments with data security?
Yes—role-based permissions, encrypted database storage, and electronic signature workflows meet GLP and regulated industry requirements for data integrity.
