Anton Paar Brabender ElaTest Pneumatic Density Analyzer

Overview

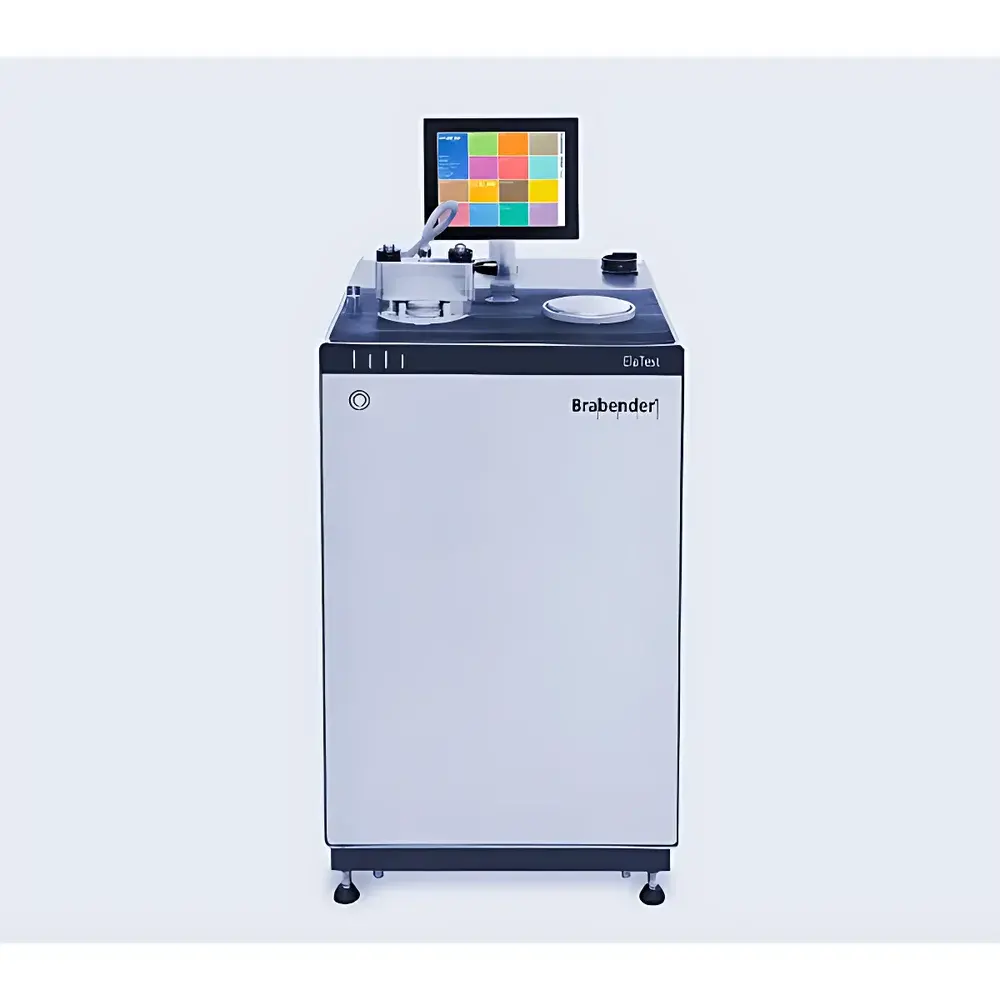

The Anton Paar Brabender ElaTest is a benchtop pneumatic density analyzer engineered specifically for the precise, repeatable determination of bulk density in uncured (non-crosslinked) rubber compounds and elastomeric materials. Unlike hydrostatic or oscillating U-tube methods, the ElaTest employs gas displacement (pneumatic) principle—measuring the volume displaced by a known mass of sample under controlled temperature conditions—to deliver high-accuracy density values without contact with liquids, solvents, or calibration media. This non-destructive, medium-free approach eliminates contamination risk, avoids sample swelling or degradation, and ensures compatibility with highly viscous, tacky, or filler-loaded rubber formulations common in tire, sealant, and technical rubber manufacturing. The instrument operates within a tightly regulated thermal environment (0–40.0 °C), enabling process-relevant measurements at ambient or conditioned temperatures aligned with ASTM D297, ISO 2781, and DIN 53521 standards for elastomer density testing.

Key Features

• Pneumatic displacement technology: Eliminates reliance on immersion fluids or reference standards; ideal for aggressive, solvent-sensitive, or highly filled rubber compounds.
• Integrated precision balance: High-resolution load cell with automatic tare and drift compensation ensures mass accuracy traceable to national metrology institutes.
• Thermostatically controlled chamber: Maintains sample and measurement cell at user-defined temperature (±0.1 °C stability) to minimize thermal expansion artifacts.
• Ergonomic touchscreen interface: Local operation via intuitive, icon-driven control panel—no external PC required for basic measurement execution.
• Robust mechanical architecture: Stainless-steel sample chamber, sealed pneumatic circuitry, and vibration-damped base support long-term reliability in production lab or QC floor environments.
• Ready2Use workflow: Preconfigured test methods for standard rubber grades (e.g., NR, SBR, EPDM) reduce operator training time and method validation effort.

Sample Compatibility & Compliance

The ElaTest is validated for heterogeneous, non-homogeneous, and air-entrapped rubber compounds—including masterbatches, carbon-black-filled stocks, silica-reinforced blends, and thermoplastic elastomers (TPEs). Its large-volume sample chamber (40–120 cm³) accommodates industry-standard cylindrical or slab-shaped specimens without compression or shaping. All measurement data—including timestamp, operator ID, temperature log, raw mass/volume readings, and final density—are stored with full metadata. When connected to MetaBridge software, the system supports 21 CFR Part 11-compliant electronic signatures, audit trails, and role-based access control—meeting GLP, GMP, and internal QA requirements for regulated rubber product development and release testing.

Software & Data Management

MetaBridge—a browser-based platform compatible with Windows, macOS, and Linux—enables remote instrument control, method library management, and automated report generation (PDF/CSV/XLSX). It provides real-time monitoring of measurement progress, statistical process control (SPC) charting (X-bar/R, Cp/Cpk), and trend analysis across batches or shifts. Raw data files include embedded calibration certificates, environmental logs, and instrument firmware versioning—ensuring full traceability per ISO/IEC 17025 clause 7.7. Data export supports LIMS integration via RESTful API or secure SFTP transfer, facilitating seamless alignment with enterprise quality management systems (QMS).

Applications

• Formulation optimization: Correlating filler loading (e.g., carbon black, silica) with bulk density to predict compound viscosity, scorch behavior, and vulcanization kinetics.
• In-process QC: Monitoring density consistency across mixing batches to detect deviations in polymer ratio, oil absorption, or moisture content.
• Raw material verification: Screening incoming elastomer lots against supplier specifications prior to compounding.
• R&D benchmarking: Comparing density profiles of novel bio-based rubbers or recycled elastomer blends under standardized test conditions.
• Regulatory documentation: Generating auditable density records for automotive OEM PPAP submissions or medical-grade elastomer certifications (e.g., ISO 10993-12).

FAQ

What sample preparation is required before measurement?
No drying, grinding, or compression is necessary. Samples must be free of surface moisture and placed intact into the chamber in their as-mixed state.
Can the ElaTest measure vulcanized rubber?
No—it is specifically designed for uncured compounds. Crosslinked rubber exhibits significantly reduced compressibility and gas permeability, compromising pneumatic volume measurement accuracy.
Is temperature calibration performed automatically?
Yes—the integrated Pt100 sensor undergoes daily self-validation against internal reference resistors; full temperature calibration is traceable to DKD-accredited standards.
How does the ElaTest handle air entrapment in highly filled compounds?
The pneumatic method inherently accounts for interstitial voids; density results represent true bulk density (mass / total occupied volume), consistent with industrial specification requirements.
Does MetaBridge support multi-instrument fleet management?
Yes—up to 32 ElaTest units can be centrally monitored, updated, and audited from a single MetaBridge instance with configurable alert thresholds and downtime logging.
