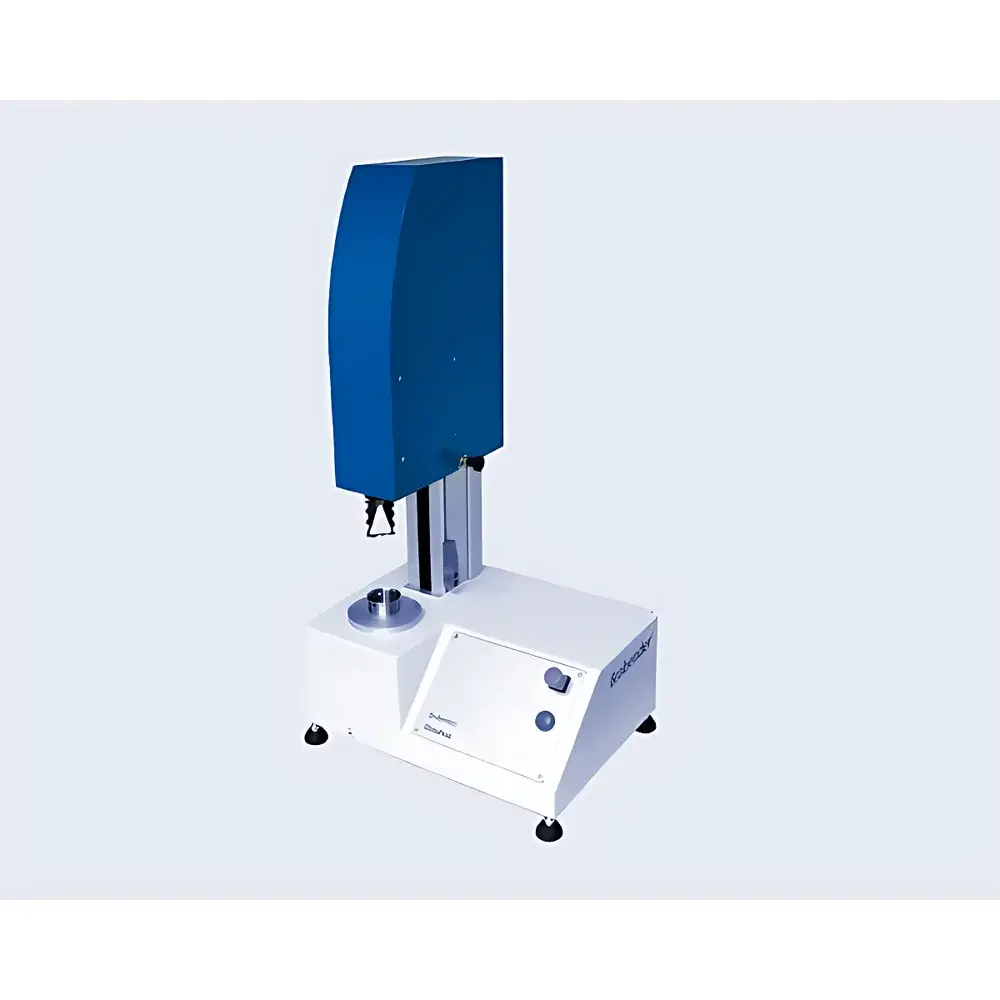

Anton Paar Brabender GlutoPeak Gluten Determinator
| Brand | Anton Paar Brabender |
|---|---|
| Origin | Germany |
| Manufacturer Entity | Authorized Distributor |
| Origin Category | Imported |
| Model | GlutoPeak |
| Pricing | Available Upon Request |
Overview
The Anton Paar Brabender GlutoPeak Gluten Determinator is a dedicated rheological instrument engineered for the rapid, standardized assessment of gluten aggregation behavior in wheat flour and related cereal-based materials. Based on the principle of controlled mechanical stress application under constant rotational speed, the GlutoPeak measures torque development during wet gluten formation in real time—providing a quantitative indicator of gluten strength, elasticity, and polymerization kinetics. Unlike traditional hand-washing or centrifugation-based wet gluten methods (e.g., AACC 38–12 or ISO 21415–1), the GlutoPeak delivers objective, operator-independent results within 1–10 minutes per sample, making it suitable for high-throughput incoming grain inspection, mill quality control, and R&D screening in baking and food ingredient laboratories. Its design reflects decades of Brabender’s expertise in cereal rheology, now integrated into Anton Paar’s global service infrastructure following the August 2023 acquisition and rebranding under Anton Paar TorqueTec GmbH.
Key Features
- Automated, time-resolved torque measurement during gluten hydration and shearing at fixed rotational speed (typically 700 rpm)
- Sample mass range: 2.5–12 g (adjustable based on flour type and moisture content)
- Integrated temperature-controlled water bath for precise hydration at standardized 30 °C or user-defined setpoints
- Self-cleaning mixing bowl with stainless-steel rotor and optimized geometry to ensure reproducible shear history
- Real-time torque curve output with automatic peak detection: identifies maximum torque (MT), time-to-peak (TTP), and curve slope as functional indices
- Compliance-ready architecture supporting audit trails, user access levels, and electronic signatures per FDA 21 CFR Part 11 requirements when configured with MetaBridge software
Sample Compatibility & Compliance
The GlutoPeak accepts raw milled wheat flours (including hard red winter, soft white, durum), semolina, whole grain blends, and pre-mixed dough formulations. It is validated for use with samples meeting ISO 712 (moisture), ISO 21712 (protein by Kjeldahl or NIR), and ICC Standard Method No. 171 (wet gluten by hand-washing) for correlation studies. Instrument outputs align with established empirical quality parameters such as the Gluten Index (GI), Wet Gluten Quantity (WGQ), and relative aggregation rate—enabling direct comparison with legacy Brabender protocols. All hardware and firmware comply with EU Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, and RoHS 2011/65/EU. Calibration verification is traceable to NIST-traceable torque standards via optional certified reference materials.
Software & Data Management
MetaBridge software serves as the central interface for method configuration, data acquisition, statistical evaluation, and regulatory reporting. It provides guided workflows compliant with GLP and GMP environments—including customizable pass/fail limits, batch-level trending, and multi-user role management (Administrator, Analyst, Reviewer). Measurement data are stored in encrypted SQLite databases with immutable timestamps and change logs. Export options include CSV, PDF reports (with embedded torque curves), and XML formats compatible with LIMS (e.g., LabWare, Thermo Fisher SampleManager) and ERP systems (e.g., SAP QM module) via ODBC or REST API integration. Audit trail functionality records all critical actions—including method edits, result approvals, and user logins—with full traceability for internal audits or regulatory inspections.
Applications
- Receiving inspection of wheat lots at mills and grain elevators to flag low-gluten or over-oxidized material prior to blending
- Process optimization in bakery R&D: correlating GlutoPeak TTP and MT values with loaf volume, crumb structure, and dough stability in Farinograph/Extensograph testing
- Functional evaluation of alternative flours (e.g., spelt, rye, ancient grains) where conventional gluten indices lack sensitivity
- Quality assurance for gluten-free product lines—detecting cross-contamination through ultra-low gluten threshold validation (down to ~0.1% wet gluten)
- Feed formulation support: assessing gluten-binding capacity in protein-enriched cereal concentrates used in aquaculture and pet food
FAQ
How does GlutoPeak differ from traditional wet gluten determination methods?
It replaces subjective manual washing with automated, kinetically resolved torque measurement—eliminating inter-operator variability and delivering quantitative aggregation kinetics rather than endpoint mass yield.
Can GlutoPeak results be correlated with Farinograph or Mixolab data?
Yes—peer-reviewed studies demonstrate strong linear correlations (r² > 0.89) between GlutoPeak MT and Farinograph stability, and between TTP and Mixolab C3/C4 transition times.
Is routine calibration required?
No daily calibration is needed; however, periodic verification using certified torque check standards (e.g., Anton Paar TorqueCheck Kit) is recommended every 3 months or after maintenance.
What sample preparation is necessary?
Flour must be conditioned to standard moisture (14.0 ± 0.2%) per ISO 712 and sieved through 250 µm mesh; no additional reagents or solvents are required.
Does the system support 21 CFR Part 11 compliance out of the box?
Full Part 11 compliance requires MetaBridge Enterprise Edition with enabled electronic signature modules, role-based permissions, and audit trail activation—configured during installation.
