Anton Paar Brabender MT-CA & Aquatrac-V Selective Moisture Analyzers

Overview

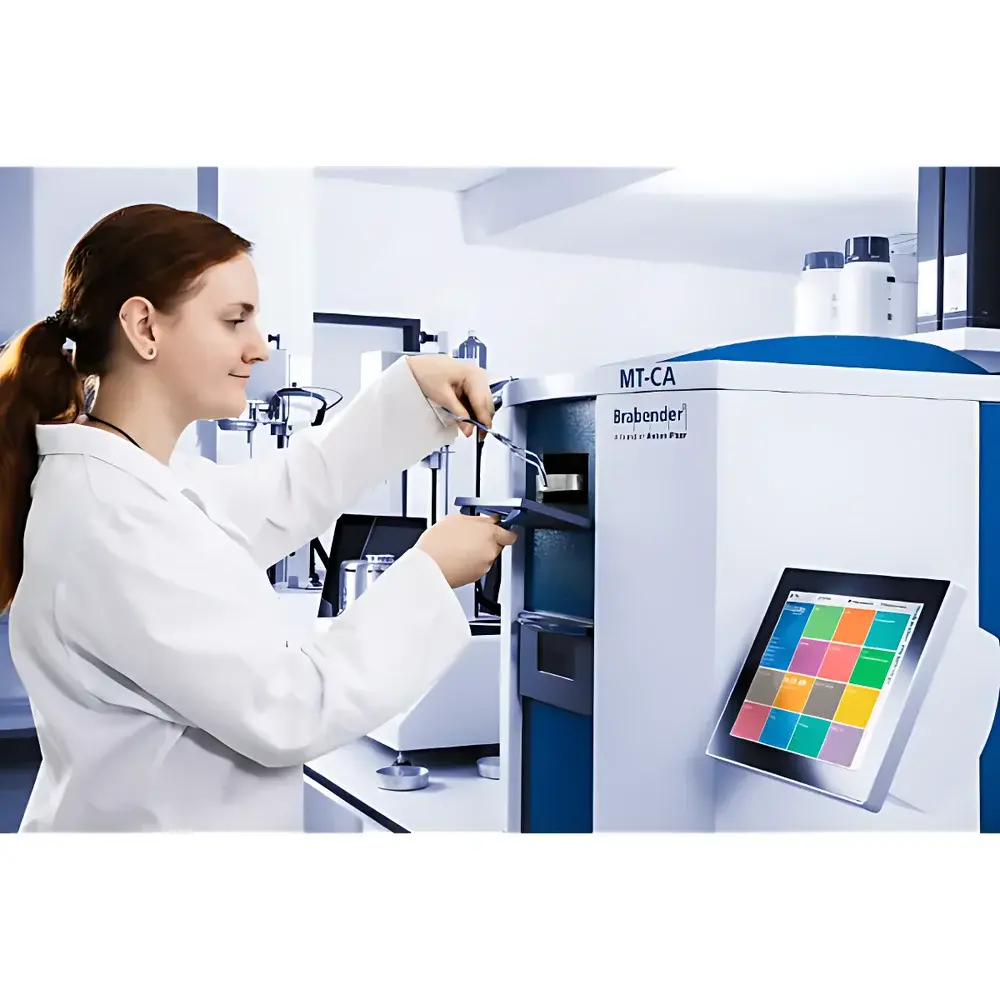

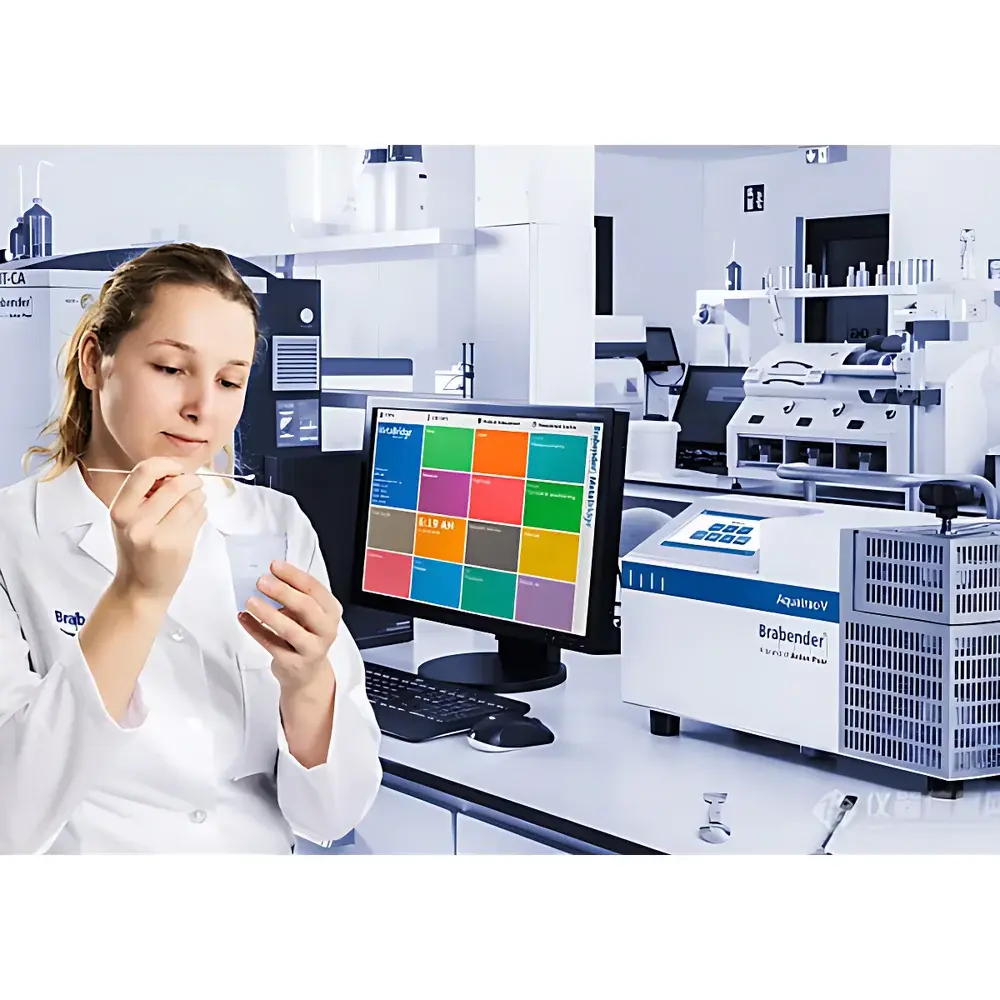

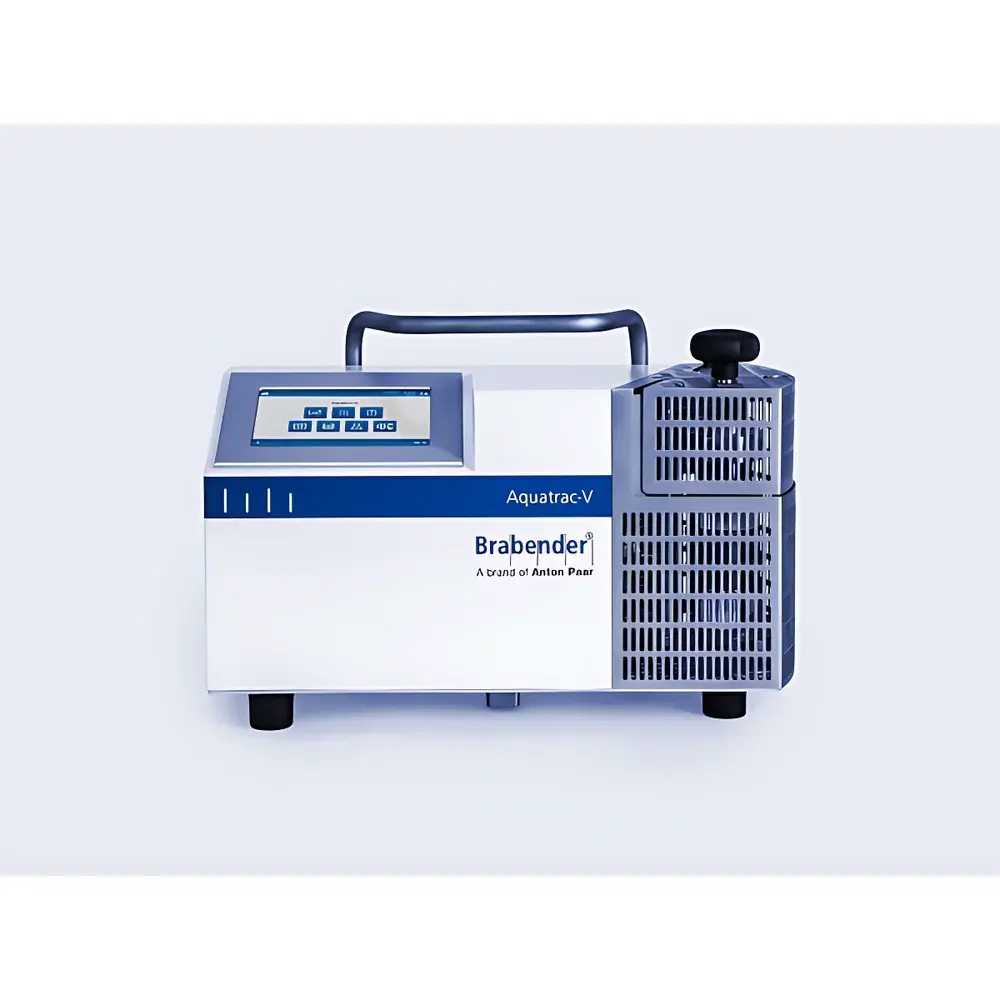

The Anton Paar Brabender MT-CA and Aquatrac-V represent two complementary, metrologically distinct approaches to moisture analysis—engineered for trace-level selectivity or high-throughput gravimetric quantification across diverse industrial sectors. The MT-CA is a fully automated thermogravimetric moisture analyzer employing halogen or infrared heating combined with high-precision analytical weighing (0.1 mg readability) and integrated cooling compensation. It operates on the principle of mass loss upon controlled thermal desorption, validated against reference standards including ISO 712 (cereals), ICC 113 (flour), and EU Tobacco Directive Annex II methodologies. In contrast, the Aquatrac-V implements the calcium hydride (CaH₂) reaction under dynamic vacuum—a primary, absolute method defined in DIN EN ISO 15512:2019 for residual water in polymeric materials. Here, liberated hydrogen gas pressure is measured in real time via a calibrated capacitance manometer; stoichiometric calculation yields water content without empirical calibration. Both instruments are manufactured in Germany under ISO 9001-certified processes and serve as legally defensible reference methods in quality assurance frameworks requiring traceability to SI units.

Key Features

• MT-CA: Integrated touchscreen PC with preinstalled MetaBridge software; no external computer required; compact footprint (W×D×H: 320 × 450 × 480 mm)
• Aquatrac-V: Sealed, single-use reaction vial system; eliminates cross-contamination and operator exposure to reactive reagents
• Both platforms support full 21 CFR Part 11 compliance: electronic signatures, immutable audit trails, role-based access control, and data integrity validation
• MT-CA reduces total cycle time by up to 65% versus conventional oven-dry methods—eliminating manual desiccator cooling and post-dry reweighing steps
• Aquatrac-V achieves 0.0001% w/w H₂O resolution—enabling detection of sub-ppm moisture critical for PET, PA6, PC, and engineering thermoplastics prior to extrusion or injection molding
• MetaBridge enables concurrent multi-instrument management, automated report generation (PDF/CSV/XML), and scheduled method execution across heterogeneous lab environments

Sample Compatibility & Compliance

The MT-CA accommodates heterogeneous solid matrices—including milled grains, ground tobacco, cementitious powders, pharmaceutical granules, and dried foodstuffs—with sample masses ranging from 0.5 g to 10 g. Its adaptive drying profile algorithm adjusts temperature ramping and hold times based on real-time mass-loss kinetics, minimizing thermal degradation risk. The Aquatrac-V accepts polymer pellets, flakes, or powders (typically 0.5–5 g) in standardized glass vials; its CaH₂ chemistry is inherently selective for water over alcohols, acids, or solvents—ensuring specificity where NIR or Karl Fischer titration may suffer interference. Both instruments conform to international regulatory expectations: MT-CA supports ISO/IEC 17025 method validation protocols, while Aquatrac-V fulfills ASTM D6980 and USP requirements for residual solvent testing when configured with certified CaH₂ reagent lots. Method libraries include pre-validated parameters for >40 polymer grades (e.g., ABS, POM, TPU) and >25 food commodities.

Software & Data Management

MetaBridge is a browser-based, server-hosted application architecture supporting centralized deployment across Windows, macOS, and Linux endpoints. It enforces ALCOA+ data governance principles: Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available. All measurement events—including balance drift compensation, heater stabilization logs, and pressure transducer zero-point verification—are timestamped and cryptographically hashed. Integration modules provide native drivers for Thermo Fisher LIMS, SAP QM, and LabVantage ERP systems via HL7, ASTM E1384, or custom RESTful APIs. Raw data export includes metadata headers compliant with ISA-88 batch record structures, facilitating automated statistical process control (SPC) charting in Minitab or JMP.

Applications

• Food & Agriculture: Rapid moisture certification of wheat flour (ICC 113), roasted coffee beans, and malted barley—replacing labor-intensive AOAC 950.46 procedures
• Polymers & Plastics: Quantifying hydrolyzable moisture in hygroscopic resins prior to melt flow index (MFI) testing—Aquatrac-V simultaneously dries and prepares ASTM D1238-compliant specimens
• Tobacco Processing: Batch release testing per EC Regulation (EU) No 753/2013 Annex I, ensuring leaf moisture remains within 11.5–13.5% w/w tolerance bands
• Construction Materials: Determining free water content in gypsum plasters, tile adhesives, and dry-mix mortars per EN 13242
• Pharmaceutical Excipients: Verifying residual moisture in microcrystalline cellulose (MCC) and lactose monohydrate batches against ICH Q5C stability thresholds

FAQ

How does the Aquatrac-V achieve water selectivity without calibration?
It relies on the stoichiometric reaction: CaH₂ + 2H₂O → Ca(OH)₂ + 2H₂. Hydrogen gas pressure increase is directly proportional to moles of water reacted—no empirical correlation models or secondary standards are needed.
Can MT-CA replace Karl Fischer titration for routine QC?
Yes—for non-volatile, thermally stable matrices where total volatiles ≈ water content. For low-moisture polymers (<0.02%), Aquatrac-V remains the reference method per ISO 15512.
Is MetaBridge validated for GxP environments?
Yes. IQ/OQ documentation packages, configuration change control logs, and periodic performance verification templates are provided per Annex 11 and FDA guidance.
What maintenance is required for long-term accuracy?
MT-CA requires annual balance recalibration and heater element resistance verification. Aquatrac-V mandates quarterly vacuum system leak testing and annual manometer calibration using NIST-traceable pressure standards.
Do both instruments support unattended overnight operation?
Yes. MT-CA’s 10-position carousel and queue-based scheduling allow sequential runs with automatic shutdown. Aquatrac-V supports remote start/stop via MetaBridge and includes hardware interlocks for vial seal integrity monitoring.
