Anton Paar Brabender TwinLab Tobacco Twin-Screw Extruder

Overview

The Anton Paar Brabender TwinLab Tobacco Twin-Screw Extruder is a precision-engineered laboratory and pilot-scale extrusion system specifically optimized for tobacco processing research and development. Built upon the legacy of Brabender’s torque rheometry expertise and integrated into Anton Paar’s global service and compliance infrastructure since August 2023, this instrument applies co-rotating intermeshing twin-screw technology to simulate industrial extrusion conditions under controlled, reproducible, and fully measurable parameters. It operates on the principle of continuous shear-controlled material transformation—where thermal energy, mechanical energy (torque), residence time distribution, and pressure gradients are simultaneously monitored to characterize melt behavior, plasticization efficiency, binder dispersion, and structural evolution in tobacco blends, reconstituted sheet formulations, and alternative nicotine delivery matrices. Designed for R&D labs requiring regulatory traceability and process scalability, the TwinLab Tobacco enables direct correlation between lab-scale data and full-scale production settings—supporting formulation optimization, process validation, and quality-by-design (QbD) initiatives.

Key Features

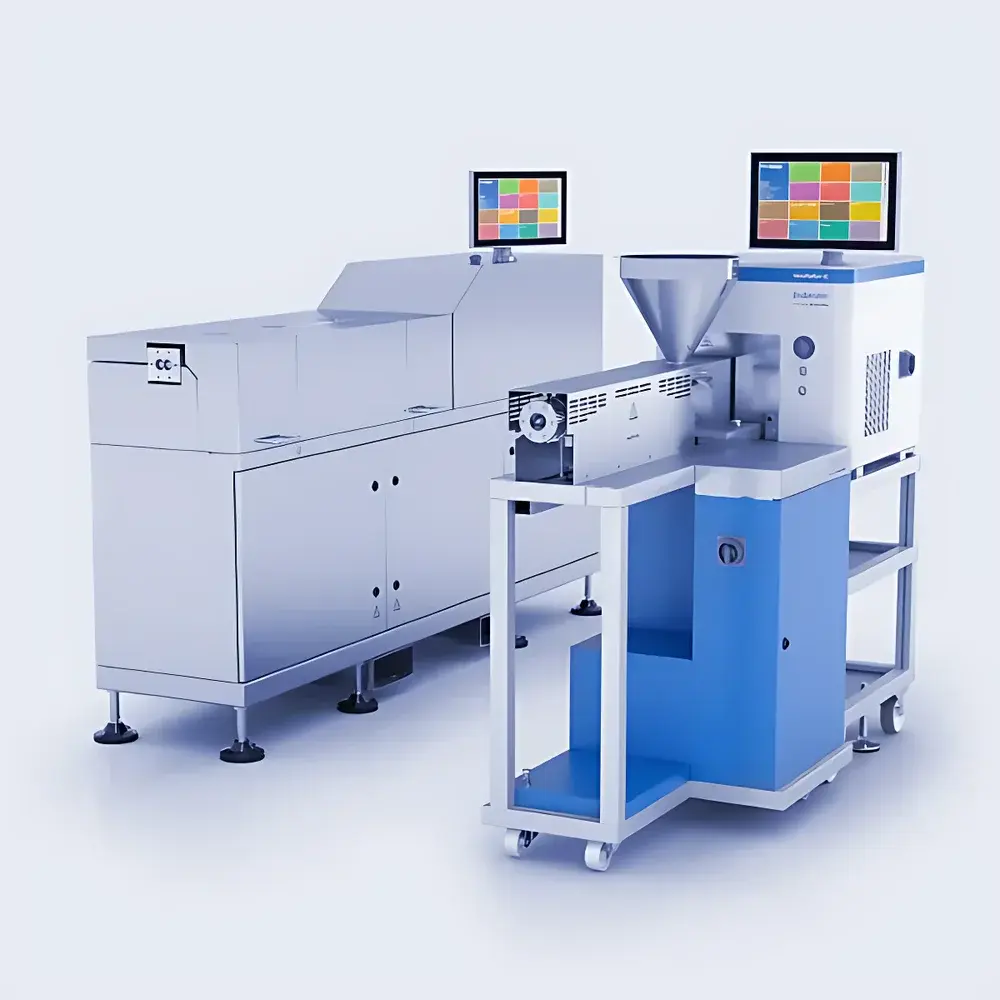

• Modular TwinLab platform powered by MetaStation drive unit—supports interchangeable configurations for twin-screw extrusion, single-screw extrusion (e.g., 19/25 mm system), and batch mixing

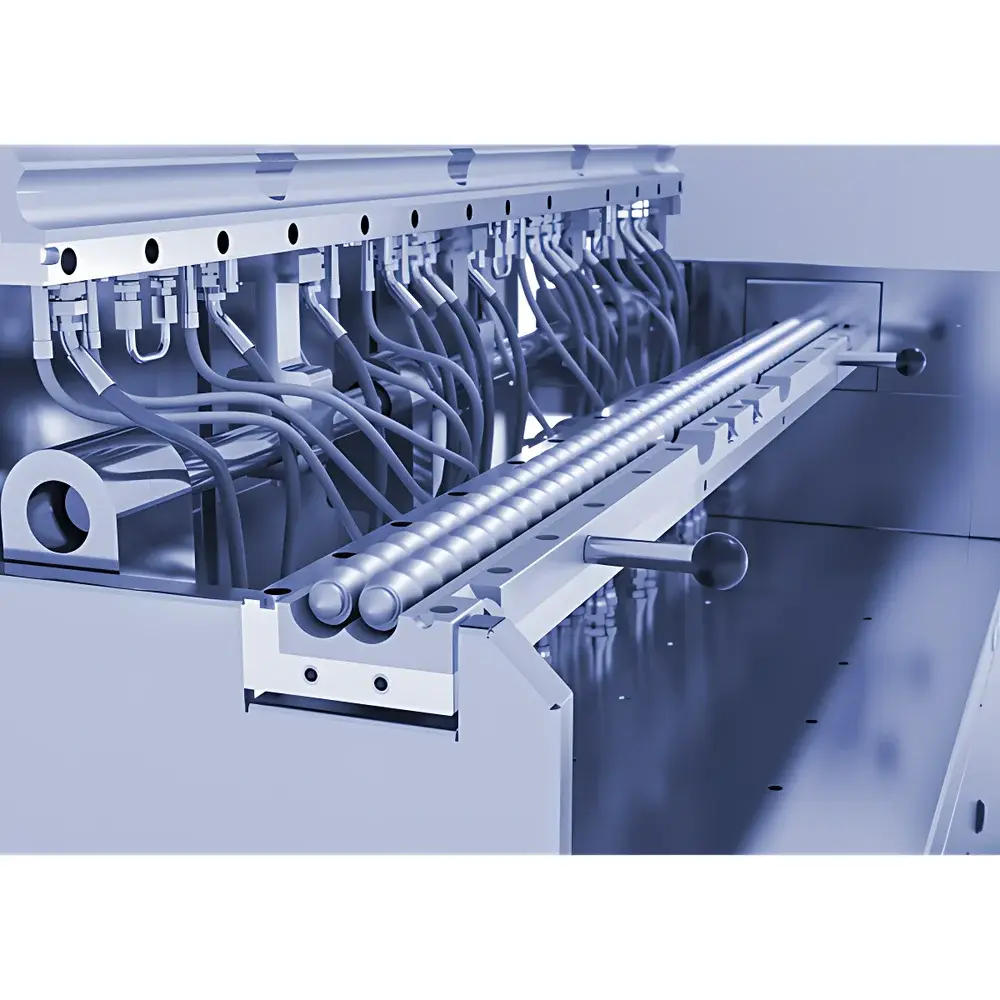

• Smart split-barrel design with quick-release segmented barrels and easily removable wear-resistant liners—enabling rapid inspection, configuration adjustment, and cleaning without disassembly tools
• High-temperature alloy construction (up to 500 °C operational limit) for screws, barrels, and die components—engineered for corrosion resistance and abrasion resilience in high-moisture, alkaline, or additive-rich tobacco matrices
• Real-time synchronized acquisition of critical process variables: barrel zone temperatures (±0.5 °C), melt pressure (0–100 bar), motor torque (0–100% full scale), drive load (%), and screw speed (0.1–600 rpm)
• Integrated MetaBridge software with secure, role-based user access—providing live control, automated parameter logging, audit-trail-enabled data storage, and timestamped event markers compliant with GLP/GMP documentation requirements

Sample Compatibility & Compliance

The TwinLab Tobacco accommodates diverse feedstock forms—including flake tobacco, stem powder, expanded cut filler, reconstituted tobacco sheet (RTS), humectant solutions (glycerol, propylene glycol), binder suspensions, and functional additives (flavor carriers, pH modifiers). Its modular feeding interface supports volumetric and gravimetric feeders (optional), enabling precise mass flow control for low-viscosity liquids or cohesive particulates. All hardware and firmware comply with IEC 61000-6-2/6-4 EMC standards and CE marking requirements. MetaBridge software supports 21 CFR Part 11-compliant electronic signatures, audit trails, and data integrity protocols—ensuring suitability for regulated environments where documentation of method validation, equipment qualification (IQ/OQ/PQ), and raw material testing is mandatory per ISO/IEC 17025 and ASTM D3801 guidelines.

Software & Data Management

MetaBridge serves as the central operating and analytical interface—running natively on Windows-based workstations or accessible remotely via browser-based thin-client deployment. It records all sensor inputs at configurable sampling intervals (down to 100 ms), stores metadata (operator ID, batch ID, environmental conditions), and exports structured CSV or HDF5 files compatible with LIMS, MATLAB, Python (pandas), or JMP workflows. Cross-platform synchronization ensures consistent visualization across desktop, tablet, and mobile devices—eliminating manual transcription errors and supporting collaborative review across R&D, QC, and manufacturing teams. Advanced analysis modules include torque vs. temperature profiling, pressure decay kinetics, specific mechanical energy (SME) calculation, and residence time distribution (RTD) modeling—all traceable to NIST-traceable calibration certificates provided with each system.

Applications

• Development and optimization of tobacco expansion processes using steam, CO₂, or solvent-based puffing agents
• Formulation screening of novel binders (e.g., hydrocolloids, cellulose derivatives) and their impact on sheet tensile strength and burn rate
• In-process characterization of moisture migration, phase separation, and polymer matrix homogeneity during extrusion of nicotine salt-loaded films
• Process mapping for regulatory submissions—establishing design space boundaries for critical process parameters (CPPs) affecting critical quality attributes (CQAs) such as extractable content, ash composition, and tar yield
• Accelerated stability studies under controlled shear-thermal stress to predict shelf-life degradation pathways in moist snuff or pouch products

FAQ

Is the TwinLab Tobacco suitable for GMP-regulated tobacco product development?
Yes—when configured with MetaBridge’s Part 11-compliant mode, it meets FDA expectations for electronic records and signatures in pharmaceutical and tobacco-derived nicotine product development.
Can the system be upgraded from single-screw to twin-screw operation?
Yes—the MetaStation drive unit and modular barrel assembly allow field-upgradable conversion between 19/25 mm single-screw and TwinLab twin-screw configurations without replacing the base frame or control cabinet.
What maintenance intervals are recommended for high-wear applications?
Brabender-recommended preventive maintenance includes liner wear inspection every 200 operational hours and torque sensor recalibration annually—or after any mechanical impact or thermal cycling beyond 450 °C.
Does the system support third-party integration with PLCs or MES platforms?
Yes—via OPC UA server functionality embedded in MetaBridge, enabling bidirectional data exchange with Siemens SIMATIC, Rockwell FactoryTalk, or custom MES dashboards.
Are application-specific validation packages available for tobacco extrusion methods?
Yes—Anton Paar Brabender offers pre-validated IQ/OQ protocols and method transfer templates aligned with ASTM D3801, ISO 1133, and internal tobacco industry SOPs upon request.
