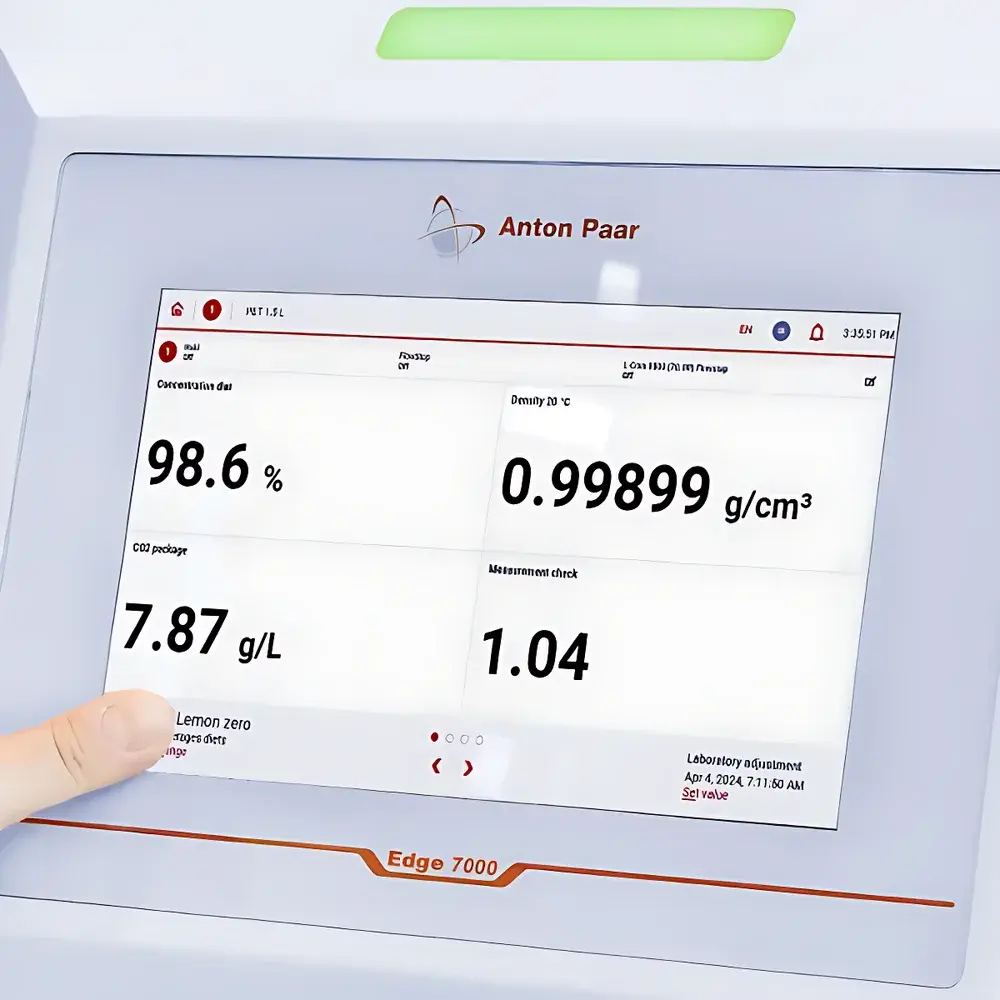

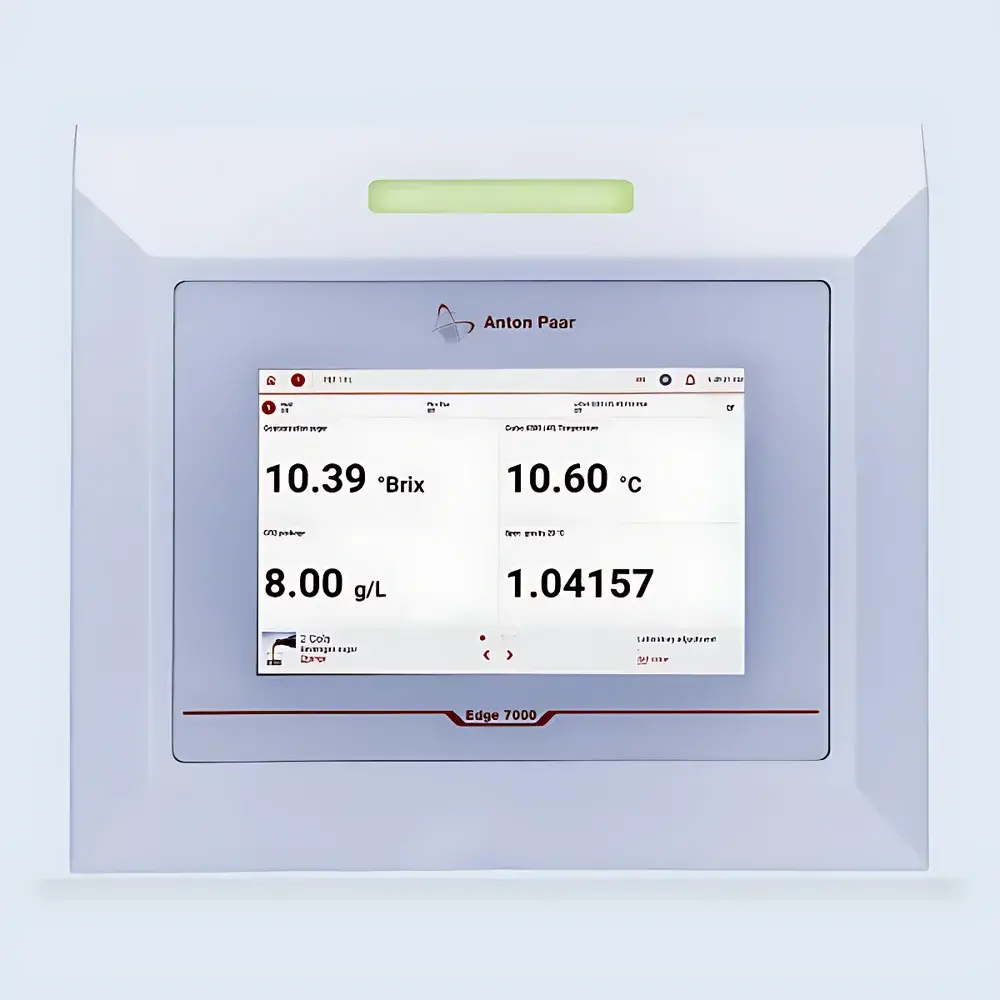

Anton Paar Cobrix Online Beverage Analyzer

Overview

The Anton Paar Cobrix Online Beverage Analyzer is an industrial-grade, in-line process analytical instrument engineered for real-time, multi-parameter quality control in soft drink, low-calorie beverage, and fermented alcoholic beverage (FAB) production lines. Based on dual-mode refractometric and conductometric measurement principles—combined with temperature-compensated density and optical absorption analysis—the Cobrix platform delivers traceable, high-reproducibility quantification of critical formulation parameters without sample dilution or reagent consumption. Unlike conventional offline lab methods requiring manual sampling and time-delayed feedback loops, the Cobrix system operates continuously under sanitary process conditions, enabling closed-loop process adjustment and immediate deviation detection. Its architecture conforms to hygienic design principles per EHEDG Guideline Doc. 8 and meets mechanical and electrical safety requirements per IEC 61000-6-2/4 and EN 61326-1. The analyzer is factory pre-calibrated against NIST-traceable reference standards, eliminating product-specific calibration at commissioning and reducing validation burden under GMP and HACCP frameworks.

Key Features

• Dual-sensor measurement architecture for simultaneous refractive index and electrical conductivity analysis—enabling robust discrimination between sugar, artificial sweeteners, acids, and dissolved gases
• Advanced “Measurement Check” algorithm: a proprietary ratio-based fingerprinting method that cross-validates ionizable components (e.g., citric, phosphoric acid) against total soluble solids, detecting anomalies such as incomplete mixing, cleaning agent carryover, or sensor drift
• High-stability TA (Total Acidity) module integrated into Cobrix 7501/7601 models, supporting titratable acidity quantification without titration reagents—validated per AOAC Official Method 942.03 and ISO 2173
• Extended parameter set beyond standard °Brix and CO₂: includes alcohol content (v/v or w/w), invert sugar concentration, electrical conductivity, CIE L*a*b* colorimetry, and dissolved oxygen (DO)—all traceable to SI units
• Hygienic stainless-steel wetted parts (1.4404/316L), IP65-rated sensor housing, and CIP/SIP-compatible construction rated for >10 bar water jet pressure and alkaline/acidic foam cleaning cycles
• Modular deployment options: in-line flow cell (for main production line integration) or side-stream bypass configuration (for lower-flow or high-particulate applications)

Sample Compatibility & Compliance

The Cobrix analyzer is validated for continuous operation in carbonated soft drinks (CSD), isotonic beverages, fruit nectars, flavored waters, energy drinks, and low-alcohol malt beverages (up to 20% v/v ethanol). It supports both clarified and mildly turbid liquids (up to 5 NTU), provided particulates remain below 50 µm and do not settle within the flow cell. All models comply with EU Machinery Directive 2006/42/EC, ATEX Zone 22 (for dust environments), and PED 2014/68/EU for pressurized fluid systems. Software functionality adheres to FDA 21 CFR Part 11 requirements for electronic records and signatures when used with Davis 5 v4.2+ and enabled audit trail configuration. Instrument qualification documentation—including IQ/OQ protocols, uncertainty budgets per GUM (JCGM 100:2008), and metrological traceability statements—is supplied with each unit.

Software & Data Management

Data acquisition, visualization, and alarm management are handled via Anton Paar’s Davis 5 platform—a web-enabled SCADA-grade application designed for beverage manufacturing environments. Davis 5 provides real-time dashboards with configurable trend charts, statistical process control (SPC) charts (X-bar/R, Cpk), and automated report generation compliant with ISO 9001 clause 8.5.2. Historical data is stored in an embedded PostgreSQL database with optional export to CSV, OPC UA, or MES/ERP systems (SAP, Siemens Opcenter, Rockwell FactoryTalk). Audit trails record all user actions, parameter changes, and calibration events with timestamp, operator ID, and reason-for-change fields—fully compliant with GLP and GMP Annex 11. Remote access is secured via TLS 1.2+ encryption and role-based authentication (RBAC), supporting up to 16 concurrent users per server instance.

Applications

• Real-time batch release verification for carbonation level and sugar/sweetener concentration in PET bottling lines
• Automated recipe verification during syrup blending for cola, lemon-lime, and functional beverages
• In-process monitoring of fermentation progress and alcohol stabilization in RTD cocktails and hard seltzers
• Post-pasteurization quality gate for detecting thermal degradation markers (e.g., 5-HMF via UV absorbance correlation)
• Continuous validation of cleaning-in-place (CIP) endpoint via conductivity and pH proxy signals
• Support for sustainability initiatives by minimizing over-dosing of sweeteners and CO₂—reducing raw material waste and carbon footprint

FAQ

Can Cobrix replace laboratory Brix measurements entirely?
Yes—when installed and qualified per ASTM D1074 and ISO 2173, Cobrix 7501/7601 meets the repeatability requirement (<0.02 °Brix) mandated for primary process control in major global beverage OEM specifications.
What is the minimum required sample flow rate for stable readings?
For in-line configuration: 0.5–5 L/min; for bypass: 0.1–1 L/min. Flow must be laminar and free of entrained air bubbles.
Is firmware update capability available remotely?
Yes—via secure HTTPS-based OTA (Over-The-Air) updates through Davis 5, with version rollback and integrity checksum verification.
How is measurement uncertainty quantified and documented?
Per JCGM 100:2008, uncertainty budgets are provided for each measured parameter, incorporating contributions from sensor stability, temperature compensation error, refractive index nonlinearity, and reference standard uncertainty.
Does Cobrix support integration with ISA-88/ISA-95 automation architectures?
Yes—through native Modbus TCP and EtherNet/IP drivers, plus configurable tag mapping in Davis 5 to align with batch execution (BATCHML) and manufacturing operations management (MOM) layers.
