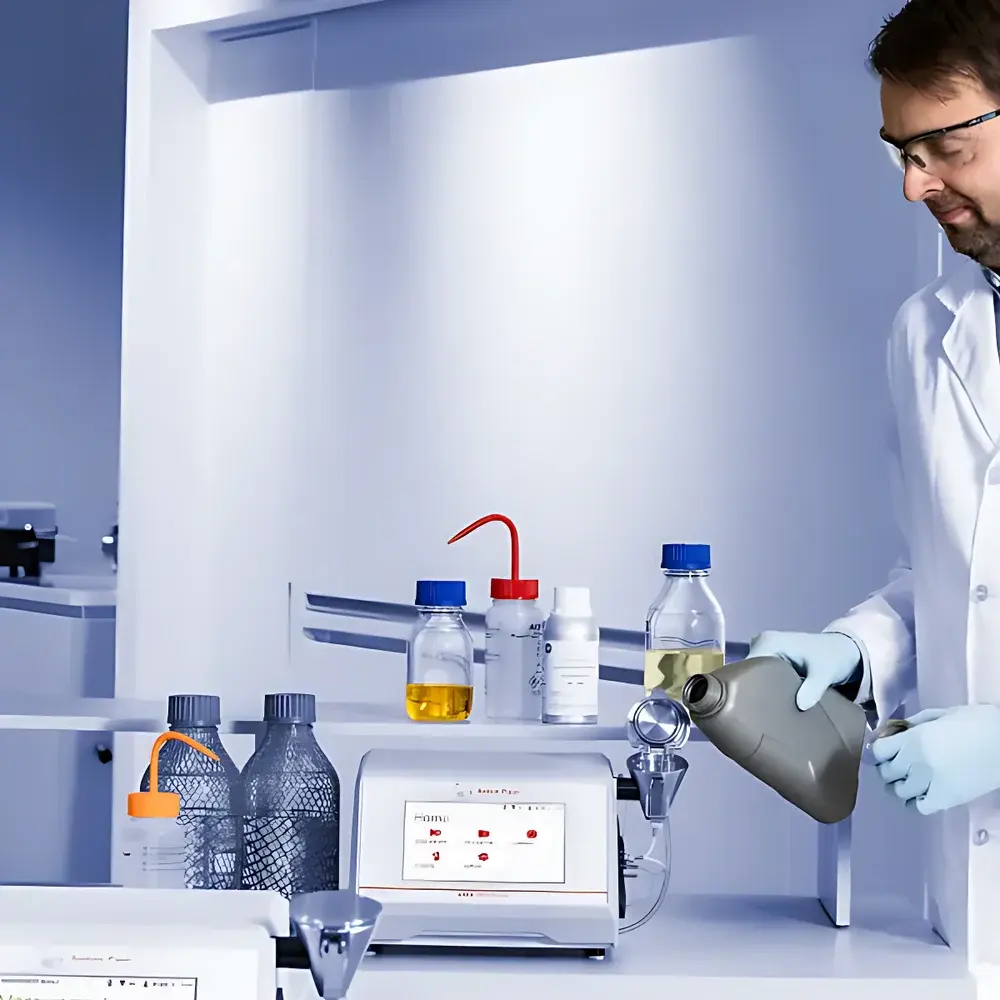

Anton Paar DMA 1102 Petro Compact Benchtop Oscillating U-Tube Densimeter

Overview

The Anton Paar DMA 1102 Petro is a compact, battery-capable benchtop oscillating U-tube densimeter engineered for high-precision density and kinematic viscosity measurements of liquid petroleum products in both laboratory and field environments. It operates on the fundamental principle of oscillating U-tube metrology: a precisely machined glass or metal U-shaped tube is filled with sample and set into controlled mechanical oscillation; the resonant frequency of the system correlates directly with the sample’s mass and volume, enabling calculation of density with traceable accuracy per ISO 12185 and ASTM D4052. Unlike traditional hydrometers or pycnometers, this instrument delivers digital, temperature-compensated results without manual interpolation or operator-dependent reading errors. Its integrated Peltier-based thermostatic control achieves rapid thermal equilibration—typically under 60 seconds across the full 15–100 °C operating range—making it suitable for time-critical quality control workflows in refineries, terminals, and mobile testing units.

Key Features

• Oscillating U-tube measurement technology compliant with ASTM D4052, D396, D1655, D6823, and ISO 12185 for petroleum product density certification
• Simultaneous density and kinematic viscosity determination from a single 3.5 mL sample—eliminating duplicate sampling and cross-method variability
• Integrated Peltier temperature control with ±0.03 °C stability and 0.001 °C resolution, ensuring compliance with temperature-sensitive test methods
• Robust metal measurement cell (titanium Grade 2, stainless steel 1.4404/1.4571, Inconel® 600, ceramic, Balinit® C WCC) eliminates breakage risk associated with glass cells and enables safe handling of aggressive hydrocarbons
• Simple Fill™ one-step auto-filling system with integrated funnel—no syringes, pipettes, or vacuum pumps required
• 7-inch capacitive touch display (800 × 480 px) with intuitive UI optimized for gloved operation and low-light field conditions
• Battery-powered portability (optional) supports fully autonomous operation at remote sites—no external power or lab infrastructure needed
• Digital data integrity: automatic timestamping, audit-ready storage of ≥1000 measurements, and encrypted export via USB-A/B ports

Sample Compatibility & Compliance

The DMA 1102 Petro is validated for use with a broad spectrum of petroleum-derived liquids—including gasoline, diesel, jet fuel (Jet A-1, JP-8), lubricating oils, biodiesel blends (B5–B100), crude oil cuts, and ethanol–gasoline mixtures—without solvent dilution or pre-conditioning. All wetted materials meet ASTM D93 and UL 94 HB flammability requirements and are chemically inert toward aromatic, chlorinated, and sulfur-containing hydrocarbons. The instrument satisfies regulatory data integrity requirements under FDA 21 CFR Part 11 when paired with AP Connect LIMS integration, providing electronic signatures, user access control, and immutable audit trails. Calibration traceability is maintained through NIST-traceable reference standards and certified by DAkkS-accredited calibration certificates (e.g., DKD-K-10251).

Software & Data Management

• On-device firmware supports automated calculation of derived parameters: API gravity (ASTM D1250), relative density (ASTM D1298), and corrected density at 15 °C (ASTM D1250)
• Direct integration with Anton Paar’s AP Connect Laboratory Execution System (LES) for SOP-driven workflows, electronic batch records, and GxP-aligned reporting
• USB export to CSV, PDF, or XML formats compatible with LIMS, SAP QM, and LabWare systems
• Optional barcode scanner support for sample ID auto-recognition and chain-of-custody tracking
• Firmware updates delivered via secure HTTPS portal with version-controlled release notes and validation documentation

Applications

The DMA 1102 Petro serves critical roles across the petroleum value chain: incoming crude assay verification at refineries; real-time blending control during pipeline transfer; custody transfer reconciliation at terminals; specification compliance testing for aviation fuel (ASTM D1655 Annex A1); and field-based monitoring of fuel quality at military forward operating bases. Its ability to deliver ASTM-compliant density and kinematic viscosity within one minute supports rapid release decisions—reducing hold times and preventing non-conforming material from entering downstream processes. The instrument is routinely deployed in ISO/IEC 17025-accredited laboratories as a primary reference method and fulfills mandatory reporting requirements for EPA Tier 3, EN 590, and GB 17930.

FAQ

Is the DMA 1102 Petro suitable for measuring highly viscous fuels such as residual fuel oil?
Yes—the instrument’s extended viscosity range (−0.3 to 1000 mm²/s) and robust titanium/Peltier thermal design enable accurate measurement of heavy distillates and cutback asphalts without preheating or dilution.

Does it require annual recalibration to maintain ASTM compliance?
Calibration frequency follows ISO/IEC 17025 and internal QA protocols; however, daily verification using certified reference standards (e.g., water, heptane, decalin) is recommended. Full recalibration is advised every 12 months or after 5000 measurements, whichever occurs first.

Can measurement data be exported directly to a corporate ERP system?
Yes—via AP Connect LES or custom REST API integration, raw and processed results can be pushed to SAP S/4HANA, Oracle EBS, or Microsoft Dynamics 365 with configurable metadata mapping.

What safety certifications does the instrument carry for hazardous area operation?
The DMA 1102 Petro is CE-marked and carries ATEX/IECEx certification for Zone 2 (gas) and Zone 22 (dust) environments when used with optional explosion-proof enclosure kits—full documentation available upon request.

How is temperature uniformity ensured across the U-tube during rapid ramping?
A dual-zone Peltier module with active feedback control and distributed thermal sensors maintains ±0.01 °C axial gradient across the entire measurement cell, satisfying the homogeneity requirement of ASTM D4052 Section 7.3.2.
