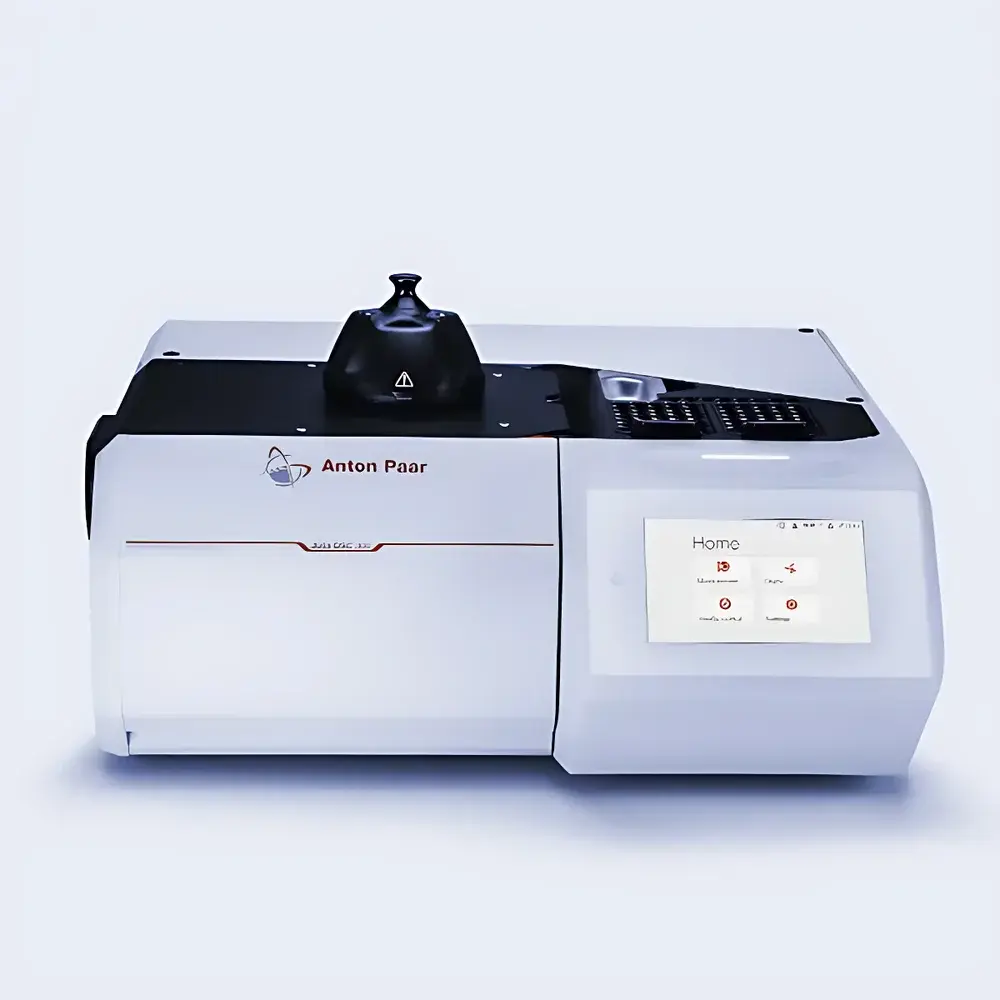

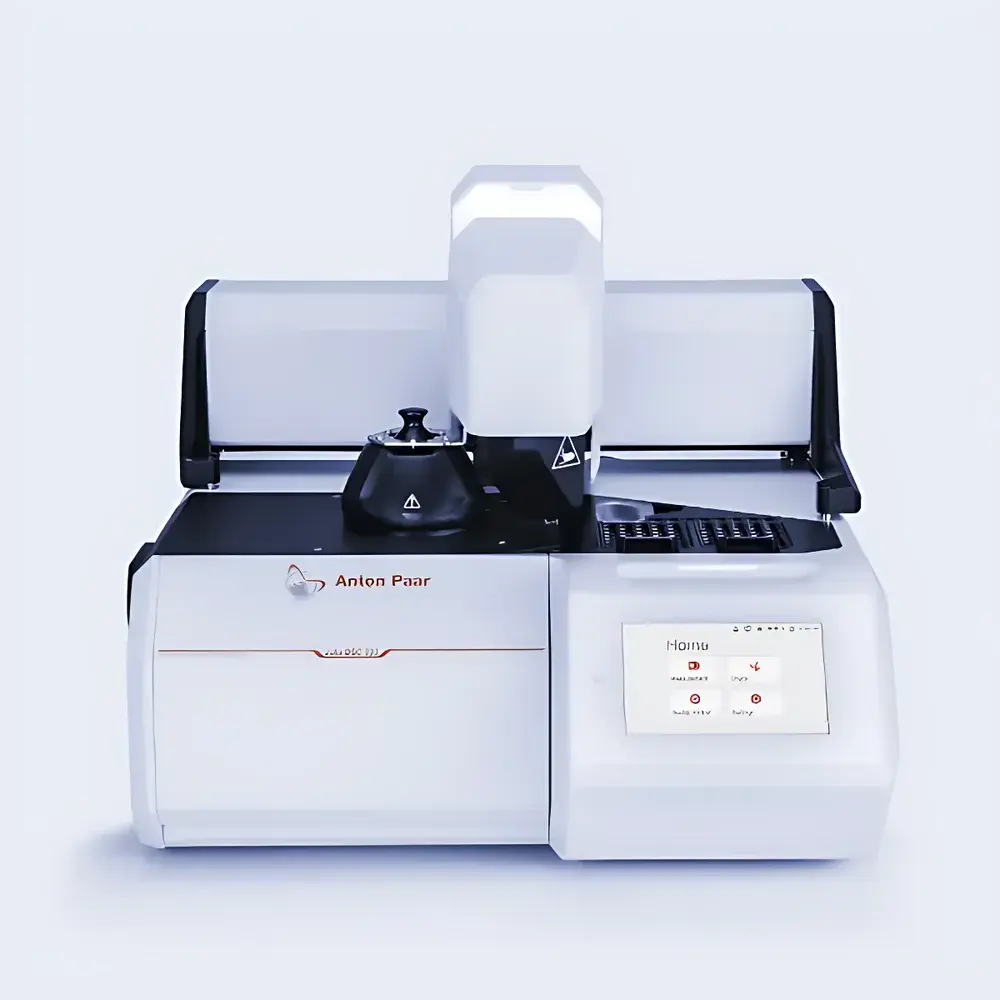

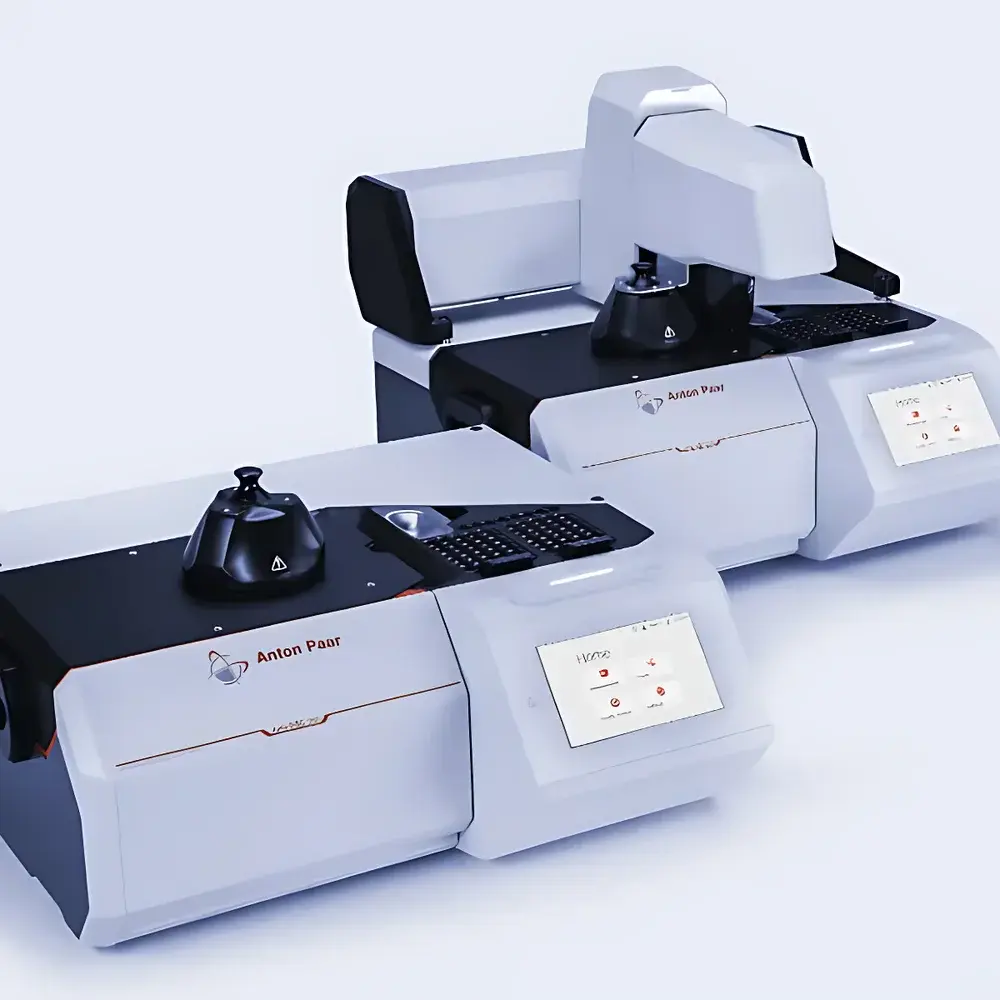

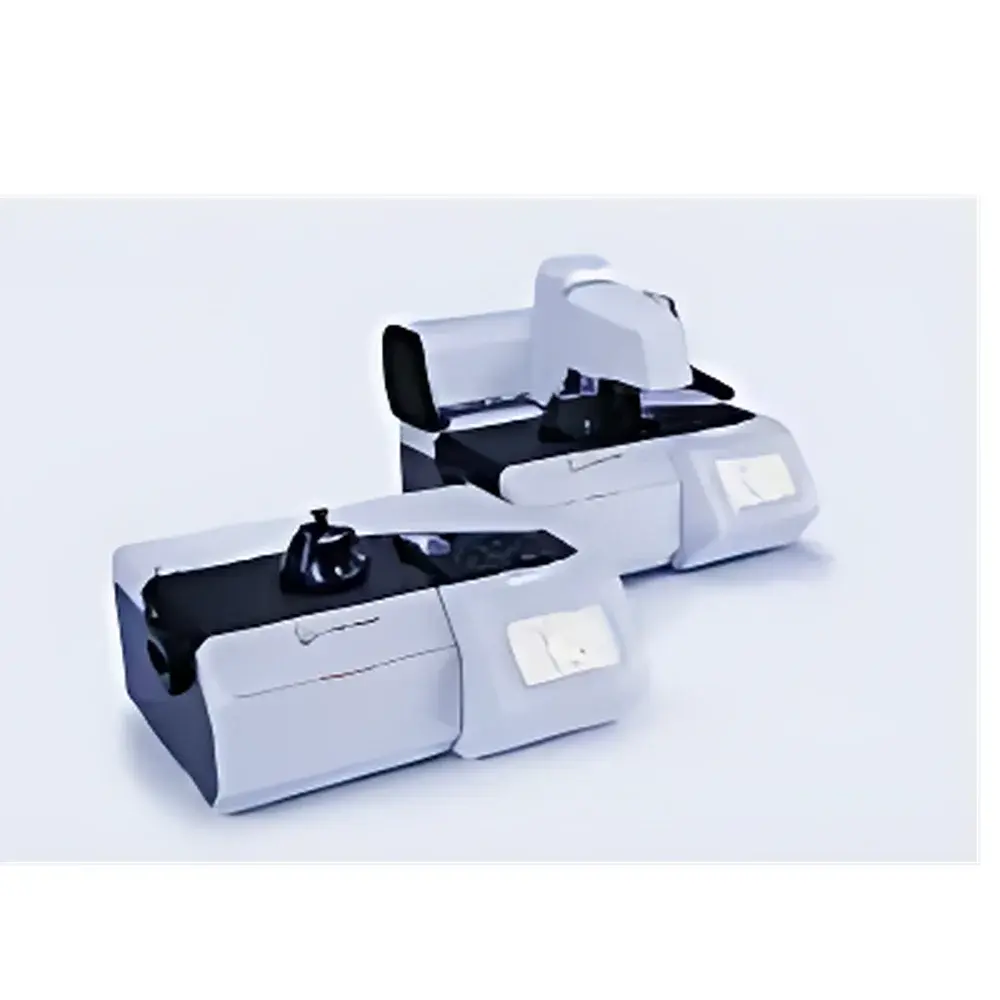

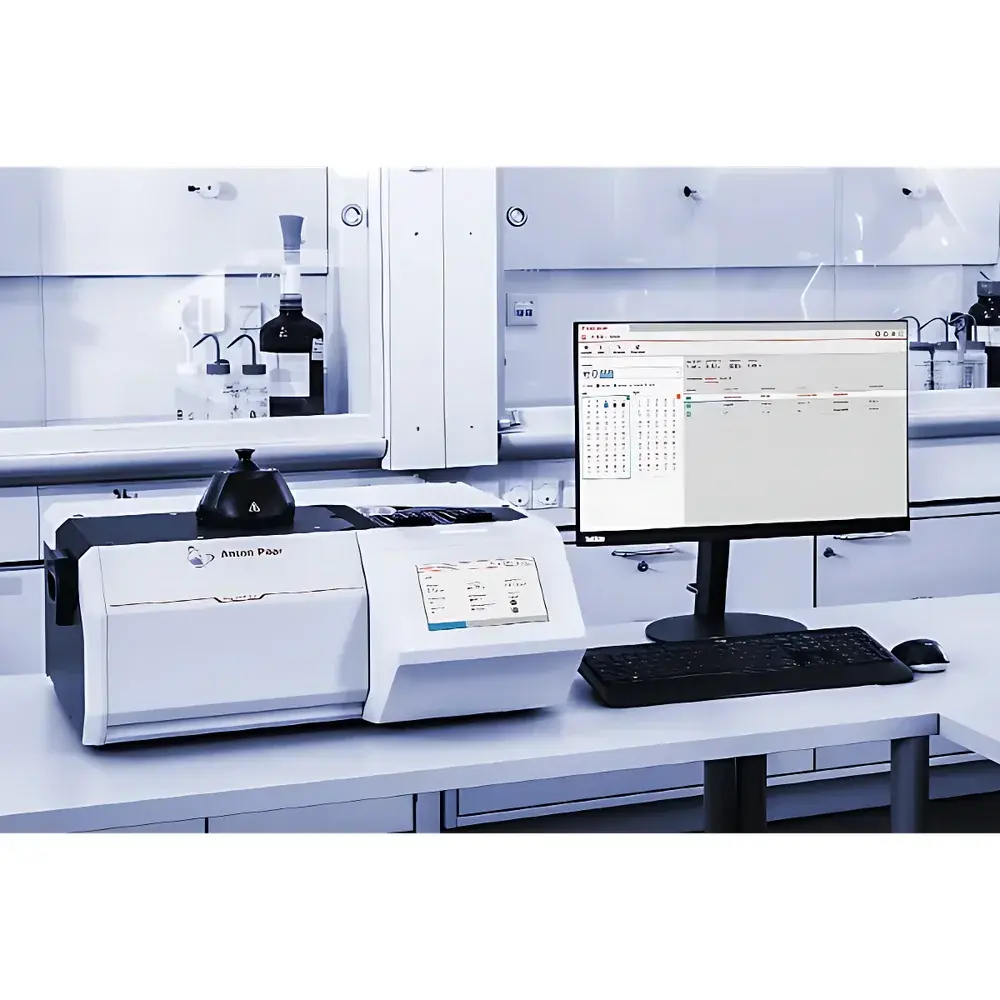

Anton Paar Julia DSC Differential Scanning Calorimeter

Overview

The Anton Paar Julia DSC is a high-performance, heat-flux differential scanning calorimeter engineered for precision thermal characterization across demanding industrial, pharmaceutical, and academic research environments. Based on the fundamental principle of heat-flux DSC—measuring the differential heat flow between a sample and an inert reference as both are subjected to identical, precisely controlled temperature programs—the Julia DSC delivers quantitative data on enthalpy changes, phase transitions (e.g., melting, crystallization, glass transitions), oxidative stability, and reaction kinetics. Its extended operational range (−170 °C to 700 °C), coupled with ultra-fast heating (up to 300 K/min) and active air-based cooling (down to −170 °C with optional cryogenic module), enables comprehensive thermal profiling of polymers, pharmaceuticals, metals, composites, and energetic materials. Unlike conventional DSC systems requiring external liquid nitrogen or mechanical chillers, the Julia DSC integrates advanced Peltier-based air-cooling technology—eliminating infrastructure dependencies while maintaining sub-0.1 K temperature accuracy and long-term baseline stability.

Key Features

• Modulated DSC (MDSC®-compatible) capability for simultaneous separation of reversing and non-reversing thermal events—enhancing resolution of overlapping transitions such as T_g in semi-crystalline polymers.
• Integrated air-cooling module delivering rapid cooling rates up to 200 K/min; achieves −35 °C in <60 seconds and −170 °C in under 5 minutes with optional cryo module (NCM).
• 70-position automated sample changer with eight dedicated reference positions—enabling unattended overnight and weekend operation under GLP-compliant audit trails.
• Julia Suite software featuring guided calibration workflows, QC mode with configurable pass/fail thresholds, and one-click performance verification—reducing operator dependency and training time.
• Thermal analysis accessories ecosystem including crimping press, filling funnels, compaction rods, and sealing pens—ensuring reproducible sample preparation for powders, fibers, thin films, and volatile substances.
• Compliance-ready architecture supporting 21 CFR Part 11 electronic signatures, ALCOA+ data integrity principles, and automated metadata logging (operator, timestamp, instrument ID, method version, environmental conditions).

Sample Compatibility & Compliance

The Julia DSC accommodates standard aluminum, gold, platinum, and high-pressure stainless-steel crucibles (including hermetic and vented variants), supporting solid, powder, gel, and small-volume liquid samples up to 50 mg. Its modular furnace design ensures uniform thermal distribution and minimal thermal lag—critical for ASTM E794 (melting point), ISO 11357 (polymer characterization), and USP <1151> (pharmaceutical thermal analysis) compliance. All firmware and software modules undergo periodic validation per ICH Q2(R2) guidelines, and raw data files (.julia) are stored in vendor-neutral HDF5 format with embedded checksums and immutable timestamps—facilitating FDA inspection readiness and internal quality audits.

Software & Data Management

Julia Suite provides a unified platform for method development, real-time monitoring, post-run deconvolution, and reporting. It supports multi-step temperature programs with dynamic ramp/isothermal/hold segments, automatic baseline correction using polynomial or spline fitting, and peak integration with customizable onset/endpoint detection algorithms. Data export options include CSV, PDF, and XML formats compliant with LIMS integration protocols. Audit trail functionality records all user actions—including parameter edits, calibration events, and report generation—with role-based access control and encrypted log archiving. Historical performance tracking (e.g., baseline noise, sensitivity drift, temperature deviation) is visualized via trend charts to support preventive maintenance scheduling.

Applications

• Pharmaceutical R&D: Polymorph screening, amorphous content quantification, excipient compatibility studies, and stability-indicating assays per ICH Q5C.
• Polymers & Composites: Crystallinity determination (ΔH_f), cold crystallization kinetics, degradation onset (T_onset), and crosslink density estimation.
• Materials Science: Glass transition mapping in metallic glasses, specific heat capacity (C_p) measurement via stepwise calibration, and enthalpy recovery analysis.
• Food Science: Fat crystallization behavior, starch gelatinization profiles, and shelf-life prediction via oxidative induction time (OIT) testing.
• Electrochemistry: Thermal runaway characterization of battery electrode materials and electrolyte decomposition pathways.

FAQ

What cooling options are available—and do they require external infrastructure?
The base Julia DSC includes an integrated air-cooling module reaching −35 °C without external utilities. Optional ACM (−90 °C) and NCM (−170 °C) modules use closed-cycle refrigeration and require only standard AC power—no LN₂, chillers, or compressed air.
Is modulated DSC (MDSC) supported natively—or does it require add-on hardware?
MDSC functionality is enabled through firmware-controlled temperature modulation (±0.1–1 K amplitude, 0.01–1 Hz frequency) using the standard furnace—no additional sensors or hardware upgrades needed.
How does the system ensure data integrity for regulated environments?
Julia Suite implements full 21 CFR Part 11 compliance: electronic signatures, audit-trail encryption, data immutability, and role-based permissions—all validated per GAMP 5 and aligned with EU Annex 11 requirements.
Can the auto-sampler handle diverse sample geometries—including films and fibers?
Yes. The crimping press and sealing pen accessories enable secure encapsulation of irregular samples; custom sample holders (e.g., fiber clips, film frames) are available upon request and qualified per ISO/IEC 17025.
What calibration standards are supplied—and how often must recalibration occur?
Certified indium, tin, zinc, and bismuth standards are included. Recommended recalibration interval is every 6 months or after 200 runs—whichever occurs first—using the built-in multi-point verification protocol.
