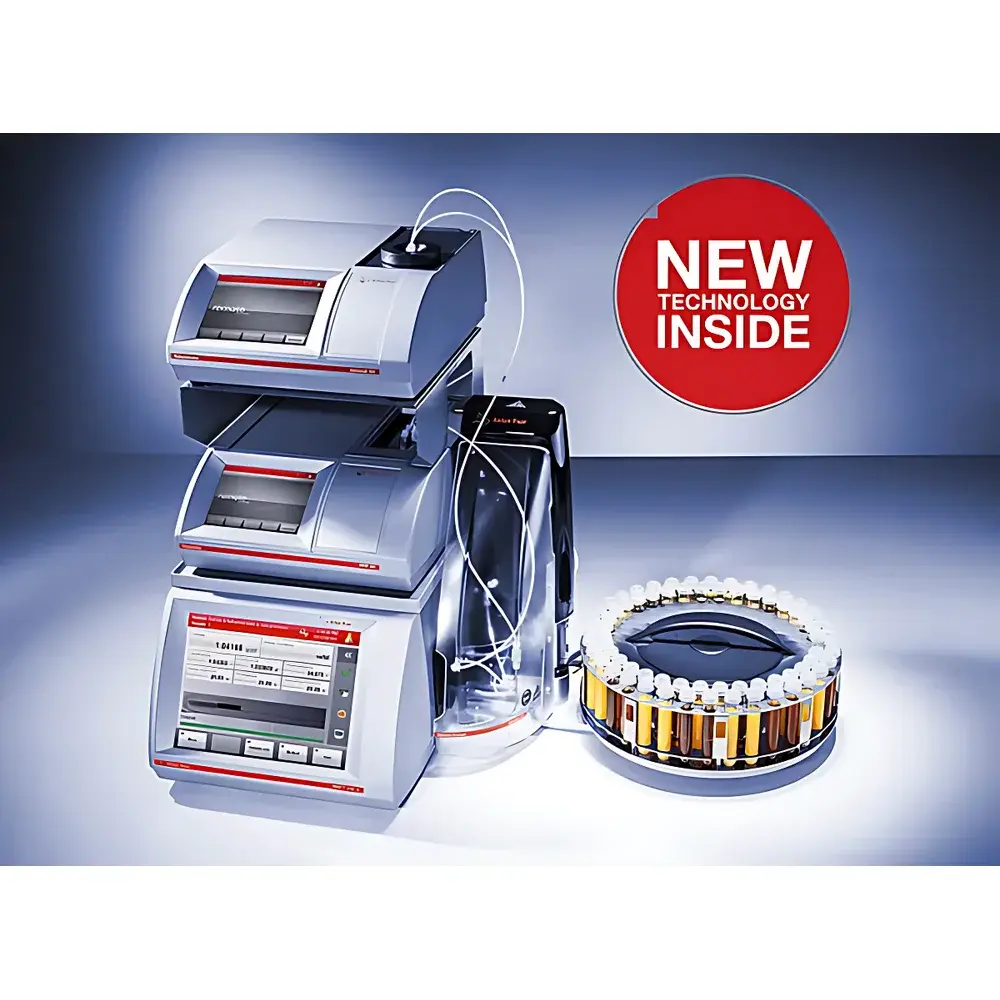

Anton Paar Modulyzer Multi-Parameter Analysis System

Overview

The Anton Paar Modulyzer is a modular, integrated multi-parameter analysis platform engineered for high-precision, non-destructive characterization of liquid samples in regulated and research-intensive laboratory environments. Built upon Anton Paar’s proven core instrumentation architecture, the Modulyzer operates on a unified hardware and software backbone that synchronizes up to seven independent analytical modules—including density/ultrasonic velocity, refractometry, polarimetry, turbidity, pH, and viscosity—within a single measurement cycle. Each module employs its native physical principle: oscillating U-tube densitometry (ISO 12084, ASTM D4052), Abbe refractometry (ISO 2859, ASTM D1218), sodium-D-line polarimetry (USP , Ph. Eur. 2.2.7), ultrasonic time-of-flight sound velocity (ISO 16779), nephelometric turbidity (ISO 7027), potentiometric pH (ISO 3696, ASTM E70), and rotational viscometry (ISO 2555, ASTM D2196). This convergence enables simultaneous acquisition of interdependent physicochemical properties—such as density-derived mass concentration, sound velocity-based compressibility, refractive index-correlated molecular polarizability, and optical rotation-linked chiral purity—without sample transfer or reconditioning, thereby eliminating cross-contamination risk and preserving sample integrity.

Key Features

• Single-sample, multi-parameter acquisition: Up to 7 parameters measured sequentially or concurrently from one aliquot (1–20 mL total volume, depending on configuration)
• Modular scalability: Select from 4 density/sound velocity instruments (DMA M series), 5 polarimeters (MCP series), 6 refractometers (Abbemat series), and 7 Xsample™ autosamplers—each available in standard, precision, or pharmaceutical-grade variants
• Non-destructive analysis: All measurements preserve sample composition; post-analysis recovery is >99.5% with no chemical or thermal degradation
• Integrated FillingCheck™ technology: Real-time bubble and particulate detection during U-tube filling for DMA M and MCP instruments, with automated rejection of invalid fills
• U-View™ digital imaging (DMA M only): High-resolution live video feed of the oscillating U-tube, enabling visual verification of fill quality and archiving of fill-state images within audit-trail-enabled reports
• Compact footprint: Modular rack-mount design occupies ≤0.8 m²; minimal inter-module distance ensures <180 s total cycle time for full 7-parameter analysis
• Unified control interface: Single-touchscreen operation across all modules via Anton Paar’s OneClick™ software platform

Sample Compatibility & Compliance

The Modulyzer accommodates aqueous, organic, and viscous liquids—including solvents, APIs, excipients, fragrances, flavors, and polymer solutions—with viscosity tolerance up to 36,000 mPa·s (via Xsample™ 750/760 autosamplers). All core modules meet stringent regulatory requirements for GxP environments: full compliance with FDA 21 CFR Part 11 (electronic records/signatures), USP (analytical instrument qualification), ISO/IEC 17025 (testing laboratory competence), and EU GMP Annex 11. Instrument-specific validation packages—including IQ/OQ/PQ documentation, traceable calibration certificates (NIST-traceable standards), and configurable audit trails—are available through Anton Paar’s Pharmaceutical Certification and Validation Services. Modules support GLP/GMP-aligned workflows with user role-based access control, electronic signature enforcement, and immutable data logging.

Software & Data Management

OneClick™ software provides centralized method development, execution, and reporting. It supports customizable measurement sequences, dynamic parameter linking (e.g., automatic calculation of alcohol content from density + sound velocity), and export to LIMS-compatible formats (CSV, XML, PDF/A-2u). Data integrity safeguards include automatic timestamping, operator ID logging, version-controlled method storage, and encrypted local database backup. For enterprise integration, optional OPC UA and REST API interfaces enable bidirectional communication with MES, ERP, and ELN systems. All raw sensor data, metadata, and image captures (U-View™) are stored in a tamper-evident repository compliant with ALCOA+ principles.

Applications

• Pharmaceutical QC/QA: Simultaneous verification of identity (refractive index), purity (optical rotation), concentration (density), stability (turbidity), and formulation consistency (viscosity/pH) per batch release testing
• Food & Beverage: Alcohol content determination (density + sound velocity), sugar profiling (refractometry), chiral marker quantification (polarimetry), and shelf-life monitoring (turbidity trends)
• Fine Chemicals & Fragrances: Precise characterization of costly intermediates without loss—enabling material reuse in synthesis or blending
• Academic Research: Correlative study of thermodynamic (density), acoustic (sound velocity), optical (refractometry/polarimetry), and rheological (viscosity) properties under controlled temperature (±0.01 °C)
• Contract Laboratories: High-throughput, auditable multi-parameter analysis for method transfer and regulatory submissions

FAQ

Can the Modulyzer be upgraded after initial installation?
Yes. All modules are mechanically and electronically backward-compatible. Additional instruments (e.g., turbidity or pH) can be added at any time without hardware replacement or software reinstallation.
Is method validation support included with purchase?
Anton Paar provides comprehensive validation documentation templates and on-site IQ/OQ assistance. Full PQ execution and regulatory filing support are available as optional service packages.
How does the system handle highly viscous or volatile samples?
Xsample™ autosamplers feature heated lines (up to 100 °C), inert gas purging, and programmable aspiration pressure control to ensure accurate handling of volatile solvents and shear-thinning polymers up to 36,000 mPa·s.
Are measurement uncertainties traceable to international standards?
All primary sensors are calibrated using NIST-traceable reference materials. Uncertainty budgets per parameter are provided in accordance with ISO/IEC Guide 98-3 (GUM) and documented in the instrument’s Certificate of Calibration.
What happens if an air bubble is detected during density measurement?
FillingCheck™ triggers an immediate audible/visual alert and halts the measurement sequence. The system logs the event, retains the U-View™ image, and requires manual confirmation before proceeding—ensuring no compromised data enters the report archive.
