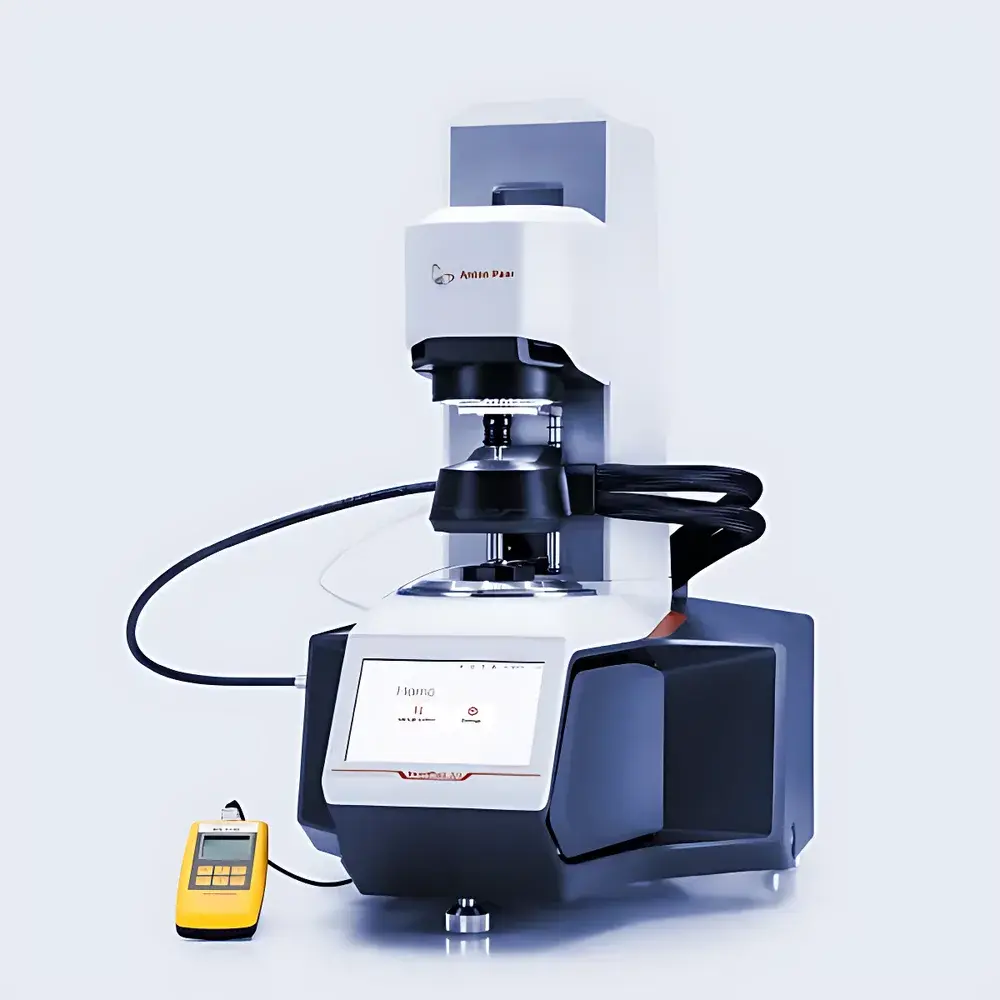

Anton Paar SmartPave Dynamic Shear Rheometer

Overview

The Anton Paar SmartPave Dynamic Shear Rheometer is a purpose-built rotational rheometer engineered for the precise viscoelastic characterization of asphalt binders and asphalt mixtures under controlled shear deformation. It operates on the principle of controlled-strain or controlled-stress oscillatory shear, enabling measurement of complex modulus (G*), phase angle (δ), and other fundamental rheological parameters critical for Performance Grading (PG) classification per AASHTO M320 and related specifications. Designed exclusively for pavement materials science, the SmartPave integrates high-fidelity torque sensing, ultra-stable thermal control, and industry-specific test automation to ensure metrological traceability and inter-laboratory reproducibility. Its architecture conforms to the mechanical and thermal demands of asphalt testing—where temperature accuracy better than ±0.1 °C across the sample volume and minimal thermal gradients are non-negotiable for compliance with AASHTO T315, ASTM D7175, and DIN EN 14770.

Key Features

• True air-bearing motor system with electronic commutated (EC) permanent magnet synchronous drive—ensuring zero mechanical friction, long-term torque stability, and sub-microradian angular resolution.
• CoolPeltier™ temperature control unit featuring dual-sided Peltier elements and active cooling capability (−5 °C to +200 °C), extendable to −160 °C (with liquid nitrogen accessory) and up to +1000 °C (with furnace attachment).
• Toolmaster™—a patented, fully contactless automatic identification and configuration system for measuring geometries and temperature units; eliminates manual parameter entry and prevents configuration errors.
• QuickConnect™ geometry mounting interface—enables single-hand, thread-free coupling of concentric cylinder, parallel plate, and cone-and-plate fixtures in <3 seconds.
• TruStrain™ and TruRate™ adaptive control algorithms (SmartPave 303 only)—dynamically adjust actuation to maintain target strain/stress amplitude across wide frequency sweeps and nonlinear regimes.
• Automatic Gap Control (AGC) with Safe Gap™ protection—precisely sets and verifies gap distance while limiting normal force to prevent sample extrusion or geometry damage.
• Integrated 360° capacitive normal force sensor (US Patent 6,167,752)—provides real-time axial load monitoring during shearing, essential for detecting binder adhesion failure or thixotropic recovery.

Sample Compatibility & Compliance

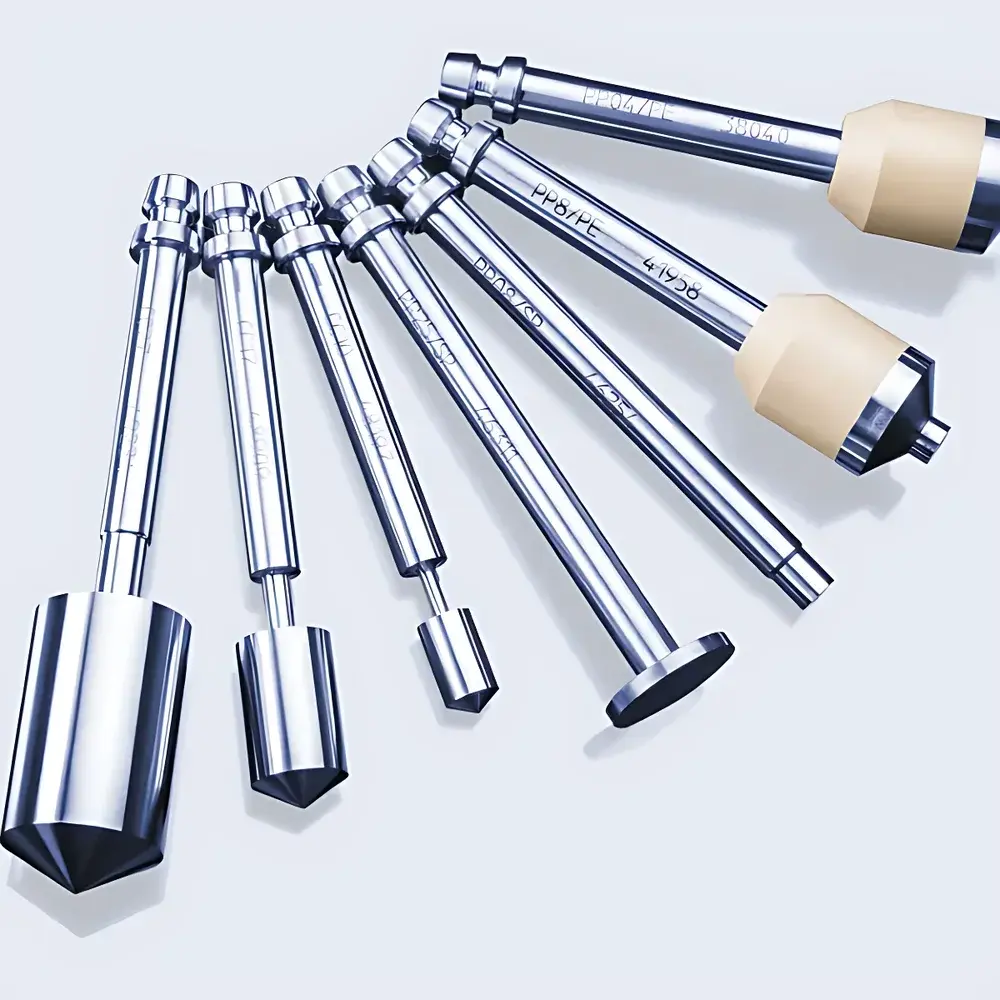

The SmartPave supports standard asphalt binder geometries—including 25-mm parallel plates, 1-inch (25.4-mm) and 4-inch (101.6-mm) concentric cylinders—and accommodates both unaged and RTFO/PAV-aged samples. Its thermal design enables direct compliance with AASHTO T315 (DSR), AASHTO T350 (multiple stress creep recovery), AASHTO TP101 (linear amplitude sweep), ASTM D7175, ASTM D7405, DIN EN 13302, and FGSV guidelines. For low-temperature bending beam rheometer (BBR) emulation, optional integration with Pavement Systems LLC’s iCCL software enables AASHTO PP112-compliant stiffness (S), m-value, and ΔTc derivation within 30 minutes—without physical BBR hardware. All temperature calibration routines adhere to ISO/IEC 17025 requirements for accredited laboratories and support GLP/GMP audit trails via RheoCompass logging.

Software & Data Management

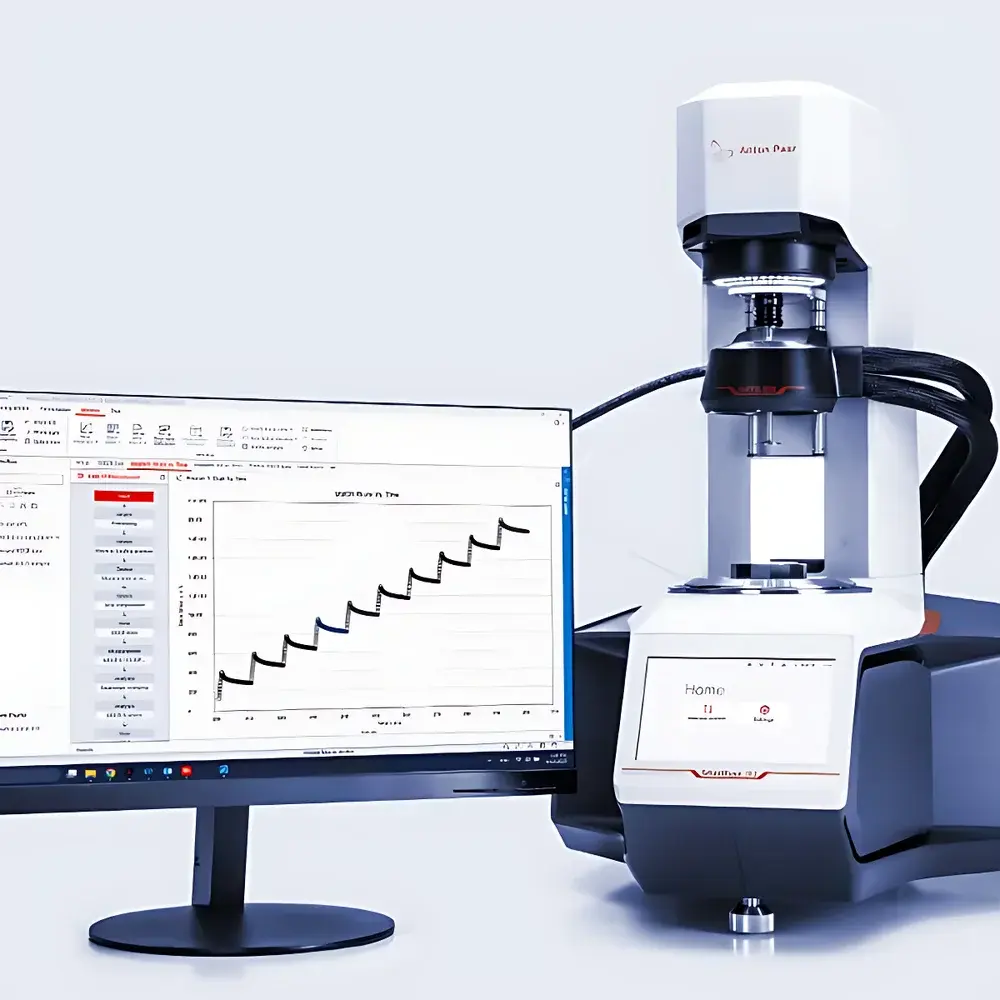

RheoCompass software serves as the central analytical and workflow engine for SmartPave systems. It delivers pre-validated, standards-based SOP templates for AASHTO, ASTM, DIN EN, and FGSV protocols—with automatic version updates ensuring continuous alignment with latest revisions. The software includes a modular Test & Analysis Designer for custom protocol development, Report Designer for PDF/Excel export with full metadata embedding (operator ID, instrument serial, calibration certificates), and optional server-mode deployment for multi-user lab environments. Raw LAOS waveforms, normal force vs. time traces, and full oscillatory spectra are stored in vendor-neutral HDF5 format. Temperature calibration is fully automated, generating NIST-traceable validation reports with gradient mapping (<0.1 °C vertical/horizontal uniformity). FDA 21 CFR Part 11 compliance is supported via electronic signatures, role-based access control, and immutable audit logs.

Applications

• Performance Grading (PG) of virgin, polymer-modified, and bio-renewable asphalt binders.
• Multiple Stress Creep Recovery (MSCR) testing per AASHTO T350 for rutting resistance evaluation.
• Linear Amplitude Sweep (LAS) analysis for fatigue life prediction using AASHTO TP101.
• Time–temperature superposition (TTS) construction and master curve generation.
• Thixotropic recovery kinetics and structural breakdown/rebuilding under cyclic loading.
• High-temperature viscosity profiling for mixing and compaction temperature specification.
• Low-temperature stiffness extrapolation via iCCL-enhanced BBR emulation.

FAQ

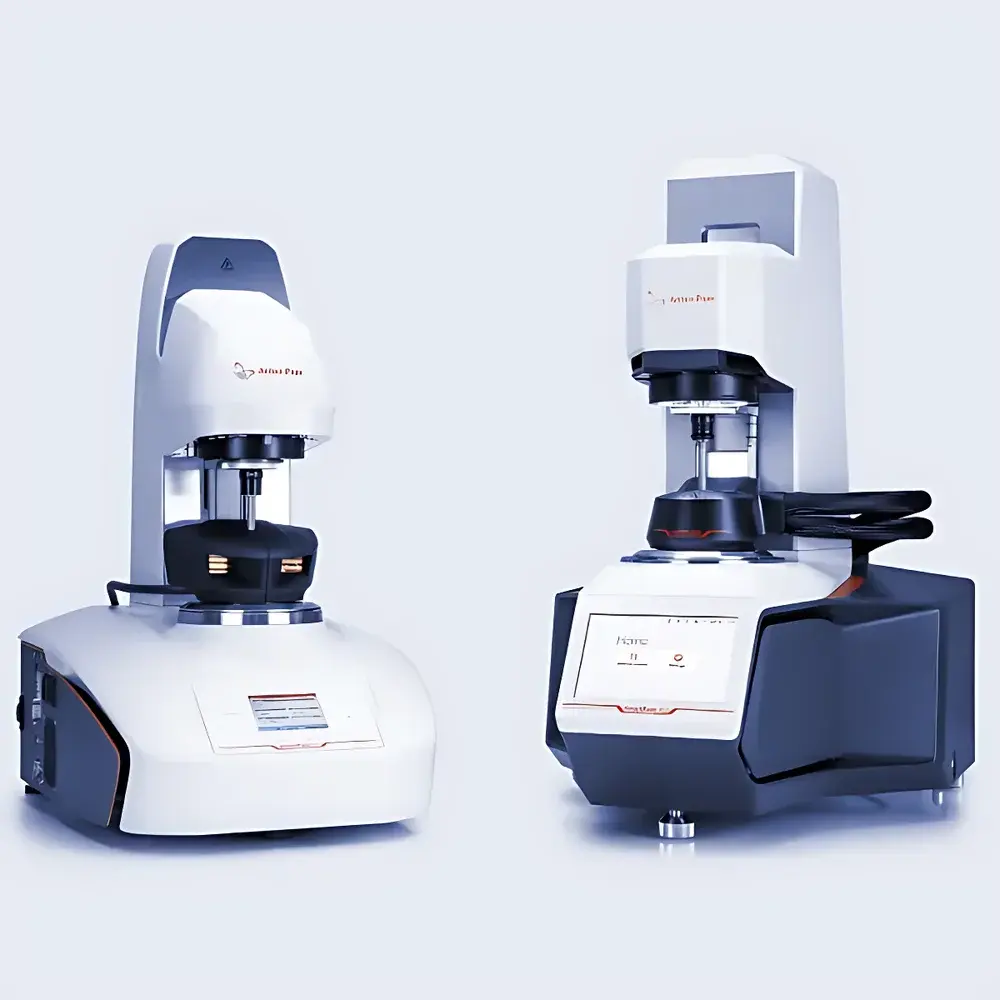

What distinguishes SmartPave 92 from SmartPave 303?
SmartPave 92 is optimized for routine QC workflows in asphalt testing labs, offering full compliance with AASHTO T315 and ASTM D7175 at an entry-tier torque range (125 mNm max). SmartPave 303 extends capabilities with higher torque (215 mNm), broader frequency coverage (up to 1256 rad/s), TruStrain™/TruRate™ adaptive control, and full LAOS waveform acquisition—making it suitable for advanced research and method development.
Can SmartPave perform BBR testing?
The SmartPave itself does not replace a physical Bending Beam Rheometer. However, when paired with Pavement Systems LLC’s iCCL software, it executes an AASHTO PP112-compliant computational BBR alternative that derives S, m, and ΔTc from DSR data in ≤30 minutes.
Is Toolmaster compatible with third-party geometries?
No. Toolmaster is a proprietary Anton Paar system requiring embedded RFID tags and calibrated geometry firmware. Only Anton Paar-certified fixtures (e.g., CC25, PP25, CP25) are recognized and auto-configured.
How is temperature uniformity verified across the sample?
RheoCompass executes an automated multi-point temperature calibration routine using built-in Pt100 sensors in the upper and lower plates. Validation reports quantify axial and radial gradients, confirming compliance with the <0.1 °C requirement specified in AASHTO T315 Annex A.
Does SmartPave support GLP-compliant data archiving?
Yes. With optional RheoCompass Server and Audit Trail module, all raw data, metadata, operator actions, and calibration events are timestamped, digitally signed, and stored in tamper-evident format—fully satisfying GLP, GMP, and ISO/IEC 17025 documentation requirements.
