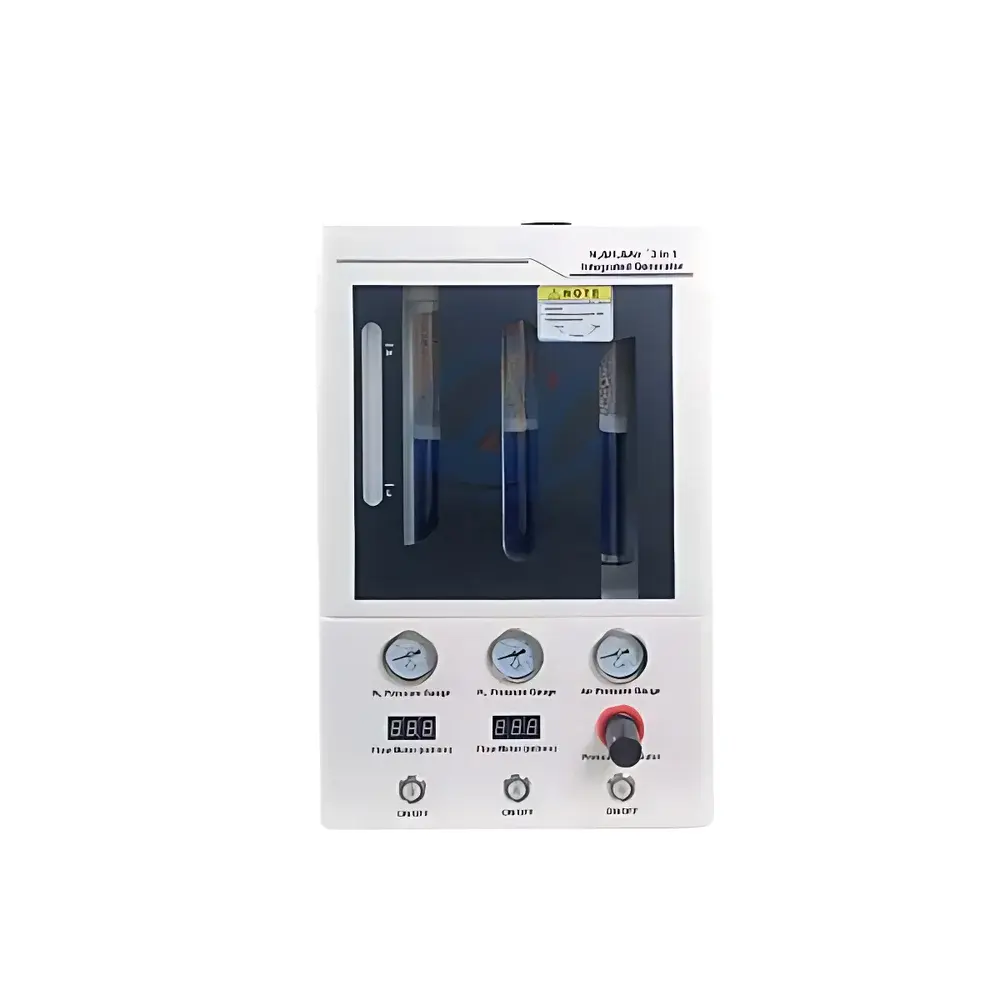

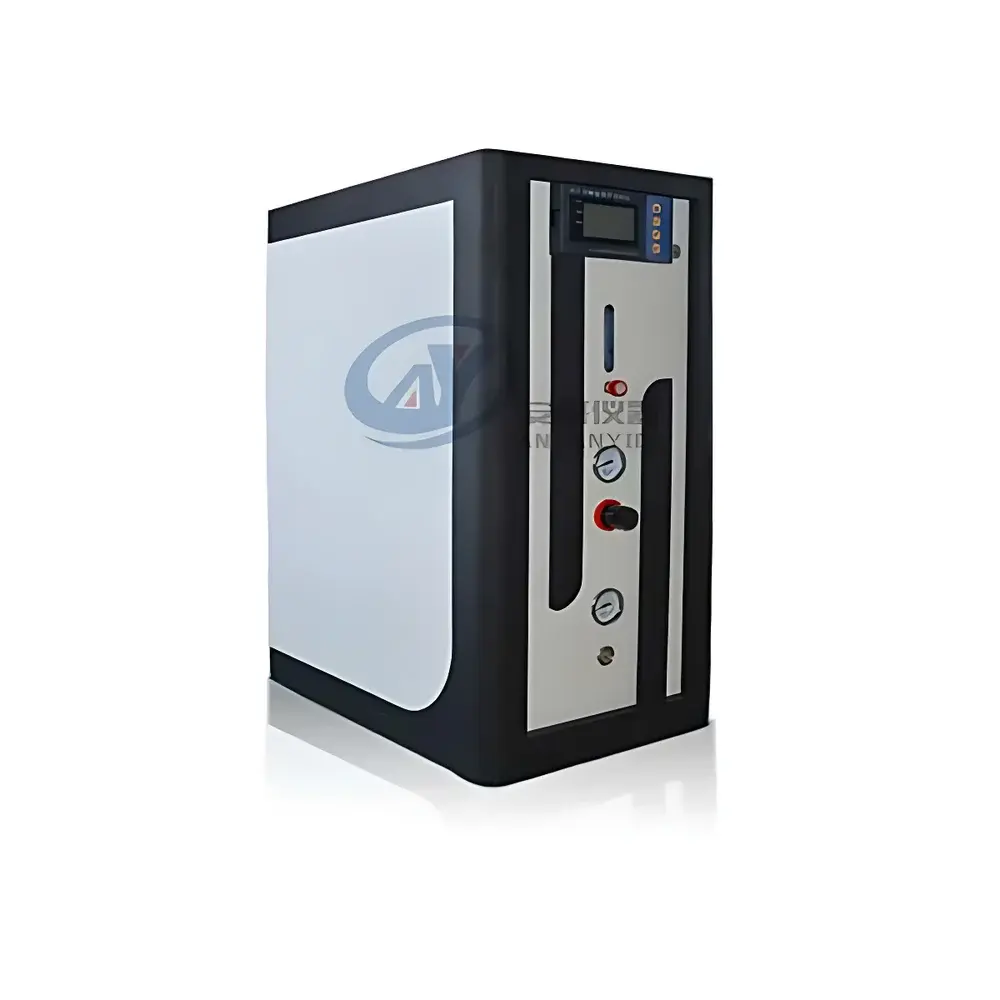

Anyan AYAN-T500 Integrated Nitrogen-Hydrogen-Air Gas Generator for GC Laboratories

Overview

The Anyan AYAN-T500 Integrated Nitrogen-Hydrogen-Air Gas Generator is an engineered solution designed specifically for gas chromatography (GC) laboratories requiring continuous, high-purity carrier and auxiliary gases. Unlike conventional high-pressure cylinder systems, the AYAN-T500 employs membrane-based nitrogen separation, PEM (Proton Exchange Membrane) electrolysis for hydrogen generation, and a multi-stage compressed air system with integrated desiccant drying and coalescing filtration. This tri-gas architecture eliminates reliance on external gas supply chains while maintaining strict compliance with GC-grade purity requirements—specifically ≥99.999% (5.0 grade) for both nitrogen and hydrogen, and oil-free, low-dew-point air suitable for FID, TCD, and ECD detectors. The generator operates on a closed-loop, demand-responsive principle: flow and pressure are dynamically regulated in real time based on instrument backpressure and user-set parameters, minimizing gas waste and ensuring stable baseline performance across extended analytical runs.

Key Features

• Triple-gas integration: Independent nitrogen, hydrogen, and air modules housed within a single compact chassis (450 × 440 × 400 mm), reducing footprint and interconnect complexity.
• High-reliability gas purification: Nitrogen stream incorporates dual-stage PSA (Pressure Swing Adsorption) with carbon molecular sieve beds and post-filter polishing; hydrogen utilizes PEM electrolysis with palladium membrane diffusion for ultra-low moisture (<1 ppm) and zero hydrocarbon carryover.
• Multi-level safety architecture: Over-temperature cutoff, pressure relief valves on all three gas lines, automatic leak detection via differential pressure monitoring, and electrical isolation of electrolytic cells per IEC 61010-1.
• Digital microprocessor control: Real-time display of individual gas flow rates (mL/min), output pressures (MPa), system status codes, and maintenance alerts—including electrolyte level, desiccant saturation, and filter service intervals.
• Energy-efficient operation: Switch-mode power supply optimizes electrolysis efficiency; standby mode reduces idle power draw to <15 W without compromising restart response time.
• No consumable electrolytes: KOH electrolyte remains chemically stable over time; only distilled water top-up is required to compensate for evaporation and electrochemical loss—no scheduled electrolyte replacement needed under normal operation.

Sample Compatibility & Compliance

The AYAN-T500 is compatible with all major GC platforms, including Agilent 7820A/8890, Thermo Fisher ISQ LT, Shimadzu GC-2030, and PerkinElmer Clarus series. Its gas specifications meet or exceed ASTM D6299 (precision and bias for GC carrier gas purity), ISO 8573-1 Class 2:2:2 for compressed air quality, and USP requirements for residual moisture and particulate content in analytical gases. All internal wetted materials—including stainless steel 316L gas paths, fluoropolymer diaphragms, and ceramic-coated compressors—are selected for chemical inertness and long-term stability under continuous GC operating conditions. The unit supports GLP/GMP workflows through configurable audit trail logging (via optional RS-232/USB interface) and conforms to FDA 21 CFR Part 11 principles when paired with validated LIMS integration protocols.

Software & Data Management

While the AYAN-T500 operates autonomously via front-panel controls, its embedded firmware supports serial communication (RS-232) for remote monitoring and parameter configuration using Anyan’s GC-GasLink™ utility (Windows-compatible). This software enables historical logging of flow/pressure trends, event-triggered alarms (e.g., low water, filter saturation), and export of CSV-formatted maintenance records for regulatory documentation. No proprietary drivers are required; standard COM port enumeration allows seamless integration into LabVantage, STAR, or OpenLab CDS environments. Firmware updates are delivered via secure HTTPS download and applied through USB mass-storage mode—ensuring traceability and version control in audited laboratory settings.

Applications

The AYAN-T500 serves as a primary gas source in environmental testing labs (EPA Method 8260/8270), pharmaceutical QC (ICH Q2-compliant residual solvent analysis), petrochemical refineries (ASTM D3606 benzene/toluene quantification), and academic research facilities conducting method development for chiral separations or volatile organic compound (VOC) profiling. Its stable, low-particulate nitrogen output ensures consistent retention time reproducibility (<0.02% RSD over 72 h), while ultra-dry hydrogen prevents column degradation in high-temperature programmed GC runs. The integrated air supply eliminates cross-contamination risks associated with shared compressor banks—critical for labs running parallel GC-FID and GC-MS systems.

FAQ

What maintenance intervals are recommended for the AYAN-T500?

Desiccant cartridges require replacement every 6–12 months depending on ambient humidity; distilled water should be topped up weekly or monitored via the built-in level sensor; electrolyte inspection is advised every 12 months, though replacement is rarely necessary unless contamination is suspected.

Can the AYAN-T500 support multiple GC instruments simultaneously?

Yes—when configured with external manifold distribution and pressure-regulated branch lines, it reliably supplies up to two mid-range GC systems operating at combined flows ≤80% of rated capacity per gas type.

Is the hydrogen output compatible with flame ionization detectors (FID)?

Absolutely—the hydrogen stream meets ASTM D7217 specifications for FID fuel gas, with guaranteed dew point <−70 °C and total hydrocarbon content <0.1 ppm.

How does the unit handle power interruptions?

Upon power restoration, the AYAN-T500 performs a full self-diagnostic sequence—including pressure decay test and electrolyte conductivity verification—before resuming gas delivery, preventing uncontrolled startup or gas mixing.

Does the generator comply with electrical safety standards for laboratory use?

Yes—it is certified to IEC 61010-1:2010 for measurement, control, and laboratory equipment, with reinforced insulation, double-pole switching, and earth leakage protection integrated into the main power module.
