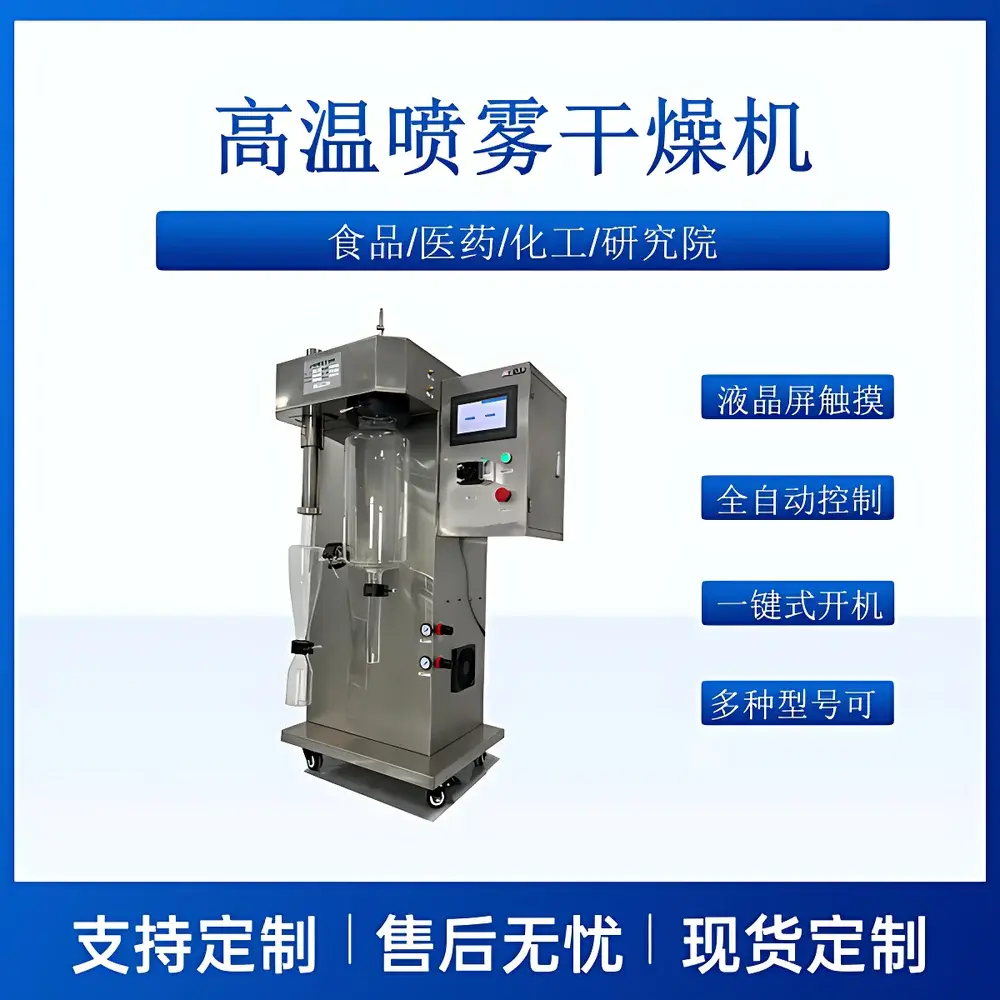

ANYAN CY-8000Y High-Temperature Laboratory Spray Dryer for Aqueous Solutions

Overview

The ANYAN CY-8000Y is a benchtop high-temperature spray dryer engineered for precise, reproducible drying of heat-sensitive and viscous aqueous solutions, emulsions, and suspensions in research and development laboratories. It operates on the principle of flash evaporation via concurrent-flow atomization: liquid feed is pneumatically atomized into fine droplets using a dual-fluid (air-assisted) nozzle, then rapidly dried by controlled hot air (inlet up to 400 °C), yielding free-flowing, spherical microparticles with narrow size distribution. Its design prioritizes thermal stability, process transparency, and operator safety—critical for pharmaceutical formulation studies, nanomaterial synthesis, functional food ingredient development, and catalyst precursor preparation where residual moisture, particle morphology, and chemical integrity must be rigorously controlled. Unlike conventional batch ovens or lyophilizers, this system eliminates intermediate concentration/filtration steps, reduces thermal degradation risk through sub-second residence time, and delivers powder with >95% uniformity in particle size distribution—enabling direct downstream processing such as tableting or inhalation dosage evaluation.

Key Features

• Real-time PID temperature control with ±0.5 °C accuracy for both inlet and outlet air, ensuring consistent thermal profiles across the entire drying zone.
• Dual-mode operation: fully automated sequence control (one-touch start/stop with animated process visualization) and manual override for dynamic parameter adjustment during experiments.
• Integrated clean-in-place (CIP) functionality including auto-actuated needle-type nozzle cleaner (“needle purge”), with adjustable frequency to prevent clogging during high-viscosity or high-solids feed applications.
• Tower wall sweeping system utilizing tangentially injected compressed air to minimize wall deposition—reducing material loss and mitigating thermal degradation of adhered particles.
• Transparent borosilicate glass drying chamber and cyclone collector (ASTM E438 Type I, Class A), enabling real-time visual monitoring of atomization pattern, droplet trajectory, and powder formation without compromising containment.
• Onboard oil-free diaphragm air compressor (ISO 8573-1 Class 0 certified), delivering contaminant-free atomizing gas and maintaining low acoustic emission (<60 dB(A)) suitable for shared laboratory environments.
• Modular nozzle assembly with interchangeable orifices (0.5–2.0 mm) to optimize droplet Sauter mean diameter (SMD) for specific feed rheology and target particle size requirements.
• HEPA-filtered intake air supply and sealed feed pathway to preserve sample purity—compliant with GLP documentation practices and preparatory workflows for ISO 13485 or FDA 21 CFR Part 11–aligned environments.

Sample Compatibility & Compliance

The CY-8000Y accommodates aqueous-based formulations containing thermolabile actives, biopolymers (e.g., alginate, chitosan), protein solutions, colloidal silica, and nanoemulsions. Its wide inlet temperature range (30–400 °C) supports both gentle low-temperature drying of sensitive biomolecules and high-temperature pyrolysis of metal precursors. The system meets mechanical safety standards per IEC 61000-6-2/6-4 and electrical safety per GB 4793.1–2007 (equivalent to IEC 61010-1). While not pre-certified for GMP manufacturing, its architecture—including audit-trail-capable touchscreen logging, user-access-level permissions, and traceable parameter history—supports validation protocols aligned with USP , ISO/IEC 17025, and EU Annex 11 requirements for analytical method development and pilot-scale feasibility studies.

Software & Data Management

The 7-inch color LCD touchscreen interface provides real-time graphical display of all critical process variables: inlet/outlet air temperature, feed pump RPM, airflow rate, nozzle purge frequency, and system status flags. All parameters are timestamped and exportable via USB to CSV format for integration with LIMS or statistical process control (SPC) platforms. The embedded controller logs ≥10,000 data points with automatic overwrite protection and supports password-protected user profiles (administrator/operator/researcher tiers). Optional Ethernet connectivity enables remote monitoring and centralized fleet management in multi-instrument lab settings—facilitating compliance with ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Pharmaceutical R&D: Preparation of amorphous solid dispersions, inhalable dry powders (DPIs), and nanoparticle-loaded microspheres for sustained release profiling.
• Food Science: Encapsulation of probiotics, vitamins, and omega-3 oils; production of instant beverage powders with enhanced solubility and oxidative stability.
• Materials Engineering: Synthesis of lithium iron phosphate (LFP) cathode precursors, metal oxide nanoparticles, and porous silica carriers.
• Academic Research: Kinetic modeling of droplet drying dynamics, interfacial tension effects on particle morphology, and scale-up correlation studies from lab to pilot plant.
• Quality Control: Rapid moisture determination, batch-to-batch consistency verification, and excipient compatibility screening under accelerated drying conditions.

FAQ

What types of feed solutions are compatible with the CY-8000Y?

Aqueous emulsions, suspensions, colloidal dispersions, and low-to-medium viscosity solutions (up to ~500 cP) are routinely processed. Organic solvent-based feeds require optional explosion-proof configuration and nitrogen inerting.

How does the wall-sweeping system improve yield?

By introducing controlled tangential airflow along the inner tower surface, it dislodges semi-dry particles before thermal adhesion occurs—increasing recovery efficiency by 12–18% compared to static-wall designs.

Is the system compliant with FDA 21 CFR Part 11?

The base configuration supports Part 11 readiness through electronic signature capability, audit trail generation, and secure user authentication; full compliance requires site-specific validation and IT infrastructure alignment.

Can the drying chamber be constructed entirely in stainless steel?

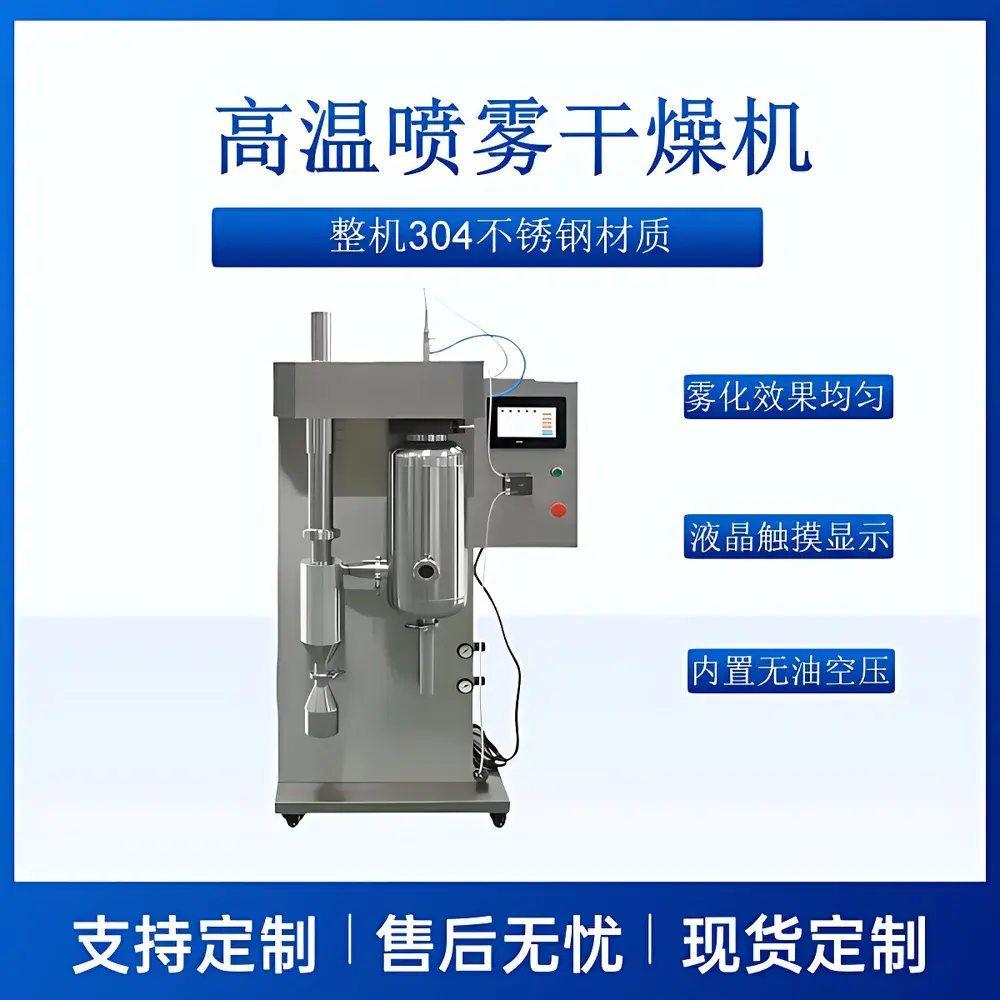

Yes—custom configurations with 316L stainless steel drying tower, cyclone, and collection vessel are available upon request for corrosive or ultra-high-purity applications.

What maintenance intervals are recommended for optimal performance?

Daily: nozzle inspection and HEPA filter cleaning; quarterly: calibration of temperature sensors and airflow transducers; annually: full system validation including thermal mapping and particle size distribution repeatability testing.
