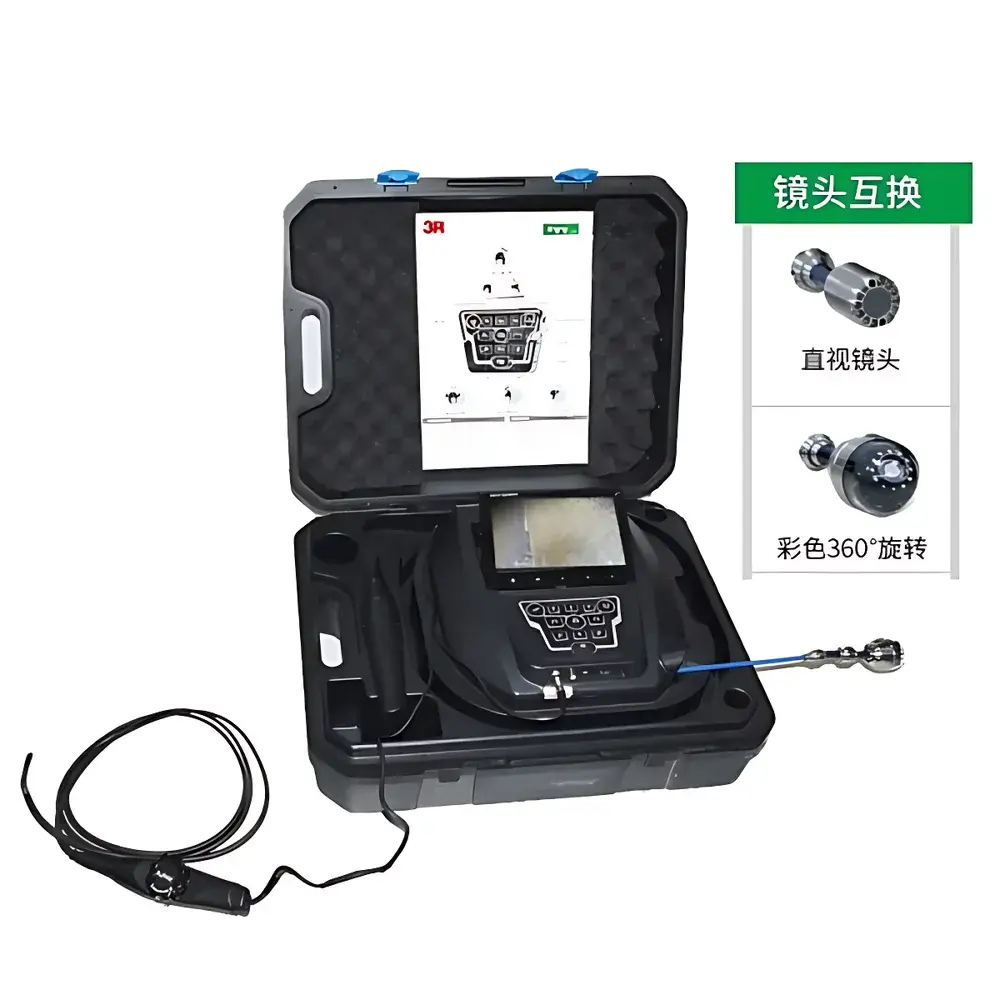

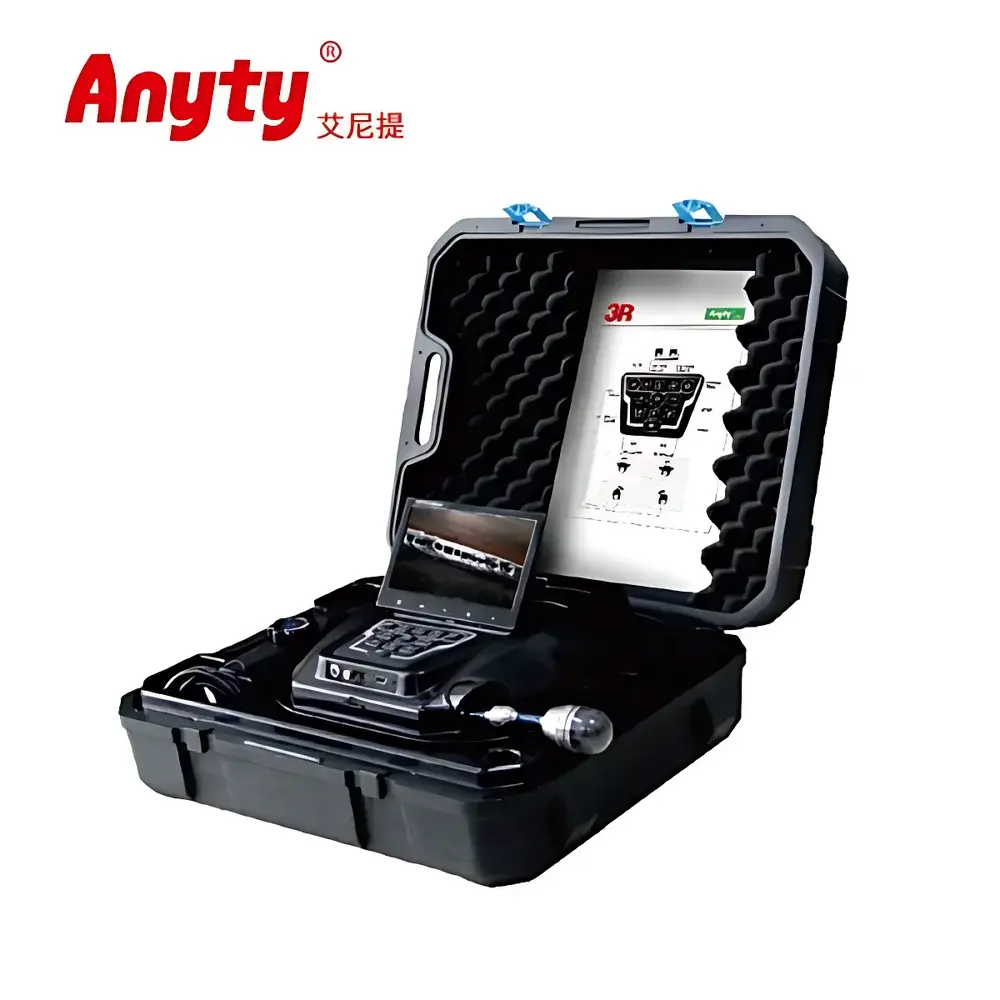

Anyty 3R-MFXS-S Portable High-Definition Industrial Video Borescope

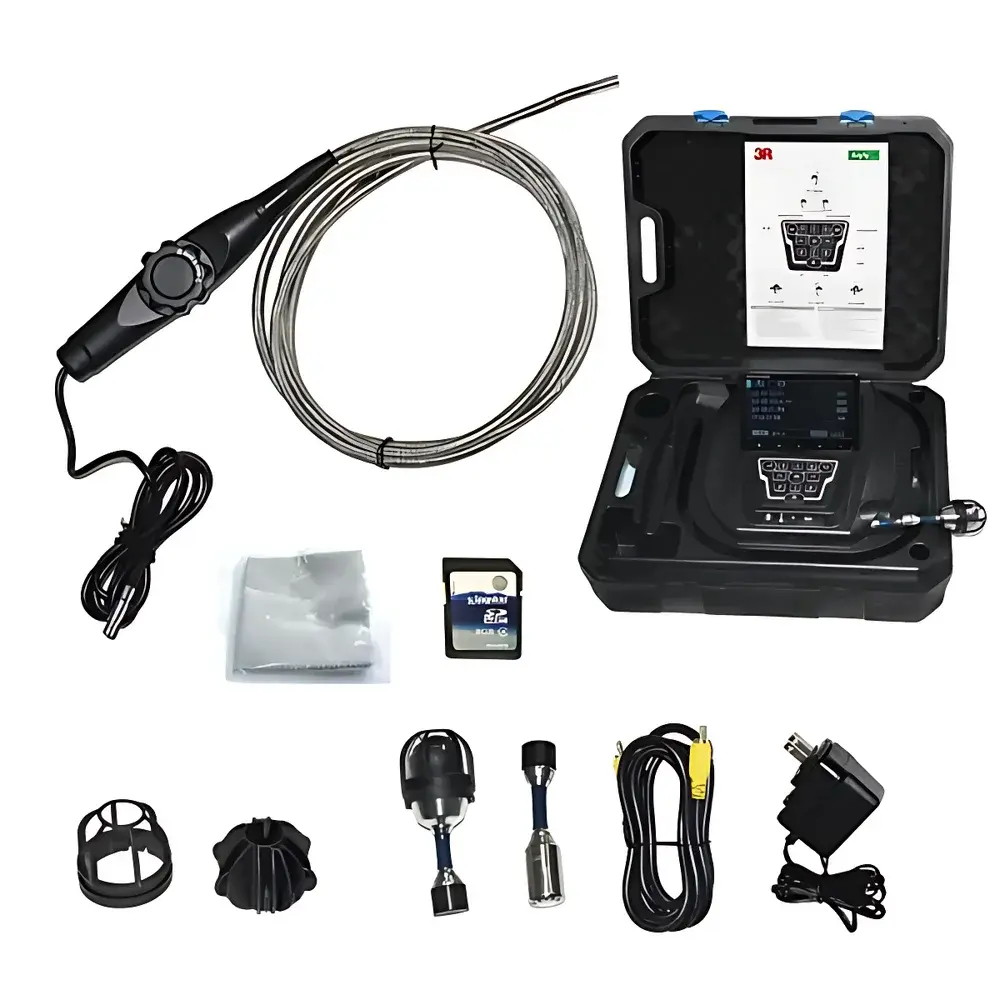

Overview

The Anyty 3R-MFXS-S is a portable, high-definition industrial video borescope engineered for non-destructive inspection of inaccessible internal structures—particularly pipelines, ducts, heat exchangers, turbine casings, and confined mechanical assemblies. It operates on the principle of optical imaging combined with digital video signal processing, utilizing a rigid or semi-rigid insertion tube equipped with a high-resolution color CMOS imaging sensor and LED illumination. Unlike traditional fiber-optic endoscopes, the 3R-MFXS-S delivers real-time HD video output via an integrated 7-inch LCD display, enabling immediate visual assessment without external monitoring equipment. Its design prioritizes field usability, mechanical robustness, and ergonomic handling—making it suitable for both routine preventive maintenance and forensic failure analysis in manufacturing, energy, aerospace, and infrastructure sectors.

Key Features

• 7-inch integrated LCD display: High-brightness, anti-glare TFT-LCD panel with adjustable brightness and contrast for clear visualization under varying ambient lighting conditions—including low-light or outdoor environments.

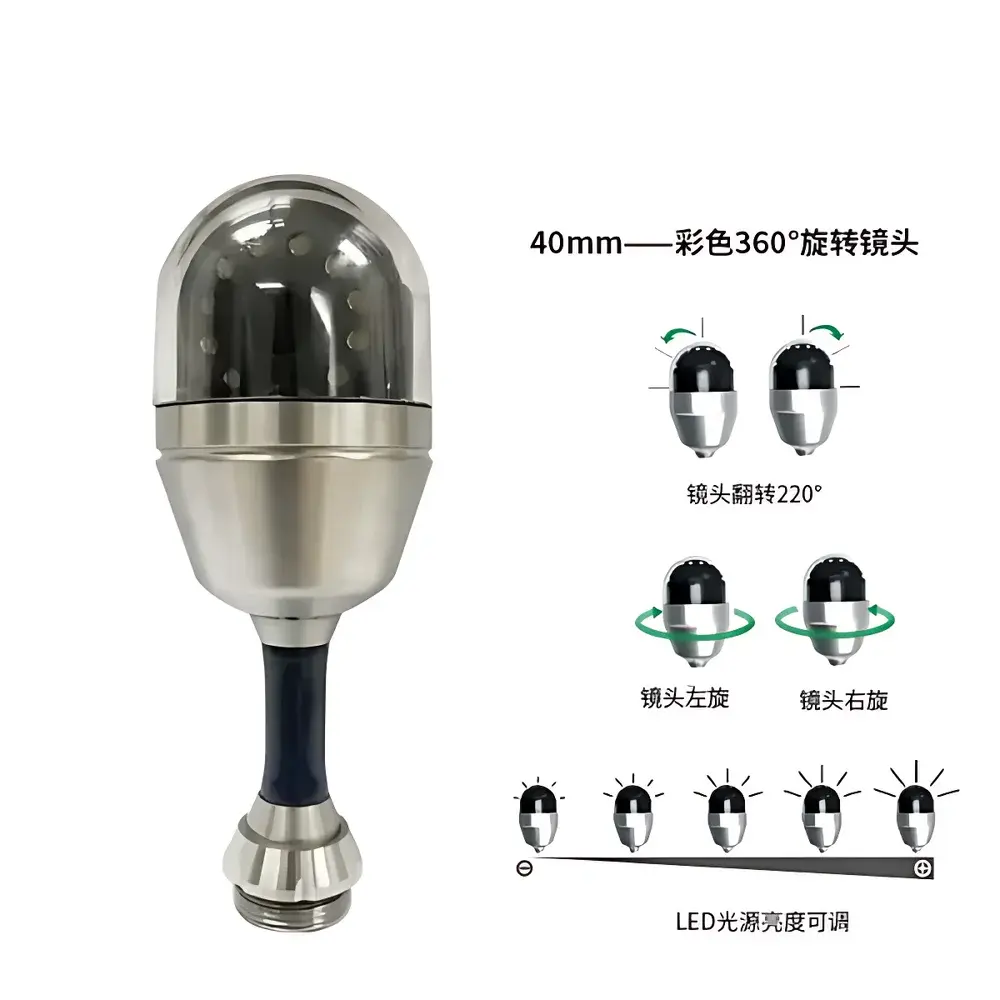

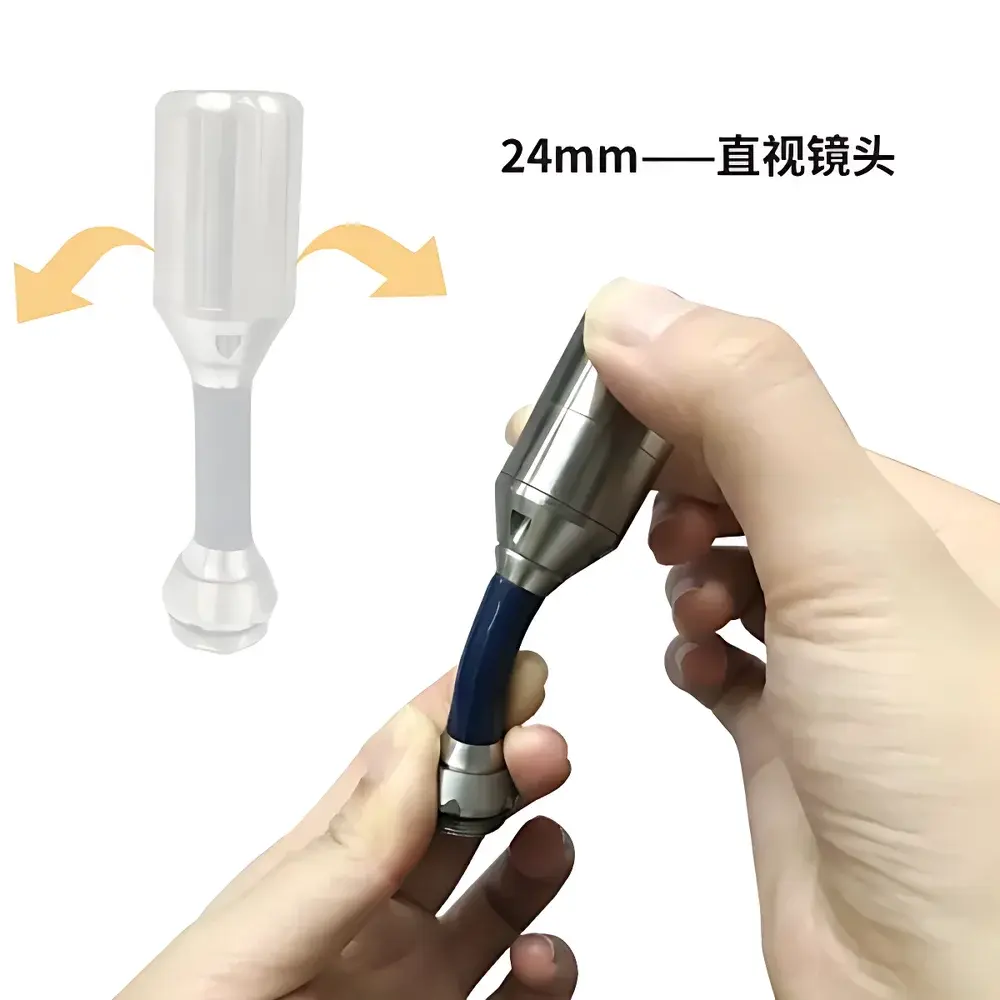

• 360° articulating tip: Precision-engineered articulation mechanism allows full directional control (up/down/left/right) with smooth, tactile feedback and mechanical lock-in positions to maintain orientation during inspection.
• High-fidelity imaging system: Equipped with a multi-element wide-angle lens and high-sensitivity CMOS sensor optimized for low-noise performance, delivering sharp resolution and accurate color reproduction across the depth of field.
• IP67-rated probe housing: The insertion tube and distal head are sealed against dust and temporary immersion, supporting operation in humid, oily, or particulate-laden industrial environments.
• Lightweight, battery-powered architecture: Integrated rechargeable lithium-ion battery provides continuous operation exceeding 4 hours; device weight remains below 1.2 kg for extended handheld use.
• USB 2.0 and microSD interface: Enables direct video recording, still image capture, and firmware updates; supports up to 128 GB microSD cards formatted in FAT32 for archival-grade documentation.

Sample Compatibility & Compliance

The 3R-MFXS-S is compatible with standard pipe diameters ranging from 25 mm to 300 mm, accommodating both straight-run and moderately curved sections typical in HVAC, petrochemical, and municipal water systems. Its probe diameter (Ø6.0 mm) and flexible articulation allow navigation through elbows, tees, and branch connections without disassembly. While not certified to EN 13927 or ASTM E2578 (which apply to formal NDT qualification protocols), the instrument meets general requirements for visual inspection per ISO 17020 and supports traceable reporting workflows aligned with ISO/IEC 17025–accredited laboratories. All recorded media include embedded timestamps and operator ID fields, facilitating compliance with internal QA/QC procedures and regulatory audit trails.

Software & Data Management

The device operates independently of PC software but includes companion utilities for post-capture analysis on Windows-based workstations. The bundled application enables frame-by-frame review, measurement annotation (distance estimation via calibrated scale bar), defect tagging, and report generation in PDF or CSV formats. Metadata—including date/time stamp, probe orientation angle, and illumination level—is preserved in EXIF headers. For enterprise integration, the system supports DICOM-compliant export (via third-party conversion tools) and can be incorporated into broader CMMS platforms using standardized file ingestion protocols. Audit logging functionality satisfies baseline requirements for GLP-aligned documentation, though full 21 CFR Part 11 compliance requires supplemental validation of the host workstation environment.

Applications

• Pre-commissioning inspection of welded pipe joints and internal surface finish in oil & gas transmission lines
• Verification of cleaning efficacy in pharmaceutical process piping (e.g., post-CIP visual confirmation)
• Root cause analysis of blockages, corrosion pitting, or foreign object debris (FOD) in power plant condenser tubes
• Non-invasive verification of insulation integrity inside steam traps and valve bodies
• Structural assessment of reinforced concrete conduit interiors following seismic retrofitting
• Quality assurance checks during fabrication of aerospace hydraulic manifolds and fuel line assemblies

FAQ

What is the maximum operating temperature for the insertion tube?
The probe is rated for continuous operation up to 60°C ambient; intermittent exposure to 80°C is permissible for ≤5 minutes with adequate cooling intervals.
Can the device be used underwater?
The IP67 rating permits submersion up to 1 meter for 30 minutes; however, prolonged immersion or pressurized water jet exposure is not recommended without additional protective housings.
Is calibration required before each use?
No routine calibration is mandated; however, users should perform a visual verification check using a reference target prior to critical inspections to confirm focus, illumination uniformity, and articulation response.
Does the system support remote viewing via Wi-Fi or Bluetooth?
The base 3R-MFXS-S model does not include wireless transmission modules; optional accessories may enable HDMI mirroring or USB tethering to external displays, but native wireless streaming is not supported.
What documentation is provided for regulatory submissions?
The unit ships with a Declaration of Conformity (DoC), factory test report, and user manual compliant with IEC 61000-6-3 EMC standards; full technical dossiers for FDA or CE submission must be requested separately under NDA terms.
