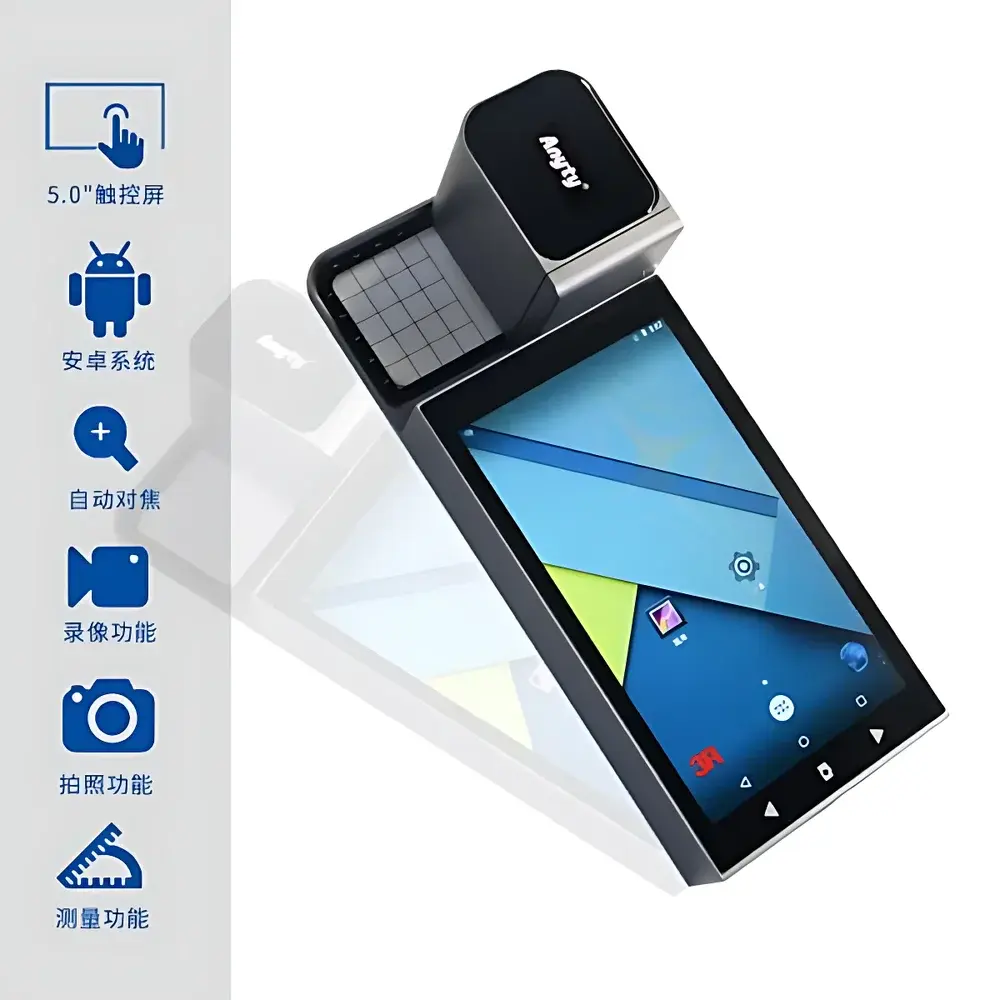

Anyty 3R-MSA600S Portable Video Microscope with Integrated Measurement System

Overview

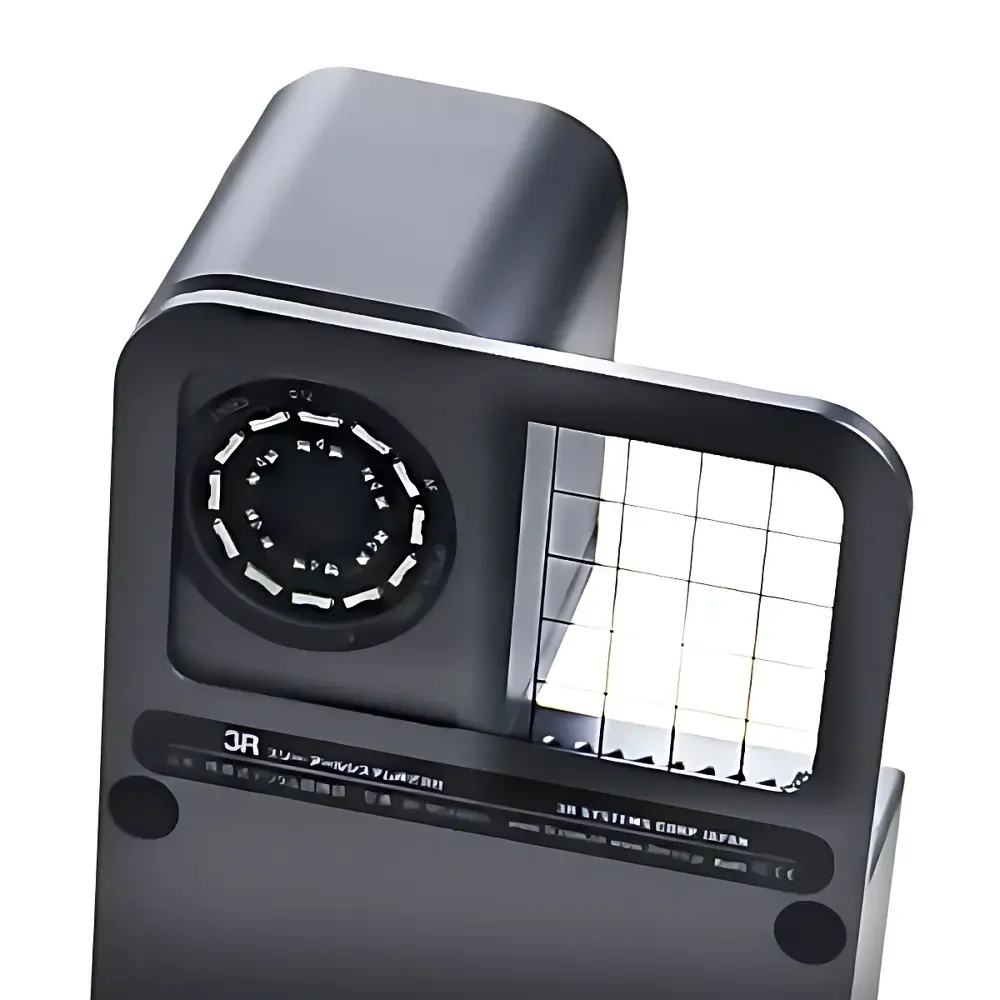

The Anyty 3R-MSA600S is a field-deployable, high-resolution portable video microscope engineered for non-destructive visual inspection and quantitative micro-scale metrology in industrial quality control, electronics assembly verification, materials science education, and field service applications. Unlike conventional optical microscopes requiring fixed benchtop setups and external illumination, the 3R-MSA600S integrates a precision coaxial LED illumination system, motorized tri-step magnification optics (5×, 60×, 200×), and real-time digital imaging into a single handheld unit. Its measurement capability is based on calibrated pixel-to-dimension mapping using factory-traceable reference standards, enabling repeatable linear measurements down to ±1.5 µm accuracy under controlled lighting and focus conditions. The device operates on a dedicated embedded Android 9.0 platform, eliminating dependency on host computers while supporting direct annotation, scale bar overlay, and on-device report generation.

Key Features

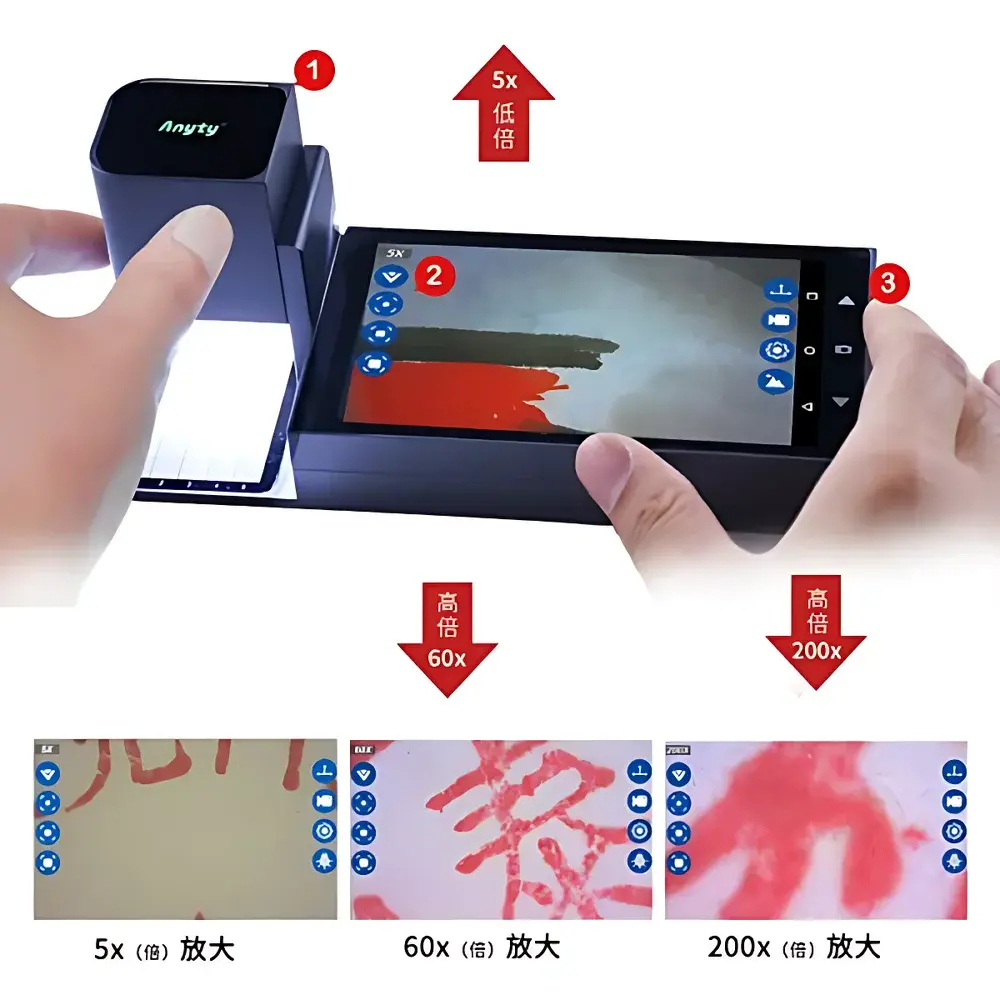

• Tri-level motorized zoom optics with seamless switching between 5× (wide-field overview), 60× (component-level detail), and 200× (micro-feature resolution) — all with active autofocus and parfocal alignment.
• Integrated high-sensitivity 12 MP CMOS sensor with 4K UHD (3840 × 2160) video capture at 30 fps and still-image resolution up to 4000 × 3000 pixels.
• Onboard 64 GB eMMC storage supporting simultaneous dual-stream recording: full-resolution video + timestamped measurement log files in CSV format.

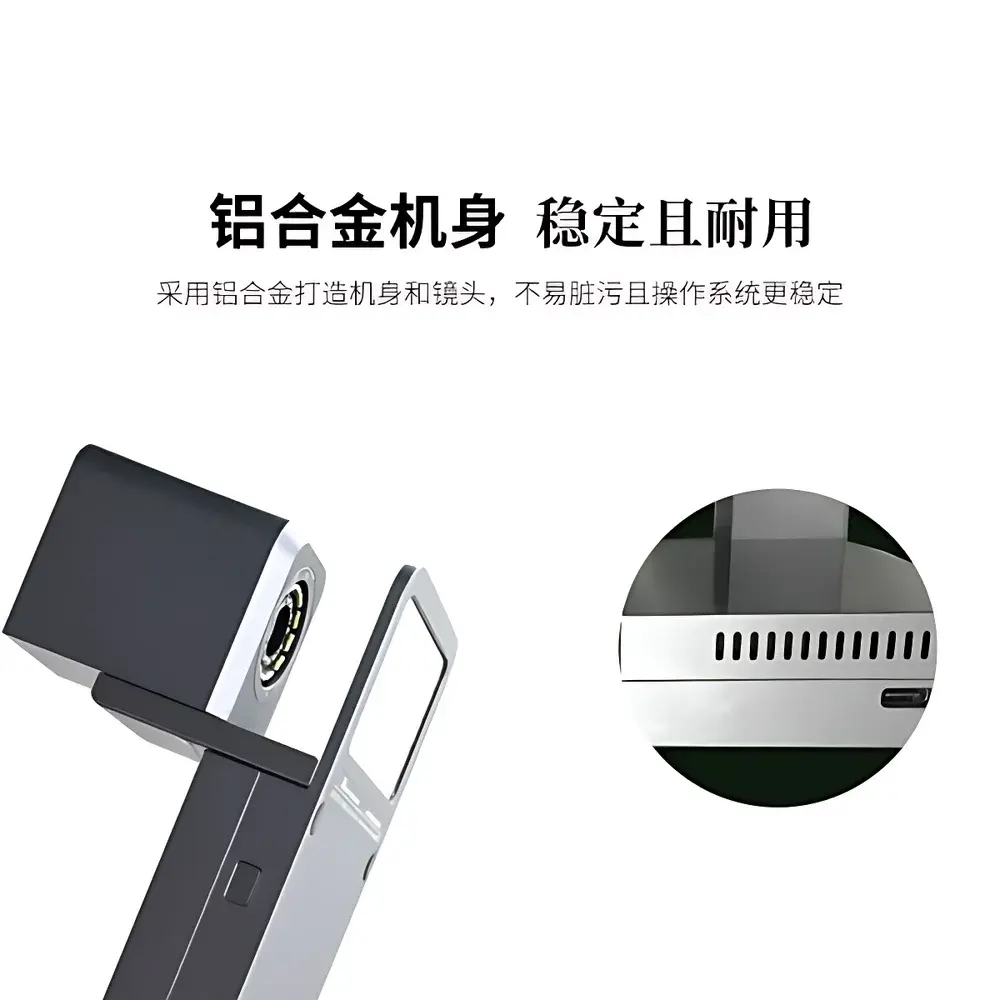

• Anodized aluminum alloy housing (6061-T6 grade) with IP52-rated ingress protection against dust and incidental moisture; surface-treated for low fingerprint adhesion and chemical resistance to common industrial solvents.
• Intelligent power management: 5200 mAh lithium-polymer battery delivers up to 3.5 hours of continuous 200× imaging or 6.8 hours at 5× mode; supports rapid charging (≥50% SOC in ≤30 minutes via 15 W PD-compliant input).
• Native Android 9.0 OS with preinstalled Anyty MeasurePro v3.2 software — no PC required for calibration, measurement, annotation, or export.

Sample Compatibility & Compliance

The 3R-MSA600S accommodates a broad range of opaque and semi-transparent samples without stage modification, including PCB solder joints, metal fatigue fractures, polymer weld seams, printed circuit traces, textile fiber cross-sections, and coated surface defects. Working distance ranges from 42 mm (5×) to 12 mm (200×), permitting safe observation of heat-sensitive or vibration-prone specimens. Calibration adheres to ISO 9001:2015 traceability requirements, with each unit shipped with a NIST-traceable dimensional verification certificate referencing certified step gauges (10–500 µm). While not certified for regulated GMP environments, its audit-ready measurement logs — including operator ID, timestamp, magnification setting, and environmental temperature metadata — support GLP-aligned documentation workflows per ISO/IEC 17025 Annex A.3.

Software & Data Management

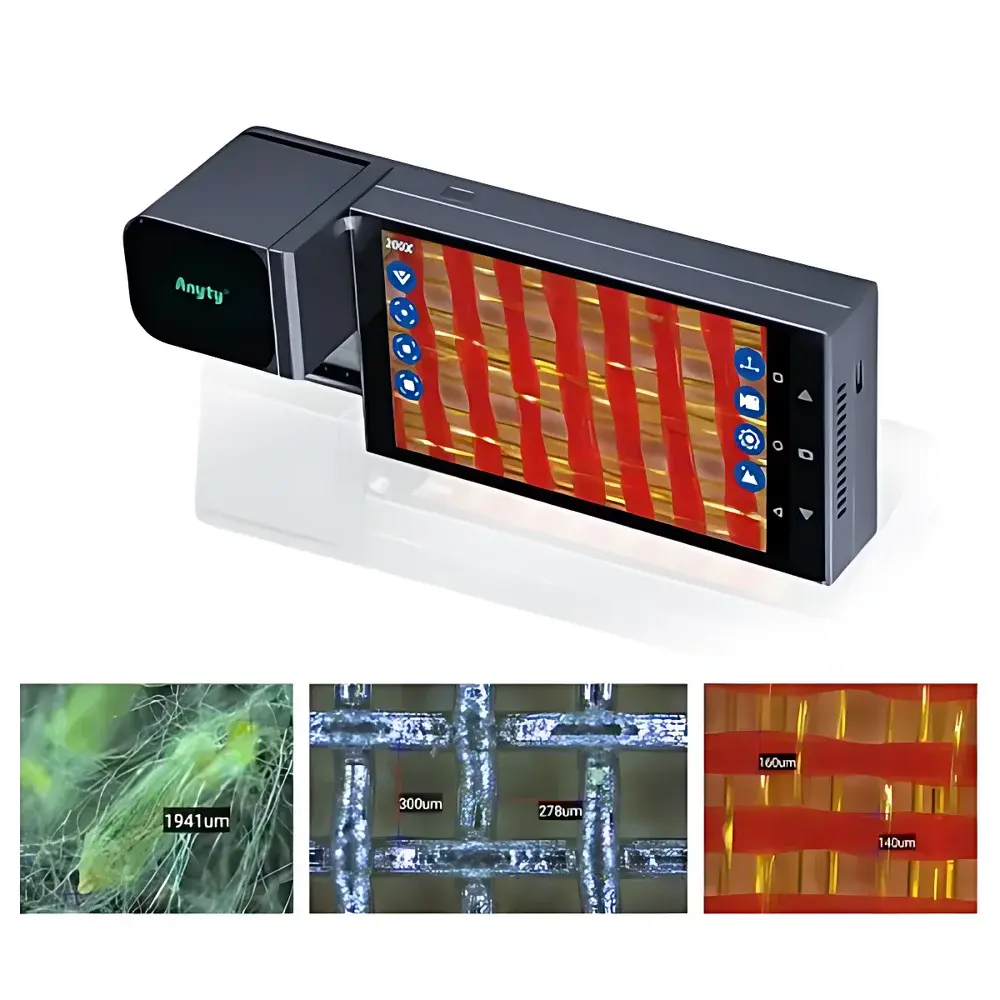

Anyty MeasurePro v3.2 provides an intuitive touch-optimized interface for point-to-point, parallel line, circle, and angle measurements, with configurable tolerance bands and pass/fail color coding. All measurement data are stored in ISO-standard CSV with UTF-8 encoding, compatible with Minitab, JMP, and Excel. Bluetooth 5.0 enables secure pairing with Android tablets or Windows laptops for remote live view and firmware updates. USB-C host mode allows direct connection to USB flash drives or network-attached storage (NAS) for automated nightly backup. Audit trails record every calibration event, user login/logout, and measurement parameter change — satisfying FDA 21 CFR Part 11 principles for electronic records when deployed with organizational access controls.

Applications

• Electronics manufacturing: Solder joint void analysis, BGA ball inspection, flex-circuit trace width verification.
• Mechanical QA: Surface defect grading (scratches, pits, porosity), coating thickness estimation (via edge contrast analysis), thread pitch validation.
• Academic labs: Student-led metallurgical sample characterization, polymer phase morphology studies, botanical epidermal cell counting.
• Field service: On-site turbine blade crack assessment, wind turbine composite delamination mapping, railway axle surface wear documentation.
• Forensics & art conservation: Fiber identification, ink layer stratigraphy, document authenticity verification via micro-texture comparison.

FAQ

Does the 3R-MSA600S support third-party calibration standards?
Yes — the device accepts user-defined calibration files (.cal format) generated from any ISO 17025-accredited metrology lab using traceable step or line-pair standards.
Can measurement data be exported in PDF report format?
Yes — MeasurePro v3.2 includes a built-in report generator that exports annotated images, measurement tables, and device metadata as password-protected PDF/A-1b compliant documents.
Is the aluminum housing compatible with ESD-safe work environments?
The chassis is grounded via the USB-C connector shell and features surface resistivity of 1 × 10⁶ Ω/sq (per ANSI/ESD S20.20), making it suitable for Class 0 ESD-sensitive zones when used with wrist strap grounding.
What is the minimum measurable feature size at 200×?
Under optimal focus and lighting, the system resolves features ≥2.3 µm (Rayleigh criterion), with measurement repeatability of ±1.5 µm (k = 2, n = 20 repeated measurements on certified gauge blocks).
Does the device support time-lapse imaging for thermal or corrosion monitoring?
Yes — interval capture mode supports programmable intervals from 1 second to 24 hours, with automatic file naming, EXIF metadata embedding, and motion-triggered recording via on-sensor analytics.
