Anyty 3R-MSA620WF Portable WiFi Auto-Focus Digital Microscope

Overview

The Anyty 3R-MSA620WF is a compact, field-deployable digital microscope engineered for rapid visual inspection and documentation in non-laboratory environments. It operates on the principle of high-resolution optical magnification combined with real-time digital image acquisition via an integrated CMOS sensor. Unlike traditional compound microscopes requiring fixed staging and manual focus, the 3R-MSA620WF employs a motorized auto-focus system that dynamically adjusts focal plane depth across variable working distances (typically 35–120 mm), enabling consistent clarity on uneven or irregular surfaces. Its optical design delivers true 60× magnification—calibrated per ISO 10934-1—and supports up to 200× digital zoom with interpolation-based enhancement, suitable for qualitative analysis rather than quantitative metrology. The device is optimized for immediate visual assessment—not photogrammetric measurement—making it appropriate for preliminary screening, teaching illustration, and on-site quality verification where portability and setup speed are critical.

Key Features

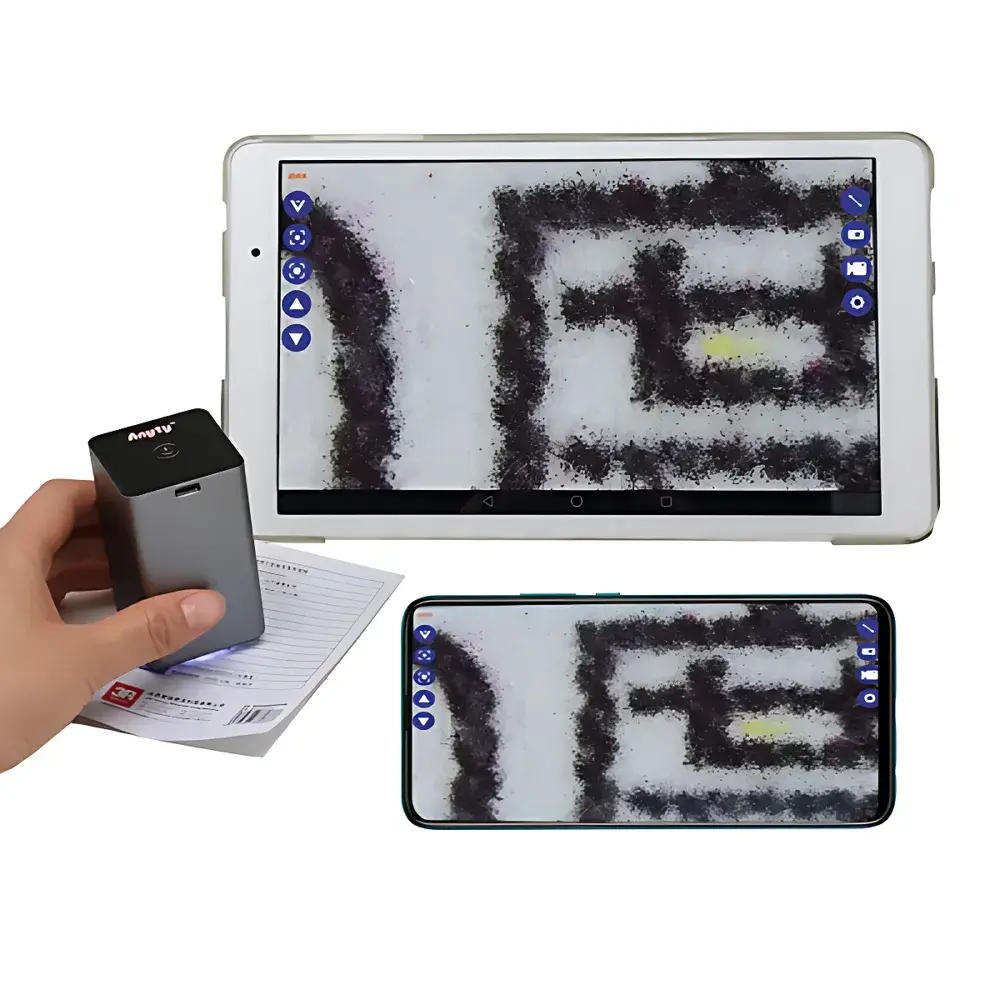

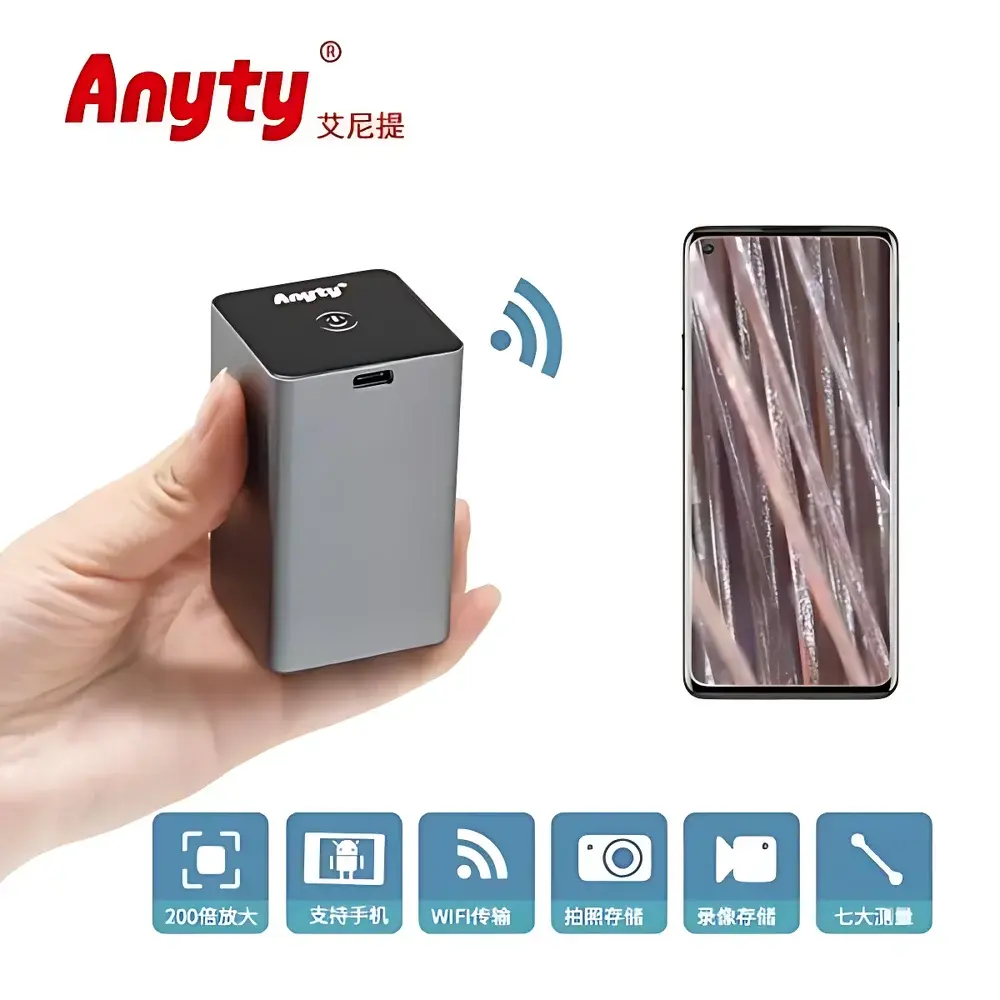

• Integrated 2.4 GHz WiFi module enabling wireless streaming to iOS, Android, Windows, and macOS devices without USB tethering or driver installation
• Motorized auto-focus algorithm responsive to surface topography changes, reducing operator dependency and minimizing focus drift during extended observation
• HDMI output for direct connection to monitors or projectors—ideal for classroom instruction or collaborative review sessions

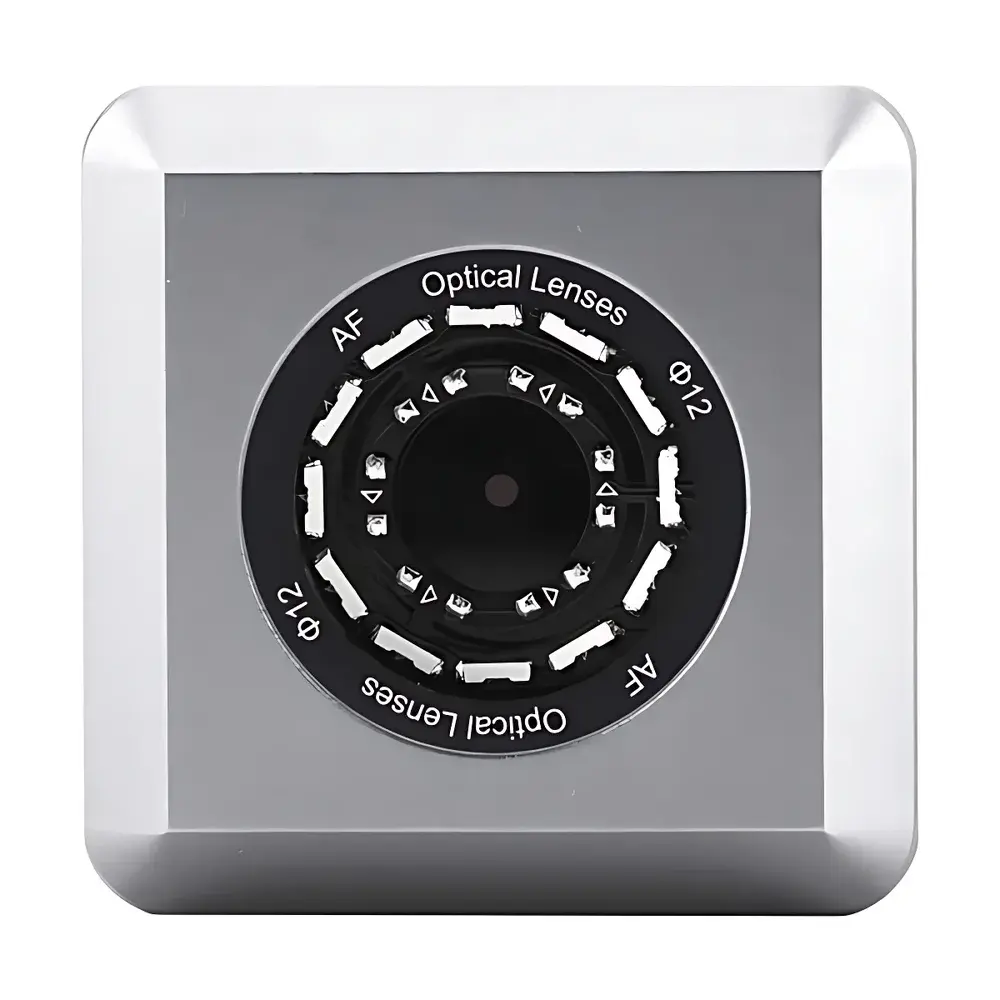

• Lightweight aluminum-magnesium alloy chassis (≤380 g) with ergonomic handheld form factor and adjustable LED ring illumination (6 white LEDs, 3000–6500 K CCT)
• Real-time video capture at 30 fps @ 1080p resolution; still image export in JPEG and BMP formats with embedded timestamp and magnification metadata
• No internal storage—relies on connected host device for data retention, supporting audit-ready file naming conventions when used with compliant software

Sample Compatibility & Compliance

The 3R-MSA620WF accommodates opaque, semi-transparent, and reflective specimens without requirement for slide mounting or vacuum coupling. Common use cases include printed halftone dot evaluation (e.g., gravure or offset print verification per ISO 12233 Annex D), botanical tissue surface scanning, insect morphology demonstration, and PCB solder joint inspection. While not certified to ISO/IEC 17025 for accredited testing, the instrument meets general requirements for educational and industrial first-pass visual inspection under ISO 9001:2015 clause 8.5.1 (Control of Production and Service Provision). It complies with FCC Part 15 Class B and CE RED Directive 2014/53/EU for radio emissions and electromagnetic compatibility.

Software & Data Management

The microscope operates natively with Anyty’s free “MicroCapture Pro” application (v3.2+), which provides annotation tools, freeze-frame capture, side-by-side image comparison, and batch export functionality. For integration into regulated environments, third-party software such as Olympus Stream Lite or ImageJ (with custom calibration plugin) may be deployed to support basic measurement logging. Though the device itself does not implement FDA 21 CFR Part 11 electronic signature or audit trail features, its output files retain EXIF-compliant metadata—including magnification setting, timestamp, and device ID—facilitating traceability in GLP-aligned workflows when paired with documented SOPs.

Applications

• Educational laboratories: Live projection of biological specimens (e.g., leaf epidermis, insect wings, fungal hyphae) during undergraduate biology lectures
• Printing quality assurance: Visual verification of dot gain, rosette formation, and edge acuity in prepress and pressroom settings
• Field-based technical support: Remote expert assistance via live WiFi stream during equipment maintenance or failure analysis
• Vocational training centers: Hands-on microscopy introduction for electronics technicians inspecting solder fillets, wire bonding, or conformal coating coverage
• Museum conservation: Non-contact surface examination of archival documents, textile weaves, or pigment layer stratification prior to intervention

FAQ

Does the 3R-MSA620WF support measurement calibration with stage micrometers?
Yes—when used with MicroCapture Pro v3.4+, users may perform single-point calibration using a certified stage micrometer (e.g., 0.01 mm division), enabling pixel-to-length conversion for comparative dimensional estimation.
Is the WiFi connection encrypted?
The built-in access point uses WPA2-PSK authentication by default; SSID and password are configurable via the mobile app interface.
Can the microscope be powered continuously via USB-C?
No—power is supplied exclusively by the internal rechargeable lithium-polymer battery (rated for ≥90 min continuous operation); USB-C serves data transfer only.
What is the minimum resolvable feature size at 60×?
Based on Rayleigh criterion and typical CMOS pixel pitch (2.2 µm), theoretical resolution is approximately 3.5 µm under optimal lighting and contrast conditions.
Is firmware update supported over-the-air?
Firmware updates require connection to a Windows PC via USB cable and use of the proprietary Anyty Firmware Updater utility; no OTA capability is implemented.
