Anyty 3R-MSTVUSB2140 Desktop Auto-Focus Digital Microscope

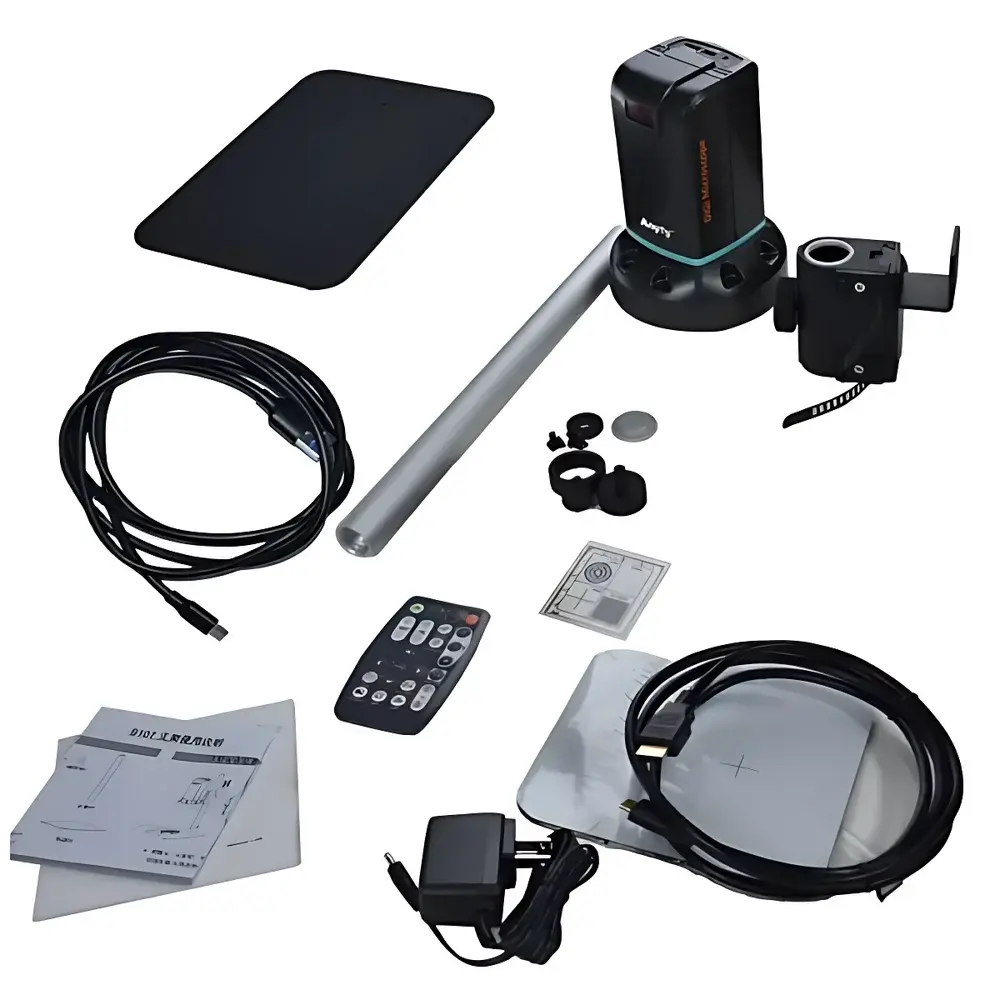

Overview

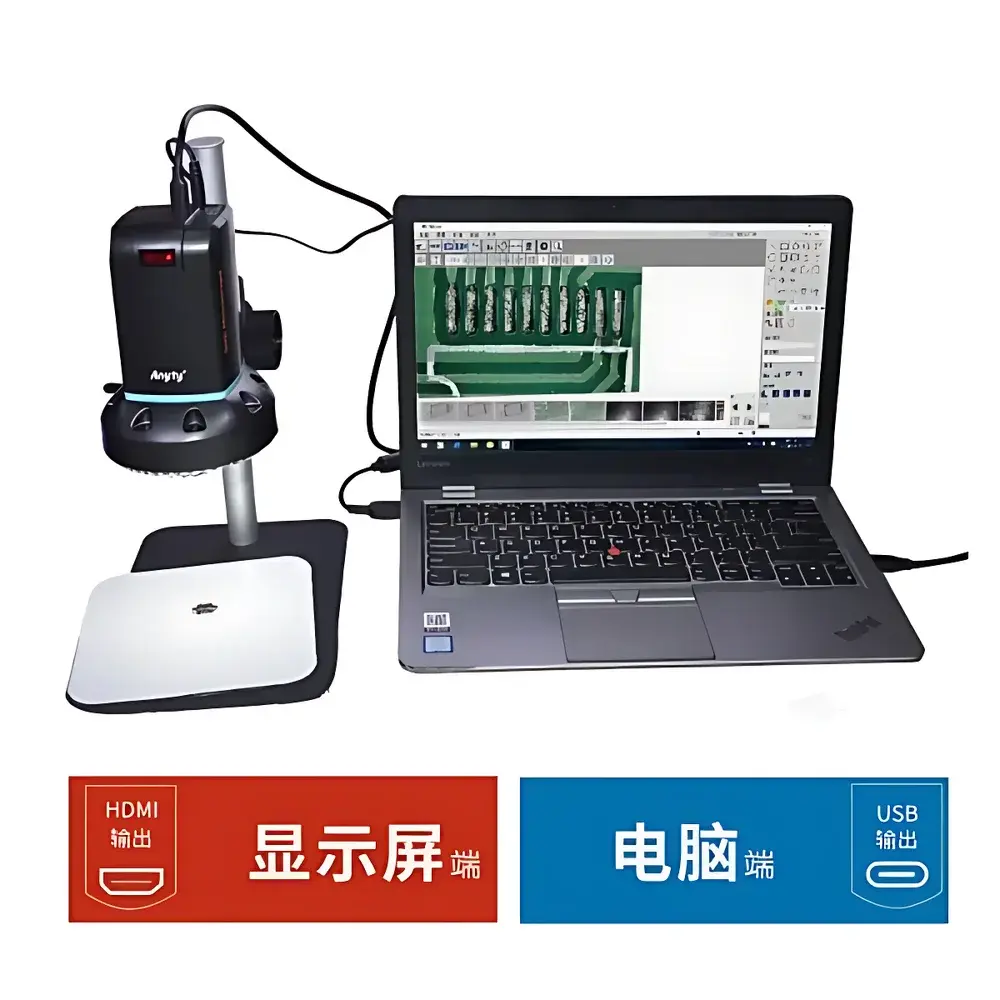

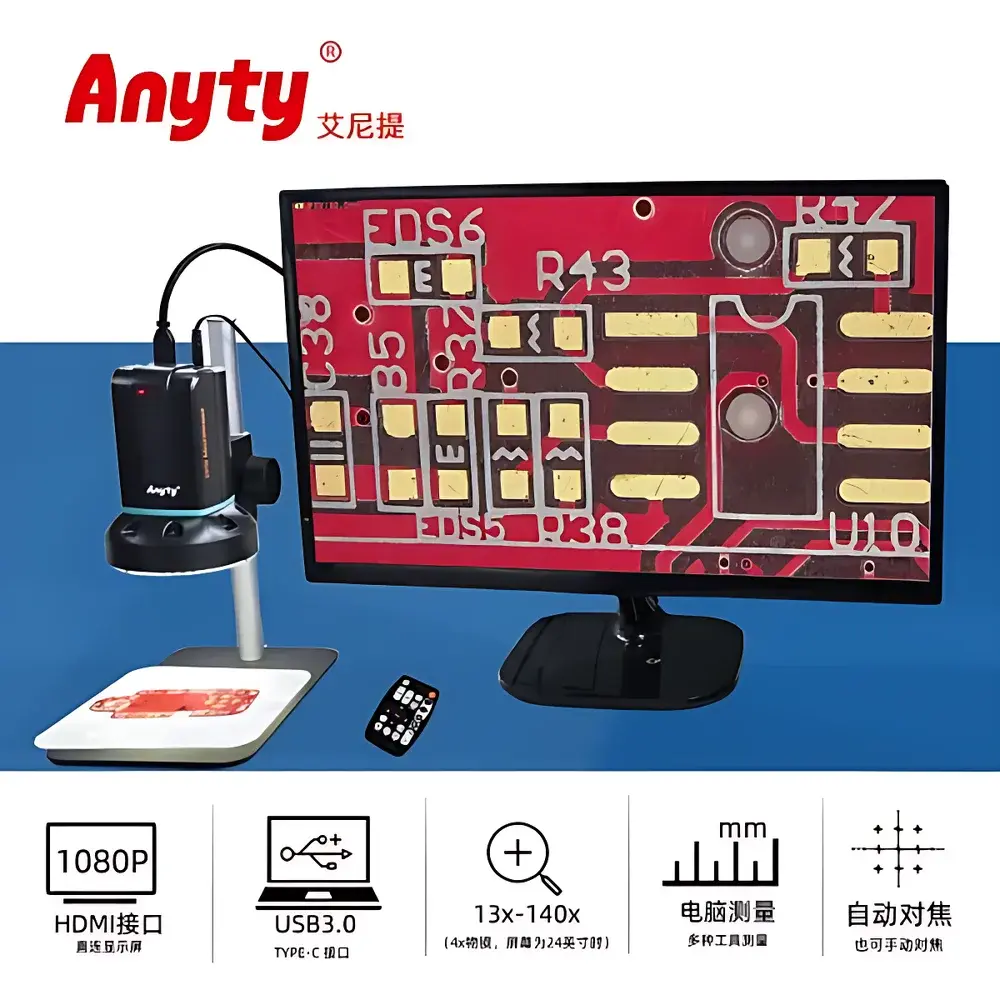

The Anyty 3R-MSTVUSB2140 is a benchtop digital microscope engineered for precision visual inspection in industrial quality control and manufacturing environments. It operates on an optical magnification principle combined with high-resolution digital imaging—leveraging a fixed-focus optical path augmented by real-time software-driven auto-focus algorithms. Unlike traditional compound microscopes requiring mechanical stage adjustment and eyepiece observation, this system delivers direct full-HD (1920 × 1080) image acquisition via HDMI output to external monitors or live streaming to host PCs via USB 3.0 Type-C, enabling seamless integration into production line documentation workflows, failure analysis stations, and incoming inspection bays.

Key Features

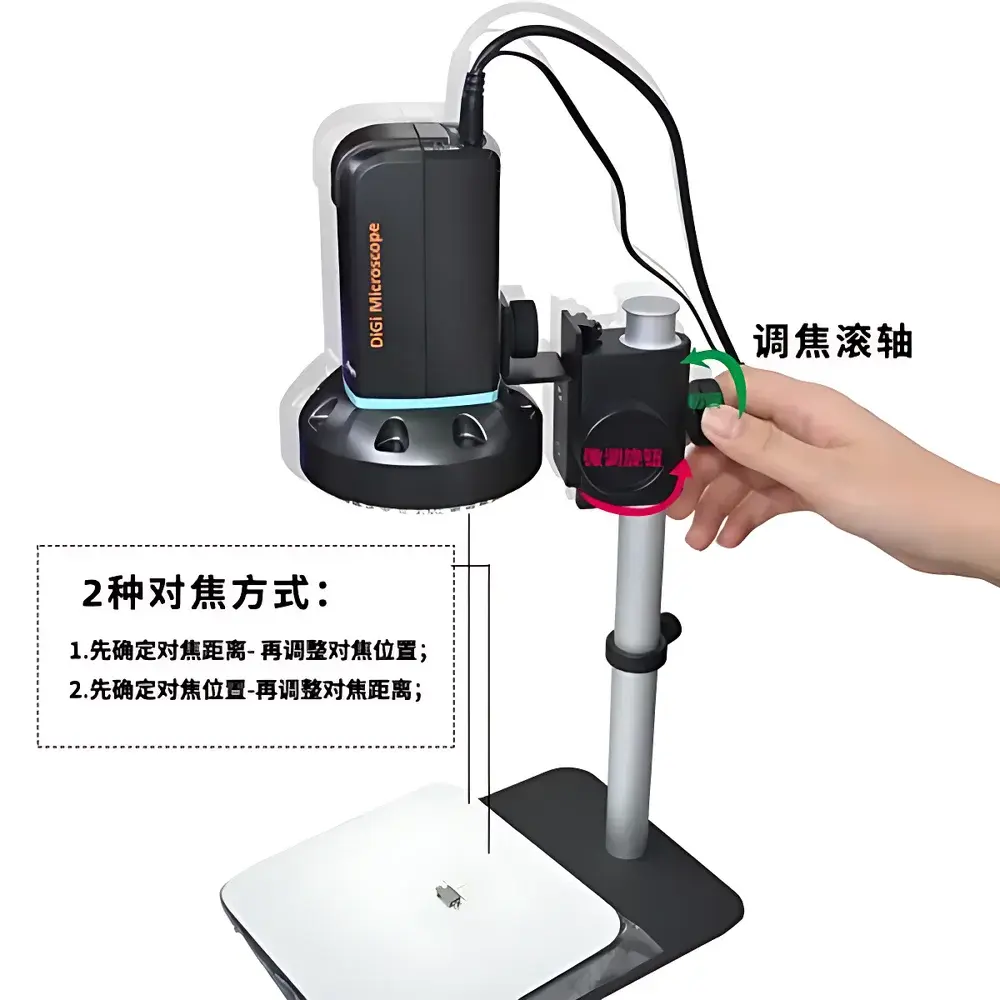

• Real-time auto-focus with manual fine-tuning capability—ensures consistent image clarity across varying sample topographies without operator intervention.

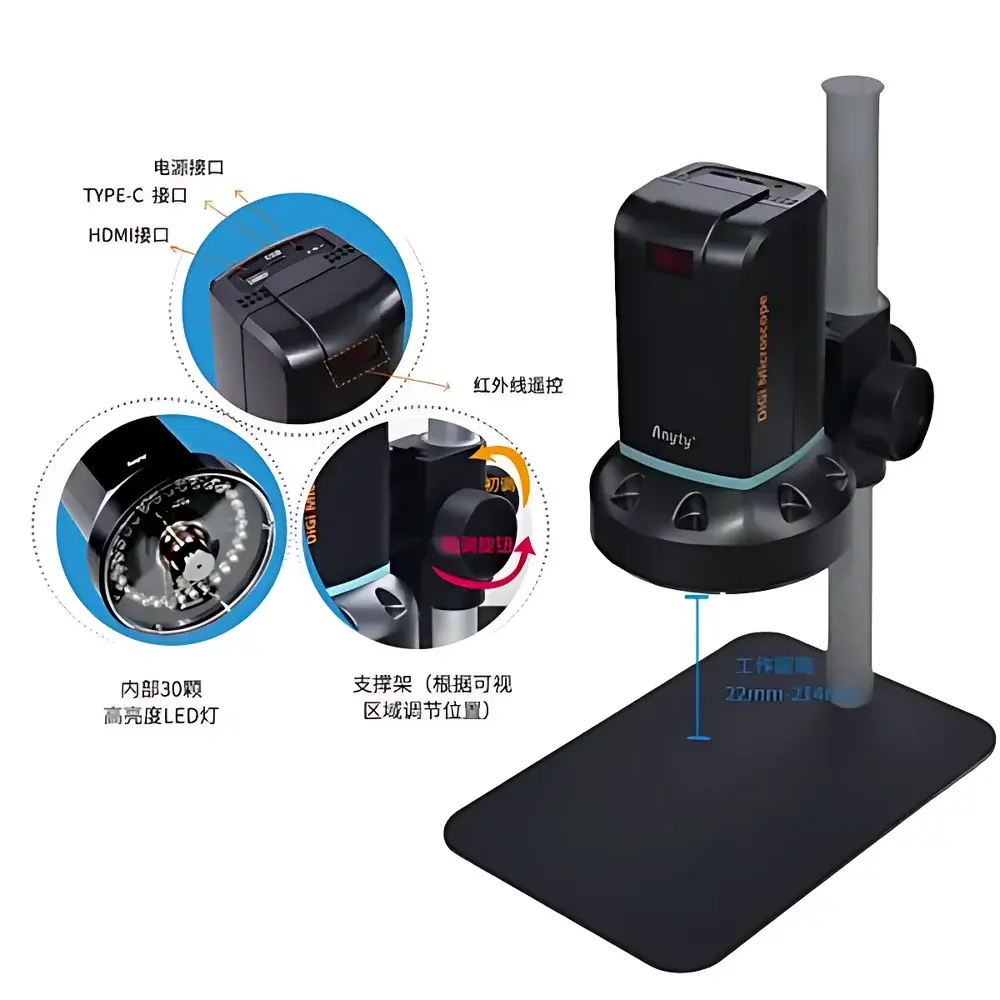

• Dual-output architecture: Simultaneous HDMI 1080p output for large-screen visualization and USB 3.0 Type-C interface for low-latency data transfer and host-based control.
• Modular optical design supporting interchangeable objectives: Standard 4× objective yields up to 140× effective magnification on a 24-inch display; optional 10× objective extends usable magnification to 497× under identical display conditions.
• Integrated CMOS imaging sensor optimized for high signal-to-noise ratio at moderate light levels—ideal for reflective metallic surfaces, PCB traces, solder joints, and machined components.
• On-device measurement suite with pixel calibration support—enables length, angle, area, and profile analysis at micron-level resolution (typical measurement uncertainty ≤ ±2 µm, dependent on calibration standard and display pixel pitch).
• Rugged aluminum-alloy housing and vibration-dampened base—designed for stable operation on factory benches without external anti-vibration platforms.

Sample Compatibility & Compliance

The 3R-MSTVUSB2140 accommodates opaque and semi-reflective solid samples typical of mechanical engineering and electronics manufacturing—including castings, CNC-machined parts, printed circuit boards (PCBs), semiconductor packages, weld seams, and surface-coated substrates. Its working distance (≥65 mm with 4× objective) permits examination of bulky or irregularly shaped objects without disassembly. While not certified to ISO/IEC 17025 as a metrology instrument, the system supports traceable calibration using NIST-traceable stage rulers or certified micrometer standards. Measurement data logs can be exported in CSV format for inclusion in internal QA records aligned with ISO 9001:2015 clause 8.5.2 (Identification and traceability) and IATF 16949 section 8.5.1.2 (Control of production process).

Software & Data Management

The microscope ships with proprietary Windows-compatible acquisition and analysis software supporting multi-frame averaging, brightness/contrast auto-adjustment, edge enhancement, and annotation overlays. All captured images and videos are timestamped and embedded with objective identification, magnification setting, and focus status metadata. Software enables export of measurement reports in PDF and Excel formats—with optional audit trail configuration for regulated environments. Though not FDA 21 CFR Part 11 compliant out-of-the-box, the software architecture allows integration with third-party electronic lab notebook (ELN) systems that provide electronic signature and change-control capabilities required under GLP and GMP frameworks.

Applications

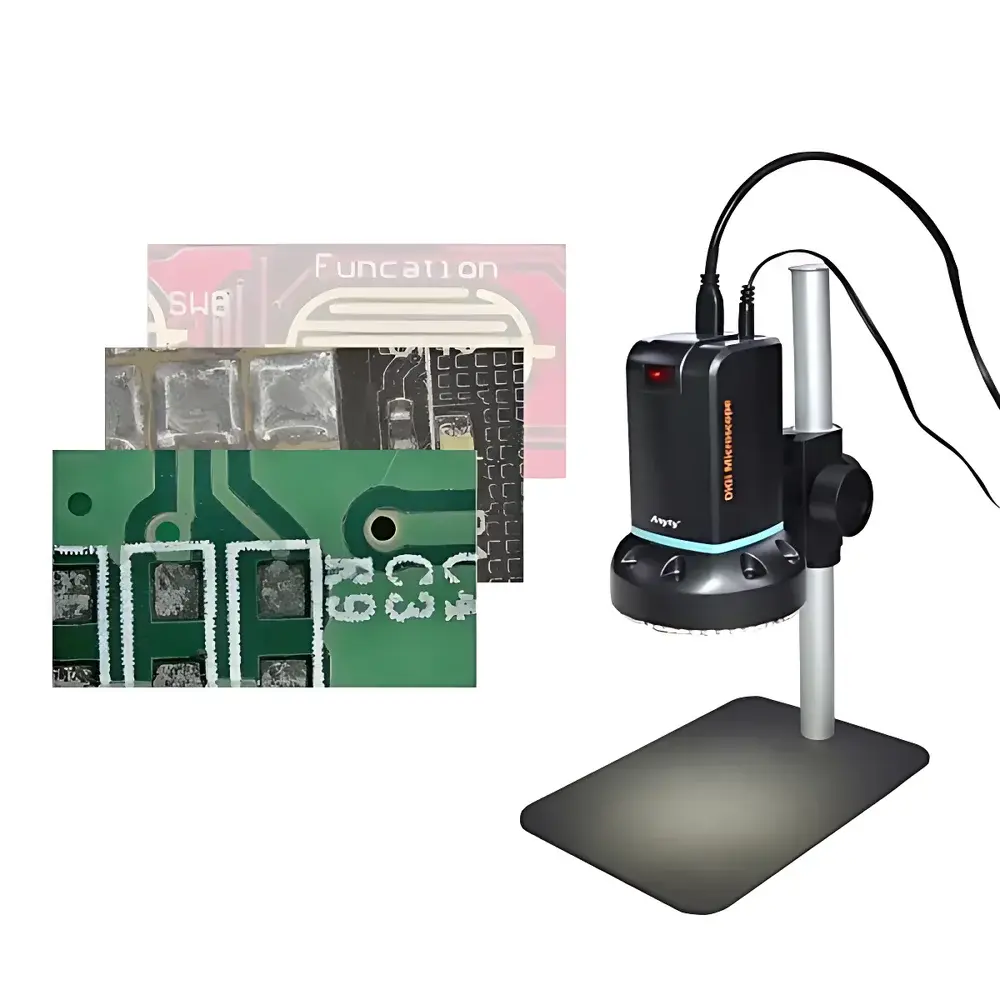

• Electronics manufacturing: Solder joint inspection (IPC-A-610 compliance verification), component placement accuracy, BGA void detection, and flex-circuit trace continuity assessment.
• Mechanical quality assurance: Surface defect mapping on castings and forgings, burr identification on machined edges, thread pitch verification, and coating thickness estimation via depth-of-field slicing.
• Failure analysis labs: Non-destructive documentation of fracture surfaces, corrosion patterns, and thermal damage zones prior to SEM or cross-sectioning.
• Educational and vocational training: Visual demonstration of microstructural features in metallurgy, materials science, and mechatronics curricula.
• Supplier incoming inspection: Rapid pass/fail evaluation against dimensional drawings and surface finish specifications (e.g., ISO 1302, ASME Y14.36M).

FAQ

Does the 3R-MSTVUSB2140 support third-party software such as ImageJ or Olympus Stream?
Yes—when operated in UVC-compliant video mode via USB 3.0, it functions as a standard USB camera device and is compatible with most DirectShow- or V4L2-based imaging platforms.
What is the minimum resolvable feature size at maximum magnification?
Under optimal lighting and calibration, the system resolves features ≥5 µm on a 24″ 1080p display using the 10× objective; actual resolution is constrained by pixel pitch (0.27 mm per pixel at native scaling) and optical diffraction limits.
Is firmware update available, and how is it performed?
Firmware updates are distributed quarterly via the Anyty support portal and installed through the desktop application using a signed .bin file—no hardware programmer required.
Can measurements be exported with uncertainty budgets for internal QA reporting?
Yes—calibration coefficients and environmental parameters (ambient temperature, display model) can be manually appended to exported CSV files to support uncertainty propagation calculations per GUM (JCGM 100:2008).
