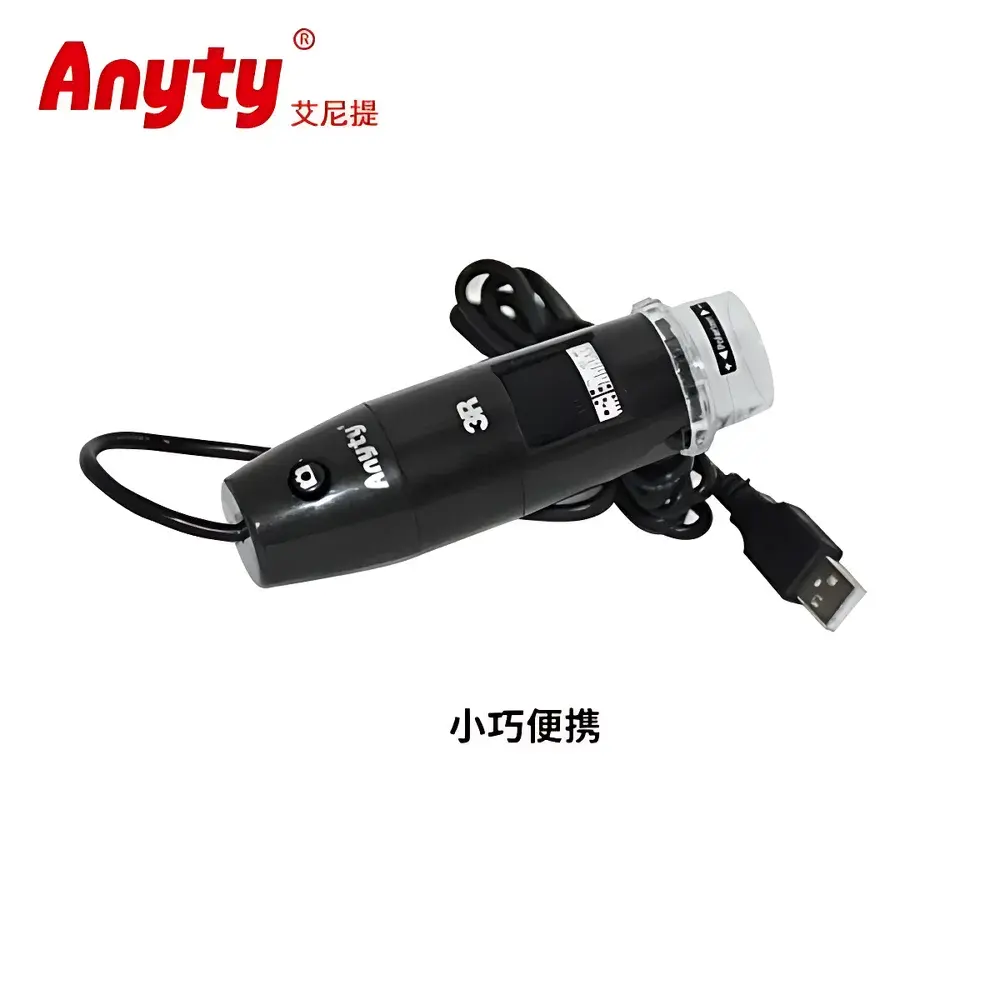

Anyty 3R-MSUSB401-PL USB-Cabled Polarizing Digital Microscope

Overview

The Anyty 3R-MSUSB401-PL is a compact, USB-powered polarizing digital microscope engineered for routine microscopic inspection and qualitative birefringence analysis in educational, industrial QA/QC, and field service environments. Unlike conventional optical microscopes requiring eyepieces and complex illumination setups, this device employs direct CMOS sensor imaging coupled with an integrated linear polarizer system—enabling real-time observation of stress-induced birefringence, crystalline anisotropy, polymer orientation, and thin-film interference patterns. Its design follows the principles of transmitted and reflected light polarization microscopy, where orthogonal polarizer-analyzer configurations reveal optical path differences invisible under standard brightfield illumination. The unit operates at native USB 2.0 bandwidth, delivering stable video streaming and still capture without external power adapters or frame grabbers—making it suitable for deployment in ISO/IEC 17025-accredited labs, electronics assembly lines, geology sample stations, and classroom demonstrations.

Key Features

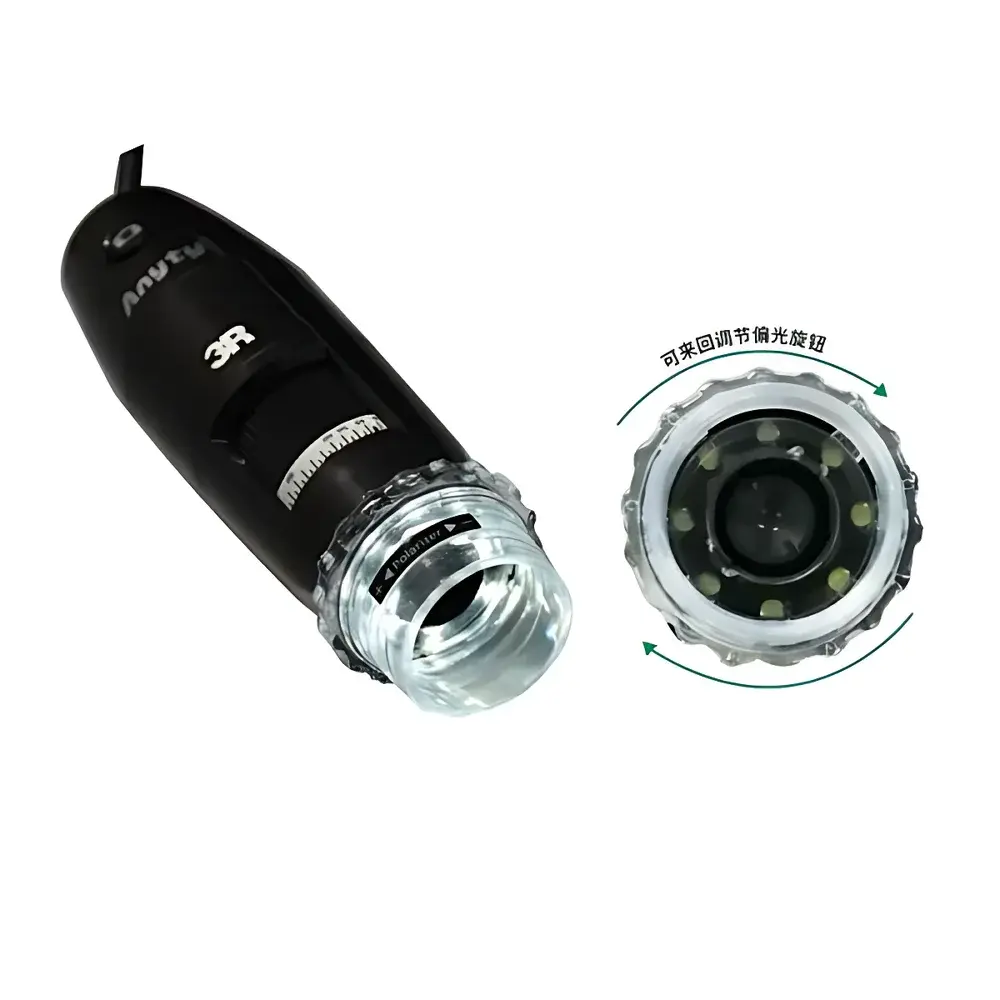

• Integrated linear polarizer module with rotatable analyzer stage for controlled extinction angle adjustment
• High-sensitivity monochrome or color CMOS imaging sensor (resolution dependent on host PC display and software interpolation)
• USB 2.0 plug-and-play interface—no additional drivers required on Windows 10/11 (class-compliant UVC support)
• Real-time video preview at up to 30 fps, with adjustable exposure, white balance, and gamma correction via bundled software
• On-screen measurement tools calibrated in micrometers (µm), supporting line, angle, area, and circle dimensioning
• Timed capture mode for time-lapse documentation of slow morphological changes (e.g., crystal growth, drying patterns)
• Rugged aluminum alloy housing with ergonomic handheld form factor and adjustable focus ring for rapid parfocal operation

Sample Compatibility & Compliance

The 3R-MSUSB401-PL accommodates flat, semi-transparent, or reflective specimens up to 25 mm in height when used with optional stand accessories. It supports standard glass slides, metallurgical cross-sections, printed circuit board (PCB) traces, textile fibers, mineral thin sections, and polymer films. While not certified to ASTM E2822 or ISO 10934-1 for quantitative retardation measurement, its polarized imaging capability aligns with qualitative assessment protocols referenced in IPC-A-610 (Acceptability of Electronic Assemblies) and ASTM D4123 (Standard Guide for Polarized Light Microscopy of Plastics). Device firmware and acquisition software comply with general data integrity expectations for non-GxP environments; however, it does not implement FDA 21 CFR Part 11 electronic signature or audit trail functionality.

Software & Data Management

The included Windows-compatible application provides full control over image acquisition parameters—including brightness, contrast, saturation, and frame rate—and supports lossless TIFF and compressed JPEG export. Measurement data is embedded in EXIF metadata and can be exported as CSV for traceable reporting. Calibration is performed using NIST-traceable stage micrometers (not supplied); users must validate scale accuracy prior to critical dimensional assessments. Software updates are distributed via the manufacturer’s official support portal and require manual installation. No cloud synchronization, remote access, or API integration is provided—ensuring data sovereignty and compatibility with air-gapped laboratory networks.

Applications

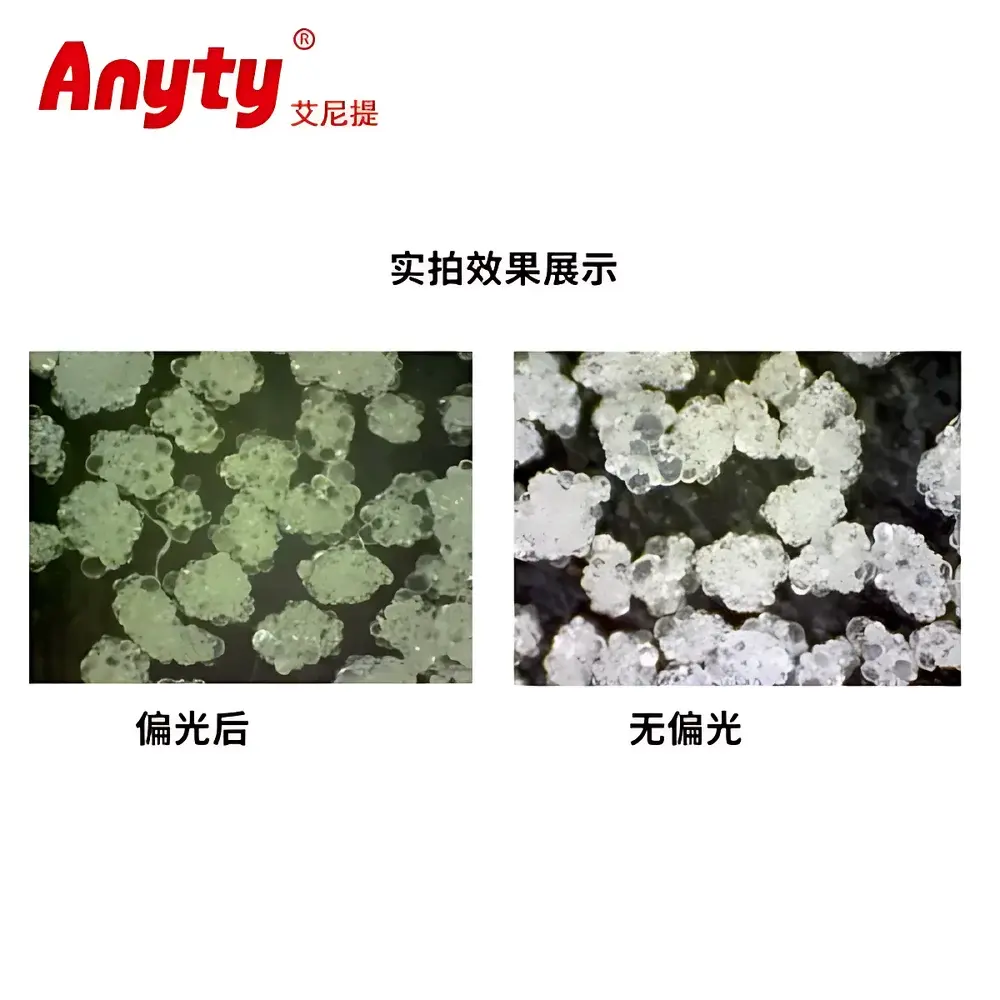

• Failure analysis of stressed plastic components and adhesive bonds via birefringence visualization
• Quick verification of LCD panel alignment layers and polarizer film integrity
• Educational demonstration of optical anisotropy in sucrose crystals, calcite rhombs, and stretched polyethylene
• Surface defect inspection of coated optics, semiconductor wafers, and precision machined parts
• Forensic fiber comparison and textile weave structure documentation
• Geological thin section screening for cleavage planes and twin lamellae in quartz and feldspar

FAQ

Is the 3R-MSUSB401-PL compatible with macOS or Linux operating systems?
Limited functionality is available on macOS and Linux through third-party UVC-compliant applications (e.g., OBS Studio, guvcview); however, measurement tools, calibration routines, and polarizer control are exclusive to the Windows software suite.
Does this microscope support oil immersion or high-NA objectives?
No. It features fixed-focus optics optimized for working distances between 20–50 mm and magnifications ranging from ~10× to 200× (digital zoom-dependent); no interchangeable objective lenses or immersion media compatibility are provided.
Can measurement results meet ISO/IEC 17025 reporting requirements?
Measurements may be used for internal process monitoring but require independent validation against certified reference standards and documented uncertainty budgets before inclusion in accredited test reports.
What is the maximum supported resolution and frame rate?
Maximum output resolution is limited by USB 2.0 bandwidth and host system resources; typical stable operation is achieved at 1280×960 @ 30 fps or 640×480 @ 60 fps, depending on lighting conditions and compression settings.
Is technical support available in English for international customers?
Yes—email-based technical assistance and firmware updates are provided in English through the manufacturer’s global support channel; response time averages 3 business days.
