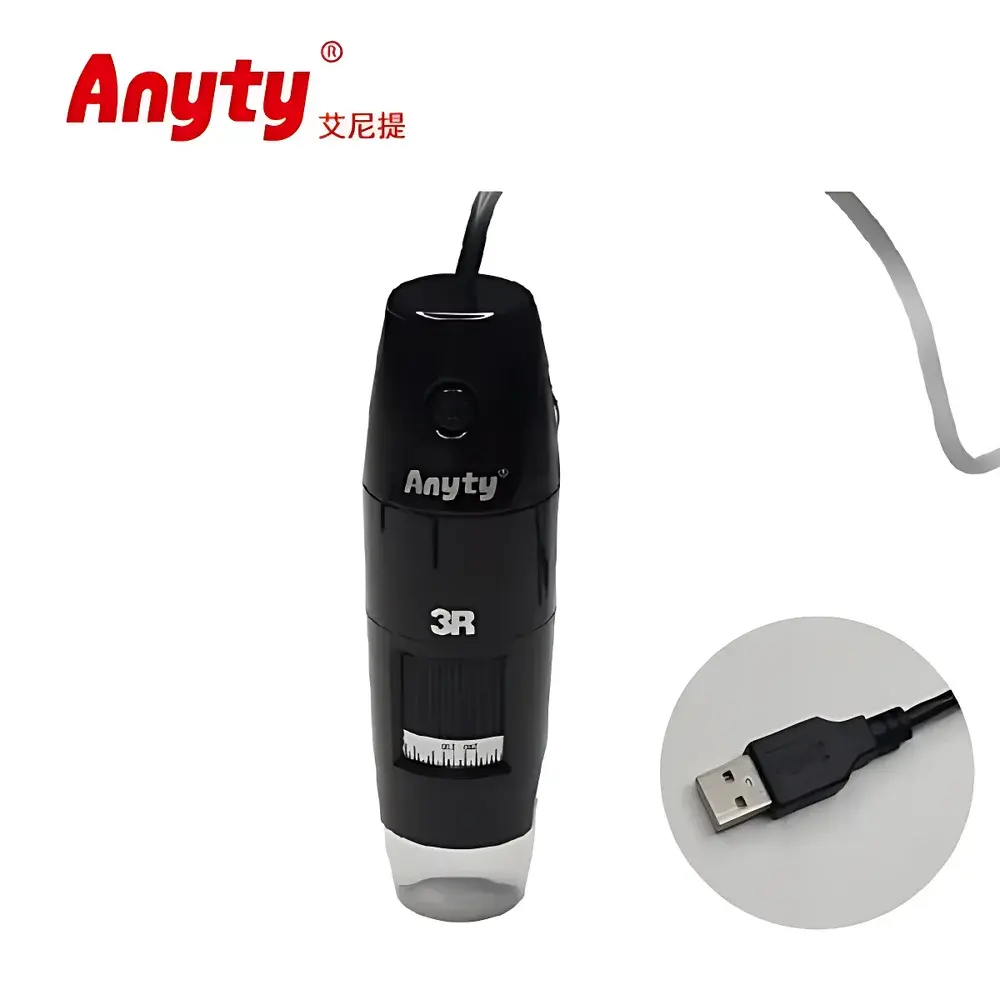

Anyty 3R-MSUSB501 Portable USB Digital Microscope
| Brand | Anyty |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | 3R-MSUSB501 |
| Imaging Sensor | CMOS |
| Resolution | 5 MP |
| Interface | USB 2.0 |
| System Requirements | Intel Core i3 or equivalent CPU, 4 GB RAM minimum, Windows 32/64-bit OS |
Overview
The Anyty 3R-MSUSB501 is a compact, high-resolution portable USB digital microscope engineered for rapid visual inspection and documentation in industrial quality control, electronics assembly verification, materials surface analysis, and educational laboratory environments. Unlike traditional optical microscopes requiring eyepieces and dedicated stands, this device integrates a 5-megapixel CMOS imaging sensor with real-time video streaming capabilities via standard USB 2.0 connectivity—enabling direct acquisition, measurement, and annotation without proprietary hardware or drivers. Its optical architecture employs fixed-focus macro lens optics optimized for working distances between 10 mm and 50 mm, delivering consistent image clarity across magnifications ranging from 10× to 200× (software-interpolated). Designed for field-deployable use, the unit features a lightweight aluminum-alloy housing, integrated LED ring illumination with adjustable brightness, and passive heat dissipation—ensuring stable performance during extended operation.
Key Features
- 5-megapixel CMOS sensor with progressive scan technology for low-noise still capture and smooth 30 fps video output at full resolution
- USB 2.0 plug-and-play interface compatible with Windows 7 through 11 (32-bit and 64-bit), requiring no external power supply or driver installation
- Integrated coaxial white LED ring light with six-level intensity control to minimize shadowing and enhance surface texture contrast
- Fixed-focus optical path calibrated for optimal sharpness at 25 mm working distance; suitable for flat, semi-flat, or gently curved samples
- Compact form factor (112 × 38 × 38 mm) and <120 g mass enabling handheld operation or integration into custom jigs and production line fixtures
- Built-in measurement calibration function supporting pixel-to-micron conversion using certified stage rulers or reference standards
Sample Compatibility & Compliance
The 3R-MSUSB501 accommodates non-reflective, moderately reflective, and matte-finished specimens including printed circuit boards (PCBs), solder joints, textile fibers, metallographic sections, polymer surfaces, and biological tissue slides. It is not intended for immersion, vacuum, or high-temperature applications. While not certified to ISO/IEC 17025 or ASTM E2912 as a metrology instrument, its optical repeatability supports in-house QC procedures aligned with ISO 9001 clause 7.6 (monitoring and measuring equipment control). The device complies with FCC Part 15 Class B and CE EMC Directive 2014/30/EU for electromagnetic compatibility in office and light industrial settings.
Software & Data Management

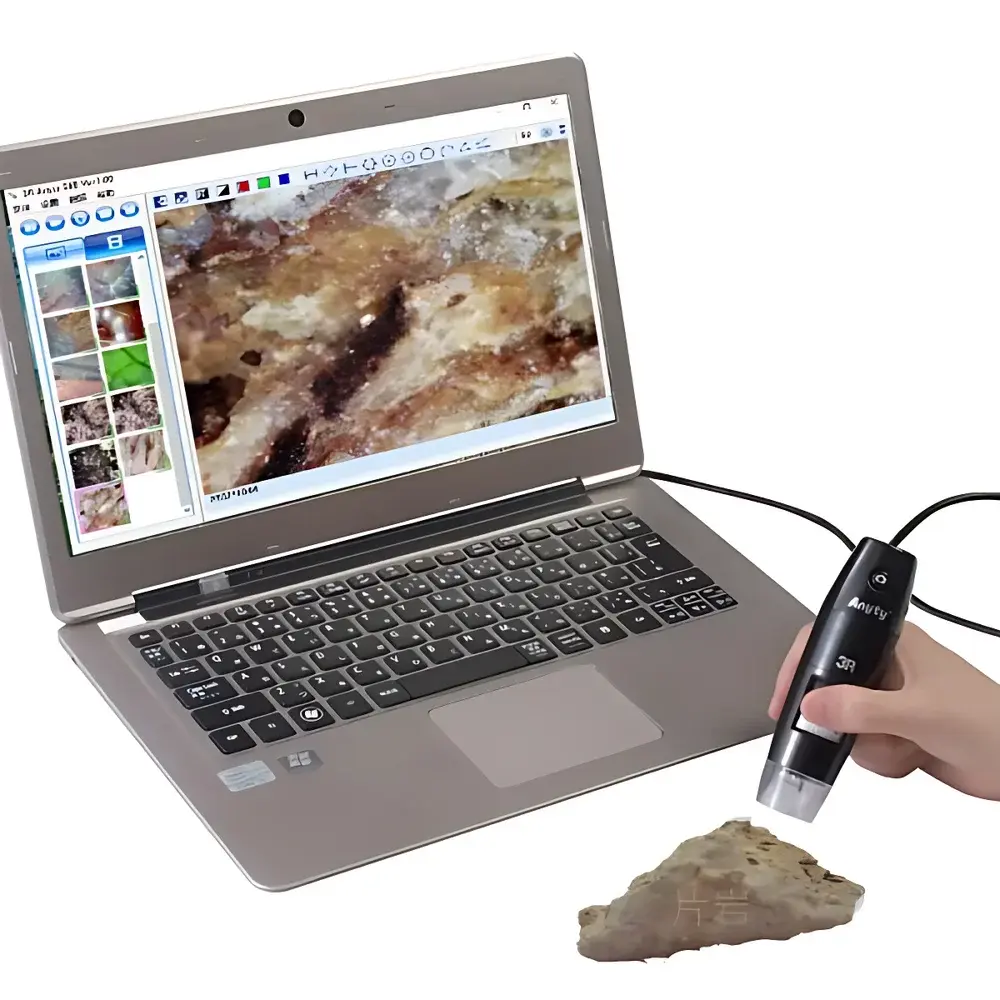

Bundled Windows-compatible software provides live image preview, snapshot capture, time-stamped video recording (AVI/MPEG-4), on-screen measurement tools (line, angle, area, circle), and annotation overlays. All captured data is stored in standard TIFF, JPEG, or PNG formats with embedded EXIF metadata—including timestamp, magnification setting, and illumination level. Software supports batch export and filename templating for traceability in regulated workflows. Though not compliant with FDA 21 CFR Part 11 out-of-the-box, audit trails can be maintained externally via file system logging and version-controlled storage protocols consistent with GLP/GMP documentation practices.
Applications

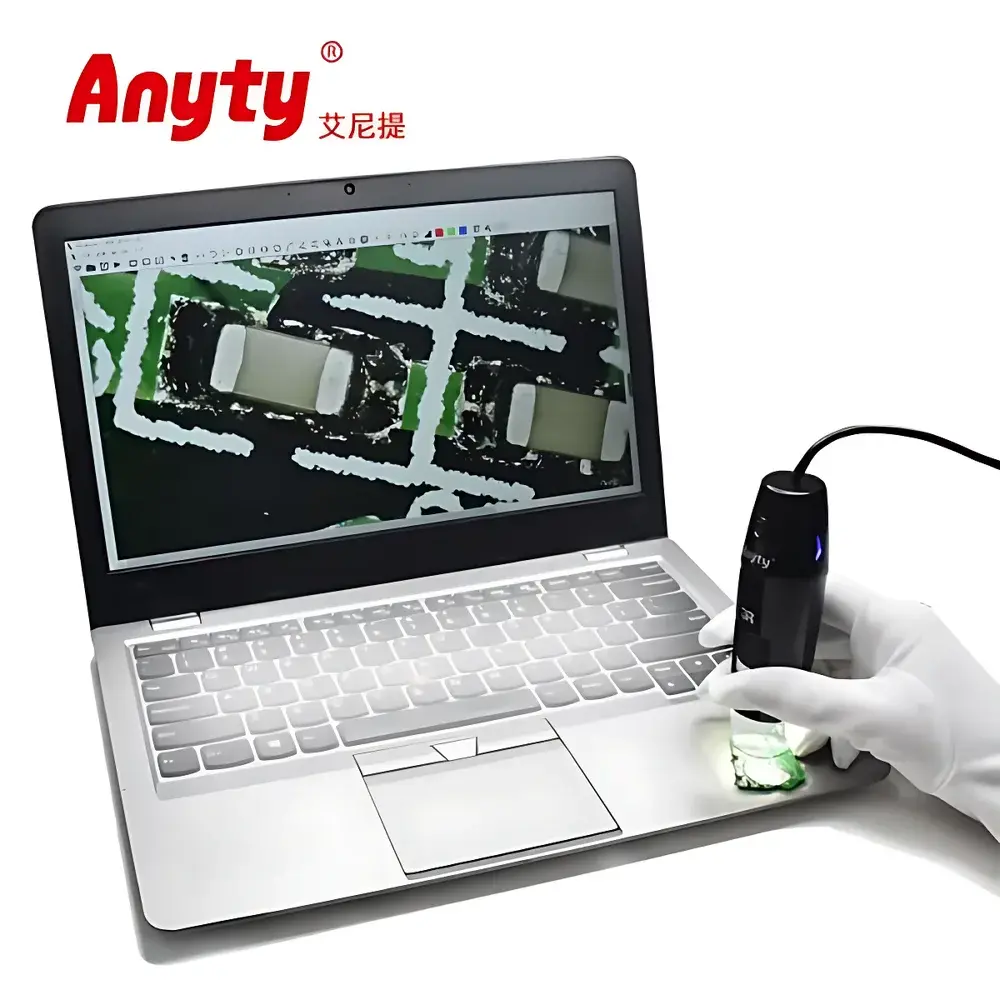

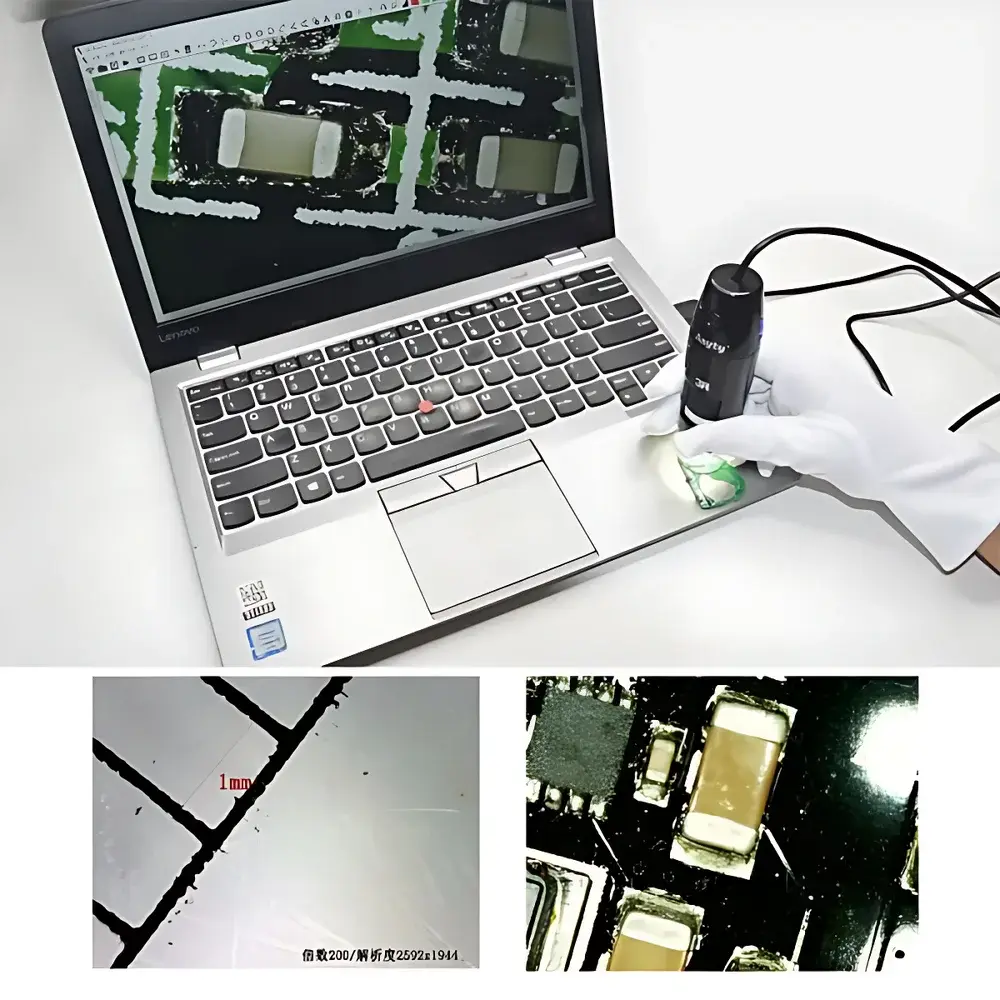

- Electronics manufacturing: solder joint inspection, component placement verification, and PCB defect identification (bridging, tombstoning, pad lifting)
- Mechanical QA: surface finish assessment, wear particle analysis, coating thickness estimation (via edge contrast profiling)
- Educational labs: student microscopy exercises, comparative morphology studies, and digital lab report generation
- Forensics & art conservation: fiber identification, ink differentiation, and document authenticity evaluation
- Field service: on-site failure analysis of connectors, seals, and machined interfaces without benchtop infrastructure
FAQ
What operating systems does the 3R-MSUSB501 support?
Windows 7, 8, 10, and 11 (both 32-bit and 64-bit editions); Linux and macOS are not officially supported due to lack of vendor-provided drivers.
Is calibration required before first use?
Yes—users must perform initial pixel calibration using a certified scale or stage micrometer to enable accurate on-screen measurements.
Can the microscope be used with laptops lacking USB-A ports?
Yes, when paired with a high-quality USB-C to USB-A adapter that supports USB 2.0 data transfer (not charging-only variants).
Does the device generate thermal noise during prolonged imaging sessions?
No active cooling is employed, but the aluminum housing and low-power CMOS sensor limit temperature rise to <5°C above ambient after 60 minutes of continuous operation.
Is third-party software integration possible?
The device enumerates as a UVC-compliant video source, allowing integration with OpenCV, LabVIEW IMAQ, or HALCON-based vision systems via standard DirectShow or V4L2 APIs.
