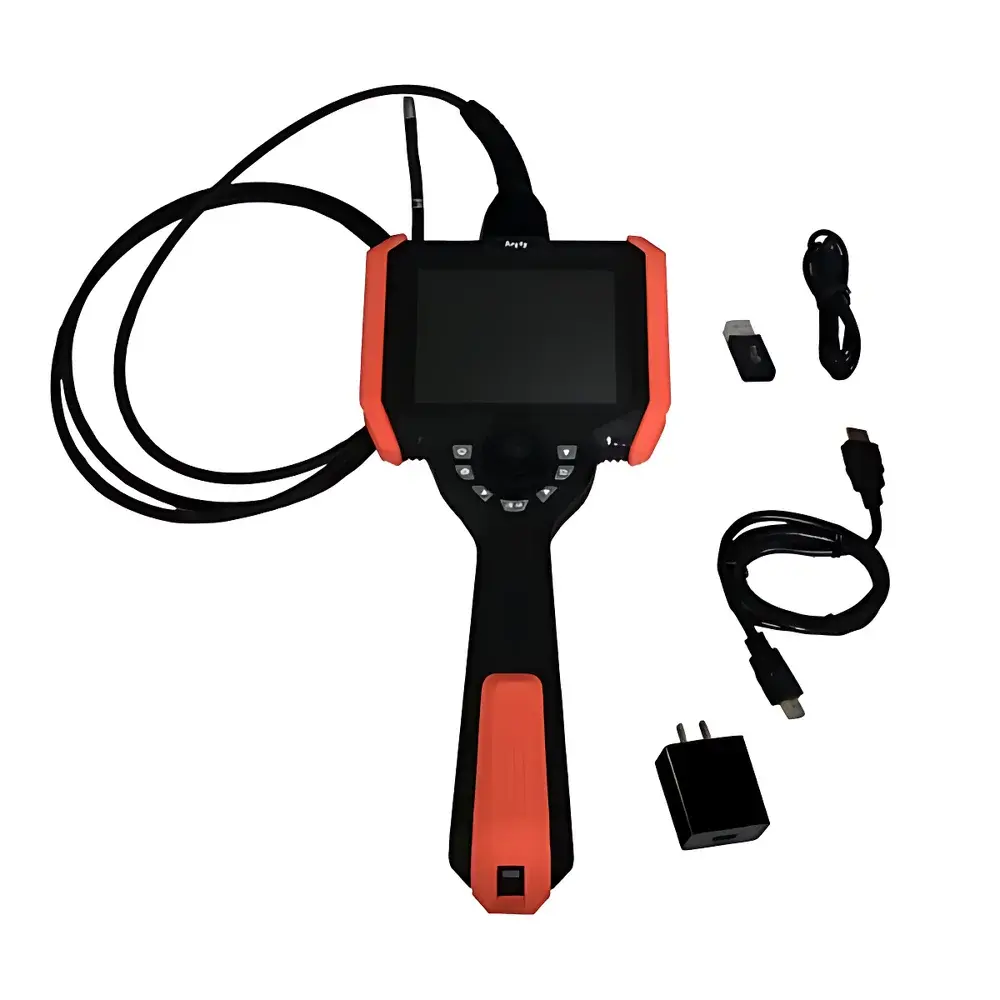

Anyty 3R-PPMC-P High-Definition Industrial Video Endoscope

Overview

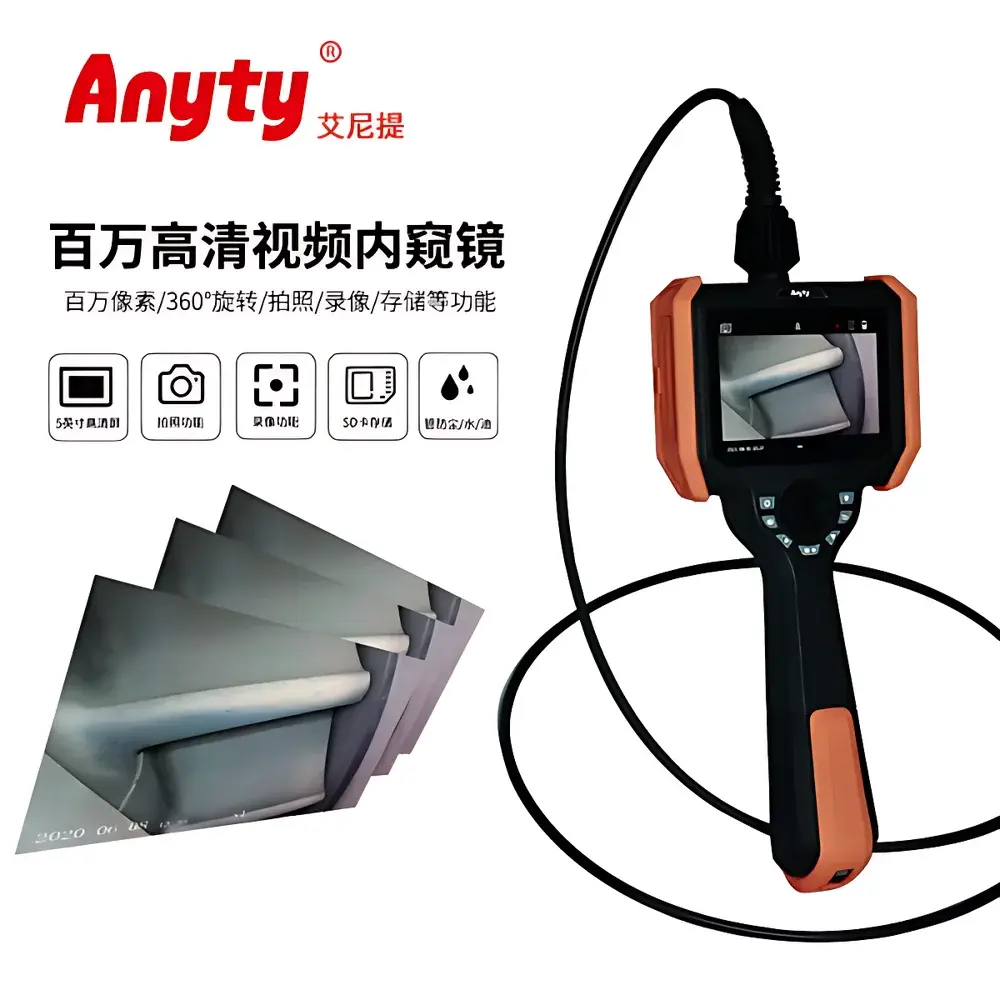

The Anyty 3R-PPMC-P is a high-definition industrial video endoscope engineered for precision visual inspection in confined, inaccessible, or hazardous internal environments. Utilizing a CMOS image sensor with 1.0 megapixel resolution and real-time digital signal processing, the system delivers sharp, low-noise imagery suitable for detailed defect identification—including micro-cracks, surface pitting, weld discontinuities, and foreign object debris (FOD). Its optical architecture supports consistent illumination via integrated LED lighting with adjustable intensity, enabling stable imaging across variable reflectivity and ambient light conditions. Designed for field-deployable reliability, the 3R-PPMC-P adheres to IP67-rated ingress protection standards for the insertion tube—ensuring resistance to water immersion up to 1 m for 30 minutes and particulate ingress—while maintaining mechanical robustness against oil exposure, abrasion, and repeated flexing during routine use.

Key Features

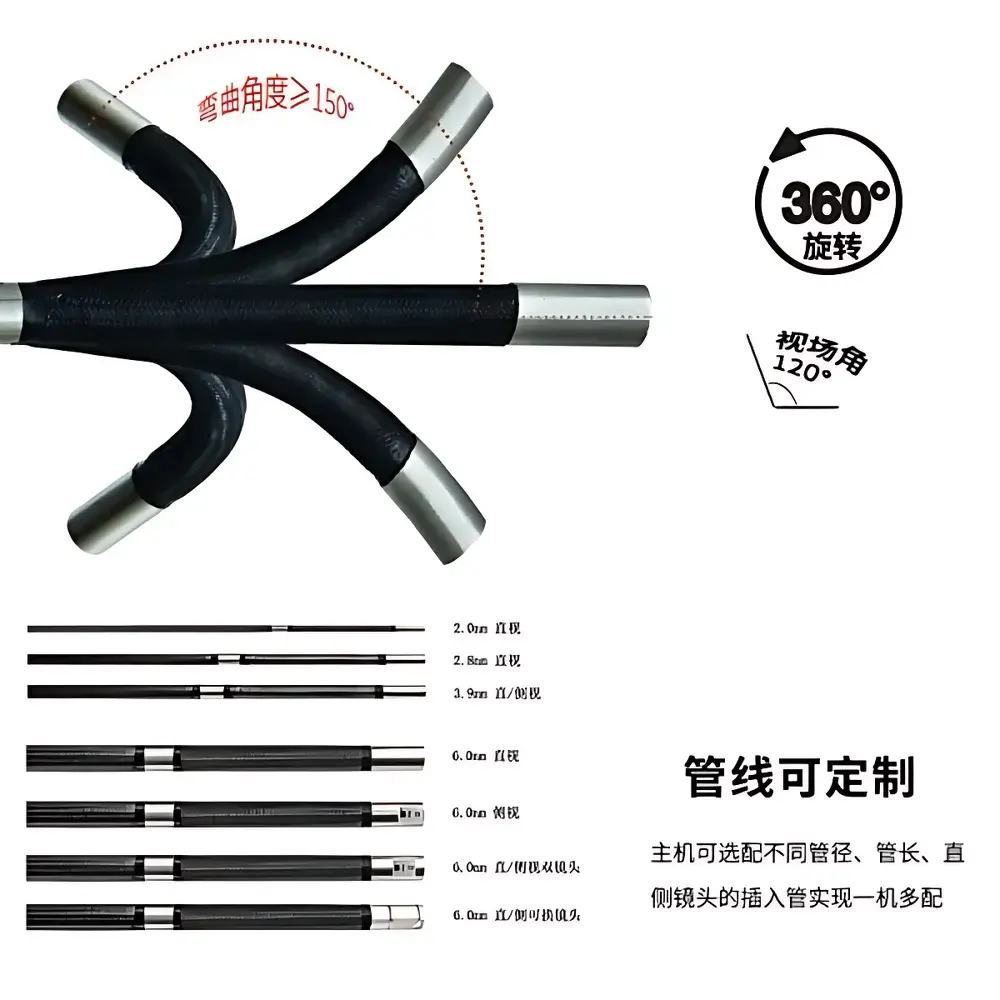

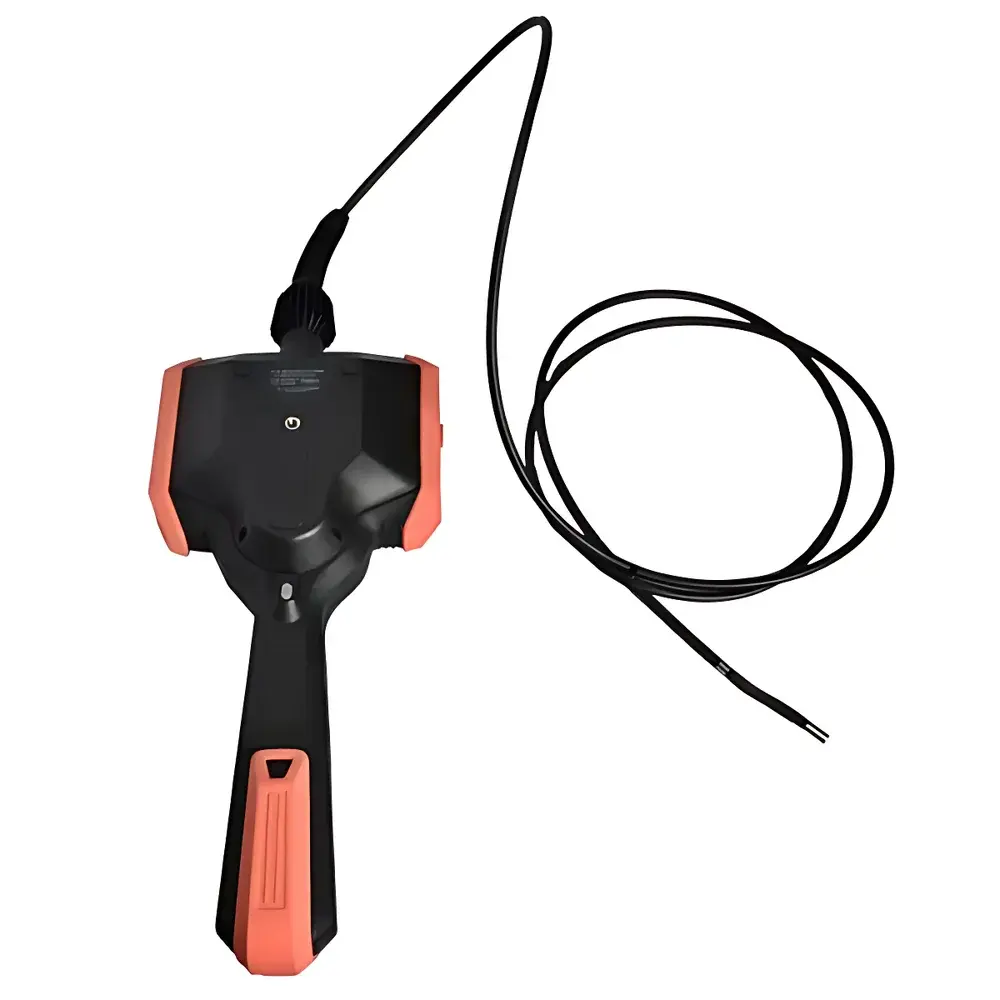

• Interchangeable insertion tubes: Modular design supports rapid swapping of rigid, semi-rigid, and flexible probes (diameters from 4.0 mm to 8.0 mm), each optimized for specific access constraints and articulation requirements.

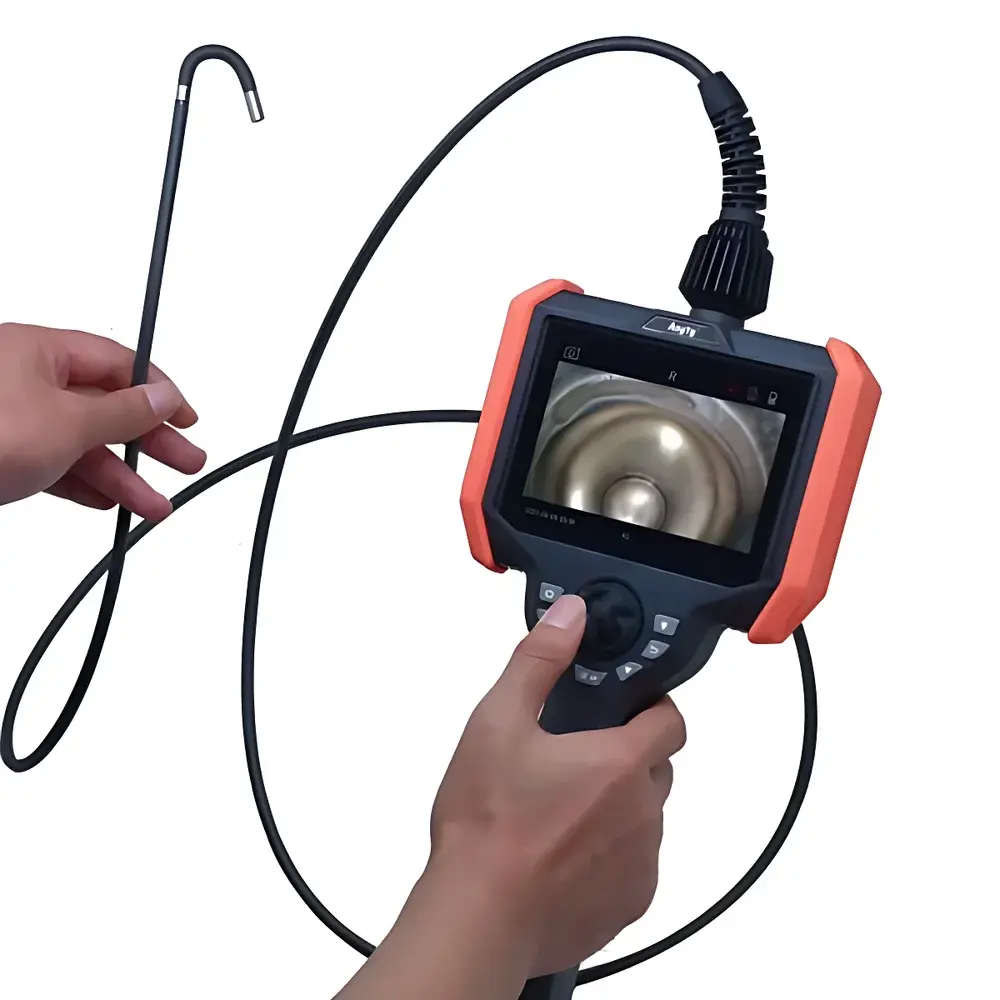

• Dual-mode articulation: 4-way remote-controlled tip steering (±180° vertical/horizontal) with mechanical lock-on capability to maintain orientation during prolonged inspection or measurement tasks.
• High-brightness LED illumination: Six independently controllable white LEDs with stepless dimming; light output calibrated to maintain color fidelity (CRI > 85) and minimize specular glare on metallic surfaces.
• Real-time digital enhancement: On-device image processing includes auto-exposure, digital noise reduction, edge sharpening, and false-color contrast mapping for improved defect conspicuity.
• Ruggedized housing: Main unit constructed from magnesium alloy with shock-absorbing elastomer overmolding; meets MIL-STD-810G for drop resistance (1.2 m onto concrete).

Sample Compatibility & Compliance

The 3R-PPMC-P is compatible with a broad spectrum of industrial components requiring non-destructive visual assessment—including turbine blades, combustion chambers, heat exchanger tubes, welded pipe joints, hydraulic valve bodies, and composite airframe structures. It supports both direct visual examination per ASTM E2572–22 (“Standard Guide for Visual Inspection Using Video Endoscopes”) and documentation-integrated workflows aligned with ASME BPVC Section V, Article 9 (VT-1). While not certified to ISO/IEC 17025 as a standalone testing instrument, its image capture and metadata logging capabilities are structured to support traceability under GLP and GMP frameworks when deployed within validated inspection procedures.

Software & Data Management

The endoscope interfaces with Anyty’s proprietary PC-based software suite (Windows 10/11 compatible), which provides synchronized video recording (H.264 AVC, up to 30 fps), still-frame capture with embedded scale bar calibration, annotation tools (measurement overlays, defect tagging, timestamped notes), and export to industry-standard formats (AVI, MP4, JPEG, PNG, CSV). Audit trail functionality logs user ID, session start/stop time, probe ID, and image metadata—facilitating compliance with FDA 21 CFR Part 11 requirements when configured with electronic signature modules and role-based access control. Raw image data retains full bit-depth (12-bit linear RAW option available) for post-acquisition quantitative analysis.

Applications

• Aerospace: Inspection of compressor vanes, fuel nozzles, and NDT verification of repair patches in composite laminates.
• Power generation: In-service examination of boiler tubes, steam turbine casings, and generator stator windings.
• Automotive: Validation of cylinder bore finish, valve train clearance, and casting integrity in engine blocks and transmission housings.
• Oil & gas: Internal assessment of subsea manifolds, pipeline girth welds, and pressure vessel linings under API RP 572 guidelines.
• Rail & maritime: Structural evaluation of traction motor housings, propeller shaft tunnels, and ballast tank coatings.
• Defense & law enforcement: Tactical reconnaissance in enclosed spaces, IED cavity inspection, and forensic documentation of evidence locations.

FAQ

What is the maximum operating temperature for the insertion tube?
The standard insertion tube is rated for continuous operation up to 80 °C; high-temperature variants (up to 150 °C) are available upon request with fluoropolymer sheathing.
Does the system support stereo vision or 3D measurement?
No—the 3R-PPMC-P is a monocular imaging platform. For quantitative depth perception, it relies on calibrated reference scale bars and optional external laser triangulation add-ons (sold separately).
Can the device be used in explosive atmospheres?
Not intrinsically safe by default. ATEX/IECEx-certified versions require custom engineering and are subject to separate certification cycles.
Is firmware upgradeable in the field?
Yes—firmware updates are delivered via USB flash drive and applied through the host software interface without requiring return-to-factory service.
What warranty and calibration services are offered?
Standard warranty is 24 months parts-and-labor; NIST-traceable optical calibration certificates are available at time of purchase or annually thereafter through authorized service centers.
