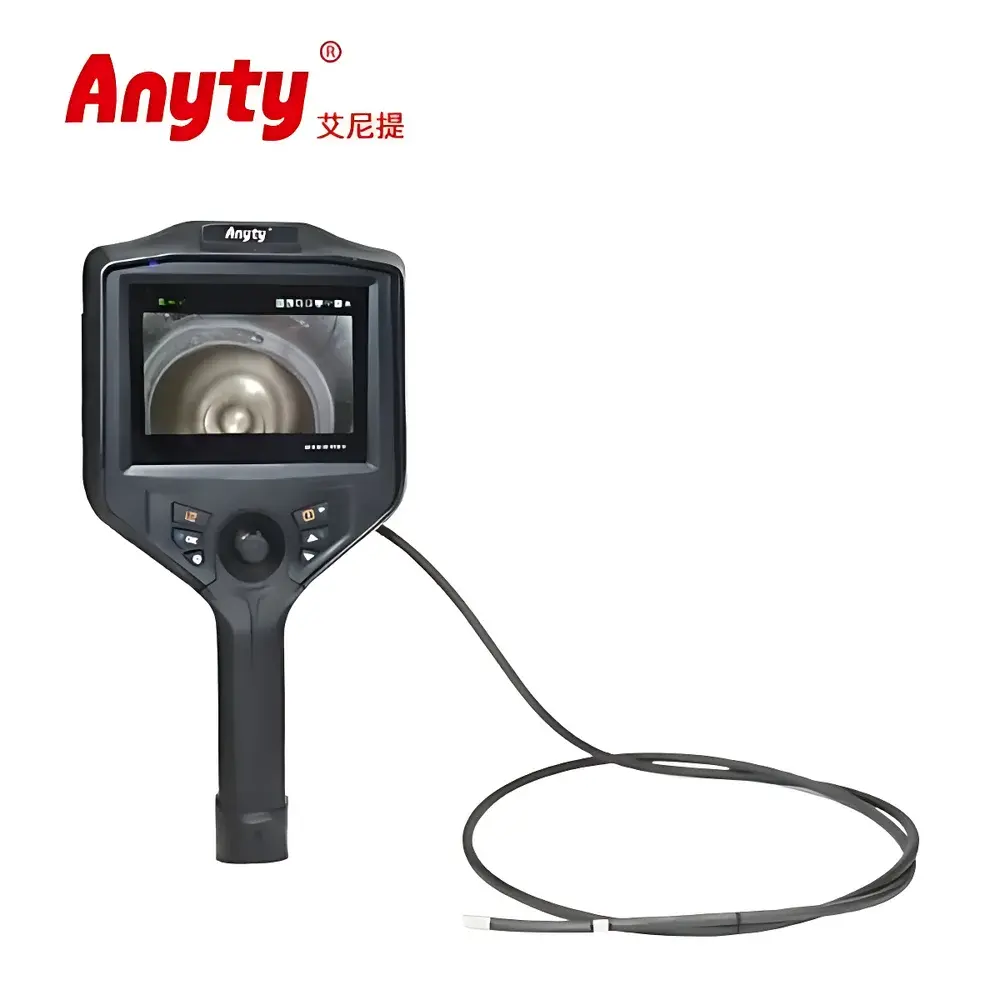

Anyty 3R-PPMC-S Portable High-Definition Swappable Probe Industrial Borescope with 360° Articulation

Overview

The Anyty 3R-PPMC-S is a portable, integrated industrial borescope engineered for high-fidelity visual inspection in confined and inaccessible spaces. Utilizing a rigid-optical imaging architecture combined with a high-sensitivity 1.0-megapixel CMOS sensor and precision-engineered articulation mechanics, it delivers real-time, distortion-minimized video at up to 30 fps. Its core measurement principle relies on optical transmission through a detachable probe tube—enabling direct line-of-sight visualization without reliance on fiber bundles or digital relay optics. Designed for non-destructive evaluation (NDE) workflows, the system adheres to fundamental NDT integrity requirements: repeatability of probe positioning, consistent illumination geometry, and traceable image capture under ambient or low-light conditions. The 360° bidirectional articulation mechanism—actuated via dual ergonomic control knobs—provides full circumferential field-of-view coverage without repositioning the main unit, significantly reducing inspection cycle time in complex geometries such as turbine blade root zones, combustion chamber liners, and welded pipe joints.

Key Features

• Swappable probe design: Interchangeable rigid insertion tubes (standard lengths: 300 mm, 600 mm, and 1000 mm; optional diameters: 4.0 mm, 6.0 mm, and 8.0 mm) allow rapid adaptation to varying access constraints and application-specific resolution requirements.

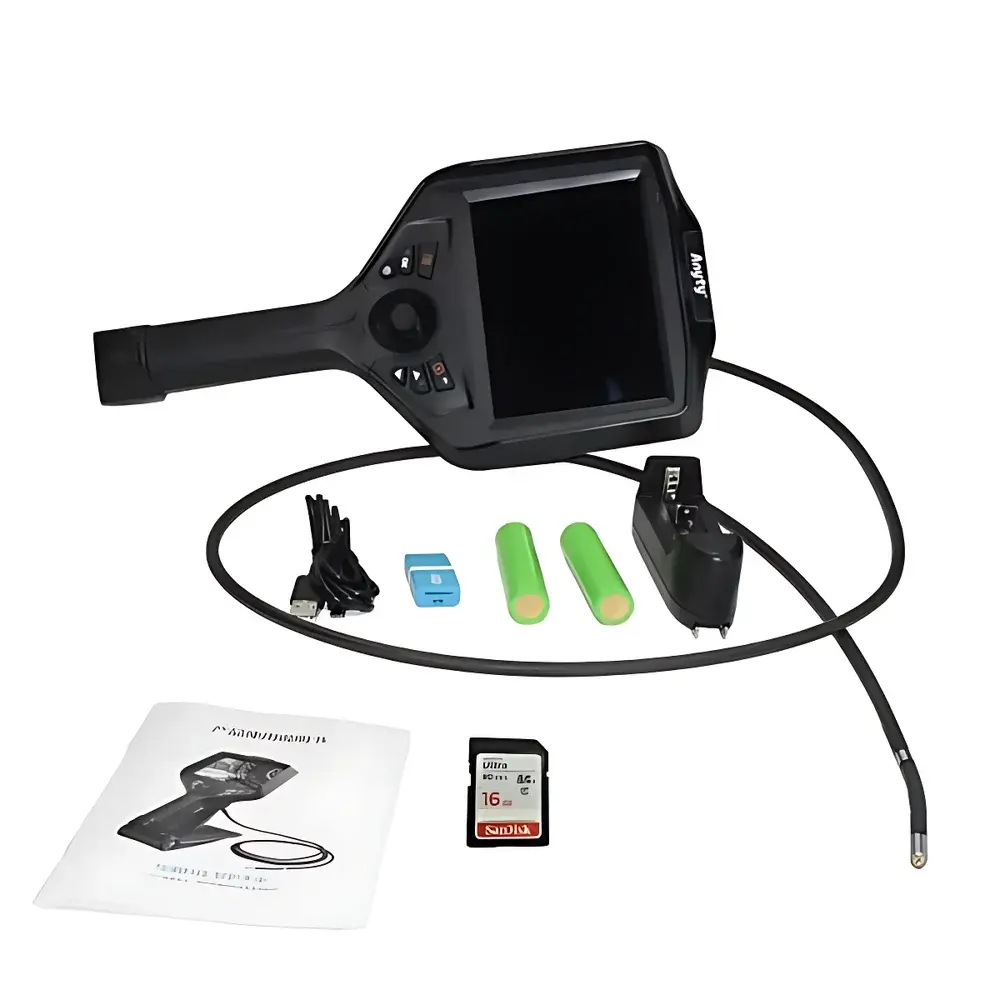

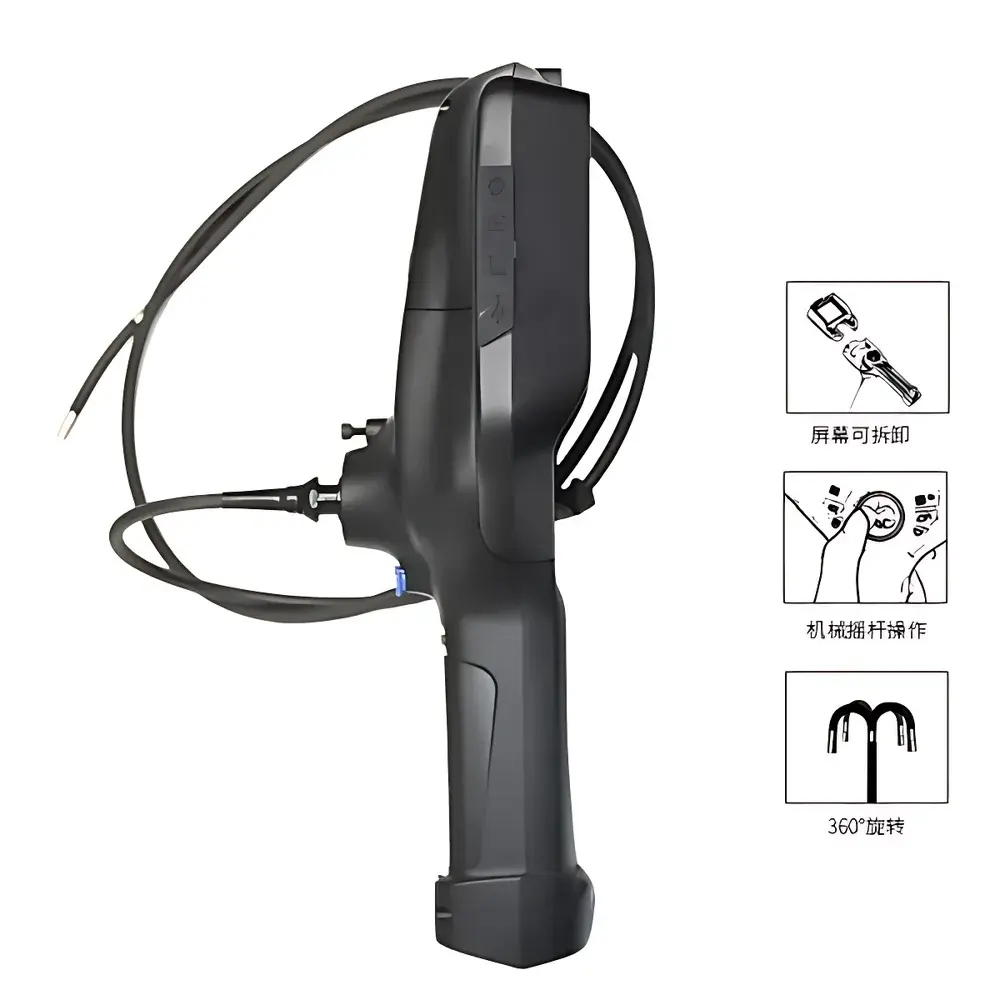

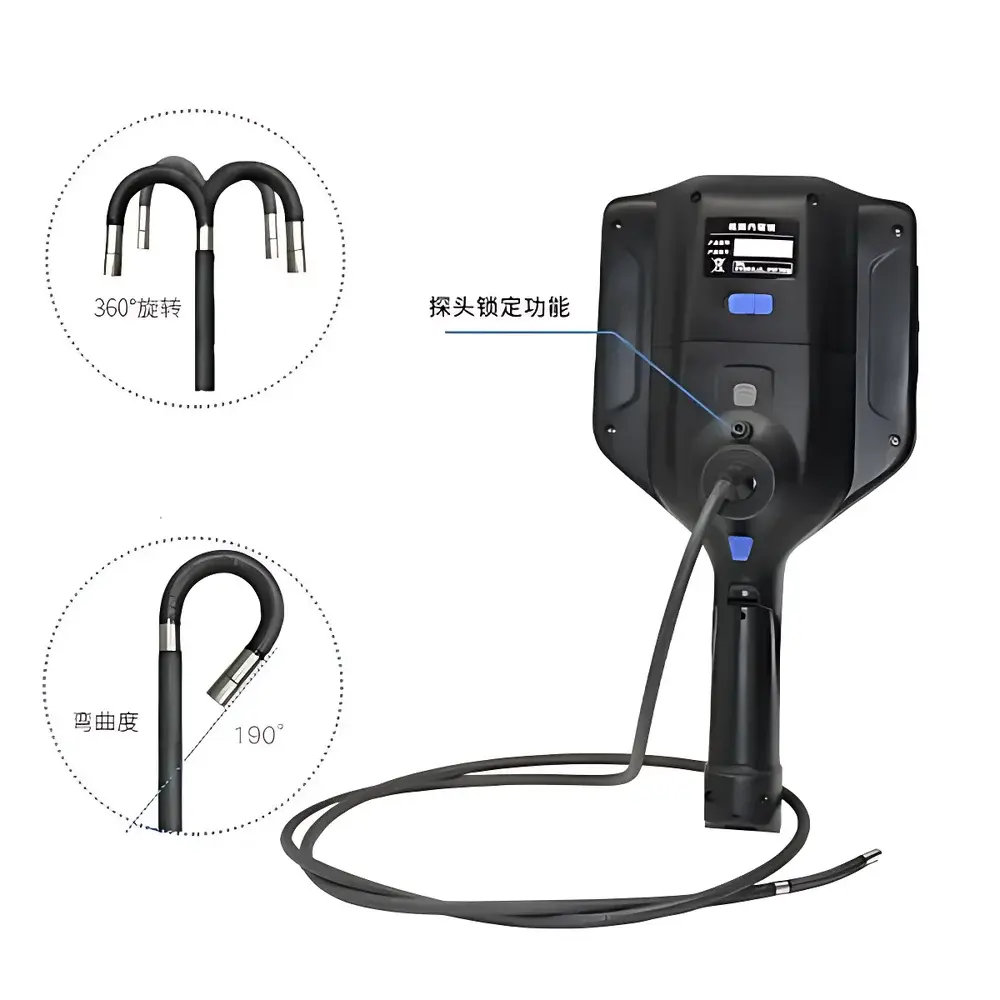

• 360° continuous articulation: Dual-axis mechanical steering enables ±180° horizontal and ±180° vertical deflection with tactile feedback and positional repeatability within ±2°.

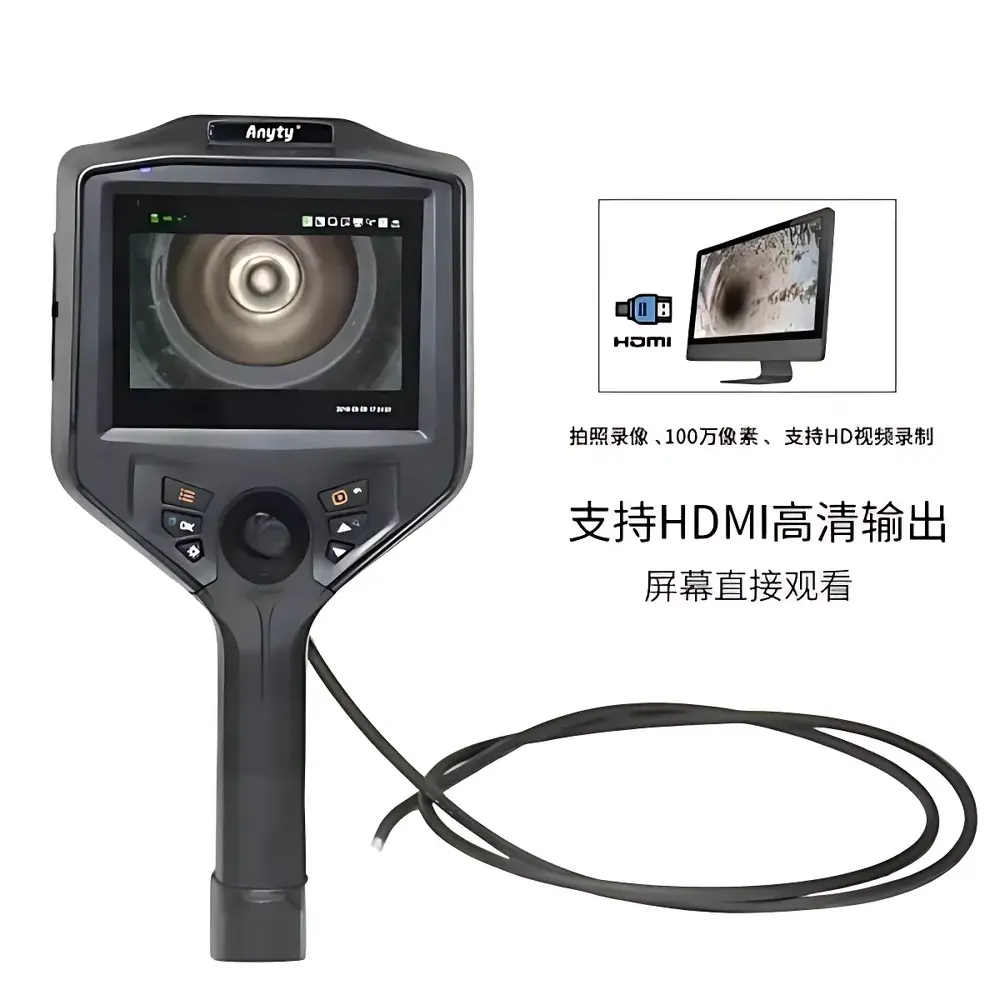

• Integrated 5.1-inch high-brightness LCD display: 1280 × 720 pixel resolution, 800 cd/m² peak luminance, and anti-glare surface optimized for use in hangar bays, power plant turbine halls, and outdoor wind turbine nacelles.
• Onboard image/video recording: Internal 32 GB eMMC storage supports timestamped AVI video capture and JPEG stills with embedded metadata (date, time, probe ID, articulation angle).
• Ruggedized housing: IP65-rated magnesium alloy chassis with shock-absorbing elastomer overmold; operational temperature range: −10 °C to +50 °C.

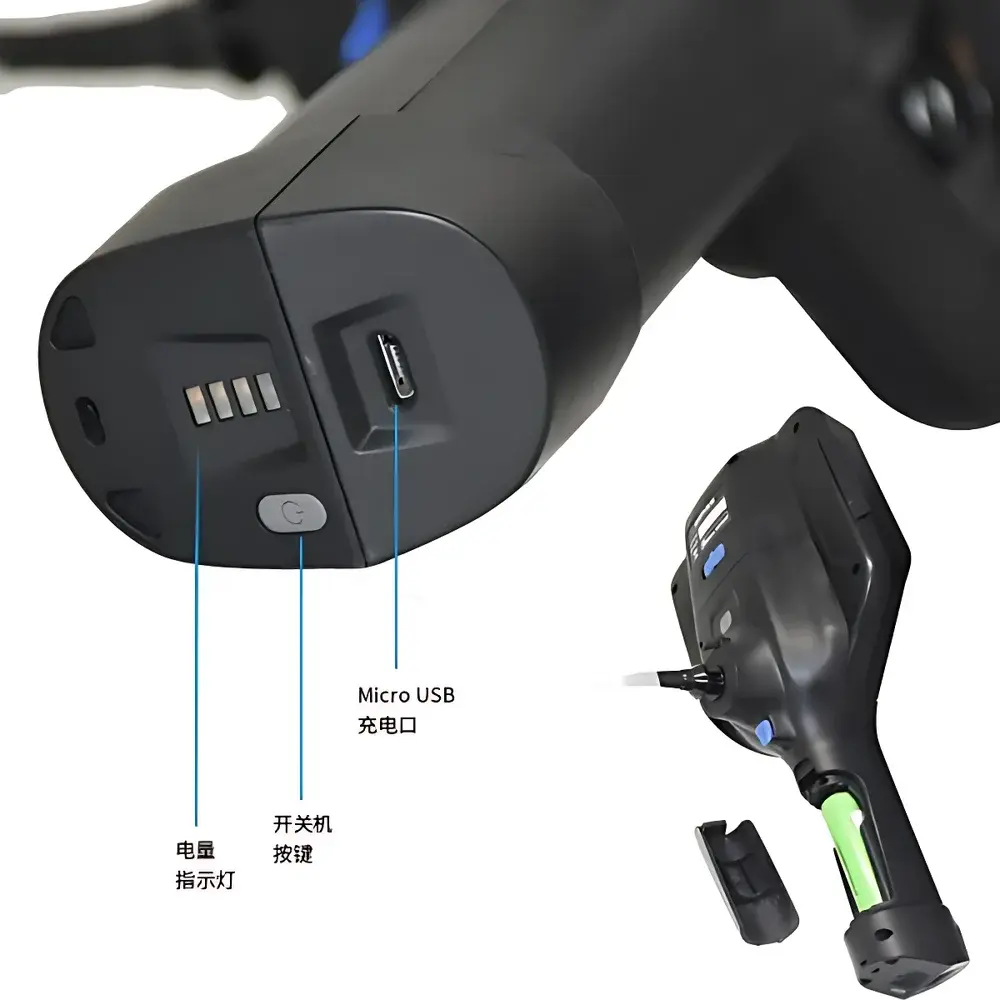

• Battery-powered autonomy: Removable 7.4 V / 4400 mAh Li-ion battery provides ≥3.5 hours of continuous operation; hot-swappable for uninterrupted shift-based inspections.

Sample Compatibility & Compliance

The 3R-PPMC-S is validated for direct visual examination (DVE) per ASTM E2578–22 (Standard Practice for Determining the Suitability of Visual Inspection Equipment) and aligns with ISO 17020:2012 requirements for inspection body competence. It supports compliance with aerospace maintenance documentation standards including FAA AC 120-95B and EASA AMC 20-23, where borescopic evidence must demonstrate sufficient resolution to identify surface discontinuities ≥0.2 mm in length under nominal lighting. Probe tip configurations meet MIL-STD-810H environmental test criteria for vibration, drop, and humidity exposure. All firmware versions maintain audit-ready logging for GLP/GMP-aligned quality systems, including user login tracking and calibration event timestamps.

Software & Data Management

The device operates standalone but integrates with Anyty’s PC-based Borescope Manager v3.2 software (Windows 10/11, 64-bit) for advanced post-processing. This application supports side-by-side image comparison, measurement overlays (distance, area, angular deviation), annotation with ASME Y14.5-compliant GD&T symbols, and export to PDF reports compliant with ISO/IEC 17020 annexes. Image metadata conforms to Exif 2.3 and DICOM Supplement 172 (for integration into enterprise asset management platforms). Data encryption uses AES-256 at rest; USB-C data transfer enforces read-only mode unless authenticated via hardware token.

Applications

• Aerospace MRO: Blade leading-edge erosion assessment, combustor liner crack mapping, and FOD (foreign object debris) verification inside compressor casings.
• Power generation: Boiler tube weld inspection, steam turbine rotor groove examination, and heat exchanger bundle visual screening.
• Wind energy: Gearbox planetary carrier inspection, pitch bearing raceway evaluation, and blade root adhesive bondline verification.
• Automotive R&D: Cylinder head port flow analysis, turbocharger turbine housing inspection, and EV battery module interconnect visual audit.
• Industrial manufacturing: Cast part internal cavity verification, machined component burr detection, and robotic weld seam continuity validation.

FAQ

Does the 3R-PPMC-S support regulatory-compliant calibration traceability?
Yes—each unit ships with a factory calibration certificate referencing NIST-traceable reference targets; annual recalibration is recommended per ISO/IEC 17025:2017 Clause 6.5.
Can third-party probes be used with this system?
No—mechanical, electrical, and optical interfaces are proprietary to 3R International; only OEM-certified probes ensure maintained resolution, illumination uniformity, and articulation accuracy.
Is the display brightness adjustable for use in direct sunlight?
Yes—the LCD features six-step manual luminance control and automatic ambient light sensing; maximum output exceeds 800 cd/m² for daylight-readable operation.
What file formats are supported for export?
JPEG (still images), AVI (uncompressed Motion JPEG), and CSV (measurement logs); DICOM export requires optional software license.
How is user access controlled in multi-shift environments?
The system supports role-based authentication (Operator, Supervisor, Administrator) with password complexity enforcement and session timeout configurable from 1 to 30 minutes.
