Anyty 3R-PPTD-MS Portable 3D Measurement Industrial Video Endoscope

Overview

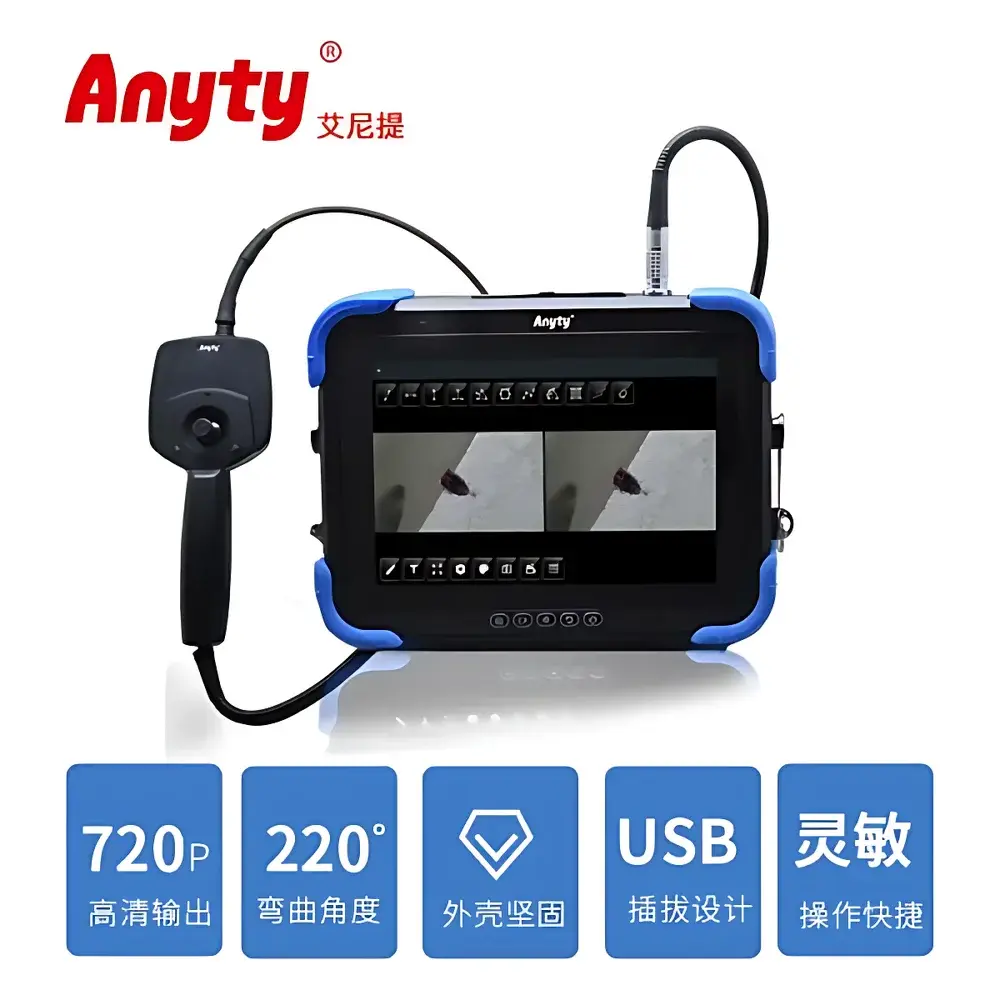

The Anyty 3R-PPTD-MS is a portable, handheld 3D measurement video endoscope engineered for high-precision non-destructive inspection in confined and inaccessible industrial environments. Unlike conventional 2D borescopes, this system integrates stereo vision technology—dual calibrated imaging channels with synchronized illumination—to enable real-time depth perception and quantitative dimensional analysis directly within the field of view. The device operates on the principle of triangulation-based stereoscopic reconstruction, where pixel displacement between left- and right-eye image pairs is converted into spatial coordinates using embedded calibration matrices. This allows operators to perform on-device measurements—including point-to-point distance, depth, area, and contour profiling—without requiring post-processing software or external referencing tools. Designed for rugged field deployment, the 3R-PPTD-MS meets the mechanical and environmental demands of critical infrastructure inspection across aerospace MRO, power generation turbine inspection, pressure vessel integrity assessment, and automotive casting validation.

Key Features

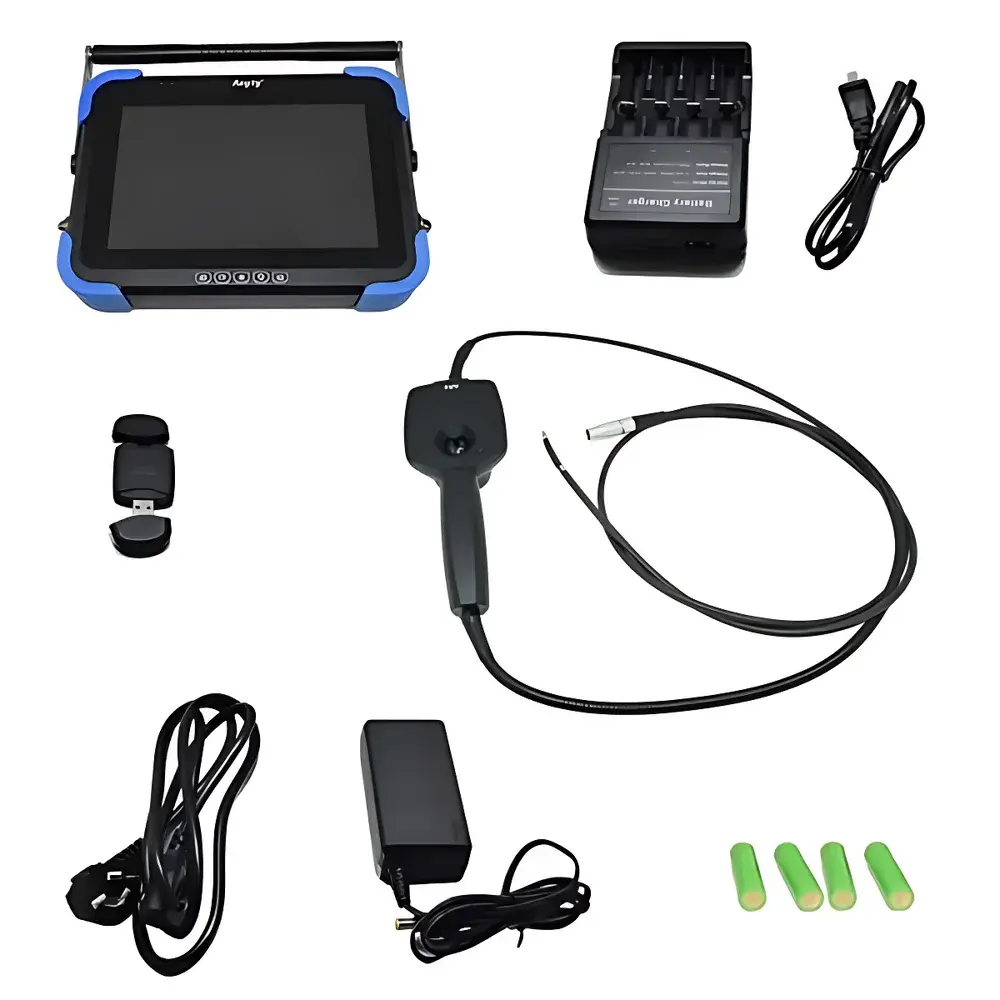

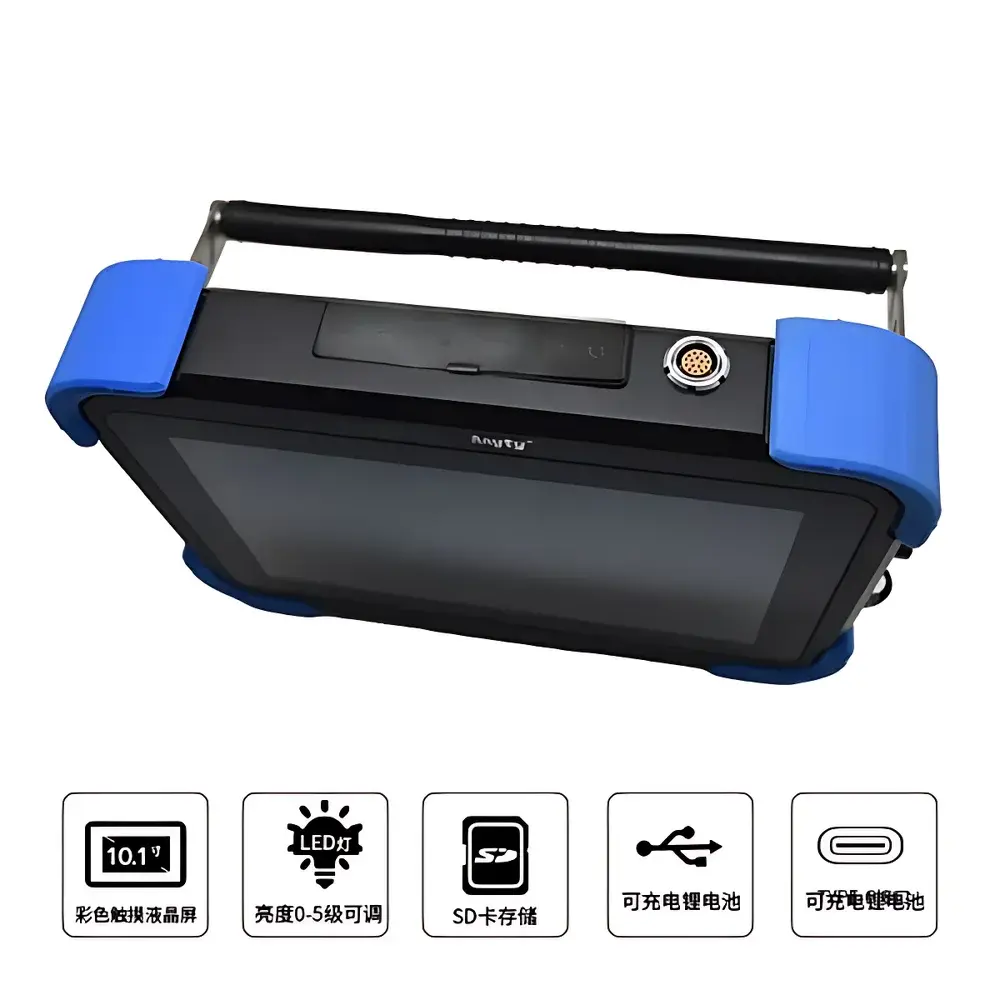

• 10.1-inch full-color IPS LCD touchscreen display with wide viewing angles (up to 178°), capacitive multi-touch responsiveness, and anti-glare optical bonding for daylight-readable operation
• 1-megapixel dual-channel CMOS imaging system with automatic white balance, adaptive gain control, and low-noise signal processing for consistent image fidelity under variable lighting conditions

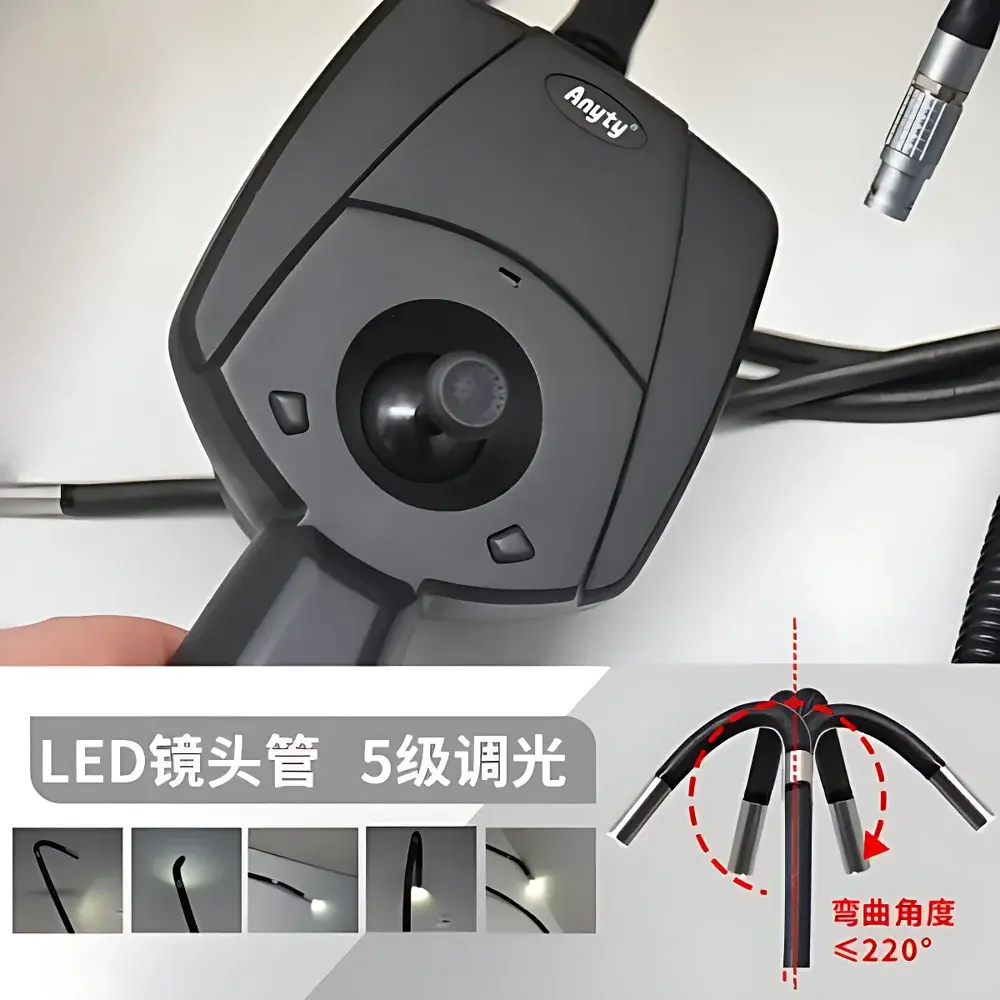

• Multi-layer braided insertion tube (stainless steel braid + polymer jacket) rated for ≥10,000 bending cycles, with 4-way articulation (±180° tip deflection) controlled via ergonomic dual-axis joystick
• Main unit constructed from CNC-machined aerospace-grade aluminum (6061-T6), anodized for corrosion resistance; handheld grip molded from impact-resistant engineering alloy (PA66+GF30) with textured TPE overmold for secure grip in oily or wet conditions
• Integrated 3D measurement engine compliant with ISO/IEC 17025 traceable calibration protocols; supports metric/imperial units and configurable uncertainty reporting per measurement type
• Built-in 64 GB eMMC storage with FAT32/exFAT support; USB 3.0 host interface for external SSD recording and firmware updates

Sample Compatibility & Compliance

The 3R-PPTD-MS is compatible with standard NDT access geometries—including boreholes ≥8 mm diameter, pipe bends with R/D ≥3, and turbine blade root cavities—with optional articulating tips available for enhanced maneuverability. Its optical design accommodates surface reflectivity ranges from matte carbon composites to polished stainless steel, with dynamic exposure compensation preventing saturation on highly reflective features. The system complies with IEC 60529 IP67 ingress protection (submersible up to 1 m for 30 min), EN 61000-6-2/6-4 electromagnetic compatibility standards, and RoHS 2011/65/EU material restrictions. For regulated industries, measurement data logs include embedded timestamps, operator ID fields, and checksum-verified metadata—supporting GLP/GMP documentation requirements and audit readiness per FDA 21 CFR Part 11 when paired with validated report export workflows.

Software & Data Management

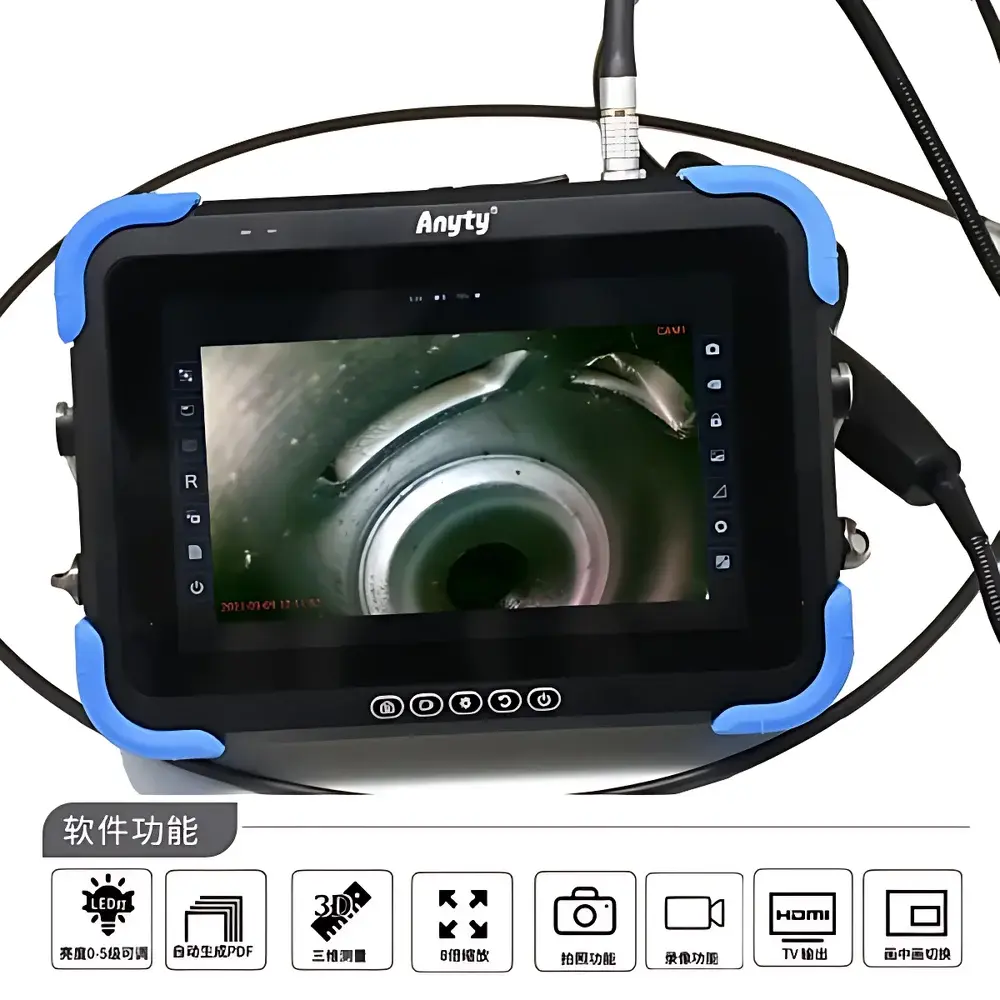

The onboard firmware includes a dedicated measurement UI with intuitive gesture-based navigation and context-sensitive toolbars. All captured images, videos, and annotated 3D measurement reports are stored in a structured directory hierarchy with EXIF/XMP metadata (including lens distortion coefficients, calibration date, and environmental sensor readings). A Windows-compatible desktop application (Anyty EndoView Pro v4.x) enables advanced post-acquisition analysis: cross-sectional slice generation, comparative overlay of multiple inspections, and export to CSV, PDF/A-2, and STEP AP214 formats for integration into CAE pipelines. Audit trails record all user-initiated actions—including measurement deletions, parameter adjustments, and calibration resets—with SHA-256 hashing for data integrity verification.

Applications

• Aerospace: Inspection of compressor/turbine blade leading edges, combustor liner cracks, and fastener hole geometry in narrow nacelle passages
• Power Generation: Visual and dimensional verification of steam turbine blade erosion, weld bead profile consistency in boiler headers, and heat exchanger tube sheet pitting depth
• Oil & Gas: In-service assessment of pipeline internal corrosion morphology, valve seat wear quantification, and pig launcher/receiver chamber integrity mapping
• Automotive: Validation of die-cast component porosity distribution, cylinder head port surface finish uniformity, and EV battery module housing seam alignment
• Manufacturing QA: First-article inspection of machined part internal features (e.g., blind hole depth tolerance, thread engagement length, chamfer consistency)

FAQ

Does the 3R-PPTD-MS require external calibration hardware?
No—the system ships with factory-applied stereo calibration verified against NIST-traceable reference targets. Field recalibration is supported via the included calibration kit (certified sphere grid and depth step gauge) and requires no third-party instrumentation.
Can measurement data be exported to metrology software such as PolyWorks or GOM Inspect?
Yes—point cloud exports (.xyz, .asc) and annotated measurement overlays (.png with embedded coordinate metadata) are fully compatible with major metrology platforms. API documentation for custom integration is available under NDA.
What is the maximum working distance for accurate 3D measurements?
Optimal measurement accuracy (±0.05 mm at 95% confidence) is maintained within 5–150 mm from the distal tip. Accuracy degrades gradually beyond 200 mm due to baseline limitation inherent in stereo endoscopy optics.
Is the insertion tube sterilizable for medical or pharmaceutical applications?
No—the 3R-PPTD-MS is certified exclusively for industrial NDT use. It does not meet ISO 13485 or FDA 510(k) requirements for human-contact devices.
How is firmware updated, and is version rollback supported?
Updates are performed via USB-connected PC using signed firmware packages. Full version history and rollback capability are retained in protected flash memory partitions for regulatory compliance and failure recovery.
