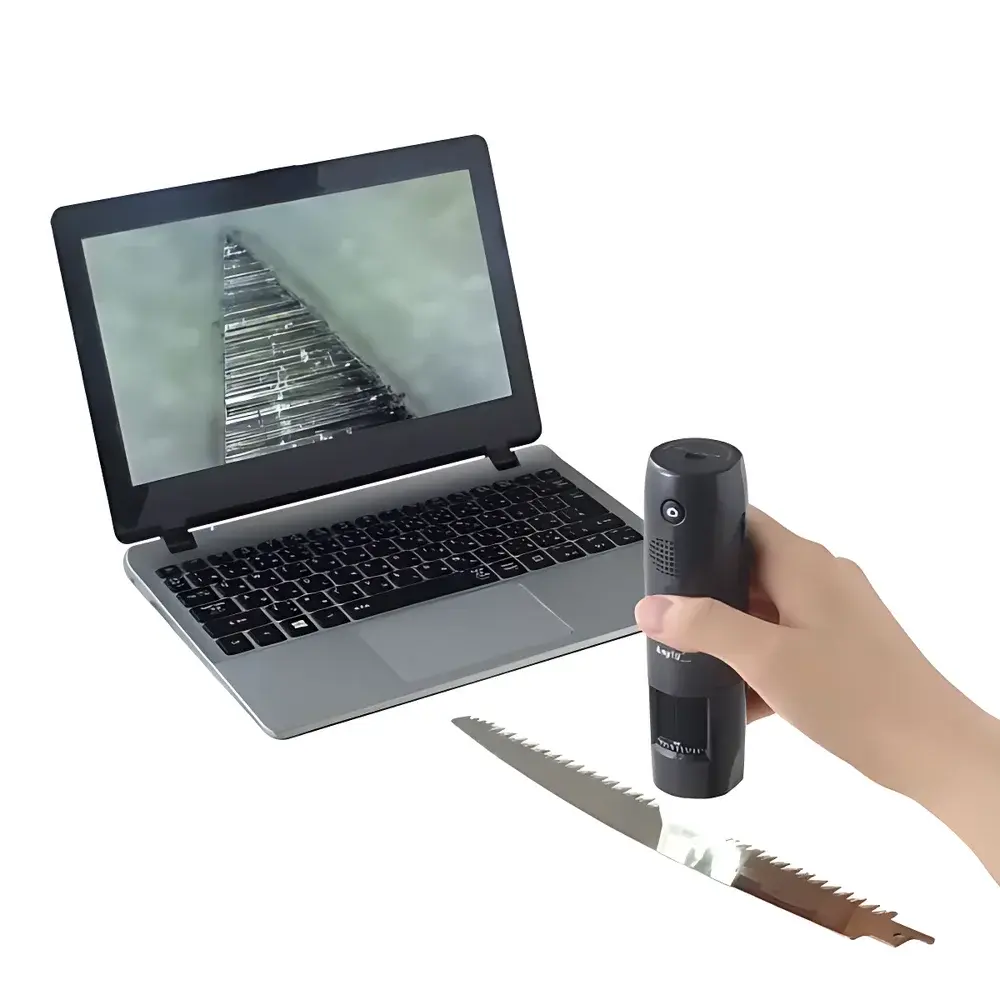

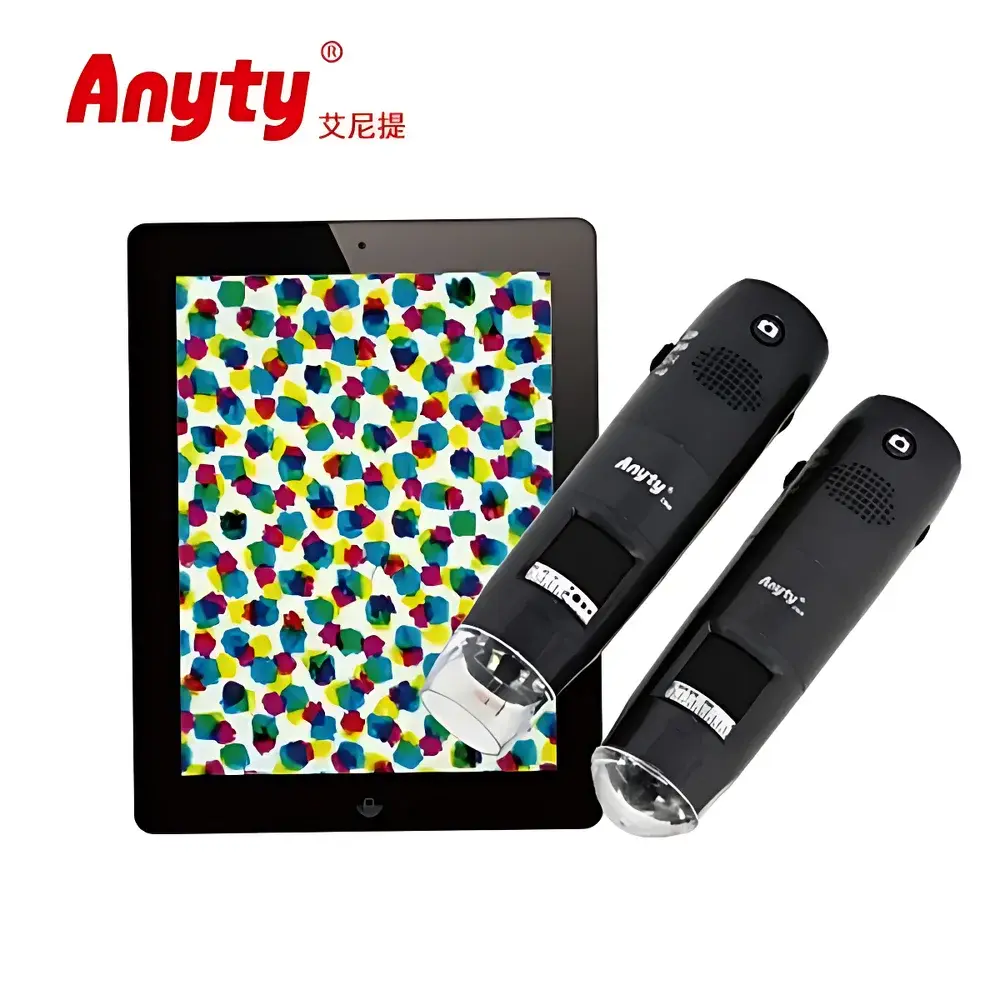

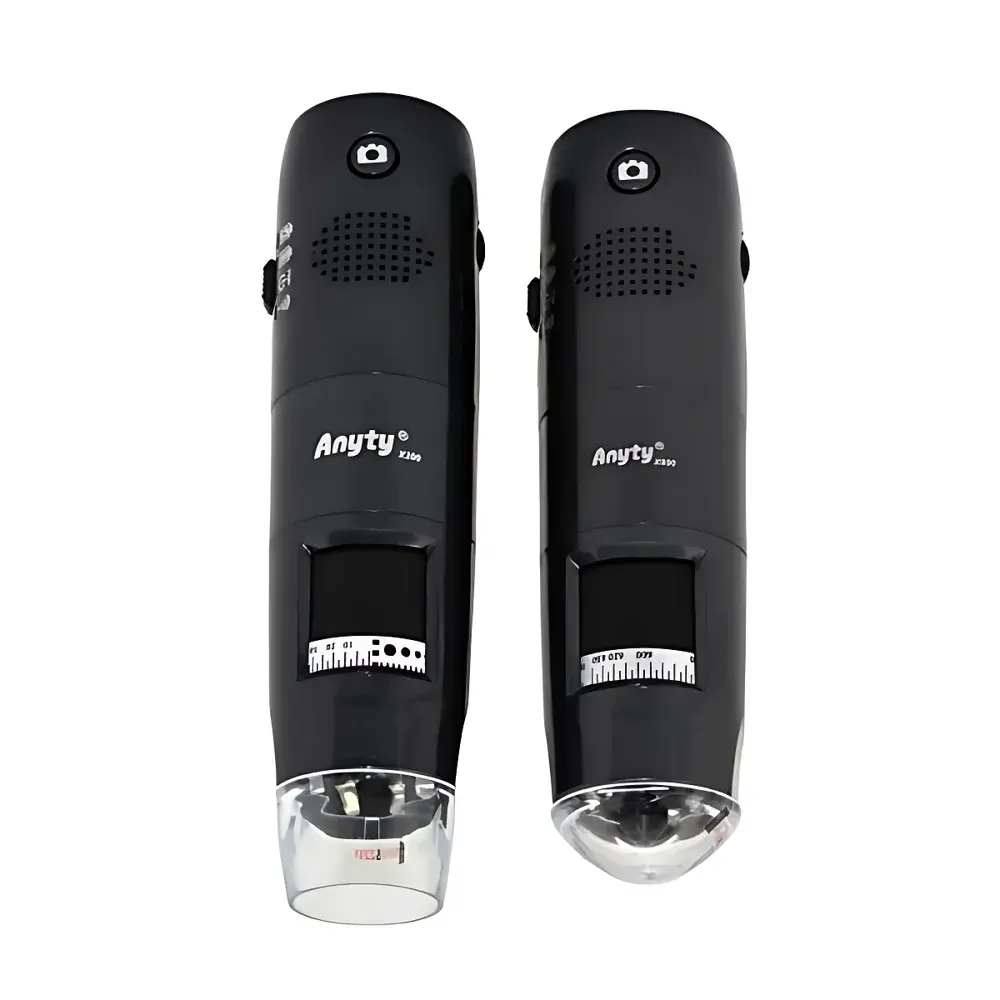

Anyty 3R-WM461WIFI Portable Wireless Wi-Fi Digital Microscope

Overview

The Anyty 3R-WM461WIFI is a compact, battery-powered wireless digital microscope engineered for field-deployable visual inspection, rapid documentation, and real-time collaborative analysis. Unlike traditional benchtop optical microscopes, this device employs a high-sensitivity CMOS imaging sensor coupled with an integrated 2.4 GHz Wi-Fi transceiver to deliver live HD video streaming directly to mobile devices, laptops, or tablets—eliminating the need for physical cables, external capture cards, or proprietary docking stations. Its optical architecture is based on coaxial LED-illuminated macro-lens optics, optimized for surface topography visualization at working distances ranging from 25 mm to 120 mm. Designed for use in environments where portability, rapid setup, and cross-platform interoperability are critical—including quality control labs, electronics repair benches, educational fieldwork, forensic documentation, and industrial maintenance—the 3R-WM461WIFI supports both qualitative observation and semi-quantitative measurement workflows when used with calibrated reference scales.

Key Features

• Integrated Wi-Fi streaming capability compliant with IEEE 802.11b/g/n standards, enabling peer-to-peer or local network-based video transmission without router dependency
• Dual-stage manual focusing system (coarse + fine) for precise depth-of-field adjustment across variable sample heights
• Adjustable coaxial white LED illumination with six intensity levels, minimizing shadow artifacts and enhancing edge contrast on reflective or low-texture surfaces
• On-device 16 GB internal storage (expandable via microSD card up to 128 GB) for offline image/video capture and timestamped logging
• Rechargeable lithium-ion battery supporting ≥90 minutes of continuous operation at 1080p/30 fps; USB-C charging interface with status LED indicator
• Cross-platform software support: native iOS/Android application (3R MicroScope), Windows/macOS desktop client, and HTML5-compatible browser streaming (no plugin required)

Sample Compatibility & Compliance

The 3R-WM461WIFI accommodates non-encapsulated solid specimens within its operational working distance envelope—including printed circuit boards (PCBs), solder joints, textile fibers, coinage, botanical specimens, mineral fragments, and coated metal surfaces. It does not require immersion media or vacuum environments, making it suitable for ambient-air inspection tasks under ISO 17025-aligned laboratory conditions. While not certified for medical diagnostic use per FDA 21 CFR Part 820 or IEC 62304, the device complies with CE marking requirements for electromagnetic compatibility (EN 61326-1) and radio equipment (RED Directive 2014/53/EU). Data export functions support CSV metadata tagging and JPEG/PNG/TIFF image formats compatible with LIMS integration and GLP-compliant documentation protocols.

Software & Data Management

The companion software suite provides annotation tools (scale bar insertion, measurement overlays, region-of-interest cropping), batch export functionality, and embedded EXIF metadata recording (timestamp, magnification setting, illumination level, device ID). All captured images and videos retain embedded audit trail information—including operator ID (if configured), session start time, and firmware version—facilitating traceability in regulated QC environments. The web-streaming interface supports RTSP over HTTP fallback and enables multi-user viewing sessions, allowing remote expert consultation during troubleshooting or training scenarios. Firmware updates are delivered over-the-air (OTA) and include version-controlled changelogs aligned with ISO/IEC 17025 clause 5.9 on method validation.

Applications

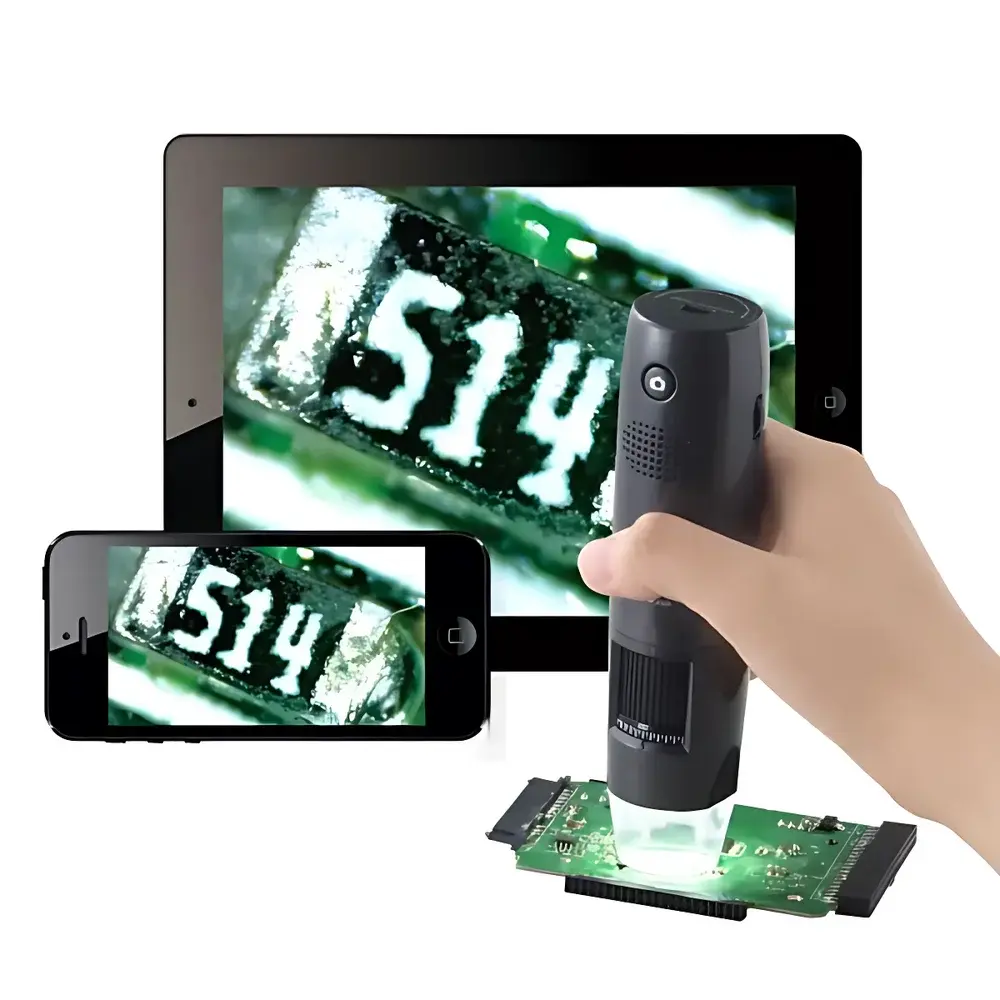

• Electronics manufacturing: SMT component verification, solder void detection, pad coplanarity assessment
• Educational laboratories: Student-led microscopy experiments with real-time instructor feedback via shared Wi-Fi stream
• Forensic document examination: Handwriting comparison, ink differentiation, and paper fiber analysis without contact
• Maintenance & reliability engineering: Corrosion monitoring on pipelines, weld seam inspection, coating thickness estimation using calibrated scale references
• Art conservation: Non-invasive pigment layer evaluation, craquelure mapping, and varnish degradation documentation
• Life sciences fieldwork: In situ observation of insect morphology, leaf epidermal structures, or fungal hyphae without specimen mounting

FAQ

Does the 3R-WM461WIFI support measurement calibration?
Yes—users may perform single-point or two-point calibration using NIST-traceable stage micrometers or certified reference scales. Calibration data is stored per magnification setting and applied automatically during measurement mode.
Is the Wi-Fi connection encrypted?
The device implements WPA2-PSK encryption for local network connections and supports HTTPS-based authentication for cloud-synced account features in the mobile application.
Can multiple users connect simultaneously to the same device?
Up to four clients may access the live video stream concurrently via the web interface; however, only one user may control focus, illumination, or capture functions at any given time.
What is the minimum system requirement for desktop streaming?
A modern web browser (Chrome v90+, Firefox v85+, Edge v90+) with WebRTC support and ≥2 Mbps downstream bandwidth is required for stable 1080p streaming.
Is SDK access available for custom software integration?
Anyty provides a documented RESTful API and WebSocket-based control interface for OEM integration, including endpoints for image capture triggering, focus motor control, and illumination level adjustment—subject to NDA and commercial licensing agreement.
