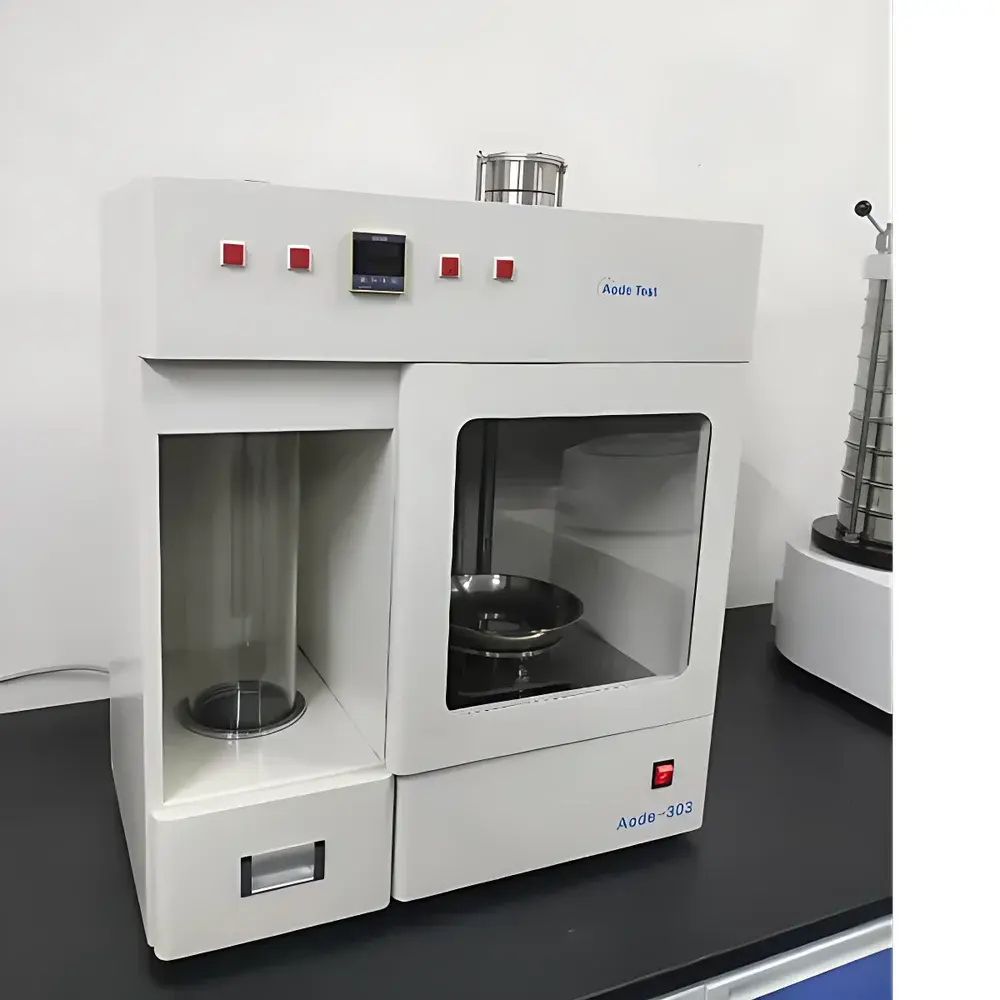

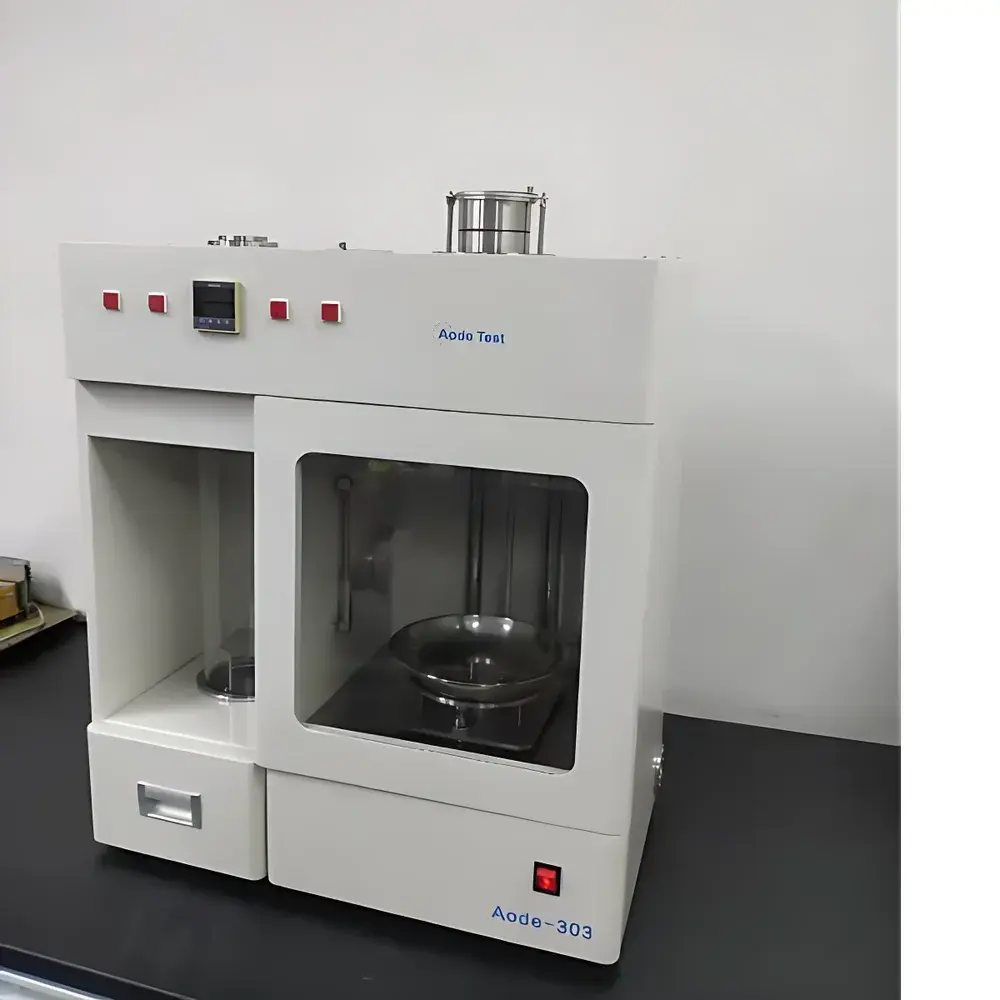

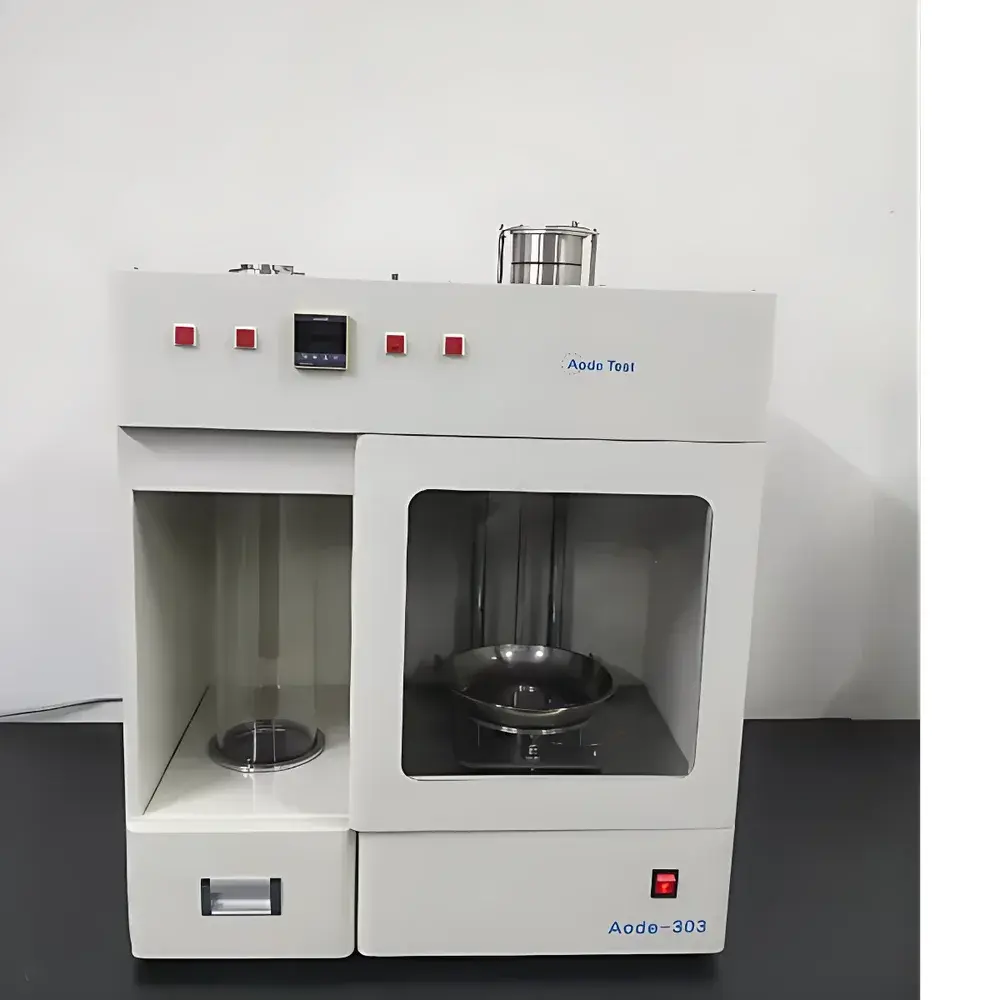

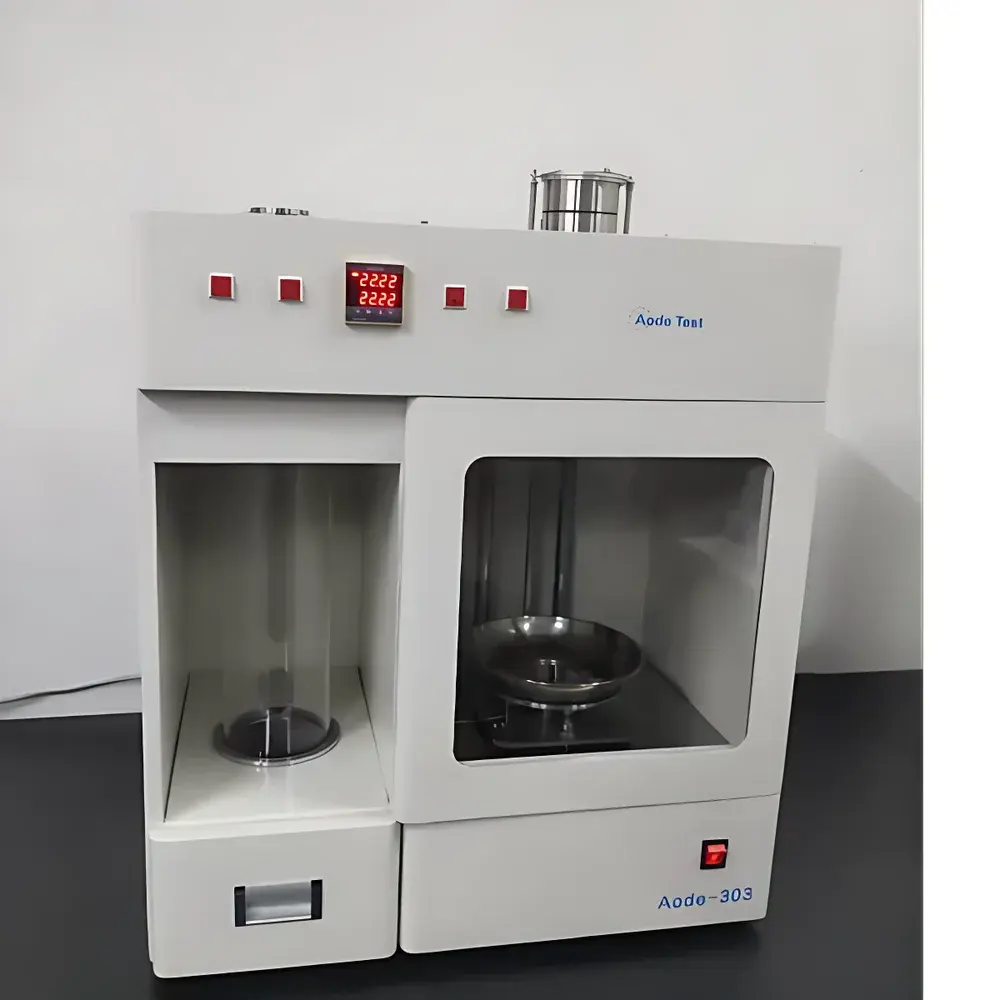

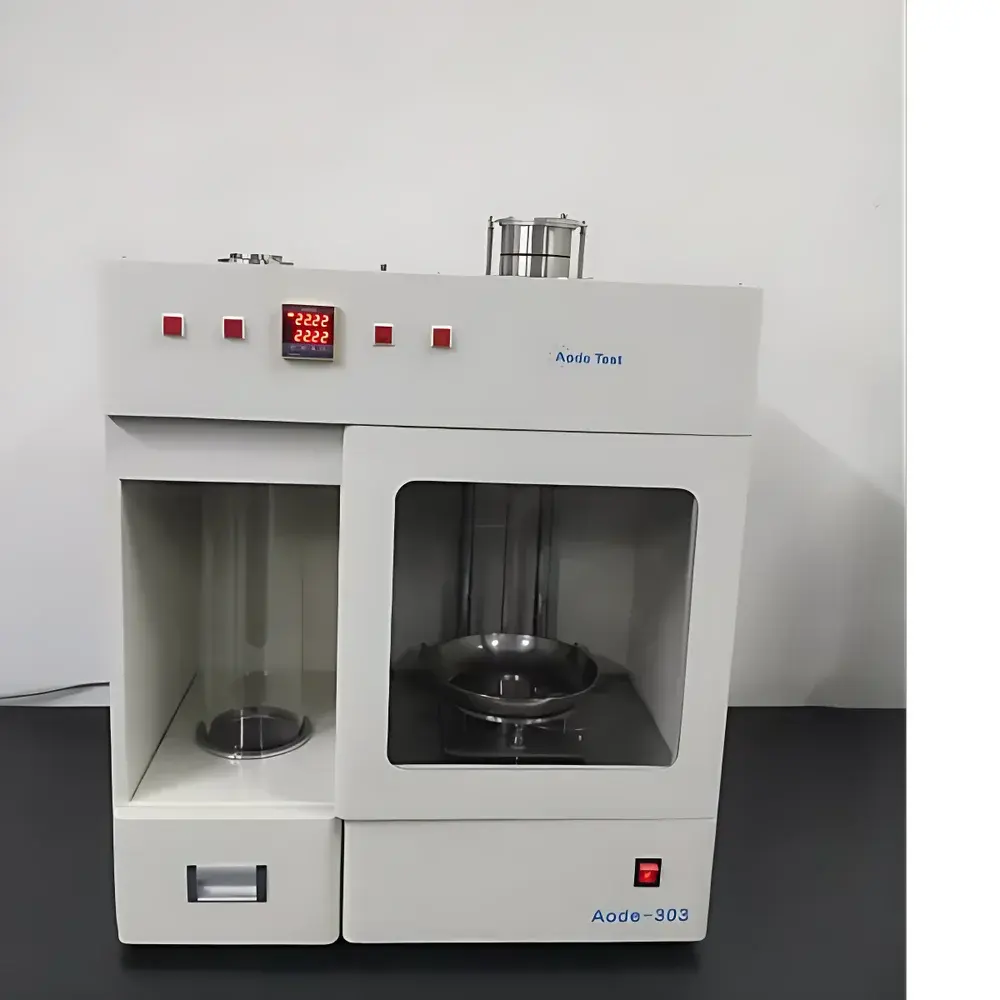

Aode Aode-303 Powder Flow and Bulk Properties Analyzer

Overview

The Aode Aode-303 Powder Flow and Bulk Properties Analyzer is an engineered platform for standardized, multi-parameter characterization of dry powder behavior under static and dynamic conditions. It operates on the foundational principles of bulk solids mechanics—specifically, the interplay between interparticle friction, cohesion, particle morphology, and packing structure—to quantify flowability, compressibility, dispersibility, and aerated stability. Designed in strict alignment with ASTM D6393-14 (Standard Test Method for Bulk Solids Characterization by Carr Indices) and key Chinese national standards—including GB/T 5162-2006 (tapped density), GB/T 1479.1-2011 (bulk density via funnel method), and GB/T 16913.3-2008 (bulk density via natural heap method)—the instrument delivers traceable, repeatable measurements essential for process development, quality control, and regulatory documentation in pharmaceutical, metallurgical, chemical, food, and additive manufacturing sectors.

Key Features

• Single-platform measurement of 16 fundamental and derived powder properties—including angle of repose, collapse angle, angle of spatula, sliding angle, dispersibility, tapped density, bulk density, difference angle, compressibility, porosity, cohesiveness, uniformity, Hall flow rate, flowability index, and jetting index.
• Modular, mechanically stable architecture with precision-machined sample vessels (25 mL, 50 mL, and 100 mL calibrated cylinders) and a calibrated protractor-based angle measurement system (0–90° resolution ±0.5°).
• Adjustable tapping mechanism with amplitude control from 1 mm to 15 mm, enabling compliance with both ASTM D6393-14 and GB/T 5162-2006 vibration protocols.
• Standardized test fixtures for funnel-flow (GB/T 1482-2010), natural heap (GB/T 16913.3-2008), and spatula withdrawal (ASTM D6393-14) methods—all integrated into one compact footprint (35 × 68 × 60 cm).
• No software dependency for core measurements: all primary angles and densities are determined physically, ensuring audit-ready transparency and eliminating calibration drift associated with optical or sensor-based systems.

Sample Compatibility & Compliance

The Aode-303 supports powders across a broad range of particle size distributions (typically 10 µm to 1 mm), moisture contents (<1% w/w), and apparent densities (0.1–5.0 g/cm³). It accommodates free-flowing metal powders (e.g., stainless steel 316L, Ti-6Al-4V), cohesive pharmaceutical excipients (e.g., microcrystalline cellulose, lactose monohydrate), and highly dispersible nanomaterials (e.g., fumed silica). All test procedures conform to internationally recognized frameworks: ASTM D6393-14 for Carr Index derivation; ISO 3953:1993 for tapped density; USP for powder flow assessment; and ICH Q5C for solid dosage form characterization. The instrument’s mechanical design meets GLP-compliant operational requirements—no firmware updates, no proprietary drivers, and full manual repeatability verification per batch.

Software & Data Management

While the Aode-303 performs all primary measurements without embedded software, it includes a companion Excel-based calculation toolkit compliant with FDA 21 CFR Part 11 Annex 11 principles for non-electronic records. This toolkit accepts manually entered raw data (e.g., mass, volume, angle values) and automatically computes secondary indices—including compressibility (%), porosity (%), flowability index (0–100 scale), and jetting index (0–100 scale)—using equations defined in ASTM D6393-14 and GB/T 31057.2-2018. Each worksheet contains built-in validation checks, timestamped operator fields, and change logs. Output reports are exportable as PDF or CSV, supporting integration into LIMS or electronic batch record (EBR) systems. No cloud connectivity or remote access is implemented—data sovereignty and network isolation are preserved by design.

Applications

• Pharmaceutical formulation: Screening excipient compatibility, predicting die-fill variability in tablet compression, and qualifying powder blends for content uniformity.
• Metal additive manufacturing: Qualifying feedstock powders for laser powder bed fusion (LPBF) and binder jetting processes per ASTM F3049 and ISO/ASTM 52904.
• Chemical catalysis: Assessing catalyst pellet handling characteristics, attrition resistance, and fluidized bed operability.
• Food processing: Evaluating free-flow behavior of powdered dairy, spices, and functional ingredients during pneumatic conveying and volumetric dosing.
• Quality assurance labs: Supporting vendor qualification, incoming raw material release, and stability studies per ICH Q1 and Q5C guidelines.

FAQ

Does the Aode-303 require calibration certificates traceable to NIST or CNAS?

Yes—calibration templates for angle measurement (certified protractor), volumetric cylinders (ISO/IEC 17025-accredited), and analytical balances (used with the system) are provided. Users perform annual verification using reference powders (e.g., glass beads, aluminum oxide) per ASTM D6393 Annex A1.
Can the instrument be used for hygroscopic or electrostatically charged powders?

It is not recommended for powders with >1% moisture or high triboelectric charge without environmental control (e.g., glovebox with nitrogen purge and humidity stabilization at 25°C/30% RH). Optional desiccant chambers and anti-static sample trays are available as accessories.
Is the Aode-303 compliant with GMP documentation requirements?

Yes—the mechanical nature of its measurements, combined with the Excel-based calculation tool (with locked cells, audit trail log, and digital signature support), satisfies ALCOA+ data integrity principles for regulated environments.
What maintenance is required?

Annual mechanical inspection of tapping mechanism backlash, protractor zero alignment, and cylinder dimensional verification. No consumables or firmware updates are required.
How does the Aode-303 compare to FT4 or Schulze ring shear testers?

The Aode-303 provides standardized, low-cost, high-throughput screening aligned with regulatory compendial methods. It does not replace dynamic shear or wall friction testing but serves as a validated first-tier QC tool preceding advanced rheometry.
