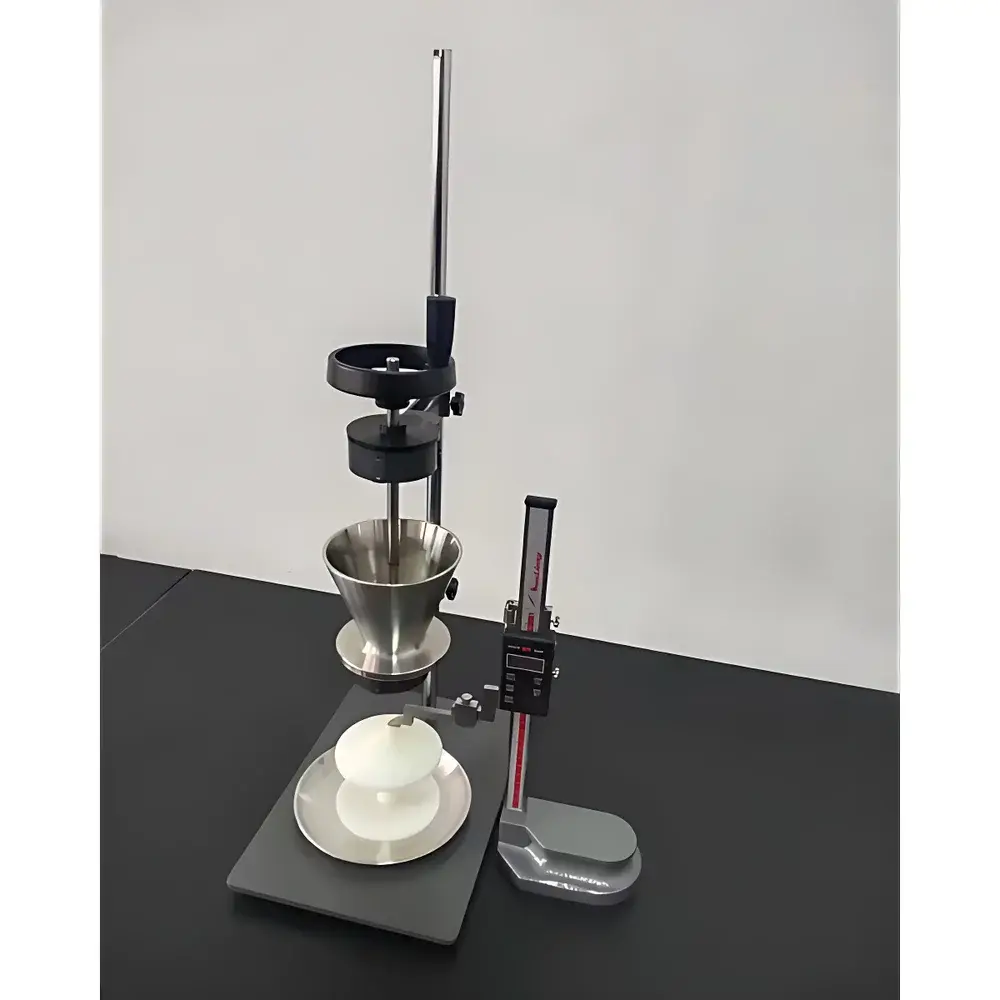

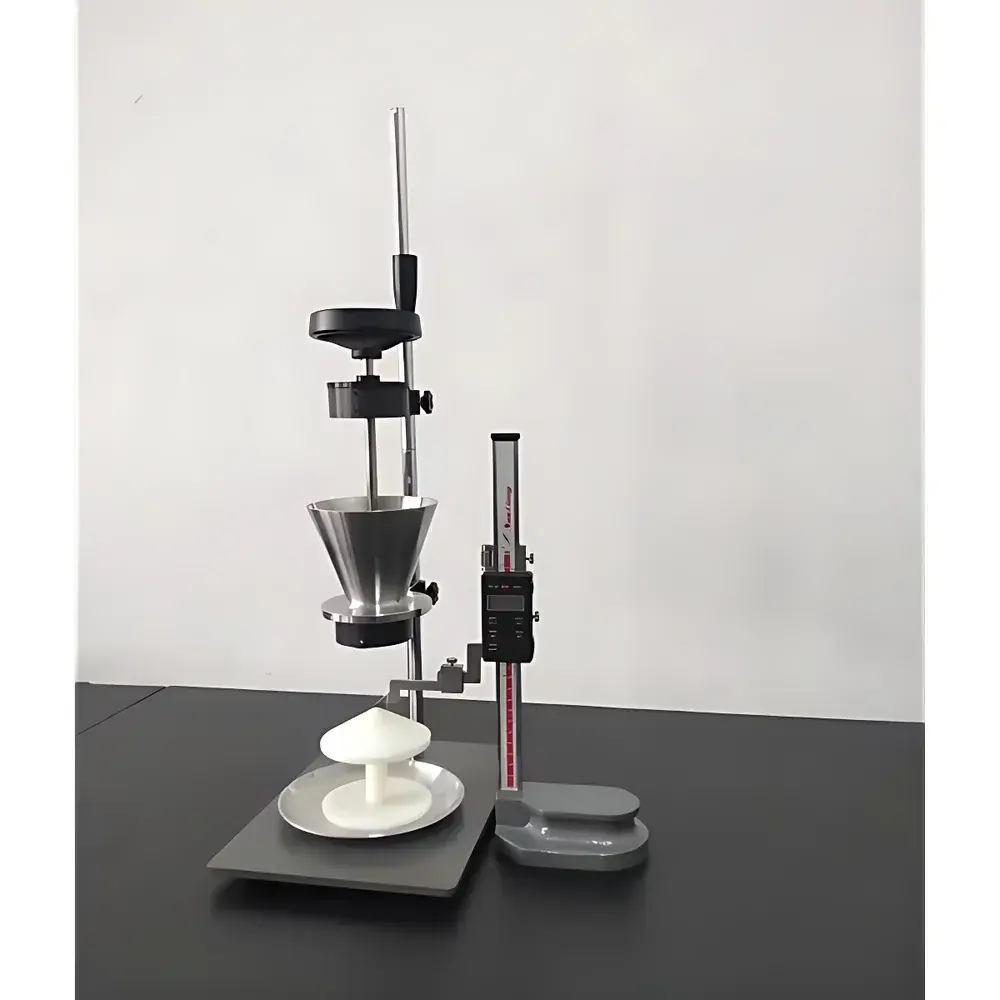

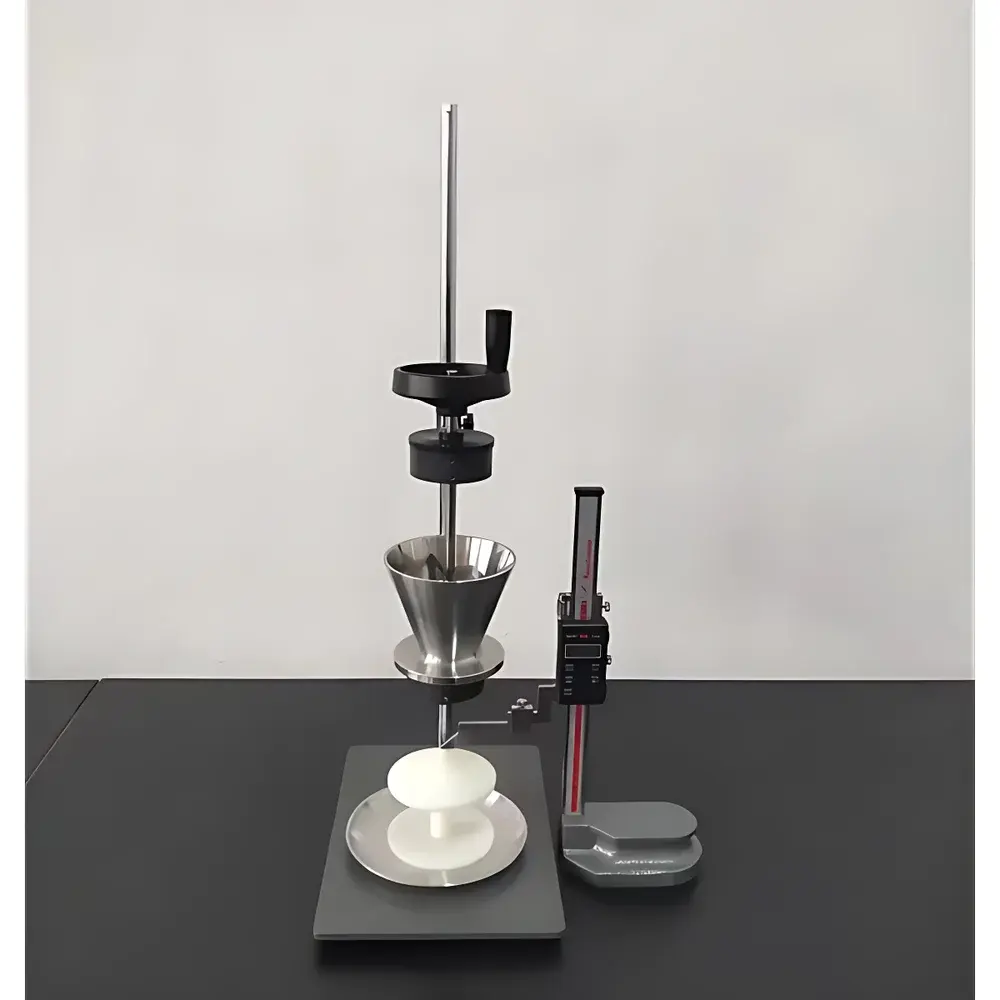

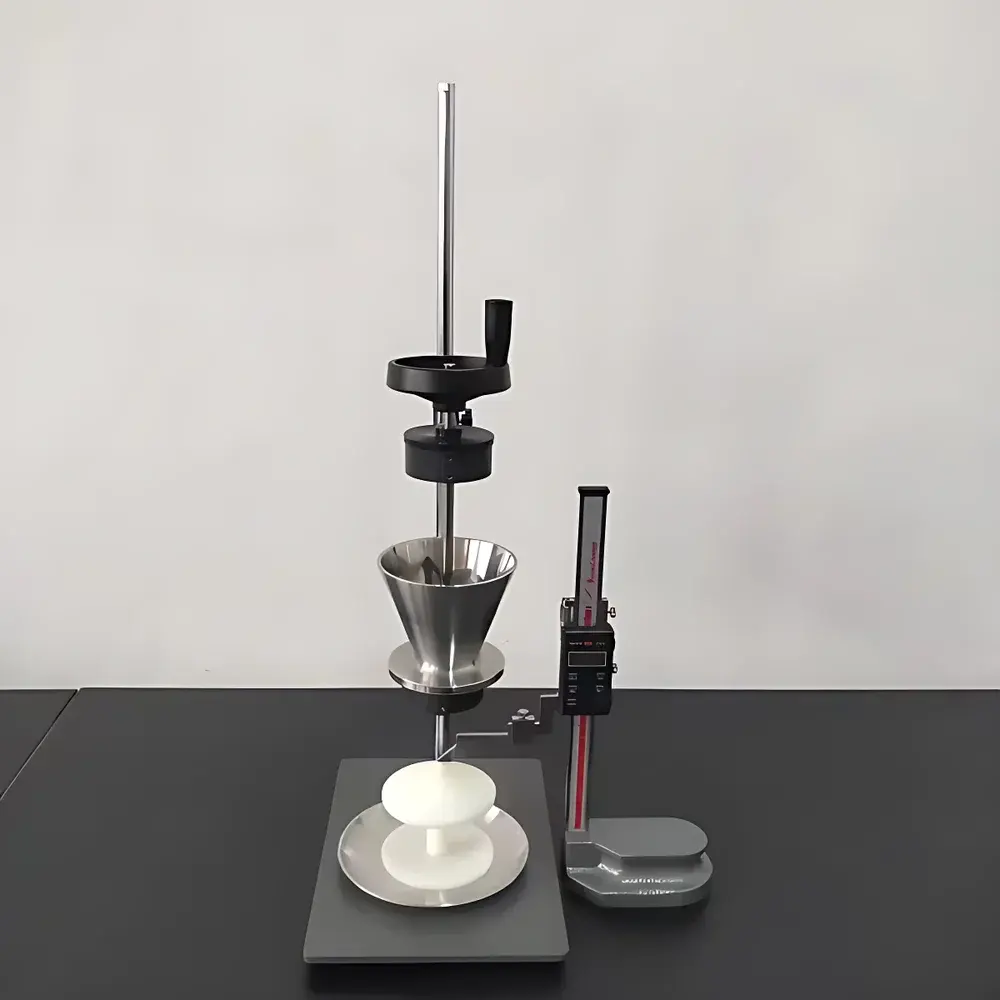

Aode Aode-307 Powder Flowability Tester – Angle of Repose Analyzer

Overview

The Aode Aode-307 Powder Flowability Tester is a precision-engineered instrument designed for the standardized determination of the angle of repose—a fundamental physical property quantifying the flow behavior of dry powders and granular solids under gravity-driven conditions. Based on the principle of static equilibrium between gravitational force and interparticle frictional resistance, the angle of repose reflects the steepest stable slope a powder heap can maintain without collapse. The Aode-307 implements the fixed-cone method (also known as the residual cone method), in which powder is discharged from a standardized funnel onto a horizontal circular base plate (Ø100 mm), forming a conical pile; the resulting apex angle—measured either directly via protractor or calculated from height-to-radius ratio (tan θ = h/r)—is reported as the angle of repose. This method provides rapid, operator-independent assessment of bulk flow characteristics critical to process design, storage stability, and formulation development.

Key Features

• Compliant dual-mode measurement: supports both injection method (funnel discharge onto base plate) and calculation-based verification (height and radius measurement using included steel ruler and level)
• Standardized geometry: precision-machined stainless-steel funnel with internal orifice diameter of 10 mm and total height of 141 mm, ensuring consistent flow initiation and minimal wall effects
• Dedicated 100 mm diameter circular base plate with engraved centering marks and integrated bubble level for precise horizontal alignment
• Robust aluminum alloy frame with adjustable leveling feet and rigid mounting bracket for funnel stability during repeated testing
• Complete accessory set: includes calibrated steel ruler (±0.5 mm graduation), spirit level (±0.1° sensitivity), soft-bristle brush for residue removal, and stainless-steel collection tray (510 mL capacity)
• Compact benchtop footprint (220 × 160 × 260 mm) and lightweight construction (5 kg) enable easy integration into QC labs, R&D workstations, or regulatory-compliant environments

Sample Compatibility & Compliance

The Aode-307 accommodates free-flowing to marginally cohesive powders and granules across pharmaceutical, detergent, food, ceramic, and metallurgical applications. It accepts sample volumes ranging from 10 mL (minimum for representative cone formation) up to 510 mL (maximum vessel capacity), supporting both small-batch screening and routine quality control. The instrument conforms to multiple international standards governing powder flow characterization, including GB/T 11986–1989 (China), ISO 4324:1977 (Powders — Determination of angle of repose), and DIN ISO 4324:1983. Its methodology is referenced in pharmacopoeial monographs such as USP , BP Appendix XVII C, and EP 2.9.36, making it suitable for GLP- and GMP-aligned laboratories conducting excipient qualification, blend uniformity assessment, or hopper discharge analysis.

Software & Data Management

As a manual, non-electronic instrumentation platform, the Aode-307 does not incorporate embedded software or digital data logging. All measurements are recorded manually by the operator using supplied metrological tools. This analog architecture ensures traceability through documented procedural adherence, raw observation logs, and handwritten calculation records—fully compatible with paper-based SOPs and audit-ready documentation systems. For laboratories requiring electronic recordkeeping, users may integrate the Aode-307 into validated LIMS or ELN workflows by capturing results via structured templates compliant with FDA 21 CFR Part 11 requirements (e.g., user-authenticated entry, audit trail, and electronic signature support).

Applications

• Pharmaceutical solid dosage development: evaluation of excipient flowability prior to direct compression or capsule filling
• Process risk assessment: prediction of bridging, rat-holing, or arching tendencies in silos, hoppers, and feeders
• Quality control of industrial powders: routine monitoring of detergent granules, catalysts, pigments, and metal powders
• Research in powder mechanics: correlation studies between angle of repose and other rheological indices (e.g., compressibility, permeability)
• Educational use in materials science curricula: hands-on demonstration of granular physics principles and ASTM D6393-compliant test protocols

FAQ

What standards does the Aode-307 comply with?
The instrument meets GB/T 11986–1989, ISO 4324:1977, DIN ISO 4324:1983, and is methodologically aligned with USP , BP Appendix XVII C, and EP 2.9.36.
Can the Aode-307 measure flow time and discharged mass simultaneously with angle of repose?
Yes—the device enables concurrent acquisition of angle of repose (via cone geometry), flow time (using stopwatch), and discharged mass (using external analytical balance), supporting multi-parameter flow profiling per ASTM D6393 Annex A1.
Is calibration required before each test?
No formal calibration is mandated; however, daily verification of base plate horizontality (using included spirit level) and funnel centering is essential for measurement reproducibility.
What is the recommended sample preparation protocol?
Powders should be conditioned at standard temperature and humidity (20 °C, 40–60% RH) for ≥24 h prior to testing; avoid vibration or tapping during funnel discharge to preserve natural flow dynamics.
How does the Aode-307 support regulatory submissions?
Its adherence to pharmacopoeial and ISO standards—combined with documented operator training, SOP-controlled execution, and raw-data traceability—supports inclusion in regulatory filings for drug product manufacturing processes.
