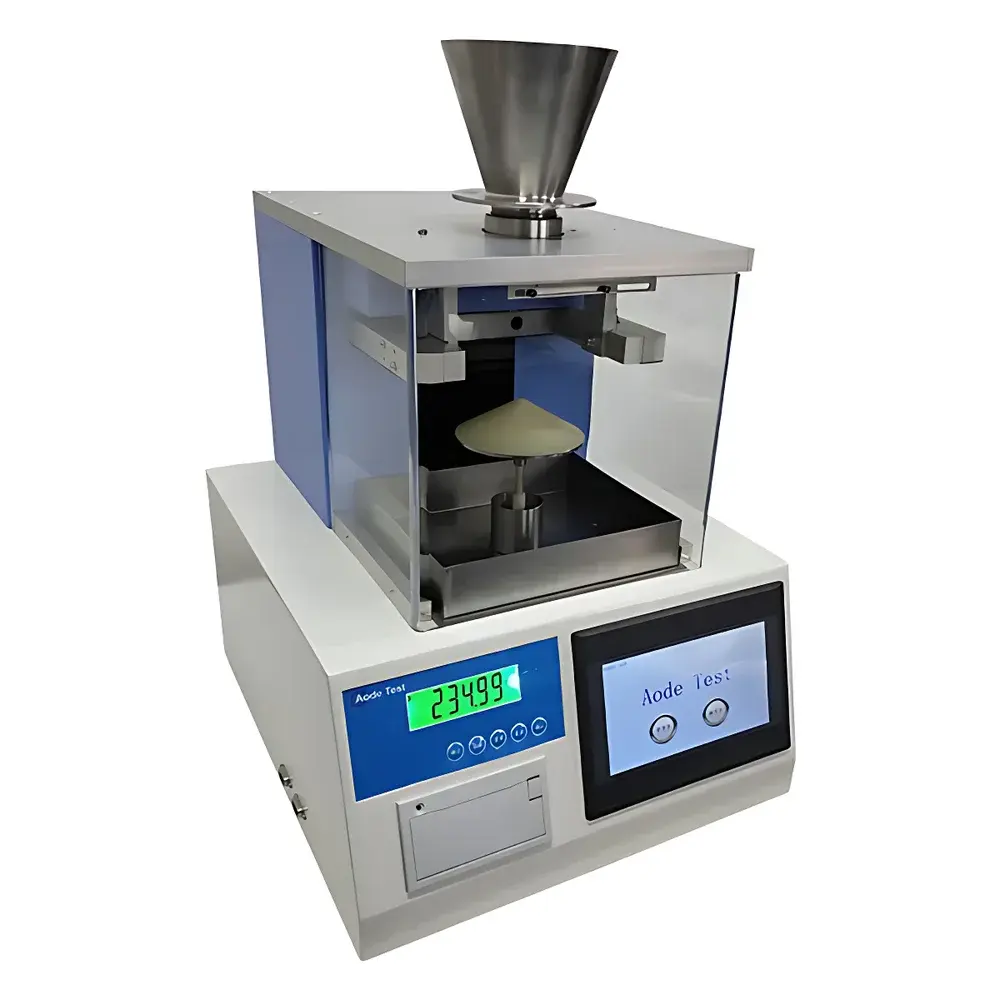

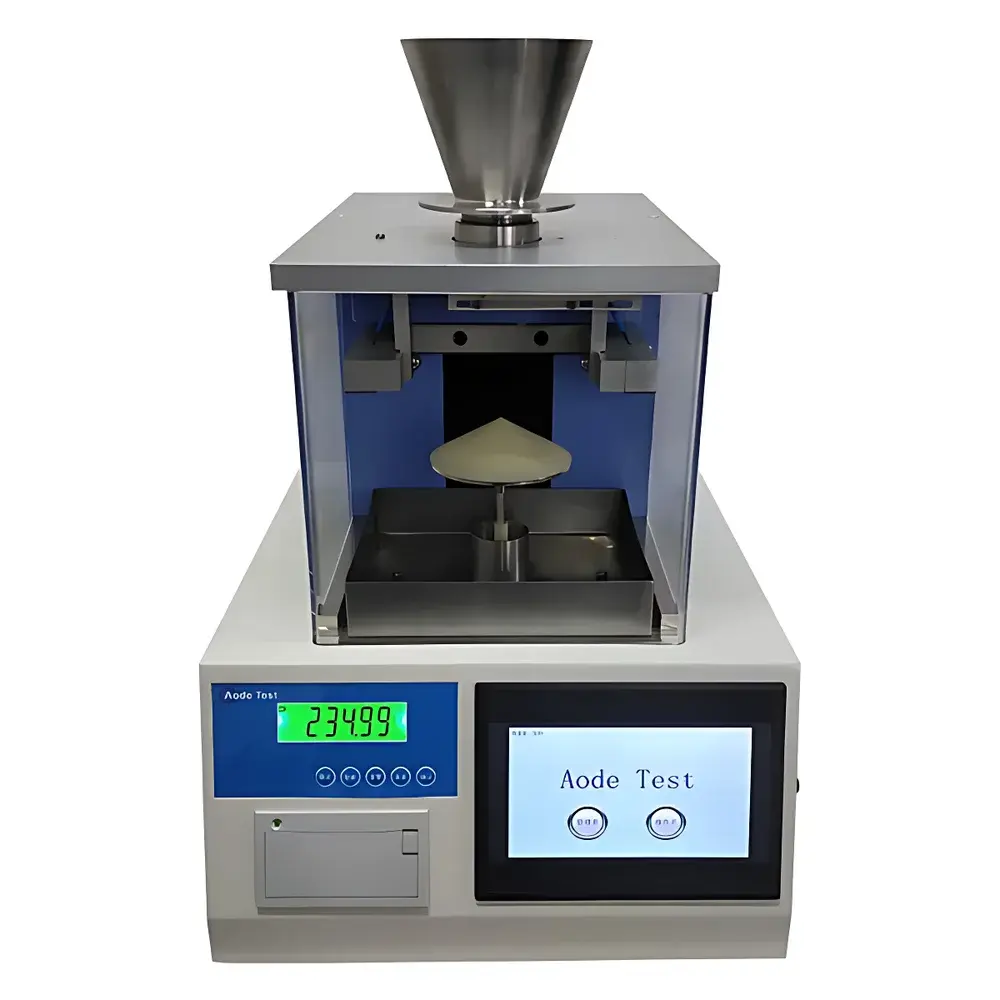

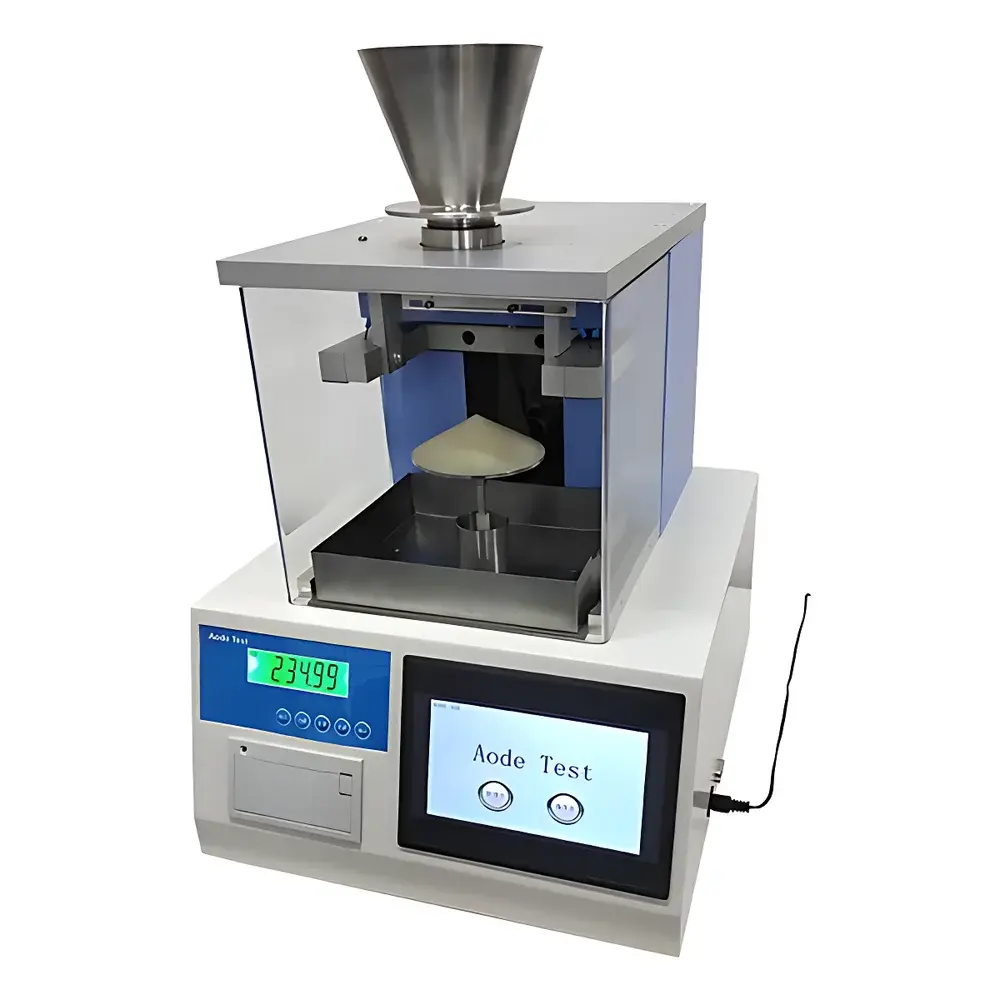

Aode Aode-308B Automatic Angle of Repose Tester

Overview

The Aode Aode-308B Automatic Angle of Repose Tester is an engineered solution for standardized, repeatable quantification of bulk powder flow behavior under gravity-driven conditions. It operates on the principle of controlled gravitational discharge through a calibrated orifice, enabling precise determination of the angle formed between the horizontal plane and the natural slope of a freely settled powder cone — commonly referred to as the angle of repose (AoR) or angle of rest. This parameter serves as a fundamental indicator of interparticle friction, cohesion, and surface energy characteristics in dry particulate systems. Unlike manual or semi-automated methods, the Aode-308B integrates photoelectric sensing and high-resolution load cell technology to synchronize hopper gate actuation with real-time mass and time tracking. The system captures not only AoR but also complementary metrics including heap volume, bulk density, mass-based and volume-based flow rates, and time-resolved flow profiles — all critical for correlating physical handling performance with downstream unit operations such as blending, tableting, pneumatic conveying, and silo discharge.

Key Features

• Fully automated test sequence initiated via intuitive 7-inch capacitive touchscreen interface, eliminating operator-induced variability in timing and observation.
• Dual-sensor fusion architecture: optical beam interruption detection combined with ±0.01 g resolution load cell ensures accurate start/stop triggering of flow events based on user-defined mass thresholds or elapsed time.
• Stainless steel hopper (520 mL capacity) with electropolished interior surface minimizes sample adhesion and facilitates cleaning between runs; wall thickness and rigidity prevent deformation during repeated use.
• Interchangeable orifice plates (2, 5, 10, 15, 18, and 20 mm diameters) allow method adaptation across diverse powder classes—from fine pharmaceutical actives to coarse ceramic granules—supporting ASTM D6393 and ISO 4490 compliance protocols.
• Integrated motorized stirring rake enables controlled deaeration and flow initiation for cohesive or low-flow powders, improving measurement robustness without manual intervention.
• Transparent acrylic safety enclosure mitigates airborne particle exposure and eliminates draft interference, ensuring environmental stability during cone formation and flow recording.
• Dual-tier user access control (administrator/operator) supports audit-ready operation in regulated environments, including password-protected calibration, method editing, and data export functions.

Sample Compatibility & Compliance

The Aode-308B accommodates a broad spectrum of free-flowing to marginally cohesive powders, including but not limited to metal oxides, battery cathode/anode materials (e.g., LiCoO₂, graphite), pharmaceutical excipients (microcrystalline cellulose, lactose), catalysts, pigments, food-grade additives, and construction aggregates. Its design aligns with internationally recognized test frameworks: ASTM D6393 “Standard Test Method for Flowability of Powders Using the Angle of Repose”, ISO 4490 “Metallic Powders — Determination of Flow Rate by Means of a Hall Flowmeter”, and USP & Ph. Eur. general chapters on powder characterization. While not certified to IEC 61000-6-3 or FDA 21 CFR Part 11 out-of-the-box, the instrument’s data logging architecture—including timestamped raw measurements, operator ID, method version, and environmental metadata—provides foundational traceability required for GLP and GMP-aligned laboratories conducting internal method validation.

Software & Data Management

Embedded firmware supports local storage of ≥10,000 test records with searchable indexing by date, operator, material ID, and orifice configuration. Each dataset includes synchronized time-series mass readings, calculated angles (to 0.1° resolution), derived flow velocities (g/s and mL/s), and graphical representation of mass vs. time curves. Export options include CSV and PDF formats compatible with LIMS integration. Built-in thermal printer delivers immediate hardcopy output with header fields for SOP number, revision date, and QA sign-off. All data modifications are logged with immutable timestamps and user attribution, satisfying basic ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) for quality documentation.

Applications

This instrument is routinely deployed in R&D labs evaluating formulation robustness, QC departments verifying batch-to-batch consistency of raw materials, and process engineering teams optimizing powder handling equipment design. Specific use cases include: assessing the impact of particle size distribution and surface treatment on flowability; validating drying or granulation endpoints; screening anti-caking agents; benchmarking supplier materials against internal specifications; supporting regulatory submissions requiring documented flow behavior; and training personnel in standardized powder characterization practices. Its compact footprint (38 × 43 × 88 cm) and low power consumption (60 W) make it suitable for benchtop deployment in university teaching labs and contract testing facilities alike.

FAQ

What standards does the Aode-308B support for angle of repose measurement?
It is configured to comply with ASTM D6393 and ISO 4490 methodologies, with adjustable orifice sizes and programmable discharge criteria enabling alignment with published test protocols.
Can the instrument measure powders with very low flowability (e.g., nanoscale or hygroscopic materials)?
Yes — the optional motorized stirring rake assists in initiating flow for cohesive samples, and the enclosed environment reduces ambient humidity and airflow effects that may otherwise compromise repeatability.
Is calibration traceable to national metrology institutes?
Load cell calibration is performed using NIST-traceable weights; users receive a factory calibration certificate with uncertainty budget. Field recalibration tools and procedures are provided in the operator manual.
How is data integrity maintained during long-term operation?
All measurements are stored with embedded digital signatures, operator credentials, and hardware-generated timestamps. No data can be edited without administrative privileges, and deletion events are permanently logged.
Does the system support integration with enterprise-level LIMS or MES platforms?
Raw CSV exports and configurable serial/USB communication protocols enable middleware-based integration; API documentation and driver packages are available upon request for IT infrastructure compatibility assessment.
