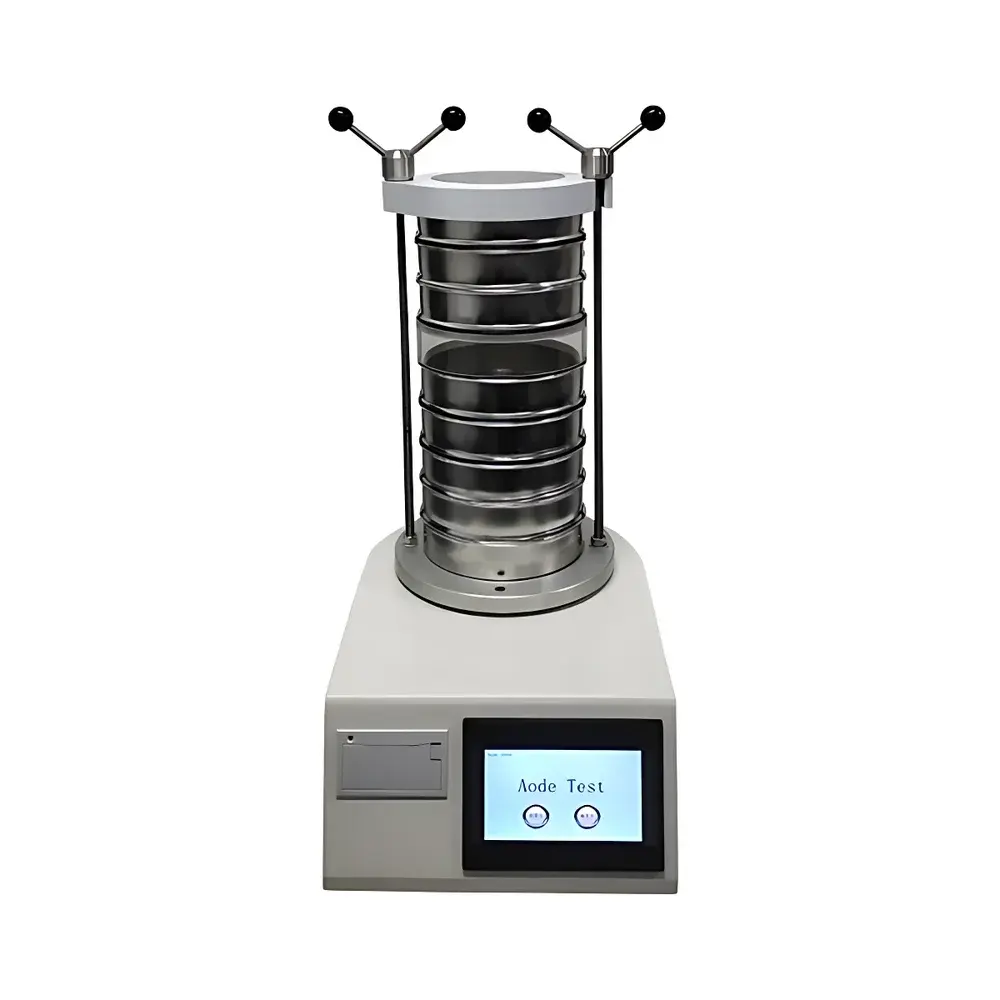

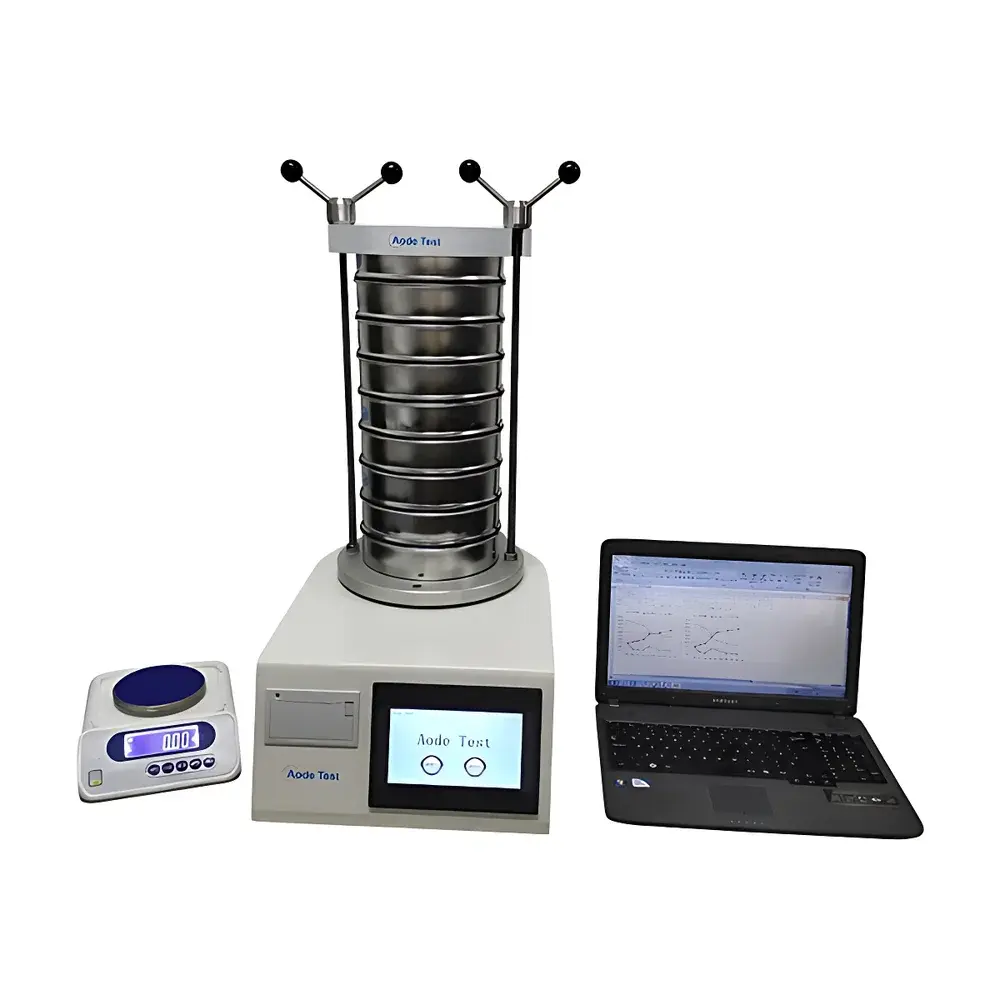

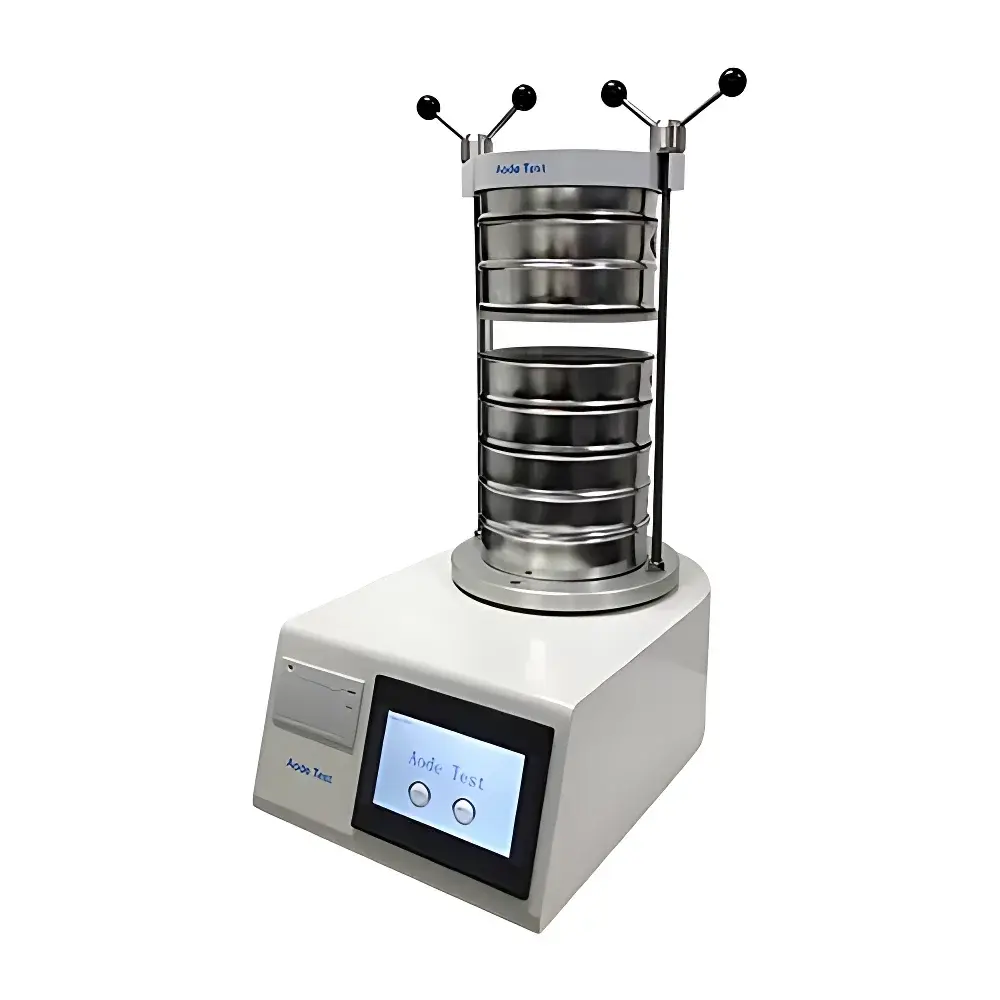

Aode Aode200-20108 Electromagnetic 3D Vibratory Sieve Analyzer
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | Aode200-20108 |
| Price | USD 5,300 (approx.) |
Overview
The Aode Aode200-20108 Electromagnetic 3D Vibratory Sieve Analyzer is an advanced mechanical sieving instrument engineered for high-precision, reproducible particle size distribution (PSD) analysis of dry or wet powders and granular materials. Unlike conventional rotary or tapping sieves, this system employs electromagnetic actuation to generate a controlled, three-dimensional抛掷 (tossing) motion—comprising simultaneous vertical lift, horizontal oscillation, and rotational shear—thereby optimizing particle stratification and aperture penetration across stacked sieve decks. This 3D vibratory mechanism significantly reduces sieving time while maintaining ISO 9042:2023 and ASTM E11–22 compliance for sieve calibration and test methodology. Designed for routine QC laboratories, R&D centers, and production environments in pharmaceuticals, metallurgy, ceramics, and construction materials, the analyzer delivers robust performance with minimal operator intervention and no mechanical wear from belt-driven or cam-based systems.
Key Features
- Electromagnetic drive system ensures energy-efficient, low-noise, maintenance-free operation with precise amplitude and frequency control
- Programmable 3D vibratory motion profile—including progressive start-up and ramp-down sequences—to prevent mechanical shock and extend service life of sieve frames and load cells
- 7-inch high-resolution capacitive touchscreen interface with intuitive icon-based navigation and real-time visualization of sieving progress, elapsed time, and active sieve level
- RS-232 serial interface for bidirectional communication with external PCs; supports integration into LIMS or MES platforms via ASCII protocol
- Multi-user authentication with role-based access control (administrator, technician, reviewer); full audit trail logs all parameter changes, sample ID entries, and result exports per 21 CFR Part 11 Annex 11 requirements
- Integrated precision load cell and auto-tare function enables direct mass measurement before and after sieving; eliminates manual weighing errors and improves inter-laboratory reproducibility
- Intermittent operation mode allows configurable on/off cycles during sieving—critical for heat-sensitive or fragile particles prone to agglomeration or attrition
Sample Compatibility & Compliance
The Aode200-20108 accommodates both dry and wet sieving protocols, with optional liquid-tight sieve frame seals and corrosion-resistant stainless-steel (AISI 316) mesh assemblies available for aqueous suspensions. It accepts standard ISO 3310-1 and ASTM E11 compliant test sieves ranging from 20 µm to 125 mm aperture sizes, supporting up to 8-tier stacking configurations. All firmware and software modules are validated per GLP and GMP principles, with electronic records retaining metadata including timestamp, operator ID, environmental temperature/humidity (when interfaced with external sensors), and sieve certification IDs. The system meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (EN 61010-1).
Software & Data Management
The bundled SievePro™ Analysis Software (v3.2+) runs on Windows 10/11 and provides automated PSD calculation per ISO 9276-2:2019 standards—including D10, D50, D90, span, and relative width indices. Raw mass retention data per sieve layer is processed using iterative interpolation algorithms to generate smooth, publication-ready cumulative and differential distribution curves (Barchart, Rosin-Rammler, log-normal fits). Reports export in PDF, CSV, and XML formats—with embedded digital signatures and hash-verified audit logs. Data backups are scheduled automatically to network drives or encrypted USB media, and version-controlled firmware updates are delivered via secure HTTPS portal.
Applications
- Pharmaceutical excipient and API particle sizing for blend uniformity and dissolution rate prediction
- Quality control of metal powders in additive manufacturing feedstock qualification
- Characterization of catalyst supports, foundry sands, and ceramic raw materials
- Aggregates grading in asphalt and concrete mix design per EN 13043 and ASTM C136
- Food powder flowability assessment via sieve residue correlation with Hausner ratio
- Environmental sediment analysis following USGS NWIS protocols
FAQ
What sieve standards does the Aode200-20108 support?
It fully complies with ISO 3310-1, ASTM E11, and JIS Z 8801-1 for woven wire mesh and perforated plate sieves.
Can the system be calibrated and certified for ISO/IEC 17025 accreditation?
Yes—traceable calibration certificates for load cells and timing circuits are available upon request; full validation documentation packages (IQ/OQ/PQ) can be supplied.
Is wet sieving possible without modification?
Standard configuration supports dry sieving; wet sieving requires optional splash guard kit, silicone-sealed sieve frames, and drain pan assembly.
Does the software meet FDA 21 CFR Part 11 requirements?
Yes—electronic signatures, audit trails, and record retention settings are configurable to satisfy Part 11 and EU Annex 11 regulatory expectations.
What is the maximum recommended sample mass for accurate results?
Optimal range is 25 g to 500 g depending on material density and particle shape; overload detection prevents inaccurate mass readings.
