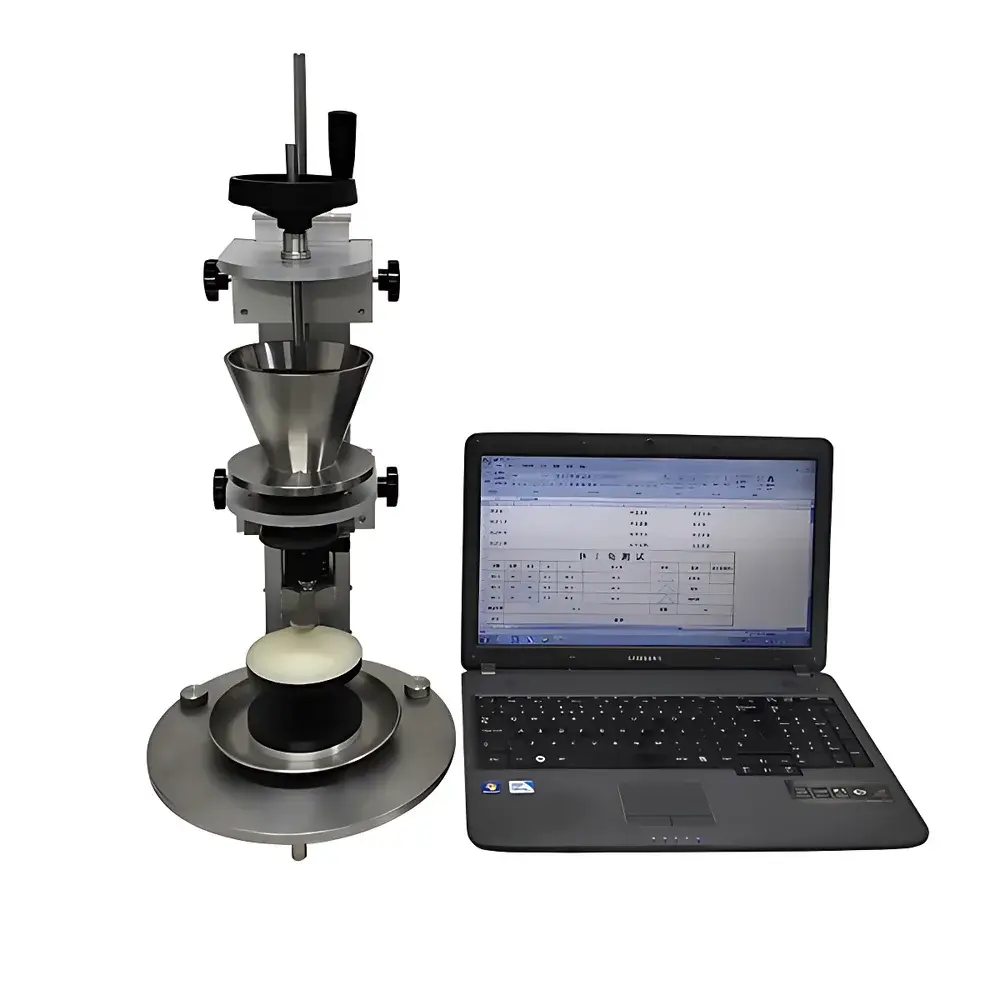

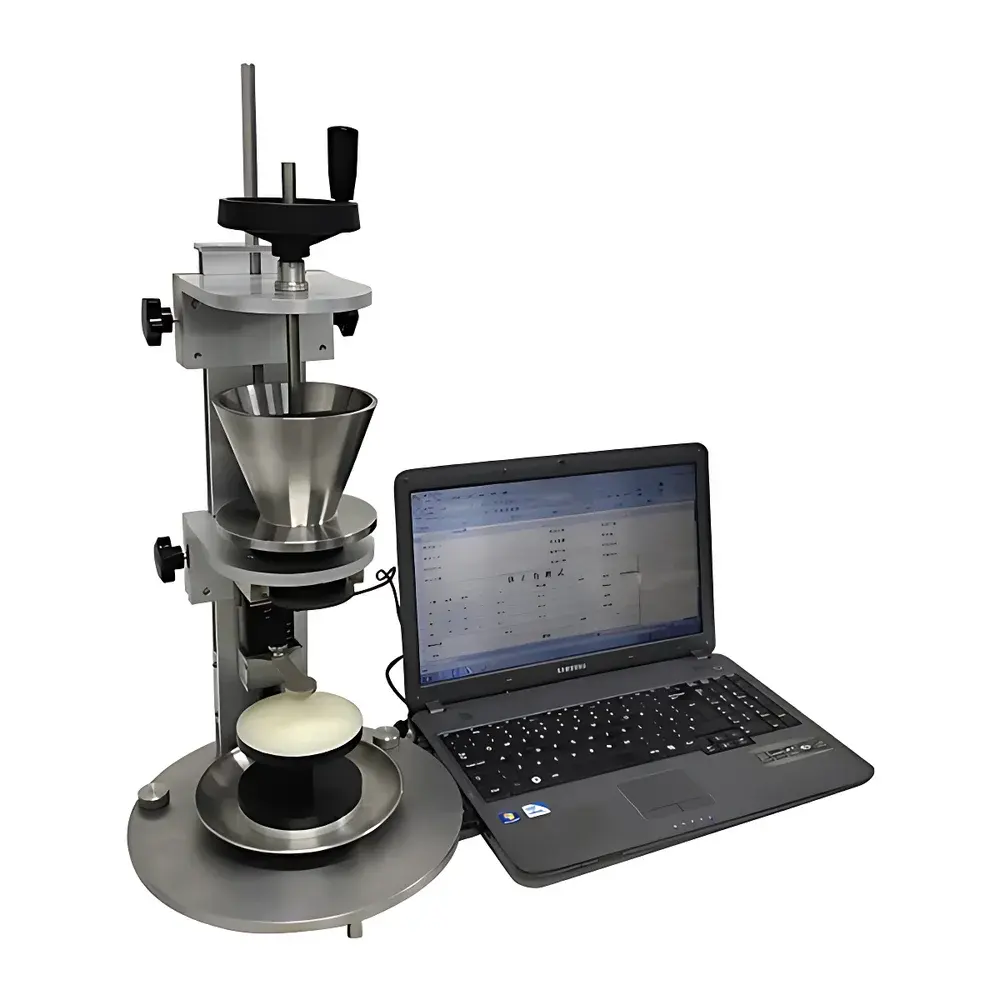

Aode Aode309 Powder Flowability Tester – Angle of Repose Analyzer

Overview

The Aode Aode309 Powder Flowability Tester is a precision-engineered instrument designed to quantify the static angle of repose — a fundamental indicator of bulk powder flow behavior. Based on the gravitational heap formation principle, the device measures the maximum stable slope angle formed when a powder freely flows from a fixed-height orifice onto a flat horizontal surface. This angle reflects the interplay of particle-level properties including size distribution, shape sphericity, surface roughness, interparticle friction, cohesion, and moisture content. Unlike dynamic rheometers or shear cell testers, the Aode309 provides rapid, non-destructive, and operator-independent assessment under ambient conditions — making it especially suitable for routine QC screening, formulation development, and incoming raw material verification in regulated environments.

Key Features

• Automated angle calculation via integrated PC software with real-time image capture and geometric fitting algorithms — eliminating manual protractor measurement and human parallax error.
• Adjustable orifice diameters (4–20 mm in eight discrete steps) enable method optimization across diverse powder classes: from fine pharmaceutical actives to coarse ceramic granules.
• Dual-mode operation: gravity-driven free-flow mode for cohesive powders; optional mechanical agitation assist (integrated stirring rod) to initiate flow in low-mobility materials without altering intrinsic packing structure.
• Corrosion-resistant 304 stainless steel sample chamber and funnel assembly ensure long-term dimensional stability, chemical compatibility, and compliance with cleaning validation requirements (e.g., CIP protocols).
• Compact benchtop footprint (280 × 280 × 600 mm) and low-power 5 V DC operation support deployment in ISO Class 5–8 cleanrooms, R&D labs, and production line quality control stations.

Sample Compatibility & Compliance

The Aode309 accommodates dry, free-flowing to marginally cohesive powders with particle sizes ranging from 2 mm. It supports minimum sample volumes as low as 5 mL — critical for high-value APIs or lab-scale formulations. The system adheres to internationally recognized test standards: GB/T 21060–2007 (equivalent to ISO 4324:2015) for angle-of-repose determination. While not a GMP-certified instrument per se, its digital data logging, timestamped reports, and audit-ready export formats (CSV, PDF) align with GLP documentation practices and facilitate traceability during FDA 21 CFR Part 11–aligned workflows where electronic records are permitted.

Software & Data Management

The proprietary Windows-based software performs real-time centroid detection of the powder cone profile using edge-detection algorithms calibrated against NIST-traceable reference slopes. It calculates angle of repose with ±0.3° repeatability (n=10, same operator, same batch), generates standardized test reports containing raw images, measured angles, flow time, and qualitative mobility classification (e.g., “Excellent”, “Fair”, “Poor”) per ASTM D6393–14 Annex A1 guidelines. All datasets are stored with full metadata (operator ID, date/time, orifice size, ambient T/RH if logged externally), support batch export, and allow retrospective reprocessing without raw file loss.

Applications

• Pharmaceutical manufacturing: Pre-compression evaluation of API-excipient blends; excipient qualification per USP & Ph. Eur. monographs.
• Polymer processing: Screening of masterbatch dispersibility and pellet flow consistency prior to extrusion or injection molding.
• Advanced ceramics & metallurgy: Monitoring green body density uniformity and die-fill predictability in powder metallurgy feedstocks.
• Food & nutraceuticals: Assessing hygroscopicity-induced caking tendency in powdered vitamins, dairy blends, or instant beverages.
• Academic research: Correlating morphological descriptors (via SEM/image analysis) with macroscopic flow metrics in granular physics studies.

FAQ

What standards does the Aode309 comply with?
It conforms to GB/T 21060–2007 and ISO 4324:2015 for angle-of-repose testing methodology and reporting structure.
Can the instrument measure flow time independently of angle of repose?
Yes — the software logs both parameters simultaneously; flow time is recorded from orifice opening to cessation of flow, enabling Carr Index and Hausner Ratio derivations.
Is calibration required before each test?
No routine recalibration is needed; however, daily verification using a certified inclinometer standard (±0.5° accuracy) is recommended for ISO/IEC 17025-aligned labs.
Does the stirring rod affect measurement validity?
The rod is used only when natural flow fails to initiate; its gentle motion mimics minimal vibrational assistance — consistent with Annex B of ISO 4324 for borderline-cohesive materials.
How is data integrity ensured during export?
All reports include embedded digital signatures, immutable timestamps, and checksum-verified CSV exports — supporting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
