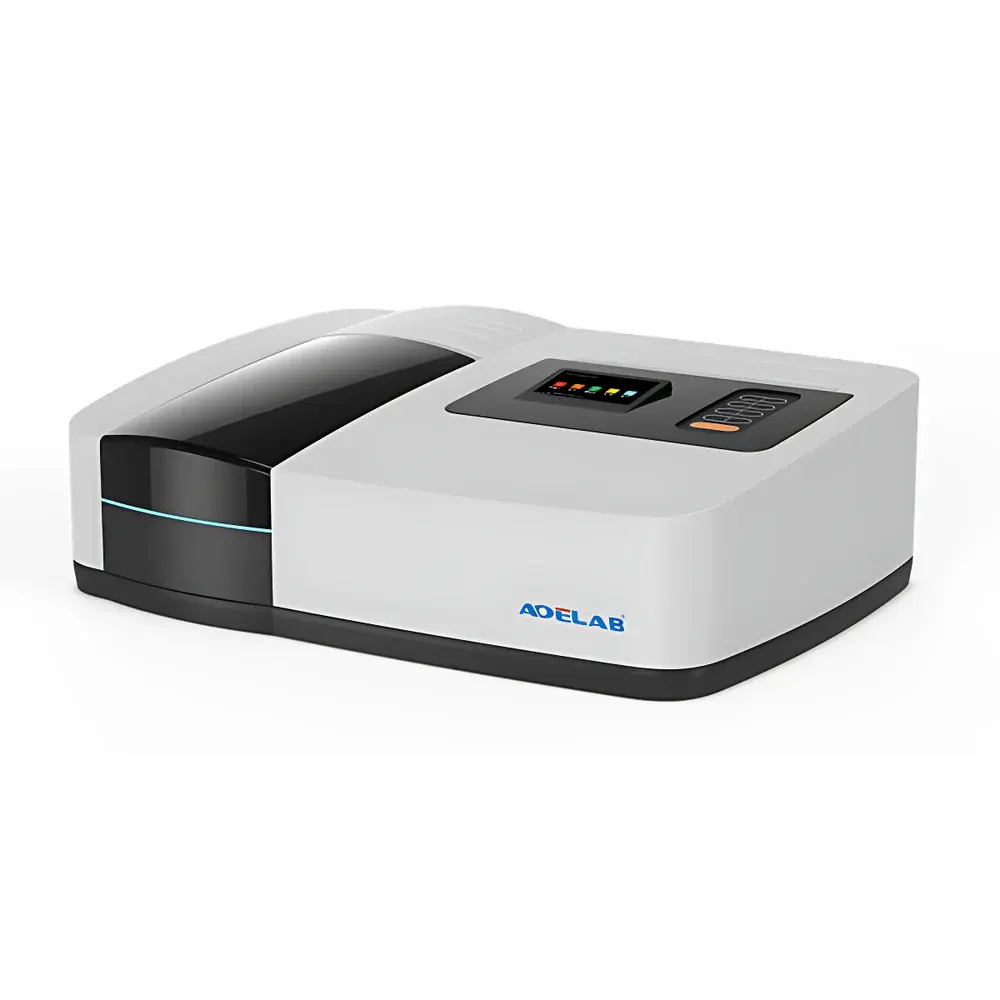

AOE T2 Smart UV-Vis Spectrophotometer

Overview

The AOE T2 Smart UV-Vis Spectrophotometer is a single-beam, microprocessor-controlled analytical instrument engineered for routine quantitative and qualitative analysis in pharmaceutical QC labs, academic research settings, and industrial quality control environments. It operates on the principle of Beer–Lambert law-based absorbance measurement across the ultraviolet and visible spectrum (195–1020 nm), utilizing a high-efficiency holographic grating (1200 lines/mm) to ensure spectral resolution and optical stability. Designed with robust mechanical architecture—including reinforced sheet-metal chassis and fully sealed optical compartment—the T2 maintains long-term alignment integrity during transport and daily operation, minimizing wavelength drift and photometric error. Its motorized auto-wavelength scanning mechanism enables rapid, repeatable spectral acquisition without manual adjustment, supporting standardized workflows compliant with pharmacopeial methods (e.g., USP <857>, EP 2.2.25, and ChP IV).

Key Features

• Reinforced structural chassis fabricated from thick-gauge steel sheet metal, ensuring optical path stability under mechanical stress and environmental vibration.
• Hermetically sealed optical chamber prevents dust ingress and moisture-induced degradation of grating and detector performance over extended service life.
• 7-inch TFT color touchscreen (480 × 272 pixels) with intuitive graphical user interface—enabling direct instrument control, method setup, and real-time spectral visualization without external PC dependency.
• Multi-format cuvette compatibility: accommodates standard 10 mm to 50 mm pathlength cells via adjustable holder; supports rectangular quartz, glass, and plastic cuvettes.
• Integrated USB port for direct data export to FAT32-formatted USB flash drives—eliminating reliance on proprietary cables or software installations for report archiving.
• Onboard thermal printer interface (RS-232) for immediate hardcopy generation of spectra, calibration reports, and concentration results.
• Lifetime free firmware and software updates—ensuring sustained compliance with evolving regulatory expectations and analytical requirements.

Sample Compatibility & Compliance

The T2 accepts standard spectrophotometric sample formats including liquid solutions in matched quartz (UV-grade), optical glass, or disposable plastic cuvettes. Its low stray light specification (≤0.1%T at 220 nm and 360 nm) enables reliable measurement of highly absorbing samples—critical for nucleic acid quantification, enzyme kinetics, and colored dye analysis. The instrument meets core performance criteria outlined in ISO 9001-certified manufacturing practices and conforms to essential metrological requirements defined in ASTM E275, ISO/IEC 17025, and national verification regulations for laboratory spectrophotometers (JJG 178–2015). Its audit trail functionality—including user login timestamps, parameter change logs, and result modification history—supports compliance with FDA 21 CFR Part 11 and GLP/GMP documentation standards when used with validated PC software.

Software & Data Management

The optional PC-based AOE SpectraSoft Suite provides full remote control, advanced curve fitting (first-/second-derivative, peak search), multi-point calibration (linear, quadratic, polynomial), and customizable reporting templates. All software modules implement role-based access control, electronic signatures, and immutable audit trails—capturing operator identity, timestamp, action type, and pre-/post-change values for every critical parameter. Data files are stored in vendor-neutral CSV and XML formats, enabling seamless integration into LIMS platforms and enterprise data repositories. Software validation packages—including IQ/OQ documentation templates—are available upon request to support regulated laboratory qualification.

Applications

• Pharmaceutical raw material identification and assay per USP/EP monographs
• Protein and nucleic acid quantification (A260/A280 ratio analysis)
• Enzyme activity monitoring via kinetic absorbance tracking
• Colorimetric assays (e.g., Bradford, Lowry, BCA)
• Water quality testing (nitrate, phosphate, COD determination)
• Chemical kinetics studies requiring time-resolved spectral acquisition
• Educational laboratory instruction in analytical chemistry and physical biochemistry

FAQ

What is the maximum allowable cuvette pathlength supported by the T2?
The instrument accommodates cuvettes with optical path lengths ranging from 10 mm to 50 mm using its adjustable sample holder.
Does the T2 meet FDA 21 CFR Part 11 requirements for electronic records?
Yes—when operated with the validated SpectraSoft Suite, the system implements full audit trail logging, electronic signature capability, and secure user authentication as required under Part 11.
Is quartz cuvette mandatory for measurements below 220 nm?
Yes—standard optical glass absorbs strongly below ~340 nm; UV-grade fused silica cuvettes are required for reliable transmission at 195–220 nm.
Can the T2 perform kinetic measurements?
Yes—the instrument supports time-scan mode with user-defined interval and duration, enabling absorbance monitoring over time for reaction rate analysis.
What is the warranty coverage and service support structure?
AOE provides a 24-month limited hardware warranty and lifetime technical support through authorized regional service centers in North America, EMEA, and APAC regions.
