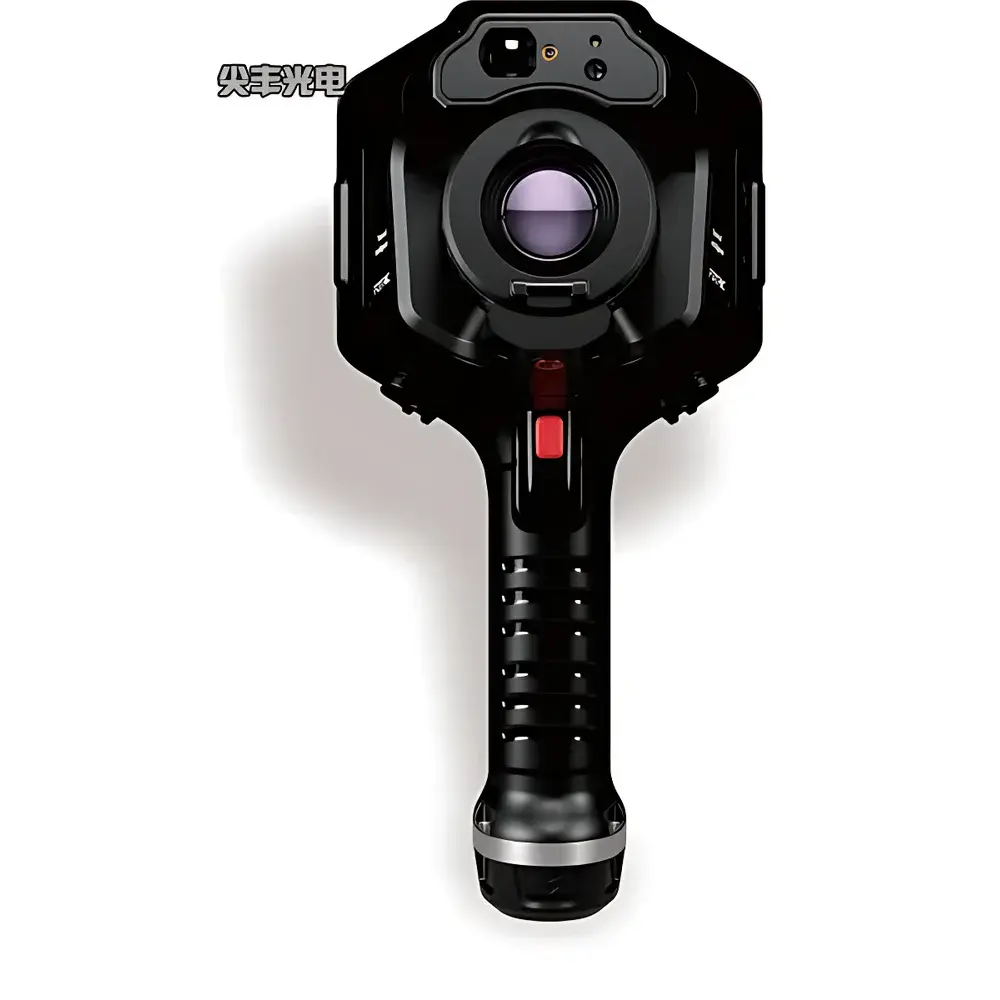

AOE Tech HawkIR 340 Advanced Handheld Thermal Imaging Camera

Overview

The AOE Tech HawkIR 340 is an advanced handheld thermal imaging camera engineered for precision thermography in industrial maintenance, electrical inspection, building diagnostics, R&D, and public health screening applications. It integrates a high-performance uncooled microbolometer detector (Lynred Pico Gen II, 17 µm pixel pitch, 7–14 µm spectral response) with super-resolution (SR) image enhancement, delivering an effective infrared resolution of 704 × 528 pixels from a native 352 × 264 array. The system employs calibrated radiometric measurement principles based on Planck’s law and Stefan–Boltzmann radiation theory, enabling quantitative temperature mapping across its full dynamic range (−20 °C to 650 °C). Its dual thermal range architecture—optimized for low-temperature sensitivity (−20–120 °C) and high-temperature robustness (0–650 °C)—ensures metrological reliability under diverse field conditions. Designed for traceable, repeatable measurements, the HawkIR 340 supports full radiometric calibration per ISO 18434-1 and complies with fundamental requirements for non-contact temperature measurement in accordance with ASTM E1934 and IEC 62906-5-2.

Key Features

• High-fidelity thermal imaging powered by Lynred Pico Gen II detector with <30 mK NETD, ensuring detection of subtle thermal gradients in demanding environments.
• Integrated 13 MP industrial-grade visible-light camera co-registered with IR sensor for precise visual-thermal fusion and accurate spatial referencing.

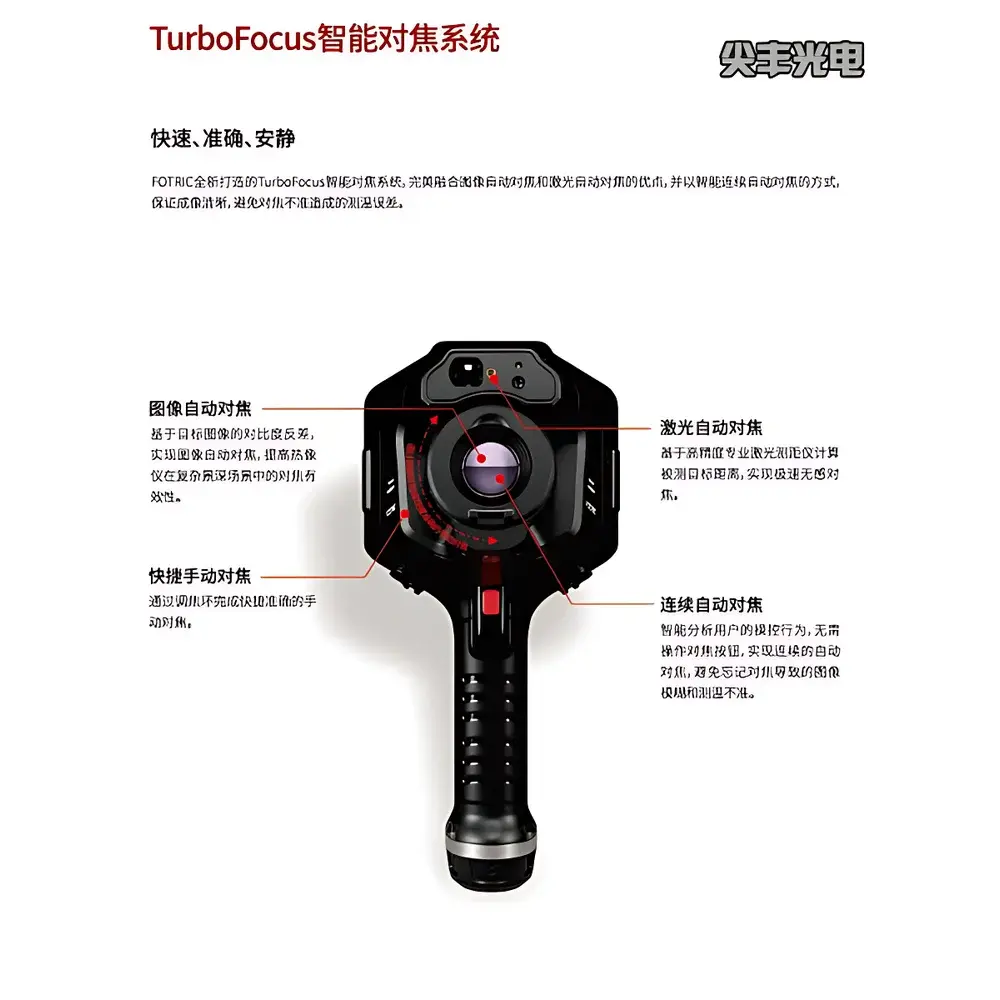

• Real-time TurboFocus intelligent autofocus system combining contrast-based image analysis and Class 2 laser-assisted distance measurement (0.1–50 m, ±(0.01% × d + 2 mm)) for consistent focus accuracy and minimized measurement uncertainty.

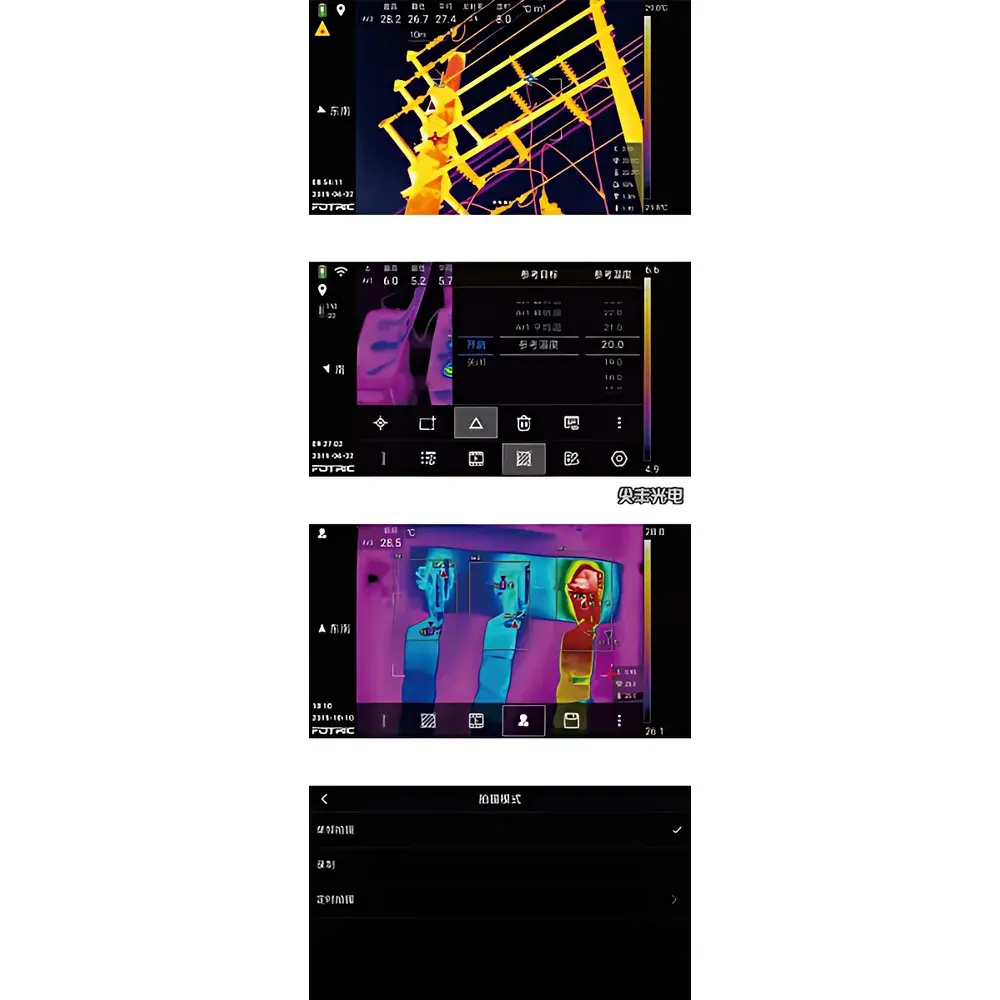

• HawkAI-enabled thermal analytics including AI-powered fever screening mode, T-DEF™ picture-in-picture overlay, IREdge™ edge enhancement, and MagicThermal™ region-specific color highlighting—all processed onboard without cloud dependency.
• Robust hardware architecture featuring Qualcomm Snapdragon processor and Xilinx FPGA for low-latency image processing, 30 Hz real-time radiometric video streaming, and deterministic thermal data handling.
• Comprehensive environmental compensation suite: emissivity correction (0.00–1.00, material library + manual entry), reflected apparent temperature input, ambient temperature, relative humidity, measurement distance, and infrared window transmission correction.

Sample Compatibility & Compliance

The HawkIR 340 is suitable for non-destructive, contactless temperature assessment of metallic surfaces, composite materials, electrical enclosures, insulation systems, HVAC components, PCBs, and biological tissue (for screening applications only). It meets mechanical and electrical safety standards per GB 4943.1-2011 / IEC 60950-1 (SELV classification), environmental ruggedness per GB/T 2423.5-2019 (25 g shock), GB/T 2423.10-2008 (2 g vibration), and IP54 ingress protection for dust and water resistance. Electromagnetic compatibility adheres to GB/T 17626 series (IEC 61000-4). While not certified for clinical diagnosis, its thermal accuracy and repeatability align with FDA guidance for adjunctive temperature screening devices (FDA Guidance for Industry: “Enforcement Policy for Telethermographic Systems During the Coronavirus Disease 2019 (COVID-19) Public Health Emergency”). Calibration traceability is maintained via NIST-traceable reference sources; recommended recalibration interval is 24 months under typical field use.

Software & Data Management

The HawkIR 340 records fully radiometric JPEG and IRS video files containing embedded temperature matrices for post-capture pixel-level analysis. Data export is supported via SDXC card (up to 2 TB), FTP over Wi-Fi (2.4/5 GHz 802.11ac), or direct USB 3.0 connection. AnalyzIR desktop software (Windows/macOS) enables advanced reporting, comparative thermal trending, emissivity profiling, and compliance-ready documentation—including audit trails, user authentication logs, and timestamped metadata aligned with GLP/GMP data integrity expectations. All firmware updates, configuration profiles, and annotation templates are managed through the same platform. The device supports 21 CFR Part 11-compliant workflows when used with AnalyzIR’s optional electronic signature and audit trail modules.

Applications

• Electrical infrastructure: detection of loose connections, overloaded circuits, and failing breakers in switchgear, transformers, and distribution panels.
• Mechanical & process systems: monitoring bearing temperatures, steam trap functionality, refractory integrity, and heat exchanger fouling.
• Building envelope diagnostics: identification of thermal bridging, air leakage, moisture intrusion, and insulation deficiencies per ASTM C1060 and ISO 6781-3.
• R&D and quality control: thermal validation of battery cells, LED arrays, power electronics, and additive manufacturing builds.
• Public health screening: rapid, non-contact elevated skin temperature (EST) assessment in controlled ambient settings (per ISO/TR 13154 and IEC 80601-2-59).

FAQ

Does the HawkIR 340 support radiometric video export with embedded temperature data?
Yes—full-radiometric IRS video files preserve per-pixel temperature values and can be analyzed frame-by-frame in AnalyzIR.

What is the minimum focus distance, and how does TurboFocus improve measurement accuracy?
The minimum focus distance is 0.1 m; TurboFocus eliminates defocus-induced emissivity errors by maintaining optimal optical conjugation across varying target distances.

Can the device operate while charging?
Yes—the HawkIR 340 supports simultaneous operation and DC 12 V external power input, enabling extended deployment during critical inspections.

Is remote real-time viewing possible without a PC?
Yes—via HDMI 1.4 output (1080p@60 Hz) to external monitors or projectors, or through Wi-Fi streaming to mobile devices using the HawkIR Connect app.

How is calibration traceability documented?
Each unit ships with a factory calibration certificate traceable to national standards; users may generate calibration verification reports within AnalyzIR using built-in blackbody reference checks.
