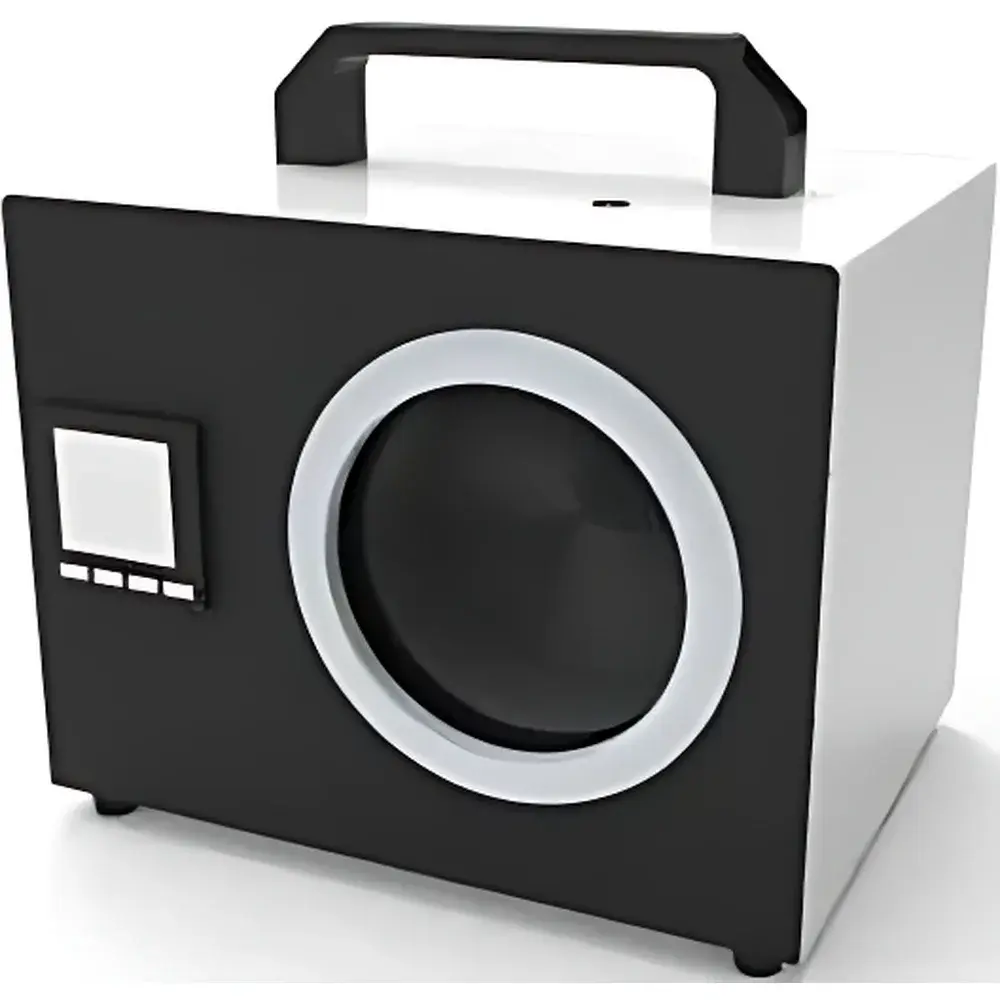

AOE Tech HT-M1000020 Medium-Temperature Blackbody Calibrator

Overview

The AOE Tech HT-M1000020 is a precision-engineered medium-temperature blackbody calibrator designed for radiometric calibration, infrared sensor verification, and thermal imaging system validation in laboratory and industrial metrology environments. Operating across a continuous temperature range from 5 °C to 1000 °C, it utilizes a high-emissivity, thermally stabilized metal cavity—primarily constructed from aerospace-grade stainless steel—to generate spectrally uniform, spatially stable, and temporally reproducible blackbody radiation. Its design adheres to the fundamental principles of Planck’s law and Kirchhoff’s radiation law, ensuring traceable spectral radiance output compliant with international radiometric standards. Unlike high-temperature (>1000 °C) or cryogenic (<0 °C) blackbodies—which require specialized refractory materials or active cooling—the HT-M1000020 leverages mature resistive heating architecture and advanced cavity geometry optimization to achieve high thermal uniformity and low axial gradient (<0.3 °C/mm) without compromising mechanical robustness or long-term stability.

Key Features

• High-emissivity cavity surface with certified emissivity values of ε = 0.95 or ε = 0.99 (NIST-traceable characterization available upon request)
• Active temperature control via PID-regulated multi-zone heating elements, enabling <±0.1 °C stability over 30 minutes at any setpoint within operating range
• Integrated high-resolution temperature sensing using dual Pt100 RTD probes—one embedded in cavity wall, one positioned at aperture plane—for real-time thermal feedback and compensation

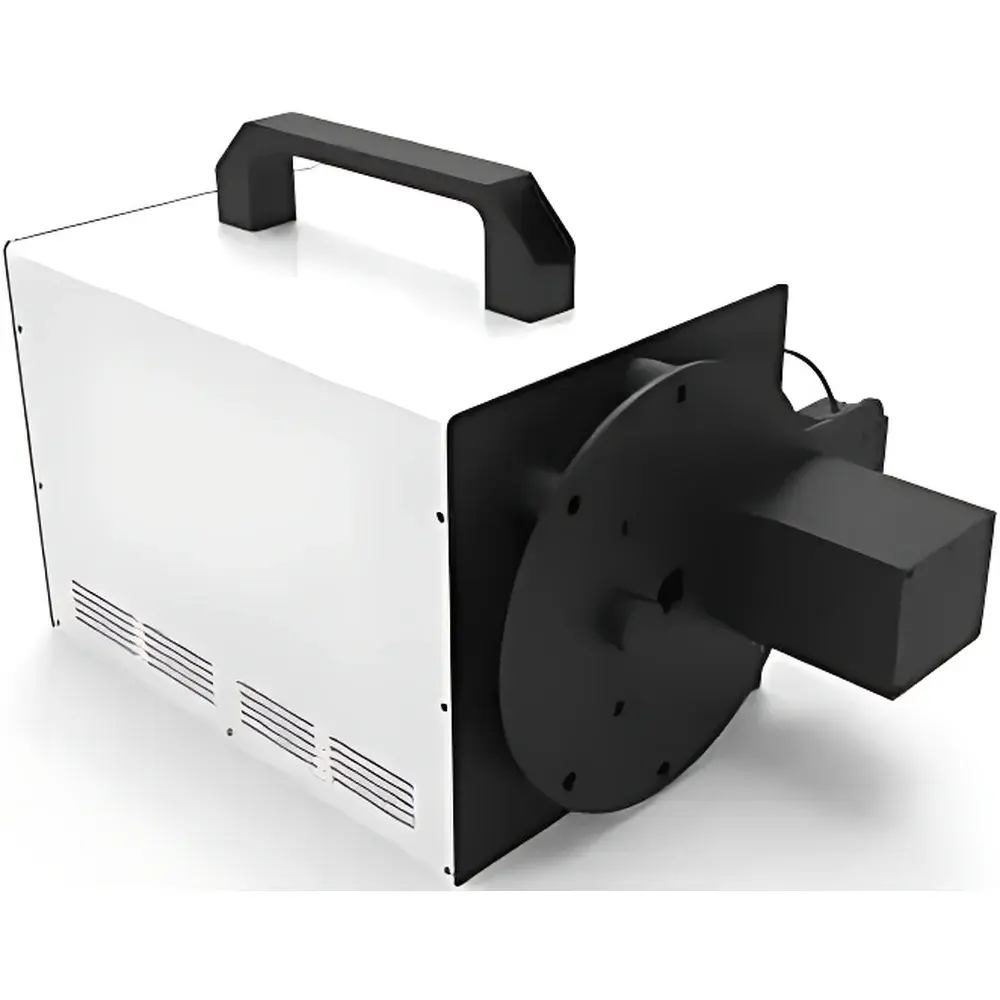

• Modular mechanical design supporting optional accessories including motorized chopper wheel (230 × 296 × 278 mm configuration), water-cooled base plate, and vacuum-compatible flange variants

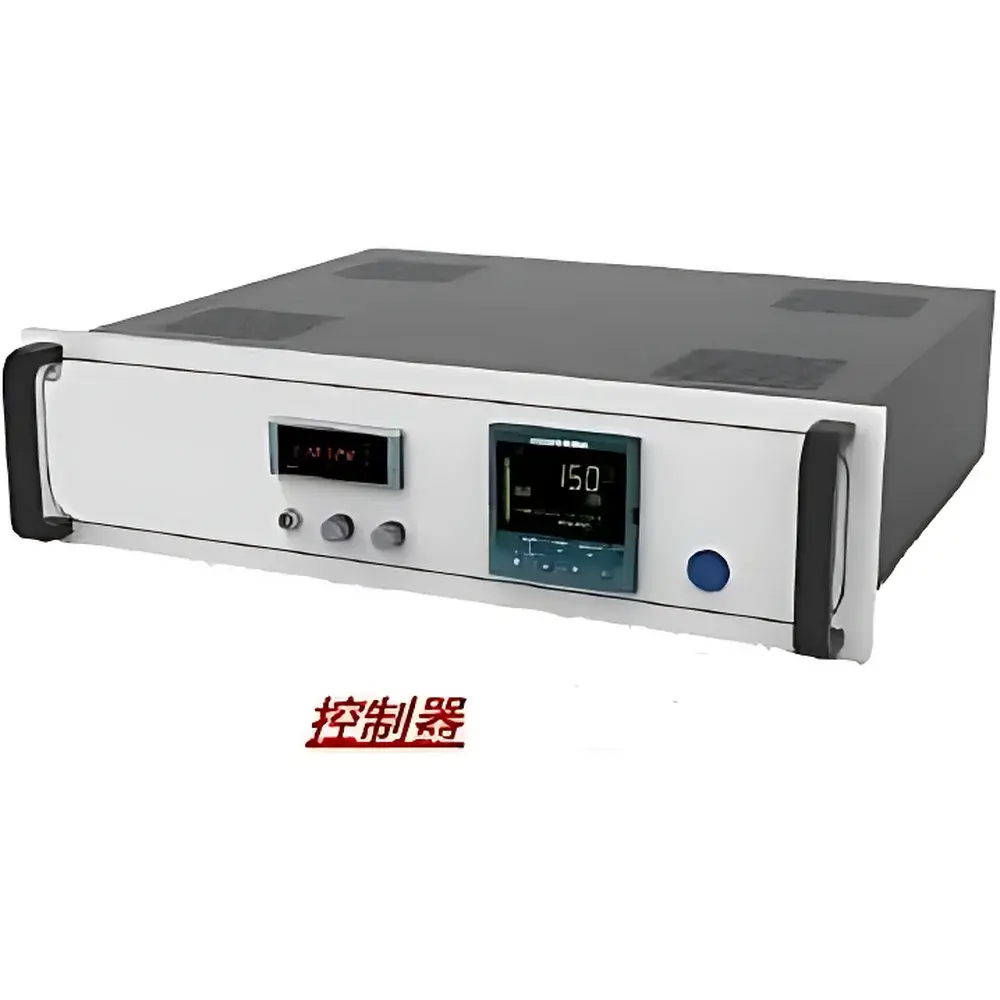

• Front-panel interface with programmable ramp/soak profiles, alarm thresholds, and data logging capability (via RS-232/RS-485 and optional Ethernet)
• Compliance-ready firmware architecture supporting audit trails, user access levels, and electronic signature functionality aligned with FDA 21 CFR Part 11 requirements for regulated environments

Sample Compatibility & Compliance

The HT-M1000020 accommodates standard infrared detectors, thermal cameras (uncooled microbolometers and cooled InSb/MCT systems), pyrometers, and FTIR spectrometers requiring calibrated radiance sources between 3 µm and 14 µm spectral bands. Its 20 mm aperture enables direct coupling with collimators, integrating spheres, and fiber-optic input ports. All units undergo factory calibration against NPL- or NIM-traceable reference standards, with full uncertainty budgets provided per ISO/IEC 17025 Annex A. The device meets mechanical and electrical safety requirements per IEC 61010-1 and electromagnetic compatibility criteria per EN 61326-1. Optional calibration certificates include ISO 17025 accreditation and statement of conformity to ASTM E1545 (Standard Test Method for Calibration of Thermographic Systems) and ISO 18434-1 (Condition monitoring and diagnostics of machines — Thermography — Part 1: General procedures).

Software & Data Management

AOE Tech provides the proprietary BlackCal™ Control Suite v3.2—a Windows-based application supporting remote operation, multi-point calibration sequences, automated emissivity correction, and uncertainty propagation modeling. The software exports measurement logs in CSV and XML formats compliant with LIMS integration protocols. Raw temperature data includes timestamps, sensor IDs, control loop status flags, and environmental ambient readings. Audit trail records capture all parameter changes, user logins, and calibration events with immutable timestamps—enabling full GLP/GMP compliance for pharmaceutical, aerospace, and defense applications. Firmware updates are delivered via signed binary packages with SHA-256 verification.

Applications

• Radiometric calibration of infrared thermometers and thermal imagers used in predictive maintenance programs
• Performance verification of IR spectroscopy systems in QC/QA laboratories (e.g., polymer film analysis, coating thickness assessment)
• Reference source for developing and validating radiative transfer models in atmospheric science and climate simulation
• Thermal signature generation for infrared countermeasure testing and target simulator subsystems
• Educational use in optical physics and heat transfer curricula for experimental validation of Stefan-Boltzmann and Wien’s displacement laws
• Traceable calibration services offered by national metrology institutes and third-party accredited labs

FAQ

What is the maximum recommended operating duration at 1000 °C?
Continuous operation at 1000 °C is rated for up to 8 hours per cycle; extended exposure requires scheduled cooldown intervals to preserve heater longevity and cavity emissivity stability.
Can the HT-M1000020 be integrated into an automated calibration line?
Yes—its SCPI-compatible command set, TTL-triggered chopper synchronization, and Ethernet/IP support enable seamless integration with robotic handling systems and automated test equipment (ATE).
Is emissivity uniformity verified across the entire aperture?
Yes—spatial emissivity mapping is performed at three radial positions (center, 0.5r, edge) using Fourier-transform infrared reflectometry; deviation remains <±0.002 across the 20 mm opening.
Does the unit support custom cavity geometries or non-standard apertures?
AOE Tech offers non-standard configurations—including elliptical apertures, extended-depth cavities, and flange-mounted variants—under its OEM engineering service program with lead times starting at 12 weeks.
How is traceability maintained during field recalibration?
Field recalibration uses portable reference blackbodies (e.g., Optris CT 1M series) cross-validated against primary standards; AOE Tech provides documented procedures compliant with ISO/IEC 17025 Clause 6.6 for in-situ verification.
