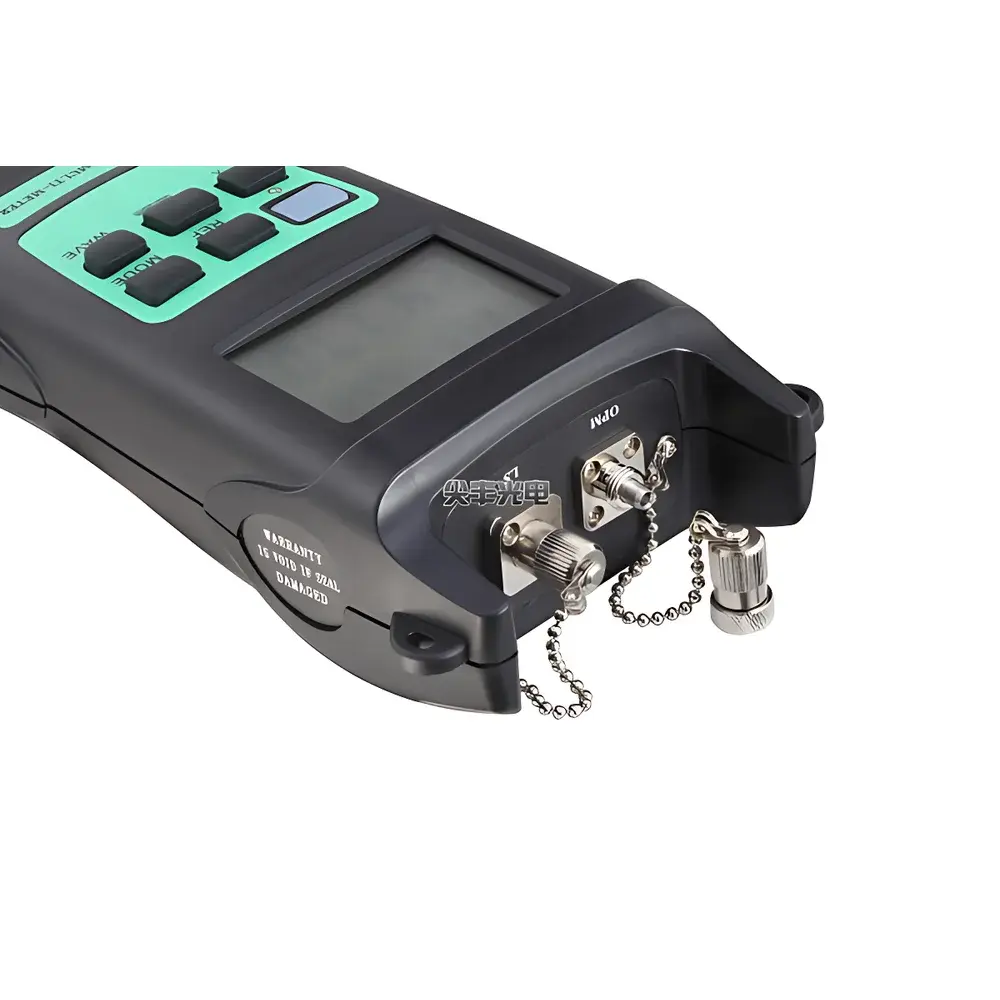

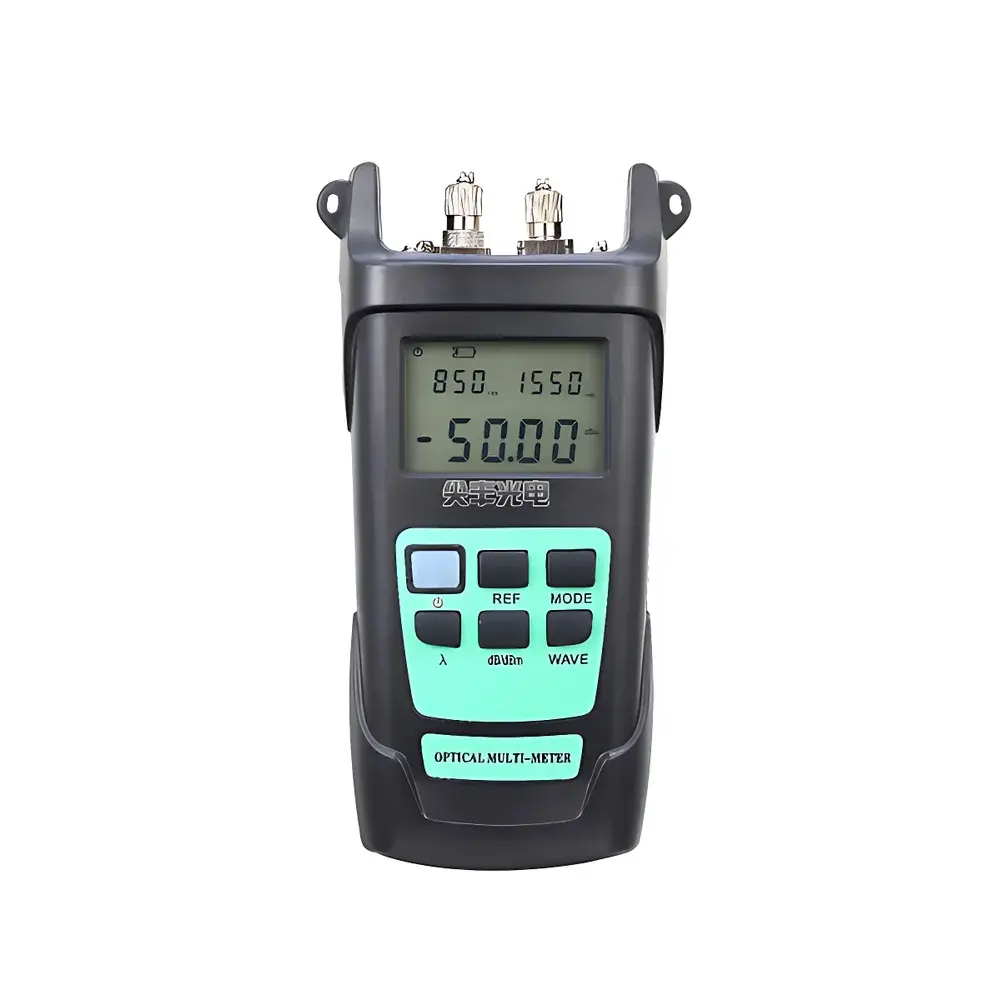

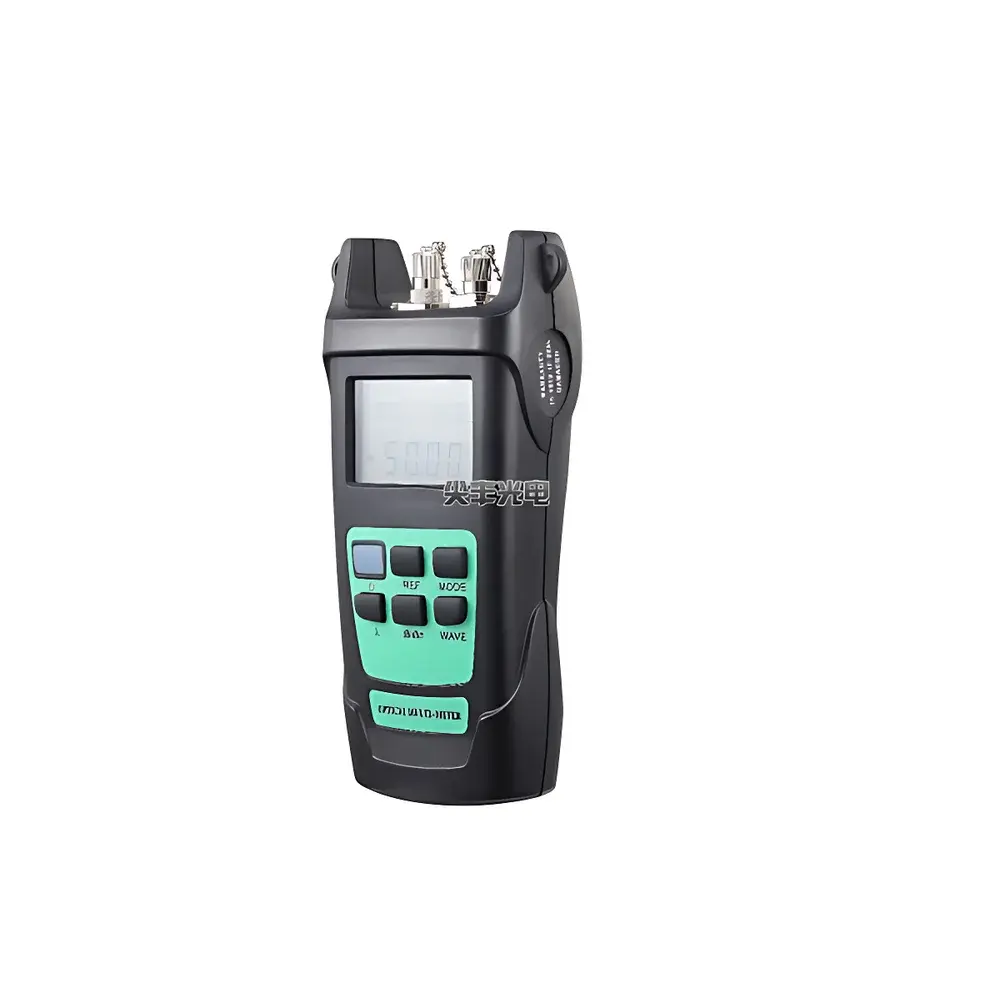

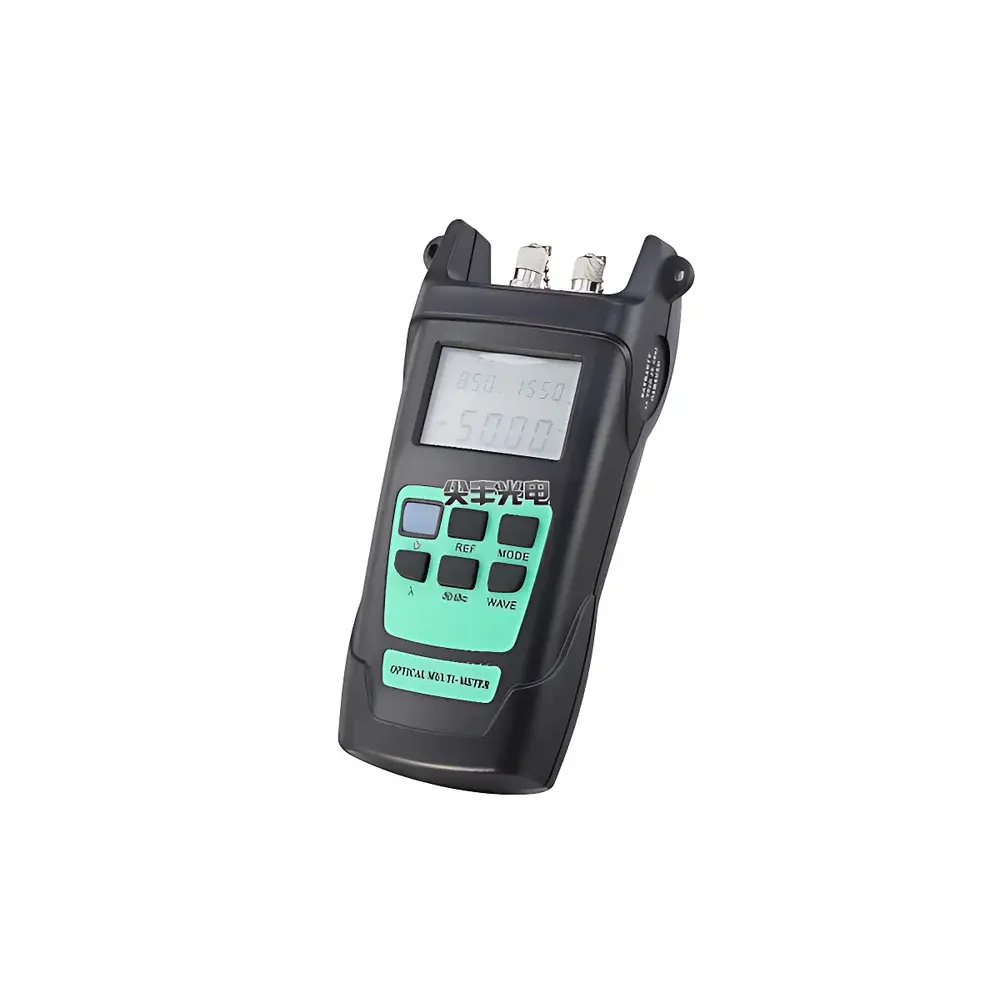

AOE Tech JF-H510i Optical Multimeter

Overview

The AOE Tech JF-H510i Optical Multimeter is an integrated, handheld field instrument engineered for precision characterization of passive optical components and fiber optic links in telecommunications, CATV, FTTx, and enterprise network infrastructure. Unlike standalone power meters or fixed-wavelength sources, the JF-H510i combines a dual-wavelength (1310/1550 nm) Fabry–Pérot laser diode (FP-LD) source with a high-sensitivity, multi-calibration-point optical power meter in a single ruggedized chassis. Its measurement principle relies on calibrated photodiode detection with NIST-traceable wavelength compensation across six standard telecom bands (850, 980, 1310, 1490, 1550, and 1625 nm), enabling accurate loss budgeting, insertion loss verification, and continuity testing without instrument swapping. Designed for field-deployed technicians and lab-based QA engineers alike, the device supports both simultaneous and independent operation modes—allowing source output and power measurement to be used concurrently for end-to-end link loss evaluation, or decoupled for component-level calibration and troubleshooting.

Key Features

• Integrated dual-function architecture: Combines stable FP-LD light source and broadband optical power meter in one compact unit
• Two interchangeable power meter modules: JF-H510A (–70 to +6 dBm, optimized for low-light sensitivity) and JF-H510C (–50 to +26 dBm, suitable for higher-power transceivers and amplifier outputs)
• Six-point wavelength calibration covering legacy multimode (850 nm), pump (980 nm), access network (1490 nm), DWDM (1550/1625 nm), and PON (1310 nm) bands
• High-resolution display with 0.01 dBm resolution and ±5% dB measurement uncertainty—meeting typical field-test requirements per IEC 61280-2-1 and Telcordia GR-1089-CORE
• Low-power FP-LD source with nominal output of –7 dBm at 1310/1550 nm; optional 650 nm visible fault locator mode available for fiber tracing
• Battery-operated design with 28-hour runtime in power-meter-only mode and ≥4 hours under full dual-mode operation
• Ruggedized housing (189 × 99.4 × 49.8 mm, 245 g) compliant with MIL-STD-810G shock and vibration profiles for field durability

Sample Compatibility & Compliance

The JF-H510i is compatible with standard single-mode (SMF-28, G.652.D) and multimode (OM1–OM4) fibers using universal 2.5 mm universal (UPC/APC) and 1.25 mm LC/SC connectors via optional adapter kits. It supports measurement of passive components including splitters, couplers, isolators, WDM filters, and patch cords per IEC 61300-3-4 (insertion loss) and IEC 61300-3-6 (return loss). While the instrument itself does not carry formal ISO/IEC 17025 accreditation, its calibration points are traceable to national metrology institutes, and it satisfies functional verification criteria outlined in ITU-T L.36 and ANSI/TIA-568.3-D for Tier 1 fiber certification. No external software or PC interface is required for basic operation; however, data logging and report generation may be performed manually per GLP-compliant documentation workflows.

Software & Data Management

The JF-H510i operates as a fully autonomous embedded instrument with no proprietary firmware updates, cloud connectivity, or driver dependencies. All measurements are displayed in real time on a high-contrast LCD screen with intuitive menu navigation. While the device lacks USB or Bluetooth export capability, users may record readings manually into standardized test logs aligned with ISO/IEC 17025 documentation templates or internal QA checklists. For organizations requiring audit-ready records, the instrument’s consistent repeatability and documented uncertainty budget support integration into paper-based or spreadsheet-based calibration management systems. It meets baseline requirements for FDA 21 CFR Part 11 compliance when used in conjunction with controlled procedural documentation—though electronic signature functionality is not implemented.

Applications

• Field verification of optical link loss in GPON, XGS-PON, and EPON deployments
• Pre-installation and post-splicing loss validation per TIA-568 and IEC 61280-4-1
• Pass/fail testing of optical receivers, transceivers, and passive optical splitters
• Baseline reference power measurement during OTDR trace correlation
• Educational laboratory use for fiber optics fundamentals and photonic component characterization
• Maintenance of campus and data center structured cabling infrastructure

FAQ

Is the JF-H510i suitable for measuring high-power EDFA outputs?

Yes—when equipped with the JF-H510C power meter module (–50 to +26 dBm range), it supports safe and accurate measurement of booster amplifier outputs up to +23 dBm, provided appropriate attenuators are used for levels exceeding +20 dBm.
Can the source wavelength be customized beyond 650/1310/1550 nm?

Yes—AOE Tech offers factory-configurable variants with 1490 nm or 1625 nm source options upon request, subject to minimum order quantities and lead-time confirmation.
Does the instrument include factory calibration certificates?

Each unit ships with a manufacturer’s calibration report listing measured deviation against reference standards at all six wavelengths; NIST-traceable certificates are available as an optional add-on.
What connector types are supported natively?

The JF-H510i features a universal 2.5 mm ferrule port compatible with UPC and APC physical contact interfaces; LC, SC, FC, and ST adapters are sold separately.
Is the device compliant with RoHS and REACH directives?

Yes—the JF-H510i conforms to EU Directive 2011/65/EU (RoHS 2) and Regulation (EC) No 1907/2006 (REACH), with full material declarations available upon request.
