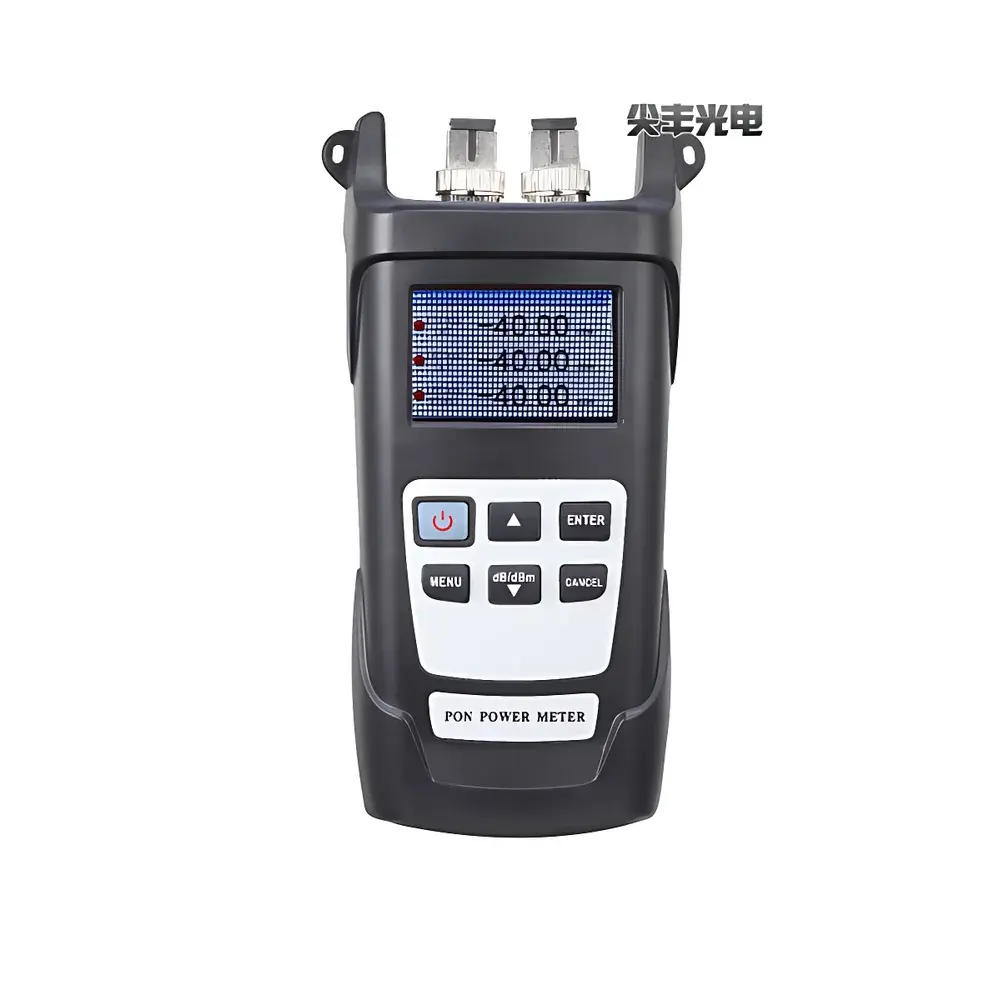

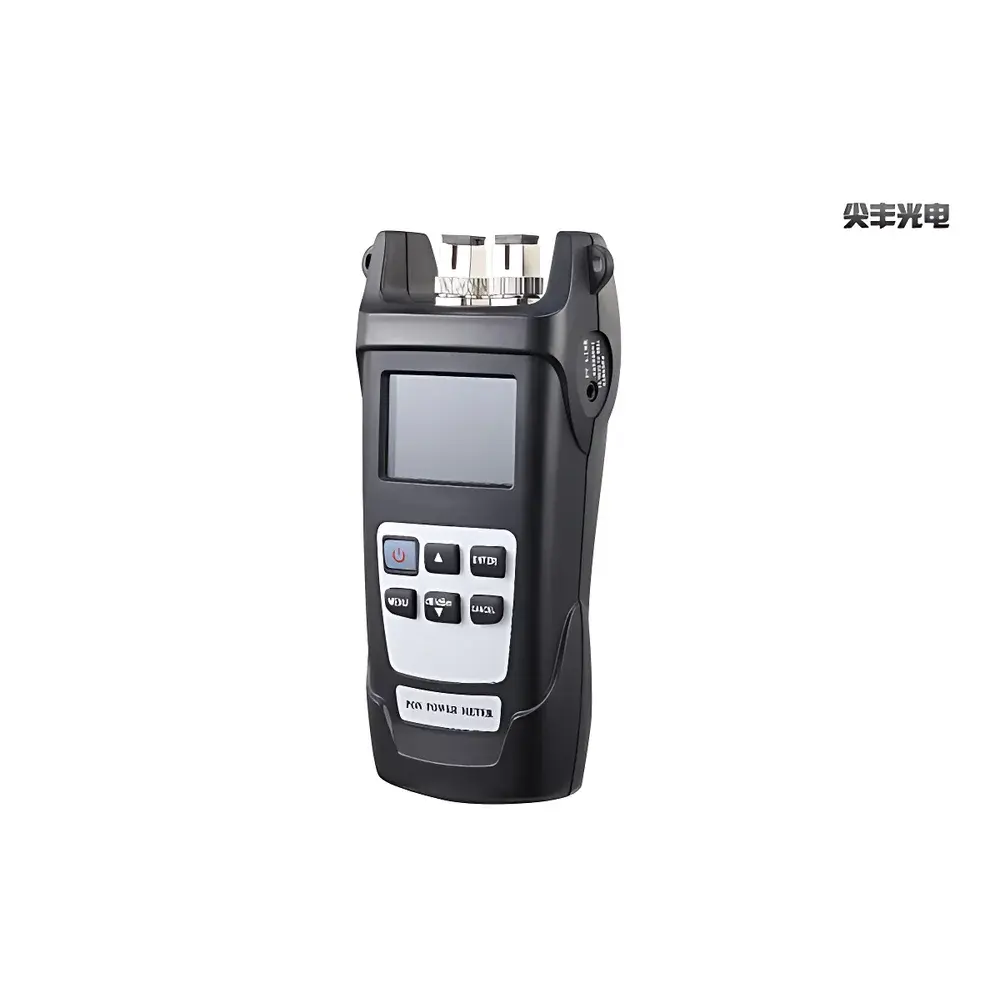

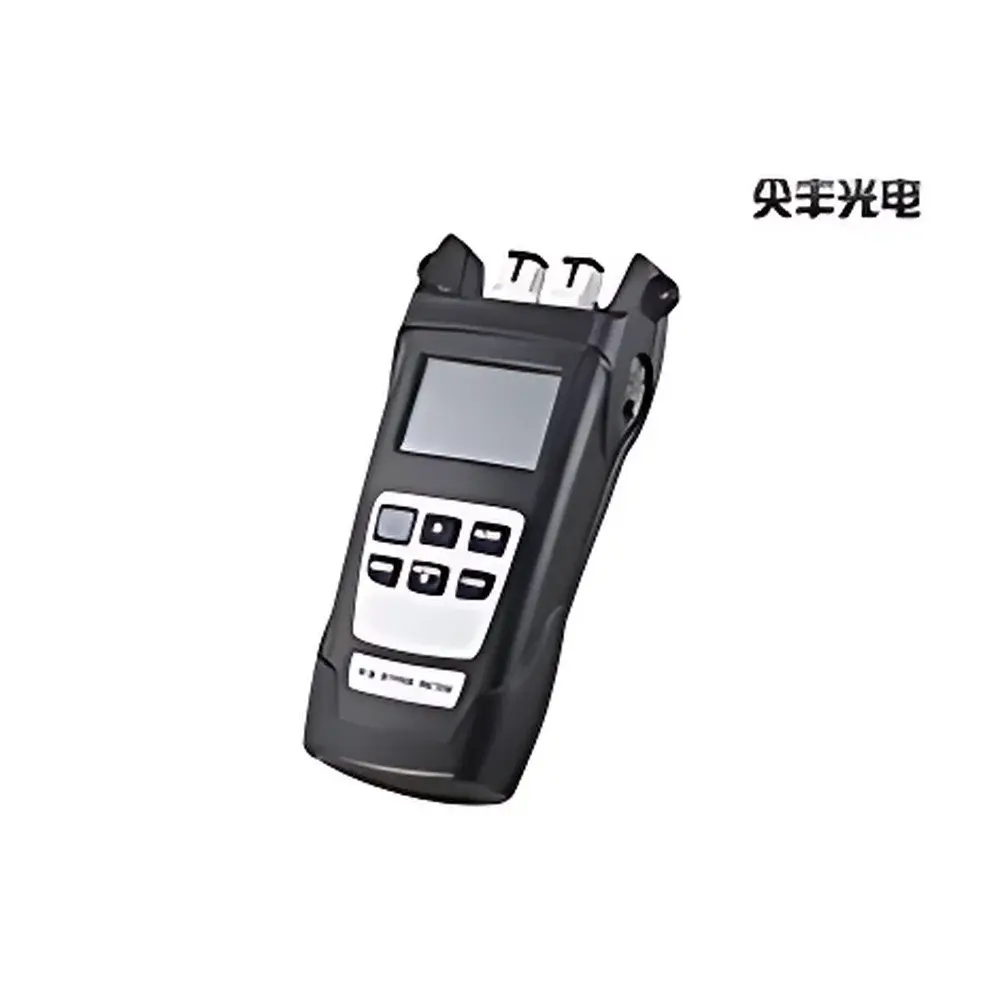

AOE Tech JF-H660i PON Optical Power Meter

Overview

The AOE Tech JF-H660i PON Optical Power Meter is a purpose-built field instrument engineered for precise, simultaneous optical power measurement across all three critical wavelength channels in Passive Optical Network (PON) infrastructures—1310 nm (upstream), 1490 nm (downstream data/voice), and 1550 nm (downstream RF video). Unlike general-purpose optical power meters, the JF-H660i integrates triple-channel wavelength-selective detection with high-isolation optical filtering, enabling accurate, real-time separation and quantification of co-propagating signals without manual wavelength switching or external demultiplexing. Its design adheres to ITU-T G.983.x and G.984.x PON system specifications, ensuring compatibility with EPON, GPON, XG-PON, and NG-PON2 deployments. The meter operates on a calibrated photodiode-based detection architecture with temperature-compensated analog signal processing, delivering stable readings under variable environmental conditions typical of outside plant (OSP) and central office environments.

Key Features

• Triple-wavelength concurrent measurement: Simultaneous acquisition of power levels at 1310 nm, 1490 nm, and 1550 nm—eliminating sequential scanning delays and reducing test time per drop by >60%.
• High optical isolation: >40 dB channel-to-channel isolation at each designated band ensures minimal crosstalk between upstream and downstream signals, critical for accurate service-level verification in live PON splits.
• Extended dynamic range: –40 dBm to +20 dBm at 1550 nm supports measurement of both low-power upstream bursts and high-power downstream CATV carriers without range switching or attenuation.
• Temperature-stabilized calibration: Factory calibration traceable to NIST-equivalent standards, with built-in thermal drift compensation over –10 °C to +60 °C operating range.
• Single-mode fiber optimized interface: FC/PC or SC/PC adapter options; compatible with ITU-T G.652.D compliant SMF-28 fiber; insertion loss <1.5 dB ensures minimal impact on live link integrity during in-service testing.
• Integrated rechargeable Li-ion battery (7.4 V) with 8.4 V DC input support: Enables >12 hours of continuous operation; battery status and charging indicator displayed in real time.

Sample Compatibility & Compliance

The JF-H660i is validated for use with standard single-mode optical fibers (ITU-T G.652.D, G.657.A1/B2) and is compatible with common PON splitter configurations (1×32, 1×64) and optical distribution networks (ODNs) conforming to GR-909-CORE and Telcordia SR-3529. It meets IEC 61300-3-35 (fiber optic interconnecting devices—test methods for return loss and insertion loss), and its electrical safety design complies with IEC 61010-1:2010 (measurement, control, and laboratory equipment). While not certified to FDA 21 CFR Part 11, its firmware supports audit-ready logging when used in GLP-aligned field documentation workflows—timestamps, operator ID fields, and unit configuration metadata are embeddable in exported CSV reports.

Software & Data Management

The JF-H660i includes embedded non-volatile memory capable of storing up to 1,000 test records, each containing timestamp, wavelength-specific power values, measurement units (dB/dBm), and user-defined location tags. Data export is supported via USB 2.0 to PC; no proprietary drivers required—device appears as a standard CDC ACM serial interface. Exported files follow RFC 4180-compliant CSV structure, facilitating direct import into network inventory systems (e.g., Netcracker, TM Forum SID), spreadsheet analysis tools, or custom Python/Pandas validation scripts. Firmware updates are performed via signed binary packages distributed through AOE Tech’s secure customer portal—no third-party software installation needed.

Applications

• PON deployment commissioning: Verifying optical power budgets across OLT–splitter–ONT paths prior to service activation.
• Fault isolation in multi-wavelength environments: Differentiating whether low upstream power stems from ONT transmitter failure, fiber bend loss, or splitter degradation—without disrupting downstream services.
• CATV overlay monitoring: Quantifying 1550 nm RF video carrier levels relative to system noise floor and composite second-order (CSO) thresholds.
• Periodic maintenance audits: Tracking long-term power drift in aging splitters or splices using stored historical baselines.
• Training and certification labs: Supporting hands-on instruction aligned with BICSI OSP-RC and FOA CFOT curricula on PON physical layer diagnostics.

FAQ

Does the JF-H660i support automatic wavelength identification?

No—it requires manual selection of measurement mode (1310/1490/1550 nm) prior to connection, consistent with industry-standard PON meter practice to avoid misinterpretation of composite spectra.
Can it measure burst-mode upstream signals from ONTs?

Yes—the photodiode front-end and analog signal chain are designed for stable DC-equivalent response to GPON/EPON upstream bursts (typically 125 MHz repetition rate); average power is reported with ±0.5 dB inherent uncertainty.
Is calibration certificate included with shipment?

A factory calibration report (traceable to national metrology institute standards) is provided digitally upon request; NIST-traceable recalibration services are available through AOE Tech’s authorized service centers every 12 months.

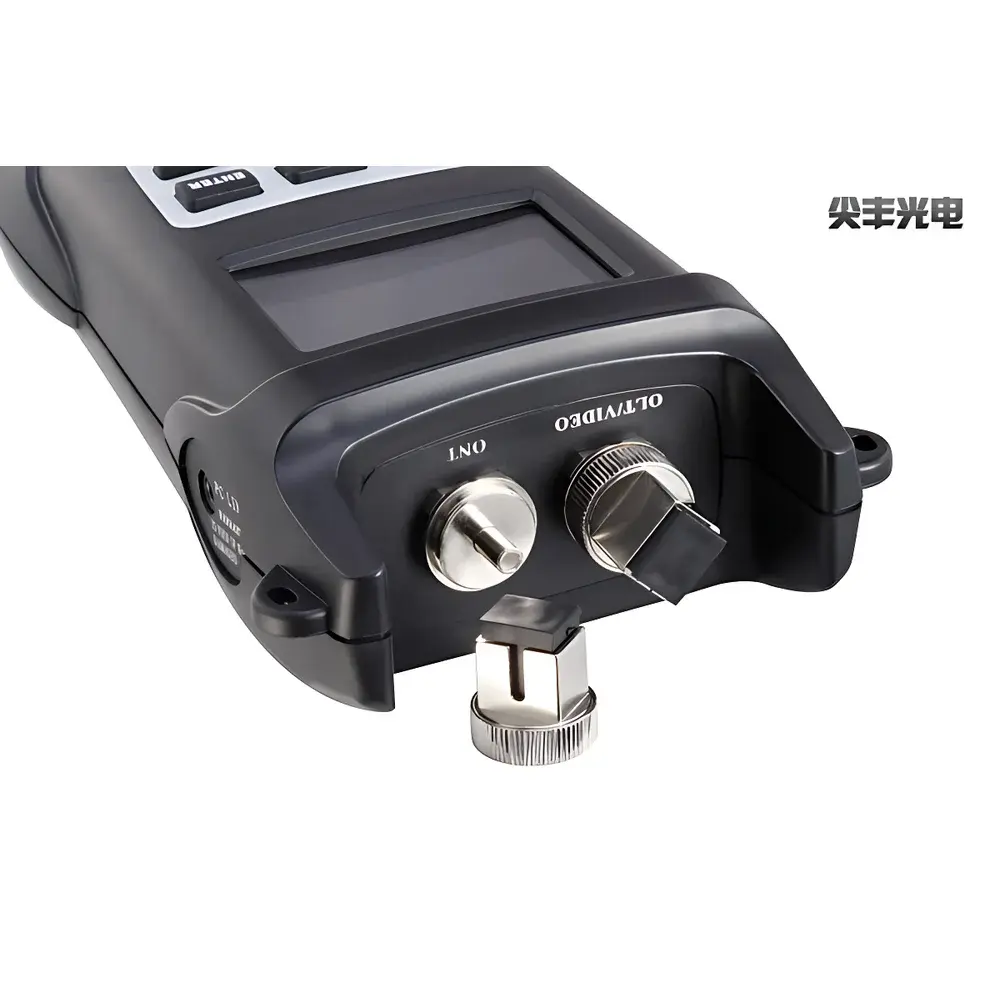

What fiber connector types are supported out of the box?

Standard configuration includes FC/PC; SC/PC and LC/PC adapters are available as optional accessories—no internal hardware modification required.
Does the device meet RoHS and REACH requirements?

Yes—compliance documentation (DoC, SVHC declaration) is available in the product technical dossier upon request, covering EU Directive 2011/65/EU and Regulation (EC) No 1907/2006.
