AOE Tech PMFWDM Polarization-Maintaining Wavelength Division Multiplexer

Overview

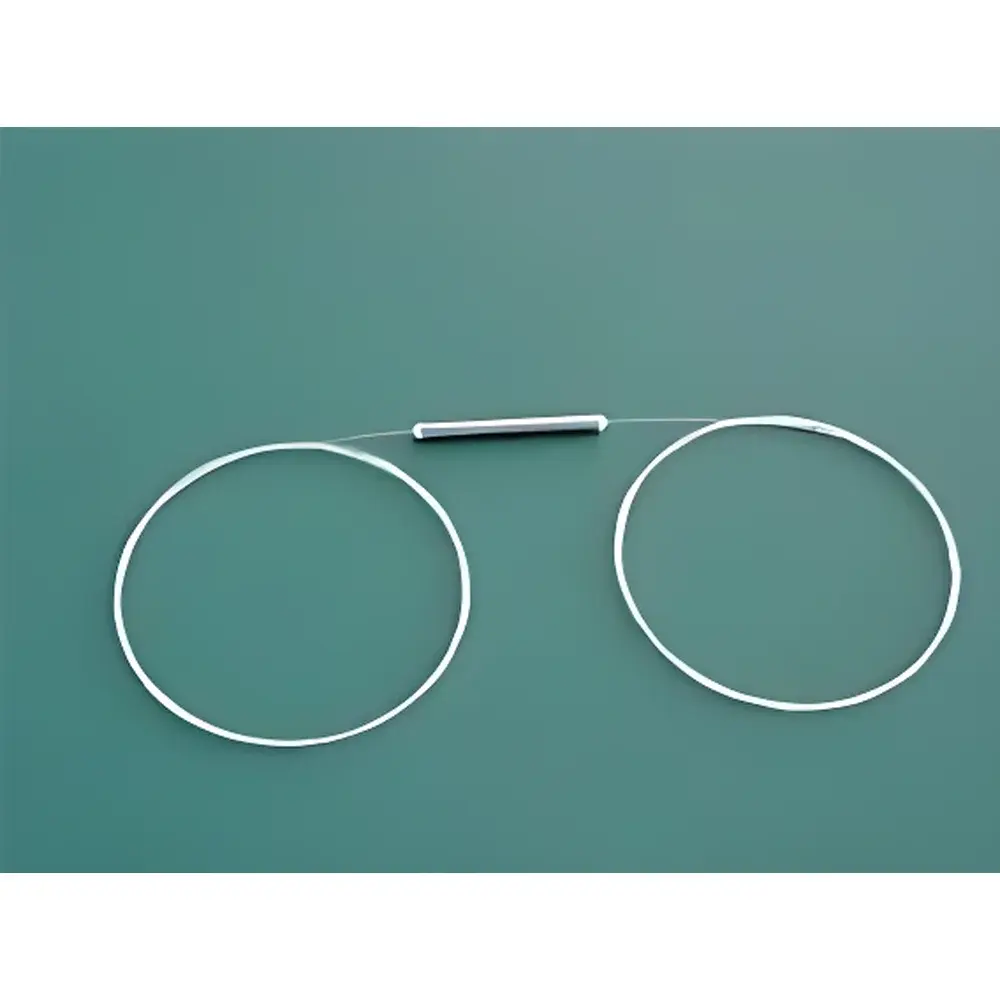

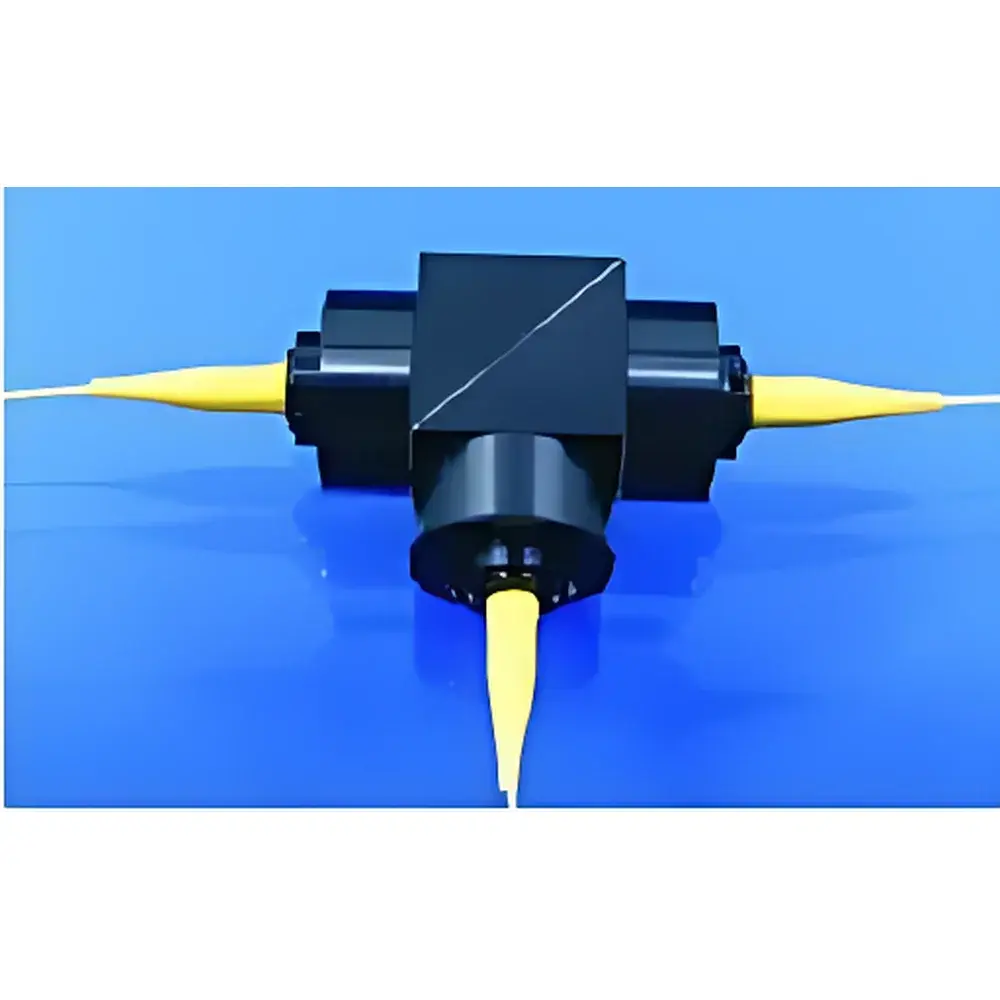

The AOE Tech PMFWDM Polarization-Maintaining Wavelength Division Multiplexer is a passive fiber-optic component engineered for high-fidelity signal routing in polarization-sensitive photonic systems. Based on either fused biconical taper (FBT) or micro-optic free-space design principles, the device enables bidirectional wavelength-selective coupling and separation while preserving the linear polarization state of input light. Its operation relies on precise spectral filtering—either through evanescent field coupling in tapered PM fiber regions (FBT variant) or dichroic beam splitting and recombination via collimated optics (micro-optic variant). This dual-technology capability ensures compatibility with demanding applications in coherent detection, polarization-maintaining fiber amplifiers, narrow-linewidth laser systems, and interferometric sensing where polarization extinction ratio (PER), thermal stability, and low polarization-dependent loss (PDL) are critical performance determinants.

Key Features

• High extinction ratio ≥20 dB, ensuring minimal cross-coupling between orthogonal polarization modes
• Low insertion loss: ≤0.8 dB at transmit port and ≤0.6 dB at reflect port across all standard wavelength pairs
• Robust isolation performance: ≥25 dB (transmit path) and ≥13 dB (reflect path), minimizing inter-channel crosstalk
• Thermally stable operation: insertion loss drift ≤0.005 dB/°C over 0–65 °C operating range
• Return loss ≥50 dB, reducing back-reflection-induced instabilities in laser cavities and amplifier stages
• Polarization-dependent loss (PDL) ≤0.3 dB—critical for maintaining signal fidelity in polarization-encoded systems
• Support for multiple standardized wavelength combinations: 980/1064, 1030/1064, 980/1550, 1550/1064, and 1480/1550 nm
• Flexible packaging: bare fiber (250 µm), loose tube (900 µm or 3 mm), or connectorized options (FC/APC, SC/APC, FC/UPC, SC/UPC); default key alignment to slow axis

Sample Compatibility & Compliance

The PMFWDM is compatible with industry-standard polarization-maintaining fibers including Panda-type PM980, PM1550, and HI1060, as well as standard single-mode fiber (SMF-28e) at non-polarization-sensitive ports. All devices undergo 100% optical characterization per batch, including PER, IL, isolation, and RL verification under controlled temperature conditions. While not certified to a specific regulatory standard by default, the component meets functional requirements aligned with Telcordia GR-1209-CORE and GR-1221-CORE for passive optical components. For integration into FDA-regulated medical laser systems or aerospace-grade instrumentation, traceable calibration data and extended environmental testing (e.g., MIL-STD-883H Method 1010 for thermal cycling) can be provided upon request. The device supports GLP-compliant documentation packages when deployed in R&D or metrology environments requiring audit-ready records.

Software & Data Management

As a fully passive optical component, the PMFWDM requires no firmware, driver software, or embedded control interface. However, its performance parameters—including measured IL, PER, isolation, and RL—are delivered in standardized CSV and PDF format with each unit. These datasets support integration into automated test platforms (e.g., LabVIEW-based optical characterization suites) and quality management systems (QMS) compliant with ISO 9001:2015. For customers implementing automated assembly lines or production-line optical testing, AOE Tech provides configurable test reports compatible with common MES platforms, including optional digital signatures and timestamped measurement logs traceable to NIST-traceable power meters and polarization analyzers.

Applications

• Polarization-maintaining erbium-doped fiber amplifiers (PM-EDFAs), where 980 nm pump light is combined with 1550 nm signal light without degrading PER
• Coherent optical communication transceivers requiring polarization-aligned pump-signal multiplexing in integrated MOPA architectures
• Fiber laser systems utilizing 1030/1064 nm or 1480/1550 nm wavelength pairing for pump/signal management in Yb- or Er-doped cavities
• Fiber optic gyroscopes (FOGs) and interferometric sensors relying on stable polarization states across multi-wavelength interrogation schemes
• Quantum optics experiments involving polarization-entangled photon sources and wavelength-multiplexed detection paths
• R&D laboratories developing next-generation PIC-based subsystems requiring hybrid integration of PM fiber and free-space micro-optics

FAQ

Is this device suitable for bidirectional operation as both a multiplexer and demultiplexer?
Yes—the PMFWDM is intrinsically reciprocal and functions identically in both directions; the “T” (transmit) and “R” (reflect) port labels denote nominal operational orientation but do not imply unidirectional functionality.

What is the maximum continuous-wave optical power the device can handle?
The standard rating is ≤300 mW total incident power across all ports; derating is recommended above 250 mW in high-reliability applications or elevated ambient temperatures.

Can I specify custom wavelength pairs outside the listed options?
Yes—micro-optic variants support wavelength selection from 400 nm to 1625 nm; custom designs require minimum order quantities and additional lead time for optical coating and alignment validation.

How is connector key alignment verified and documented?
Each connectorized unit includes a certificate stating slow-axis alignment tolerance (±2°), verified using a calibrated polarization controller and rotating analyzer method per IEC 61300-3-32.

Does the device meet RoHS or REACH compliance requirements?
All materials used in housing, adhesives, and fiber coatings comply with EU Directive 2011/65/EU (RoHS 2) and Regulation (EC) No 1907/2006 (REACH); full substance declarations are available upon request.
