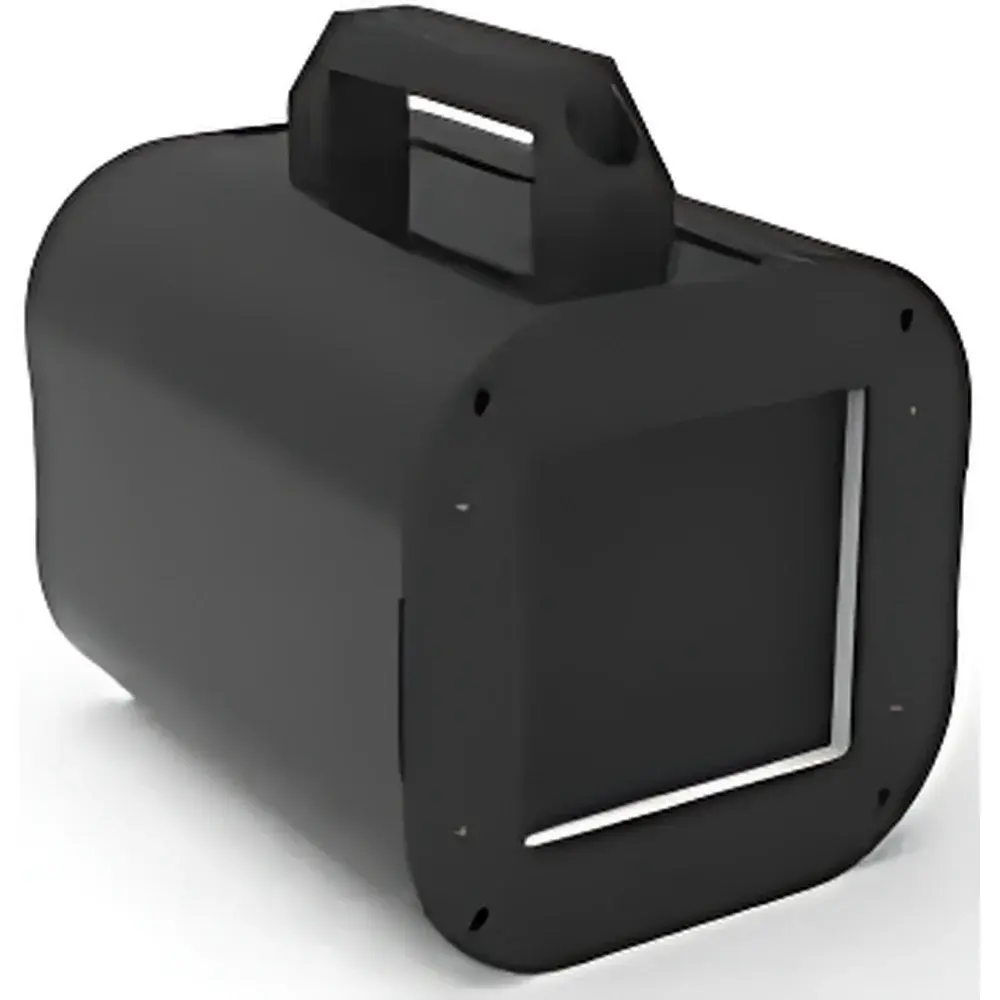

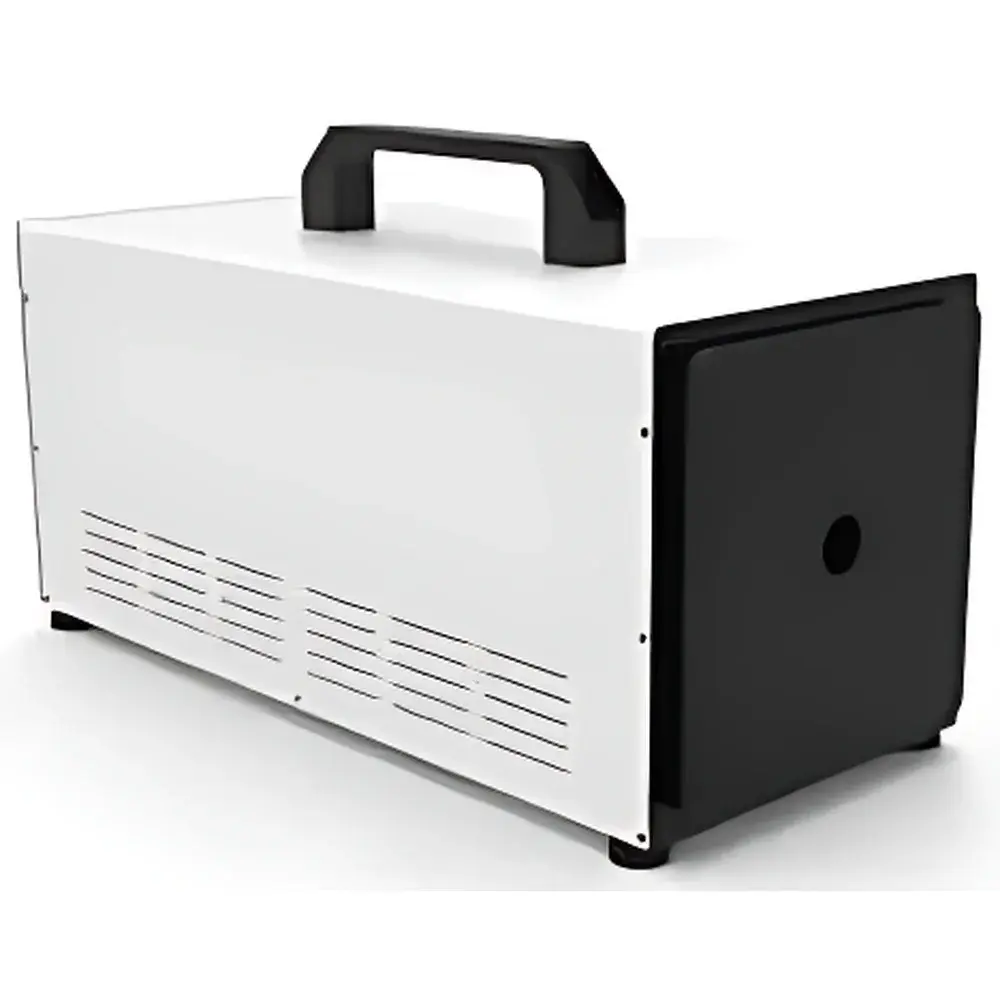

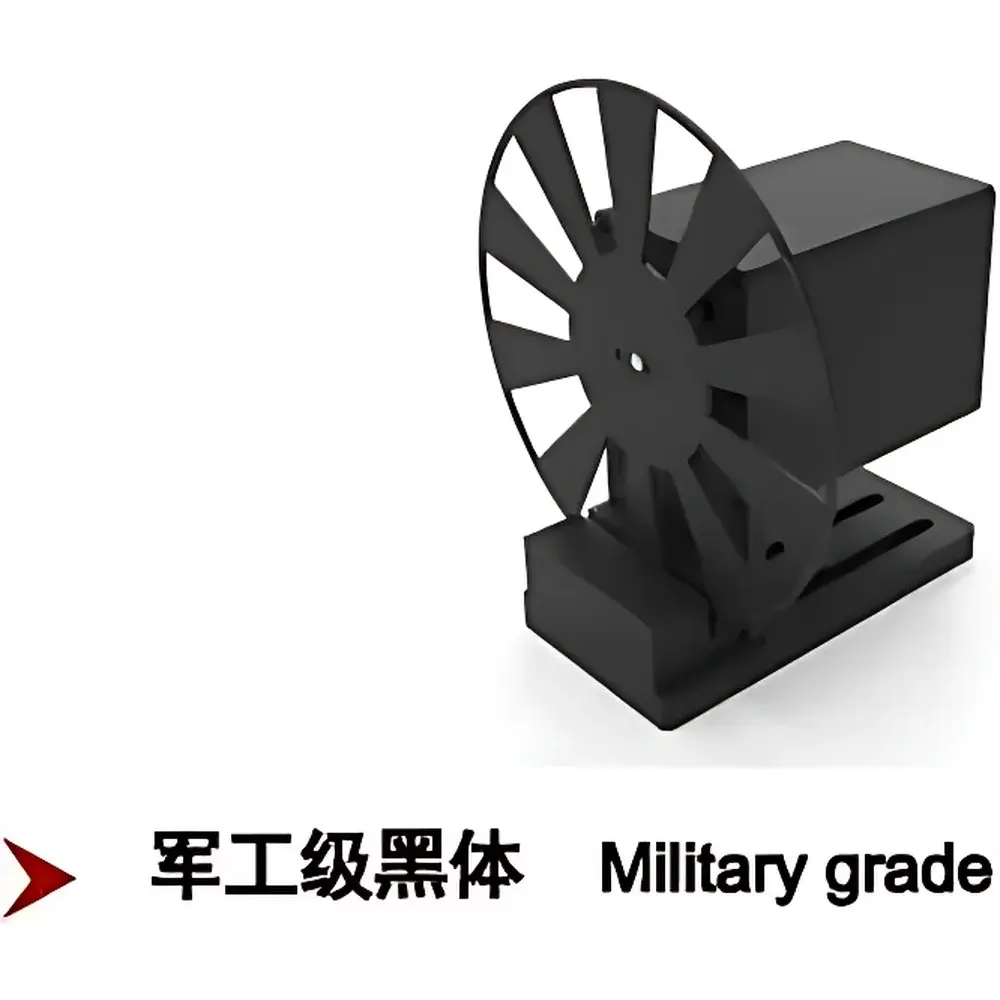

AOE Tech TM Series High-Stability Blackbody Calibrator for Infrared Thermometers
| Key | Brand: AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | TM |
| Emissivity | 0.997 (high-temp cavity), 0.99 (ambient-temperature cavity) |
| Temperature Range (High-Temp Mode) | +5 °C to 1200 °C |
| Temperature Range (Ambient Mode) | 30 °C to 50 °C |
| Aperture Diameter | 12 mm (high-temp), 75 × 75 mm (ambient) |
| Temperature Stability | ±0.1 °C per 30 min (both modes) |
| Temperature Accuracy | ±0.01 °C (high-temp), ±0.05 °C (ambient) |
| Cavity Type | Precision machined, isothermal blackbody cavity with graphite-coated interior |
Overview
The AOE Tech TM Series High-Stability Blackbody Calibrator is a dual-mode, laboratory-grade reference source engineered for traceable calibration of infrared thermometers, thermal imaging cameras, and non-contact temperature sensors. It operates on the fundamental principle of Planck’s law of blackbody radiation: by maintaining a precisely controlled, highly emissive cavity at a known thermodynamic temperature, it provides a stable, spectrally uniform radiance source across the mid-wave (3–5 µm) and long-wave (8–14 µm) infrared bands. Unlike low-cost portable sources, the TM Series features actively stabilized isothermal cavity architecture with dual-zone thermal control—enabling simultaneous high-temperature calibration (up to 1200 °C) and ambient-range verification (30–50 °C) with metrological integrity. Its design conforms to the physical definition of an ideal blackbody (emissivity ≥ 0.99), validated via cavity geometry analysis and spectral reflectance measurement per ISO/IEC 17025-accredited methods.
Key Features
- Dual-cavity configuration: Independent high-temperature (12 mm aperture, +5–1200 °C) and ambient-temperature (75 × 75 mm aperture, 30–50 °C) cavities eliminate cross-mode thermal interference.
- Ultra-high emissivity: Graphite-coated, conical-isothermal cavity achieves ε = 0.997 (high-temp) and ε = 0.99 (ambient), verified per ASTM E1545-22 Annex A2.
- Stability-engineered thermal control: PID-regulated multi-zone heating with embedded Pt100 Class A sensors ensures ≤ ±0.1 °C drift over 30 minutes—meeting requirements for ISO 12845 and IEC 62942-2 calibration protocols.
- Traceable temperature accuracy: Factory-calibrated against NIM (National Institute of Metrology, China)-certified standards; optional UKAS or DAkkS calibration certificates available upon request.
- Rugged industrial enclosure: IP54-rated housing with passive cooling fins and internal thermal shielding enables deployment in field environments including airport security checkpoints and manufacturing QA labs.
Sample Compatibility & Compliance
The TM Series supports calibration of all commercially available infrared thermometers (including handheld pyrometers, fixed-mount sensors, and IR spot thermometers) and uncooled microbolometer-based thermal imagers. It complies with key international standards governing radiometric calibration: ISO/IEC 17025:2017 (clause 6.4.10 on reference material traceability), ASTM E1256-21 (Standard Test Methods for Radiation Thermometers), and IEC 61215-2 (for photovoltaic module thermal validation). For regulated industries, its firmware supports audit-ready logging (time-stamped setpoint, actual cavity temperature, stability duration) aligned with FDA 21 CFR Part 11 electronic record requirements when integrated with validated third-party software.
Software & Data Management
The calibrator operates standalone via front-panel keypad and OLED display, but also supports RS-232 and USB-C digital interfaces for remote operation. AOE Tech’s free PC-based Calibration Manager v3.2 enables automated ramp-and-soak sequences, real-time stability monitoring, and generation of calibration reports compliant with GLP/GMP documentation templates. All temperature data are logged with UTC timestamps, sensor ID, operator ID, and environmental ambient readings (optional external probe input). Export formats include CSV, PDF (with digital signature), and XML for LIMS integration.
Applications
- Primary calibration of clinical and industrial infrared thermometers used in fever screening systems—including airport thermal gates and hospital triage stations deployed during public health emergencies.
- Performance verification of thermal imaging systems in automotive R&D (brake disc, battery pack, exhaust manifold testing) and electronics manufacturing (PCB solder joint inspection).
- Reference source for validating emissivity correction algorithms in research-grade FTIR spectrometers and hyperspectral imaging platforms.
- Supporting ISO 9001-certified quality control processes where non-contact temperature measurement uncertainty must be ≤ ±0.3 °C (k=2) across production lines.
- Academic metrology laboratories conducting inter-laboratory comparisons under BIPM KCDB frameworks.
FAQ
What is the recommended recalibration interval for the TM Series?
Annual recalibration is advised for routine use; however, laboratories operating under ISO/IEC 17025 must establish interval based on historical stability data and usage frequency—typically 6–12 months.
Can the TM Series be used for calibrating thermal cameras with different spectral response ranges?
Yes—its broadband emissivity profile (0.99–0.997 across 2–14 µm) ensures compatibility with MWIR and LWIR detectors; spectral mismatch uncertainty is quantified in the calibration certificate.
Is external cooling required for continuous operation at 1200 °C?
No—integrated forced-air cooling and thermal isolation enable sustained high-temperature operation without external chillers or water lines.
Does the device support custom aperture inserts for specialized sensor geometries?
Yes—AOE Tech offers optional collimator-compatible apertures (10 mm, 25 mm, and 50 mm diameters) with documented effective emissivity corrections.
How is traceability to national standards documented?
Each unit ships with a factory calibration report referencing NIM standard #NIM-IR-2023-0892, including uncertainty budget per GUM (JCGM 100:2008) and coverage factor k=2.
