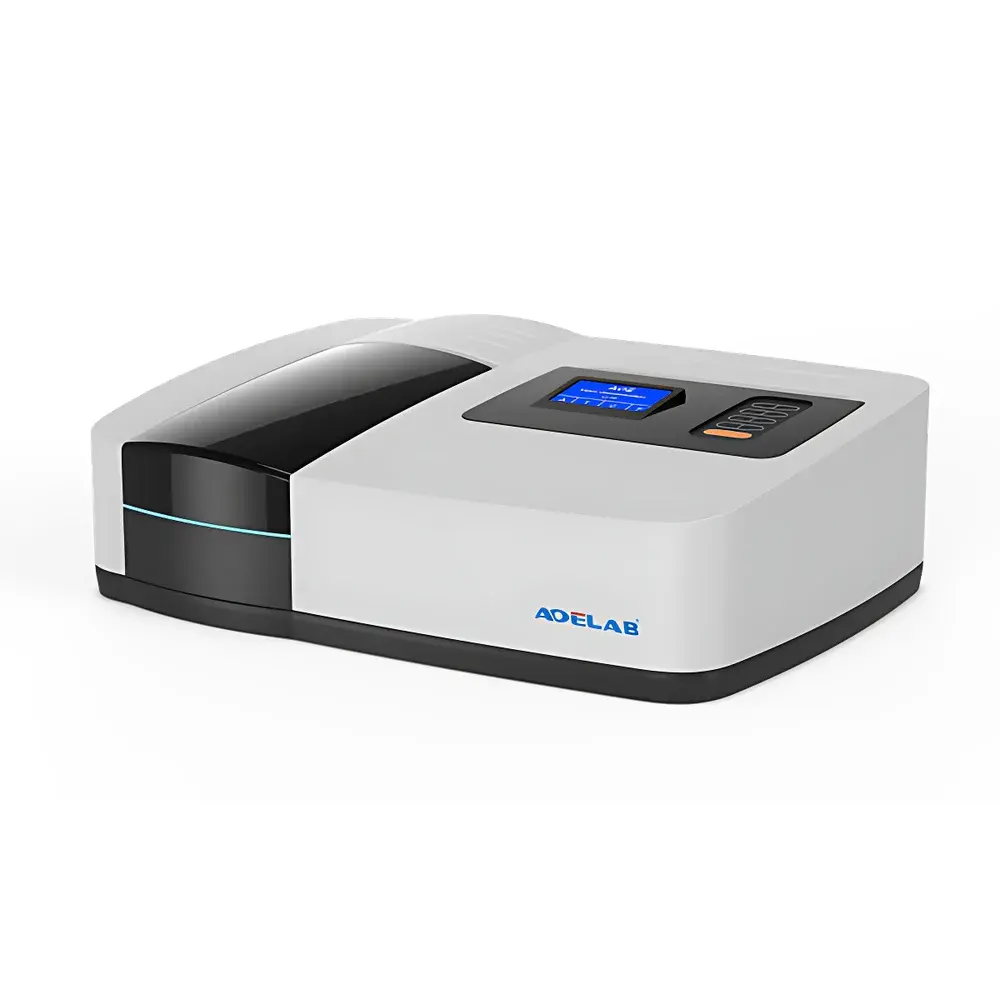

AOE UV-1200 Ultraviolet-Visible Spectrophotometer

Overview

The AOE UV-1200 Ultraviolet-Visible Spectrophotometer is a single-beam spectrophotometric instrument engineered for routine quantitative and qualitative analysis in academic teaching laboratories, quality control environments, and industrial R&D settings. It operates on the principle of Beer–Lambert law-based absorbance measurement, utilizing a high-efficiency holographic grating (1200 lines/mm) to disperse incident light across the ultraviolet and visible spectrum (195–1020 nm). While configured as a single-beam optical system, it incorporates dual-beam ratio monitoring architecture—enabling real-time reference beam compensation during sample measurement without mechanical beam switching. This design improves baseline stability and minimizes drift-related errors in extended acquisition sessions. The instrument delivers reliable photometric performance with a fixed spectral bandwidth of 4.0 nm, supporting absorbance (A), transmittance (T), concentration (C), and energy (E) measurement modes. Its robust mechanical construction and thermally stable optical path ensure consistent operation under standard laboratory conditions (20–25°C, <70% RH).

Key Features

• 128 × 64 dot-matrix LCD display with intuitive menu navigation and real-time spectral preview
• Integrated USB host interface for direct data export to FAT32-formatted USB flash drives—no PC dependency required for basic reporting
• RS-232 serial port compliant with ESC/P and PCL printer protocols; supports label printers and thermal receipt printers for GLP-compliant hardcopy output
• Firmware upgrade capability via USB: users enter instrument serial number on the AOE support portal to download validated firmware packages; one-click installation ensures traceable version control
• Pre-installed AOE Basic Spectroscopy Suite software—officially registered with the China National Copyright Administration (Certificate No. 2021SRXXXXXX)—providing audit-ready method storage, calibration curve generation, and multi-point kinetics analysis
• Compliance-certified optical enclosure meeting IEC 61000-4 electromagnetic immunity standards and EN 61326-1 for laboratory equipment

Sample Compatibility & Compliance

The UV-1200 accommodates standard 10 mm square quartz or glass cuvettes (pathlength: 10 mm), compatible with aqueous, organic, and mildly corrosive solutions. It supports both transmission and reflectance measurements using optional accessories (e.g., integrating sphere adapter, solid-sample holder). All electronic subsystems conform to ISO 9001:2015 quality management requirements, CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), China Metrology Certification (CMC), and RoHS Directive 2011/65/EU for hazardous substance restriction. While not validated for 21 CFR Part 11 compliance out-of-the-box, the firmware and software architecture support ALCOA+ data integrity principles—including user access levels, electronic signature prompts, and immutable audit trails when deployed with validated IT infrastructure.

Software & Data Management

The AOE Basic Spectroscopy Suite provides a standalone Windows-compatible application for advanced spectral processing, including baseline correction, peak identification, derivative spectroscopy, and multi-wavelength kinetic modeling. Raw absorbance/time datasets are stored in .CSV and .SPC formats, enabling interoperability with third-party statistical tools (e.g., OriginLab, JMP, Python pandas). Each measurement file embeds metadata: instrument ID, operator name (manually entered), date/time stamp, wavelength range, slit width, and calibration status. Firmware logs retain all configuration changes, firmware updates, and error events for internal troubleshooting and regulatory review. Data export workflows comply with ISO/IEC 17025 clause 7.5.2 on result reporting integrity.

Applications

• Quantitative determination of nucleic acid and protein concentrations (e.g., A260/A280 ratios)
• Pharmaceutical assay validation per USP and EP 2.2.25 guidelines
• Water quality analysis: nitrate, phosphate, and COD estimation using colorimetric reagents
• Food additive quantification (e.g., tartrazine, sunset yellow) in compliance with GB 5009 series standards
• Chemical kinetics studies requiring time-scan acquisition at fixed wavelengths
• Educational use in undergraduate analytical chemistry curricula for spectral interpretation and Beer’s law verification

FAQ

Is the UV-1200 compliant with FDA 21 CFR Part 11?
The base firmware does not include electronic signature enforcement or audit trail encryption; however, its data structure and metadata logging meet foundational ALCOA+ criteria. Full Part 11 compliance requires integration with validated LIMS or ELN platforms.
What cuvette materials are supported?
Standard 10 mm pathlength quartz cuvettes (UV-grade) are recommended for measurements below 220 nm; optical glass cuvettes are acceptable for >340 nm applications.
Can the instrument perform scanning across the full 195–1020 nm range automatically?
Yes—the wavelength drive motor enables continuous scanning at selectable speeds (0.1–2.0 nm/s); scan data are acquired at 1.0 nm intervals by default, configurable down to 0.2 nm resolution.
Does the software support multi-point calibration curves with polynomial fitting?
Yes—up to six standard points with linear, quadratic, or cubic regression; residual error and R² values are reported for each fit.
Is external PC connectivity mandatory for operation?
No—standalone operation is fully functional for absorbance, transmittance, and concentration measurements using onboard controls and display; PC connection is optional for advanced analysis and long-term data archiving.
