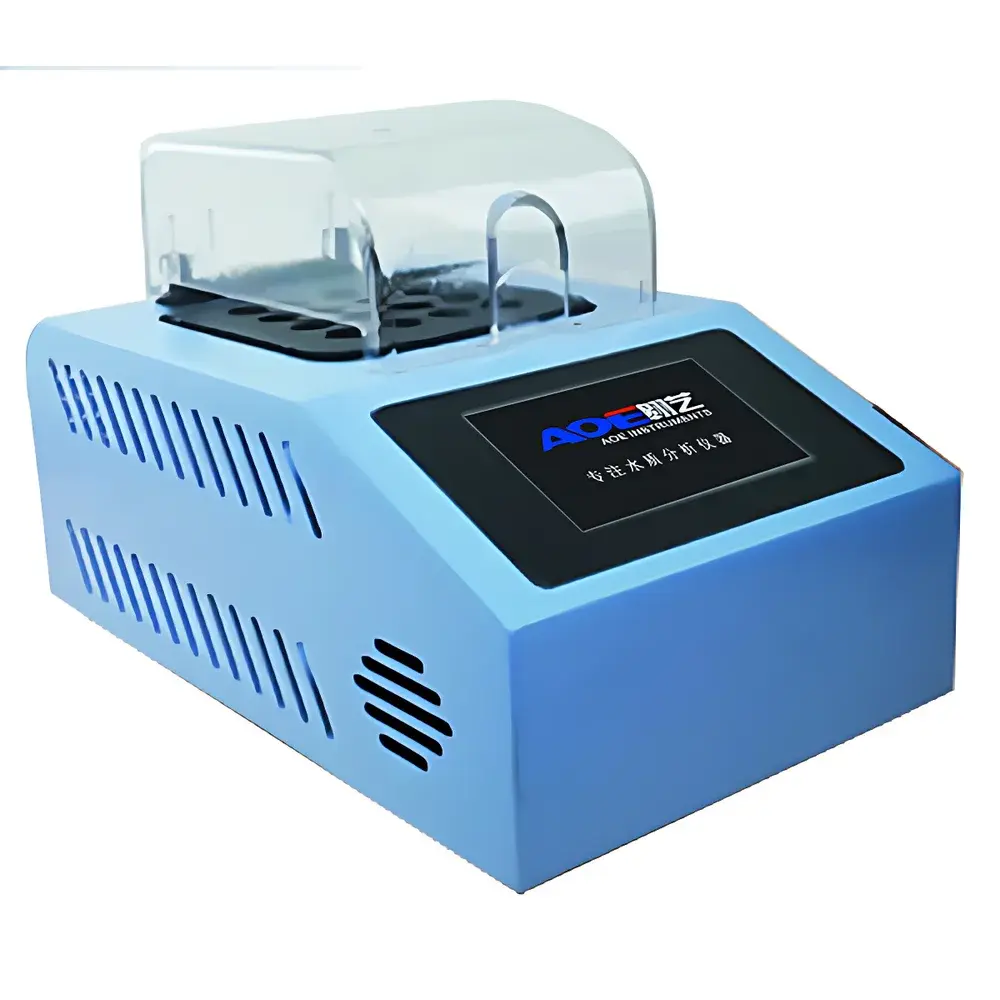

AOE WA650 Multi-Parameter Water Quality Analyzer

Overview

The AOE WA650 Multi-Parameter Water Quality Analyzer is a laboratory-grade spectrophotometric instrument engineered for precise, standardized quantification of key water quality indicators—Total Nitrogen (TN), Total Phosphorus (TP), Ammonia-Nitrogen (NH₃-N), and Chemical Oxygen Demand (COD)—in accordance with Chinese national standards (e.g., HJ 636–2012 for TN, HJ 671–2013 for TP, HJ 535–2009 for NH₃-N, and HJ 828–2017 for COD) and internationally aligned methodologies. It employs double-beam UV-Vis absorption spectroscopy across a broad spectral range (190–1100 nm), enabling high-fidelity detection of chromophoric reaction products formed during standardized colorimetric assays. The system integrates hardware-level optical stability (±0.002 A/h), sub-nanometer wavelength accuracy (±0.5 nm), and ultra-low stray light (<0.05% T) to ensure analytical reproducibility under routine laboratory conditions. Designed for environmental monitoring labs, municipal wastewater treatment facilities, and industrial QC departments, the WA650 delivers direct concentration readouts without manual calibration curve interpolation—reducing operator dependency and minimizing inter-lab variability.

Key Features

• High-resolution 65K-color TFT LCD display with intuitive icon-based navigation and real-time status feedback
• Integrated 16-position intelligent digester with PID-controlled temperature regulation (±0.5°C accuracy) and programmable ramp-hold profiles for TN, TP, NH₃-N, and COD digestion protocols
• Onboard storage of 200 pre-programmed calibration curves and capacity for 40,000 timestamped measurement records with sample ID, operator ID, and method metadata
• USB interface supporting export of raw absorbance values, concentration results, and digestion logs in CSV format for LIMS integration
• Modular cuvette compatibility (1 cm, 2 cm, and 3 cm pathlength options) to accommodate low- and high-concentration ranges per parameter
• Dual digestion modes—sealed vial digestion for TN and TP (to prevent volatile loss and ensure complete oxidation), and configurable sealed/open digestion for NH₃-N and COD based on matrix complexity and regulatory requirements

Sample Compatibility & Compliance

The WA650 is validated for use with surface water, groundwater, domestic sewage, industrial effluents, and aquaculture discharge matrices. Its assay chemistries comply with standard methods referenced in China’s Environmental Monitoring Technical Specifications (HJ/T 91–2002) and are functionally equivalent to EPA-approved procedures (e.g., EPA 351.2 for TN, EPA 365.3 for TP, EPA 350.1 for NH₃-N, and EPA 410.4 for COD). All digestion and measurement protocols are documented in instrument firmware to support GLP-compliant audit trails. While not FDA 21 CFR Part 11-certified out-of-the-box, the system supports electronic signature-ready data export and time-stamped logging—enabling laboratories to implement supplementary procedural controls for regulated environments.

Software & Data Management

The WA650 operates via embedded firmware with no external PC dependency. All calibration, method selection, digestion scheduling, and result review occur through the onboard interface. Data files include full method parameters (wavelength, digestion temp/time, reagent lot), raw absorbance at primary and reference wavelengths, calculated concentrations, and pass/fail flags against user-defined acceptance criteria. USB exports retain ISO/IEC 17025-aligned metadata: date/time stamp, instrument serial number, operator code, and version-controlled firmware ID. For enterprise deployment, exported CSVs integrate natively with common LIMS platforms (e.g., LabWare, STARLIMS) and Excel-based QA/QC dashboards.

Applications

• Regulatory compliance monitoring for municipal wastewater treatment plants (WWTPs) reporting to local ecological environment bureaus
• Source water quality assessment in reservoirs and river basins under China’s “Blue Sky and Clear Water” initiative
• Process control in electroplating, pharmaceutical, and food processing industries where nitrogen/phosphorus discharge limits apply
• Educational use in university environmental science laboratories for method validation and student training in standard spectrophotometric practice
• Field-deployable lab verification—when paired with portable power supplies and climate-controlled transport cases—for rapid response to pollution incidents

FAQ

Does the WA650 support custom calibration curve entry?
Yes—users may upload up to 200 user-defined curves via USB using the provided template (.csv), with validation prompts for linearity (R² ≥ 0.999) and blank correction logic.
Is digestion temperature uniformity verified across all 16 positions?
Yes—each position undergoes factory thermal mapping; certified uniformity is ±0.5°C at setpoints of 120°C, 122°C, and 165°C (per ISO/IEC 17025 internal verification report included with shipment).
Can the instrument store multiple operator profiles with access restrictions?
No—the WA650 does not feature role-based authentication; however, all data entries are tagged with a configurable operator ID field (alphanumeric, up to 8 characters) to support manual accountability protocols.
What reagent formats are compatible?
Pre-filled sealed vials and powder-pack reagents supplied by AOE are fully supported; third-party reagents may be used if they conform to the specified reaction stoichiometry and spectral interference profile—but performance validation remains the user’s responsibility.
Is firmware upgrade available remotely?
Firmware updates are distributed as signed .bin files via AOE’s authorized distributor portal and installed via USB—no internet connectivity is required on the instrument itself.
