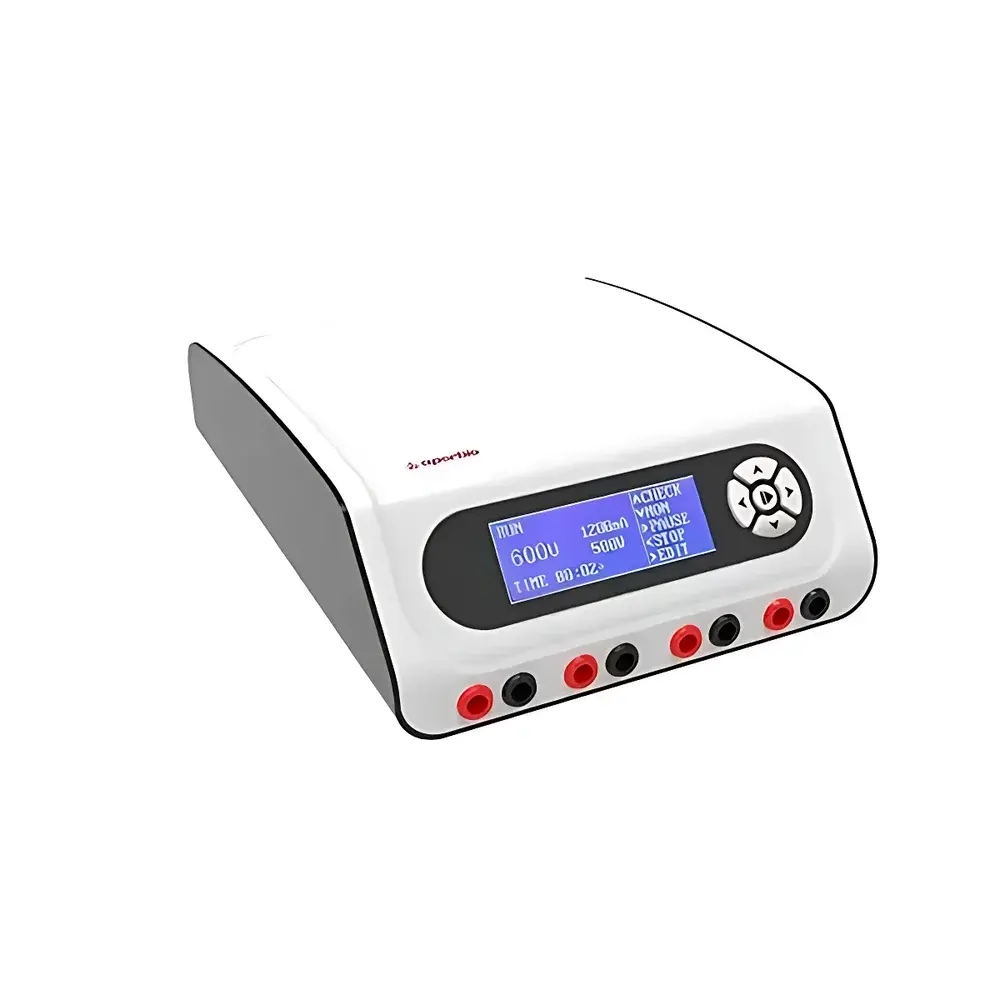

Aperbio Power HC 3000 High-Current Electrophoresis Power Supply

Overview

The Aperbio Power HC 3000 is a high-precision, microprocessor-controlled electrophoresis power supply engineered for demanding applications in protein and nucleic acid separation workflows. Designed around a tri-mode output architecture—constant voltage (CV), constant current (CC), and constant power (CP)—the unit ensures optimal field strength control across diverse gel matrixes, including SDS-PAGE, native PAGE, agarose, and gradient gels. Its core operational principle relies on closed-loop feedback regulation of DC output parameters, enabling stable electrophoretic migration under variable load conditions such as changing buffer conductivity or gel resistance over time. The device meets fundamental electrical safety requirements per IEC 61010-1 for laboratory equipment and incorporates hardware-level isolation to minimize ground-loop interference during sensitive detection protocols.

Key Features

• Tri-Mode Output Control: Seamless switching between constant voltage, constant current, and constant power modes—each independently programmable with user-defined setpoints and ramp profiles.
• Automated Gel Transition Logic: Built-in sequencing logic detects completion of the stacking gel phase (based on elapsed time or current threshold) and automatically adjusts output parameters to optimize resolution during the resolving gel phase—eliminating manual reconfiguration and reducing inter-run variability.
• Intelligent Parameter Coupling: When one parameter (e.g., voltage) is fixed, the system dynamically calculates and enforces physically consistent values for the remaining two (current and power), preventing contradictory or unsafe operating conditions.
• Microcurrent Hold Mode: Upon timer expiration, the unit transitions to a low-current maintenance mode (≤100 µA) to sustain electrophoretic equilibrium without sample diffusion or overmigration—critical for preserving band sharpness prior to staining or transfer.
• Comprehensive Electrical Safeguards: Real-time monitoring of open-circuit, short-circuit, overvoltage, arc discharge, sudden load transients, and earth leakage; automatic shutdown with audible/visual alerts and non-volatile fault logging.
• Full-Function LCD Interface: 128×64 dot-matrix display showing simultaneous real-time readouts of voltage (V), current (mA), power (W), and countdown timer (hh:mm:ss); intuitive menu navigation with password-protected configuration lock.

Sample Compatibility & Compliance

The Power HC 3000 supports standard electrophoresis systems—including mini and midi vertical units (e.g., Bio-Rad Mini-PROTEAN®, Thermo Fisher Owl E1, and Aperbio’s own gel tanks)—and horizontal agarose platforms up to 20 × 20 cm. It complies with GLP-relevant operational traceability standards: all parameter changes, run starts/stops, and fault events are timestamped and stored in internal memory (retains ≥1000 entries). While not certified for FDA 21 CFR Part 11 compliance out-of-the-box, its audit trail functionality aligns with Annex 11 and ISO/IEC 17025 documentation expectations for accredited testing laboratories. The unit operates within ambient temperature ranges of 10–40°C and relative humidity ≤80% non-condensing, meeting IP20 enclosure rating per IEC 60529.

Software & Data Management

The Power HC 3000 operates as a standalone instrument but includes an RS-232 serial port (DB9) for optional integration into lab-wide data acquisition networks. A companion PC utility (Windows 10/11 compatible) enables remote parameter programming, batch protocol storage, run log export (CSV), and firmware updates. All exported logs include UTC timestamps, operator ID fields (user-definable), and checksum-verified integrity flags—supporting traceability in regulated environments. No cloud connectivity or proprietary drivers are required; communication uses ASCII-based command syntax compliant with ANSI X3.28 standard.

Applications

• High-throughput SDS-PAGE for proteomic sample screening and QC of recombinant proteins
• Preparative electrophoresis requiring extended run times (>12 h) with thermal stability assurance
• Two-dimensional electrophoresis (2-DE) first-dimension IEF focusing where precise voltage ramping is critical
• Western blotting workflows requiring reproducible transfer efficiency across multiple membrane formats
• Educational labs performing comparative electrophoresis experiments under variable buffer ionic strength conditions
• Method development for novel polyacrylamide formulations where dynamic load compensation improves resolution consistency

FAQ

Does the Power HC 3000 support programmable voltage ramping?
Yes—users can define multi-step voltage profiles with dwell times and incremental steps via the front-panel interface or PC software.
Can it be used with cold-room electrophoresis setups?
It is rated for operation down to 10°C ambient; however, condensation must be prevented at the output terminals and ventilation grilles.
Is there built-in memory for saving frequently used protocols?
Yes—up to 10 user-defined protocols can be stored internally with name tags and parameter recall functionality.
What type of fuses does the unit require for replacement?
Fast-acting 2.5 A / 250 V ceramic fuses (5 × 20 mm), accessible via the rear panel service cover.
Does it meet CE or UL certification requirements?
The unit conforms to EN 61010-1:2010 + A1:2019 and carries the CE marking; UL listing is pending third-party evaluation as of Q2 2024.
